Overview

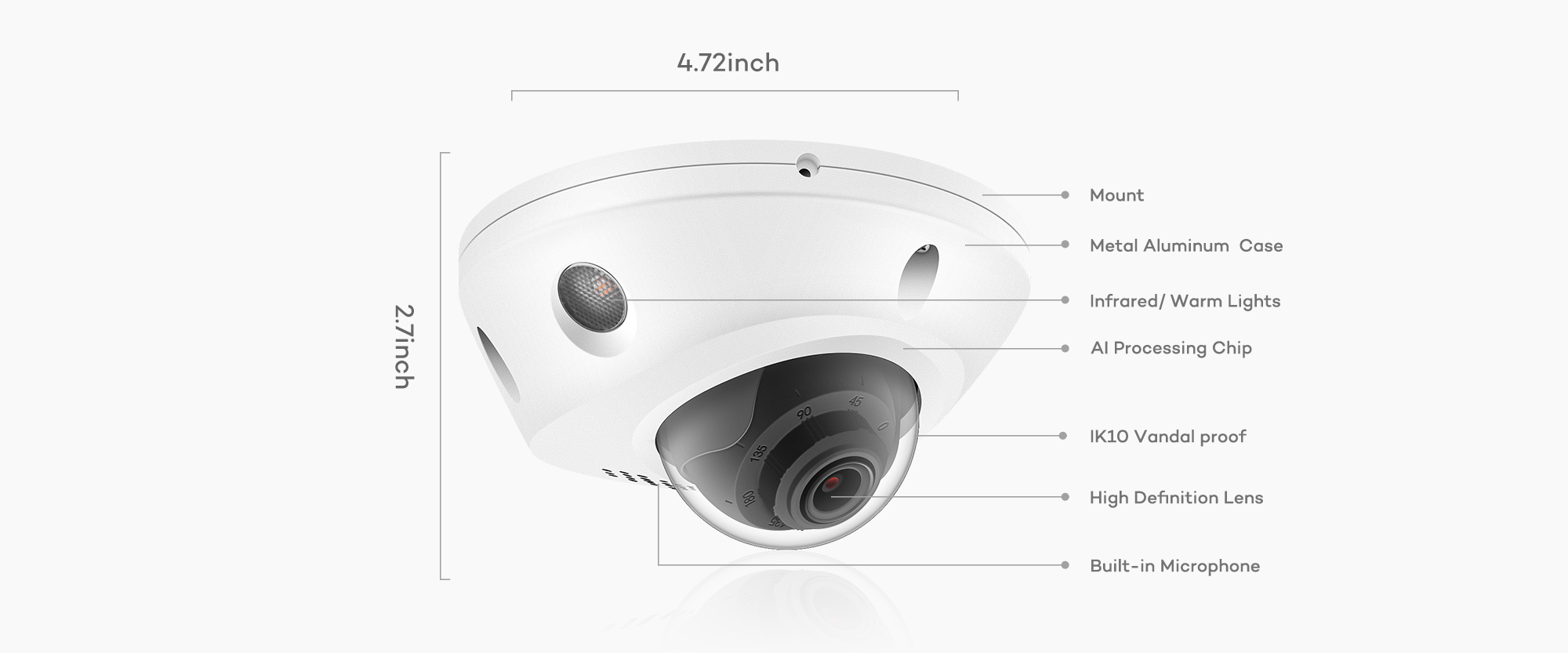

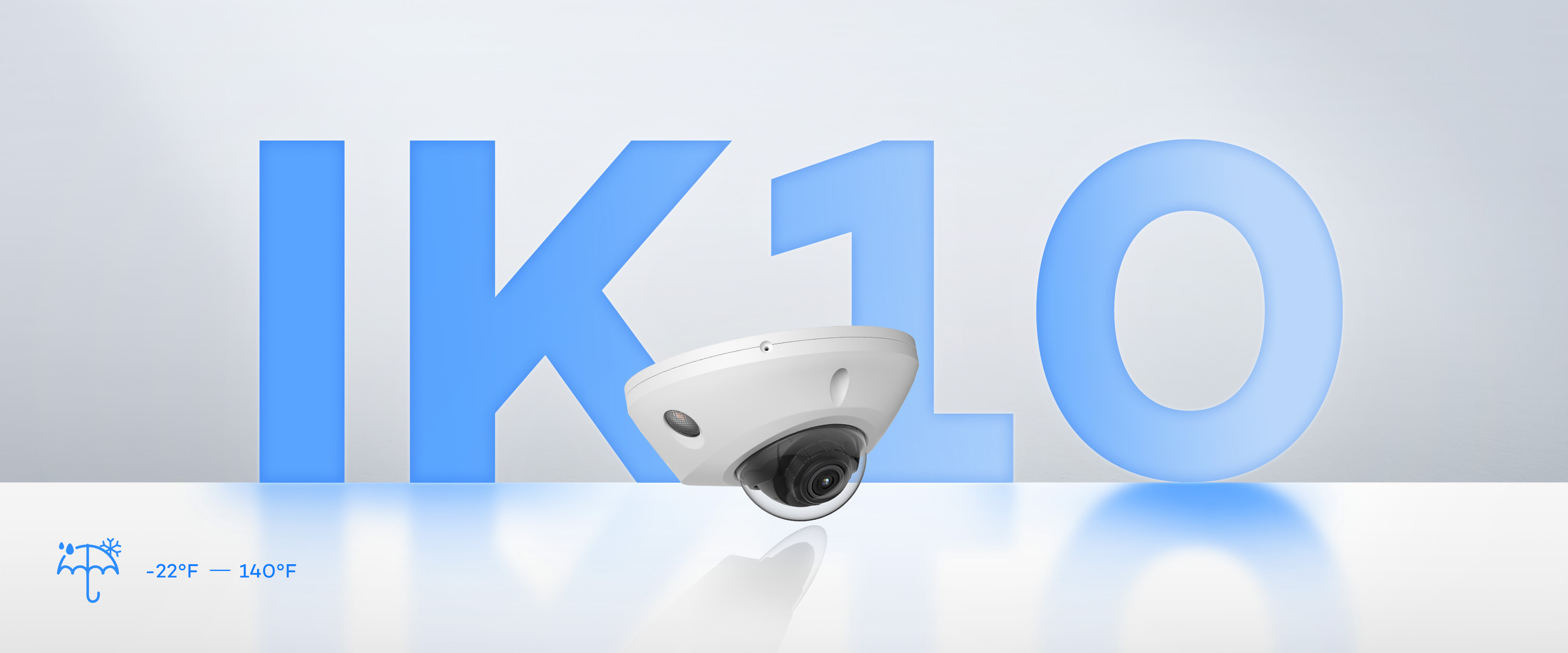

IK10 Vandal Proof

AcuSearch Technology

Two- Way Audio

Listen and talk in real time through the cameras’ built-in microphone and speaker using the free ONWOTE app.

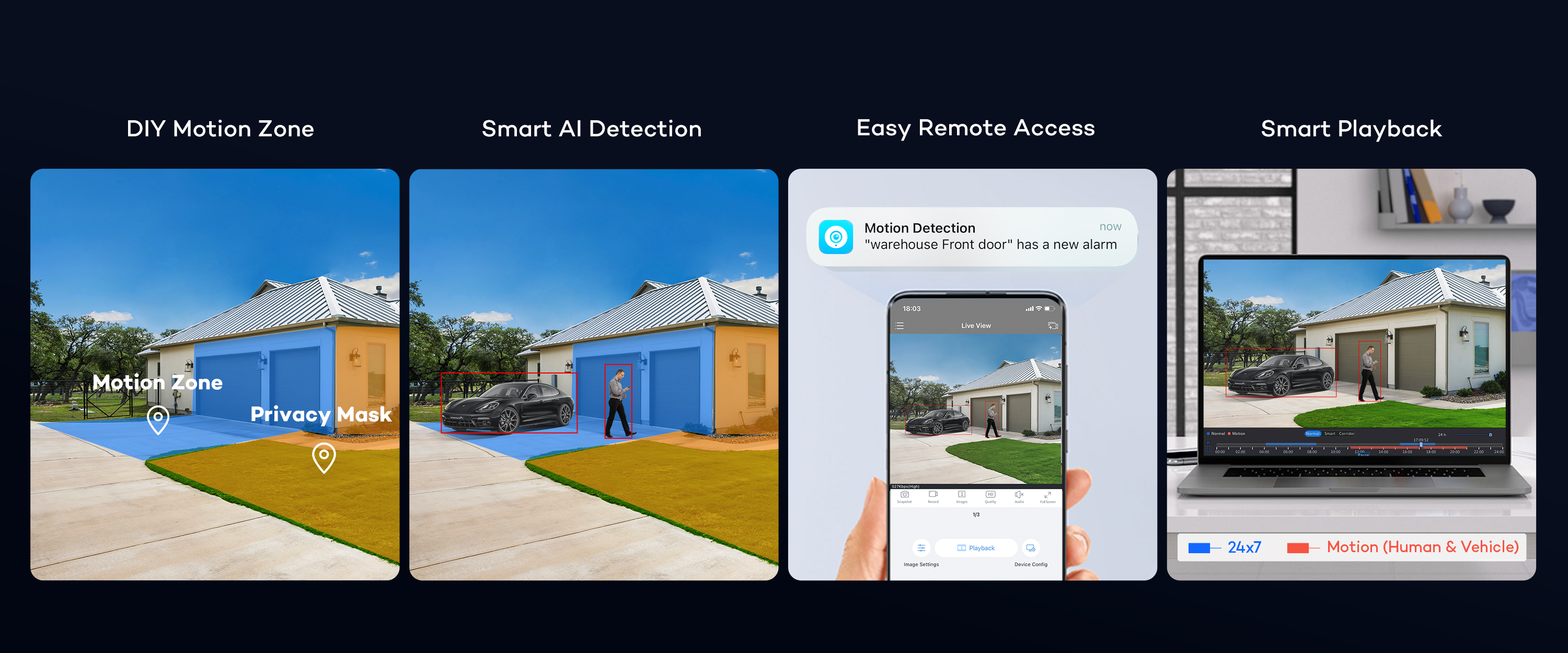

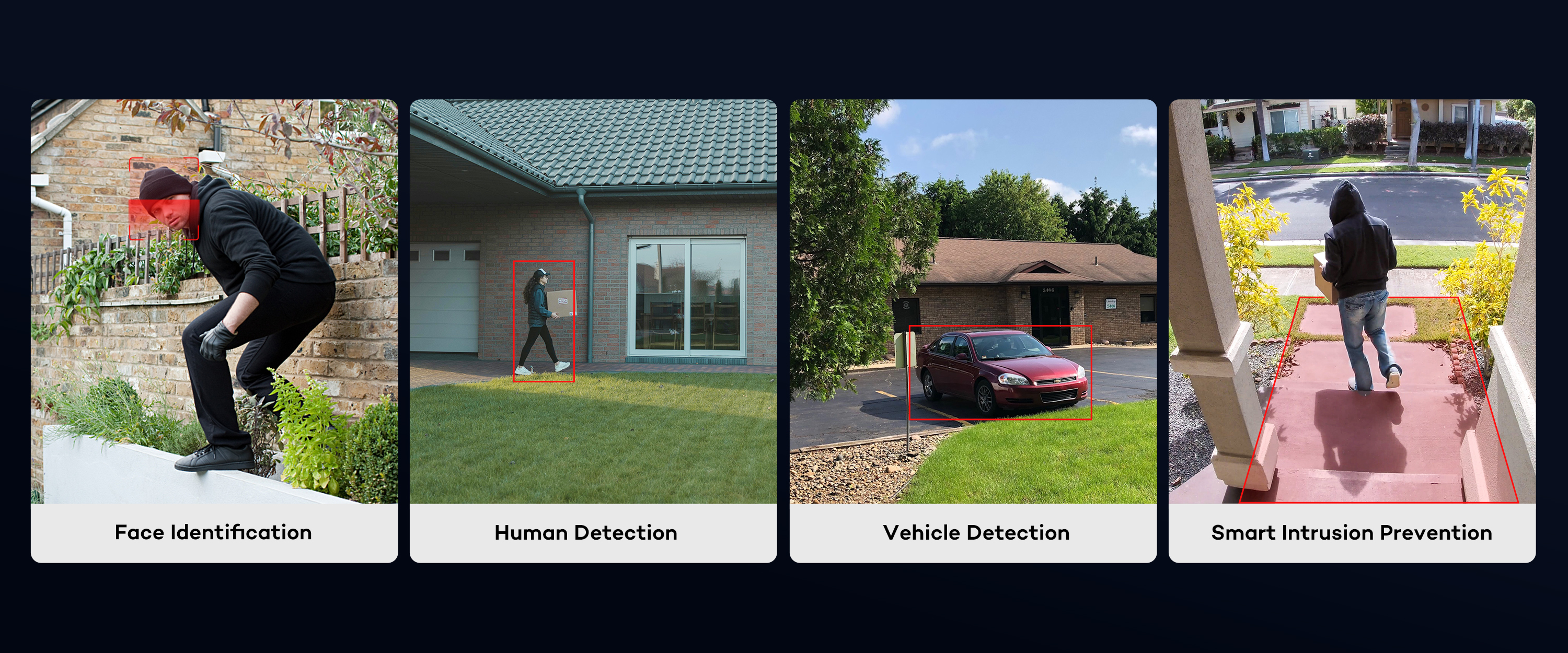

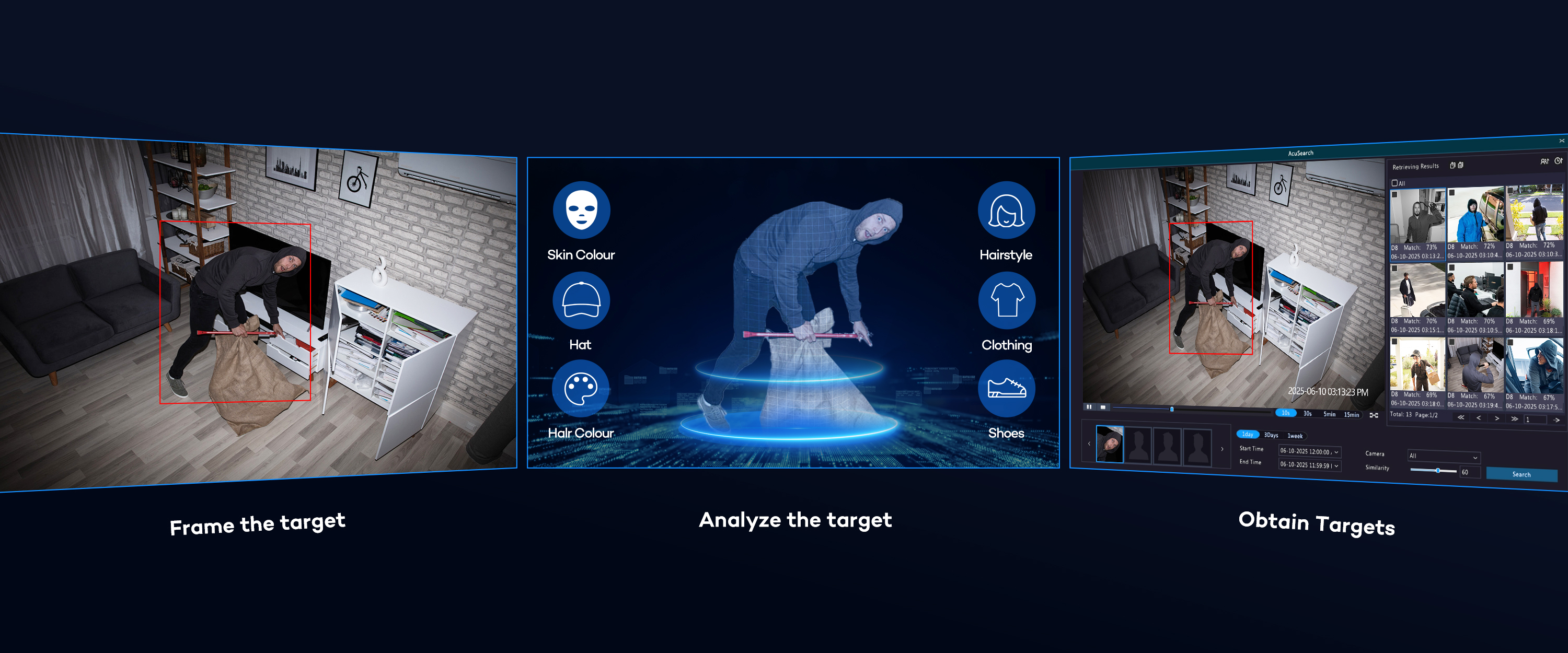

Smart Detection & Analysis

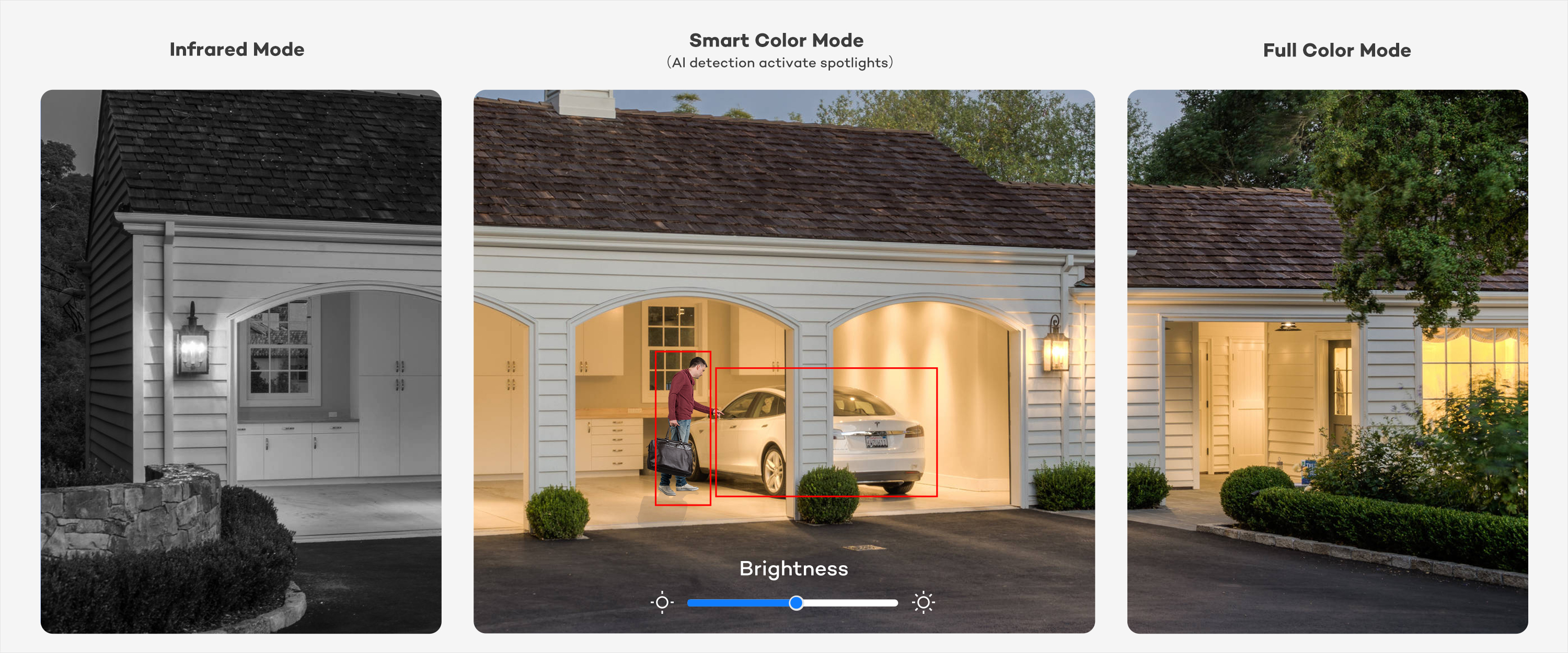

3 Night Vision Modes

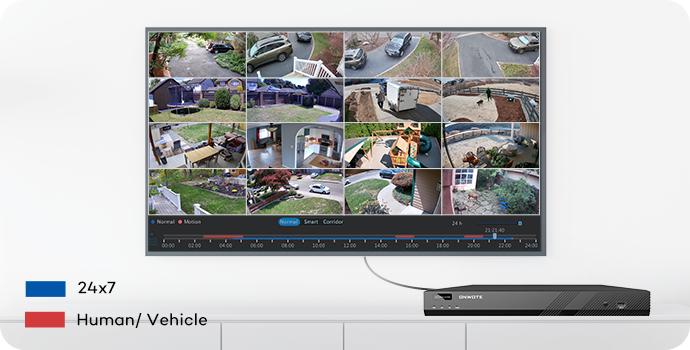

Discovery & Playback

Discovery & Playback Access

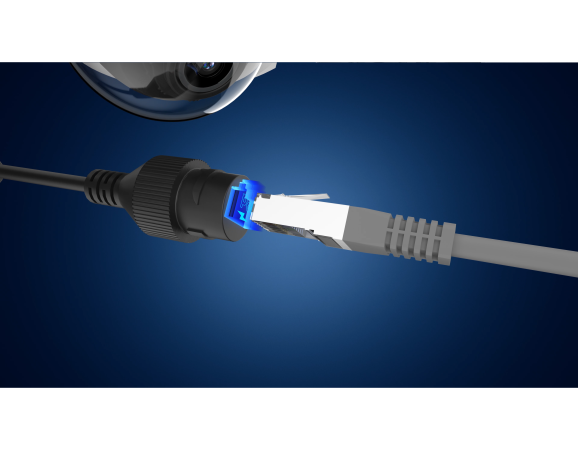

Effortless Setup — One Ethernet Cable Does It All

PoE technology allows a single Cat5 Ethernet cable to transmit video, audio, and power—making installation simpler than traditional DVR systems. Just plug and play.

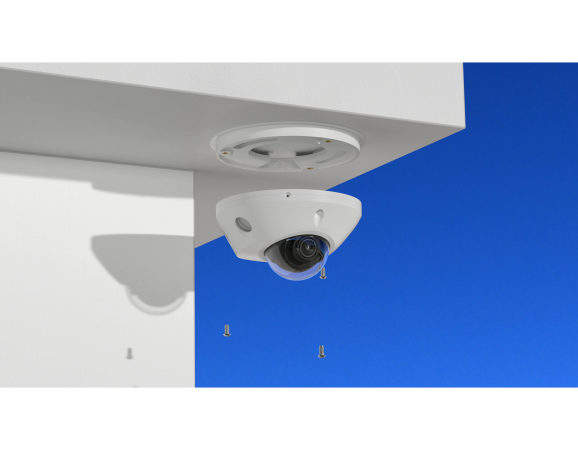

Hassle-Free Installation

Our cameras are designed with simplicity in mind. Whether you're a professional installer or a first-time user, setting up your surveillance system has never been easier.

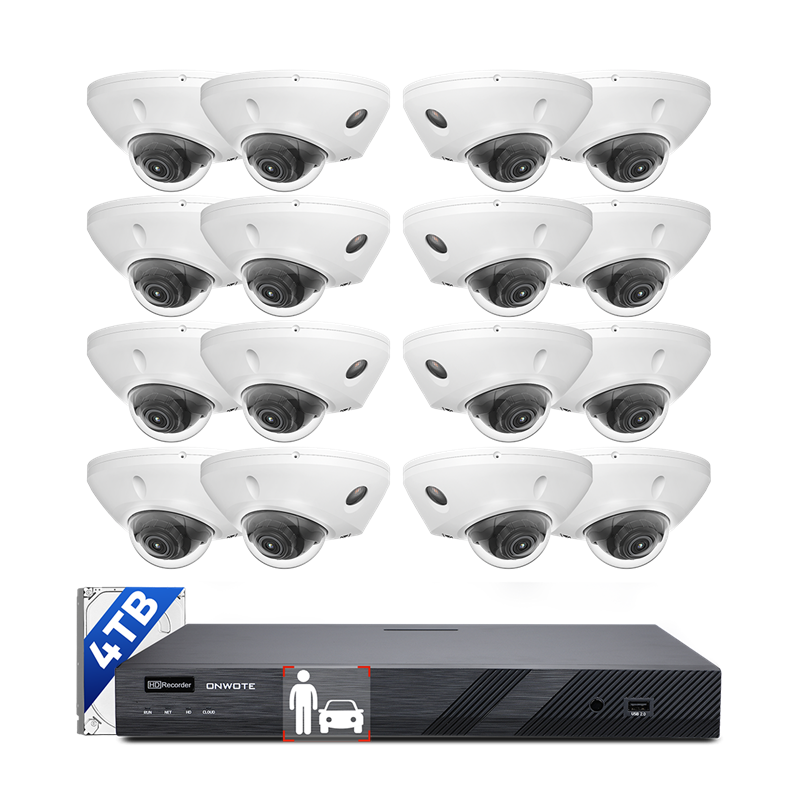

One-Stop DIY Solution

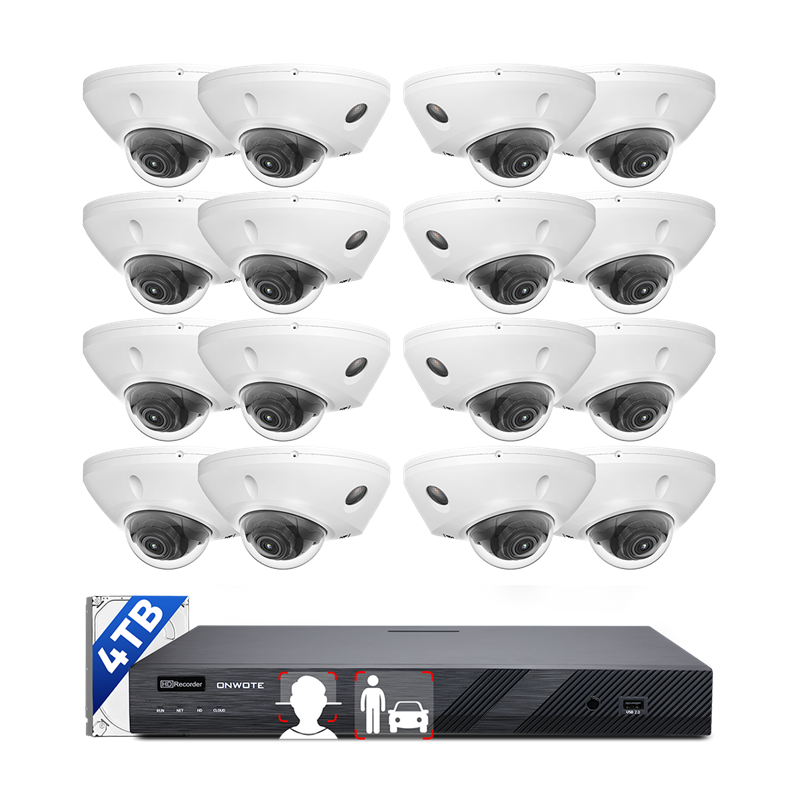

The NVR supports up to 16 cameras, with resolution options of 6K (12MP) or 4K (8MP).
A variety of add-ons are available, including pan-tilt-zoom and two-way audio cameras.

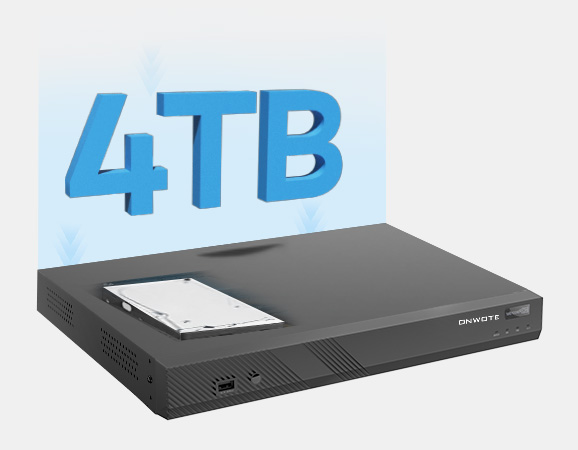

4TB Storage Pre-Installed

An 4TB hard drive comes pre-installed in the NVR, offering free local storage. HEVC advanced encoding helps reduce file sizes and save space.

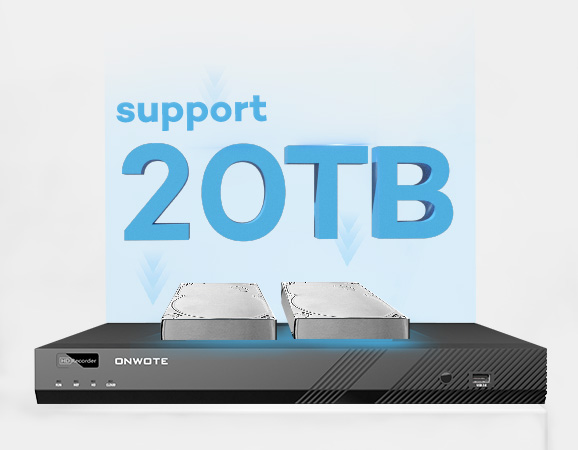

Expandable Up to 20TB

With four 2 ports, the system supports up to 20TB of total storage capacity.

Specification

Camera NVR

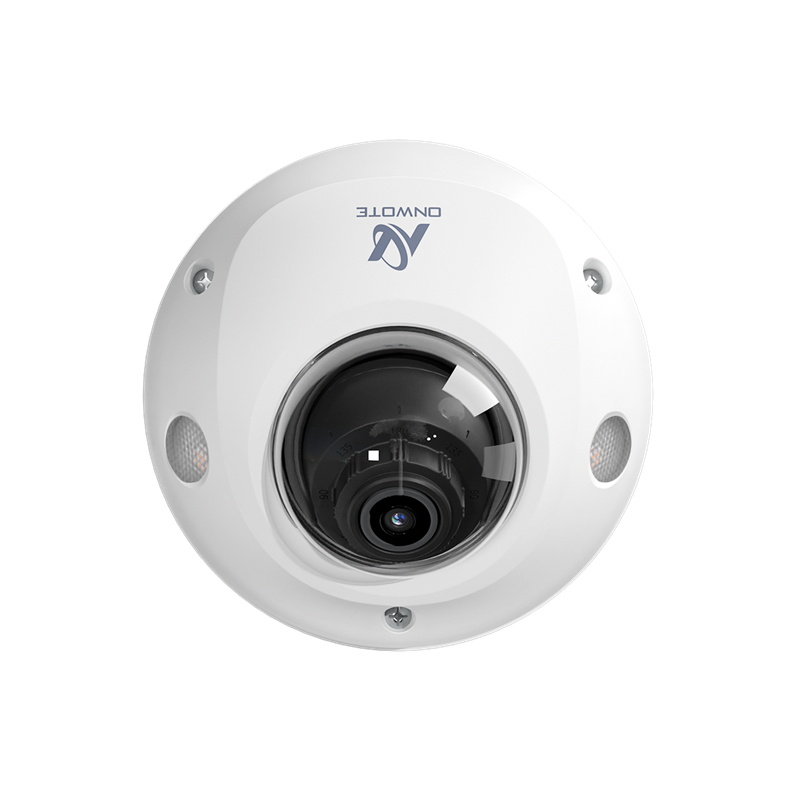

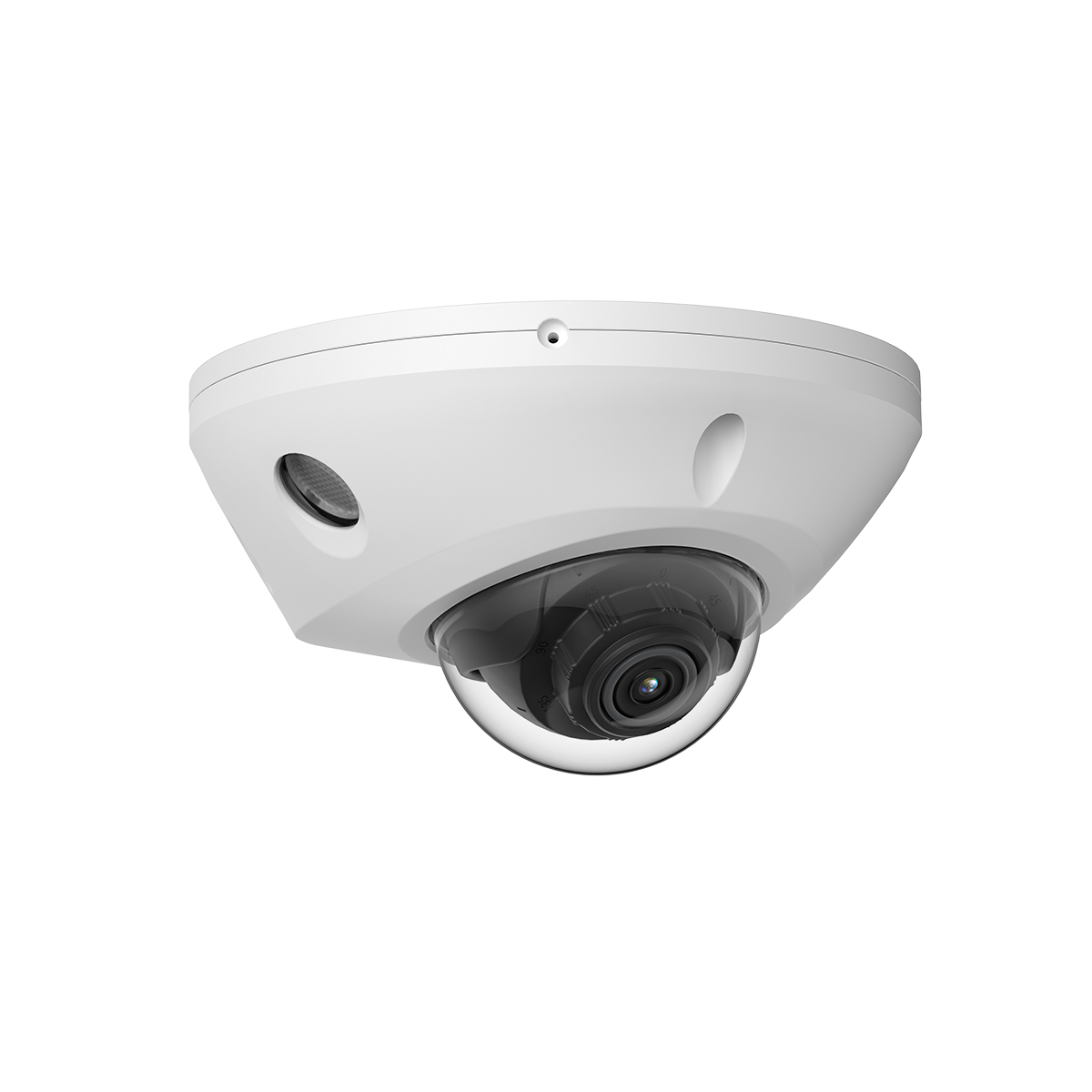

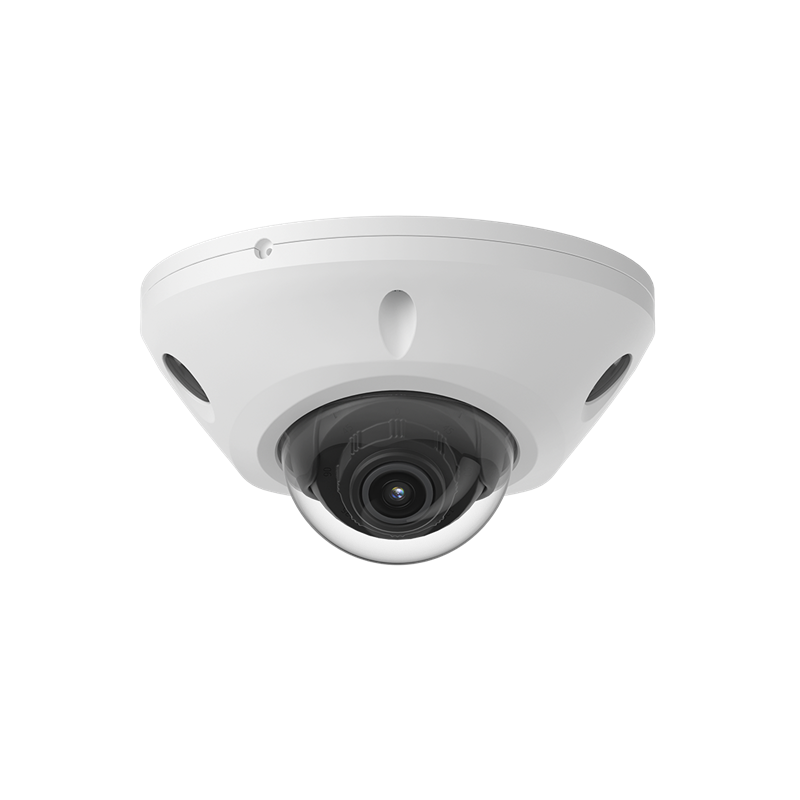

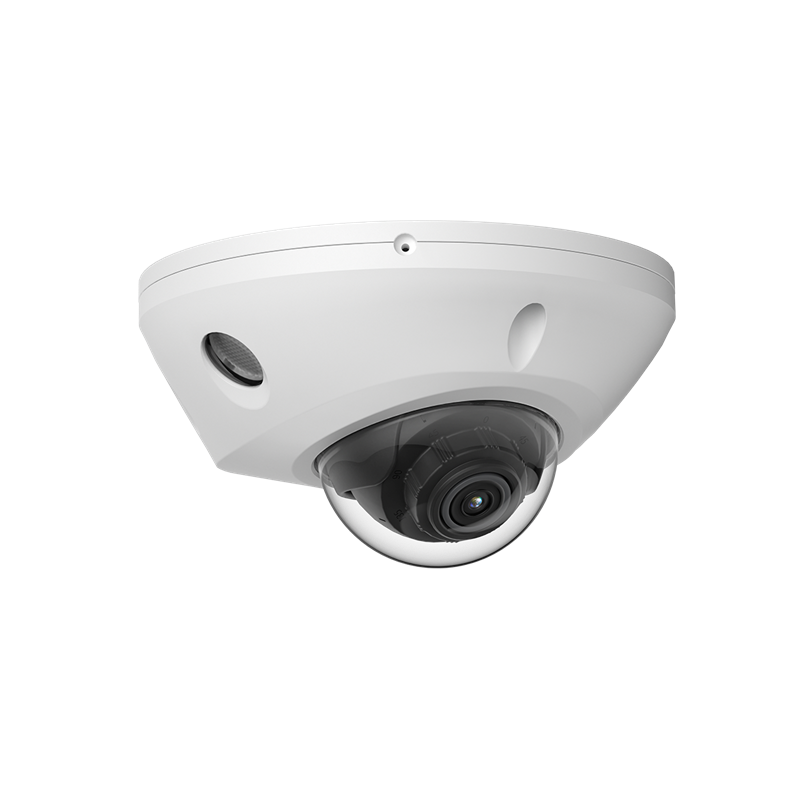

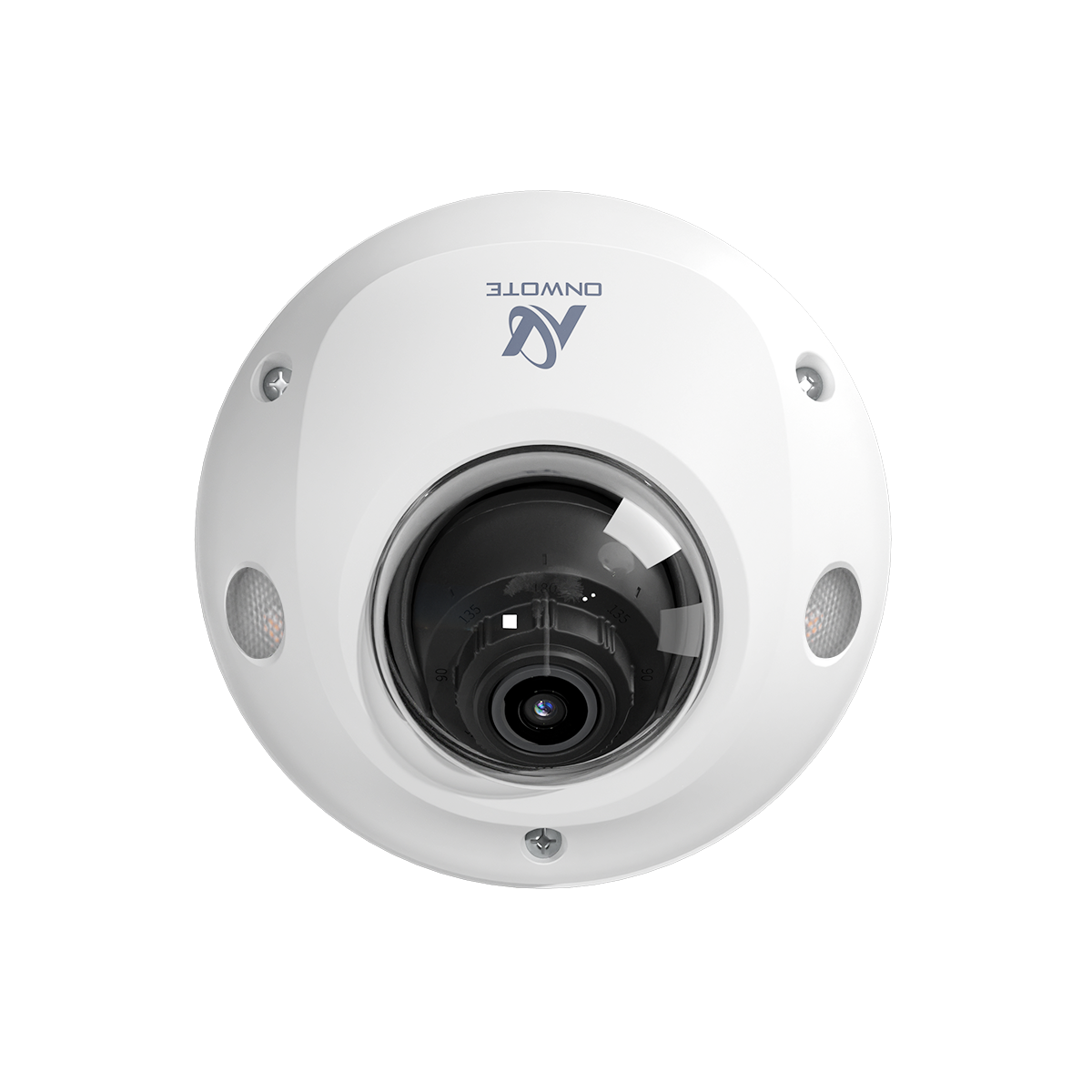

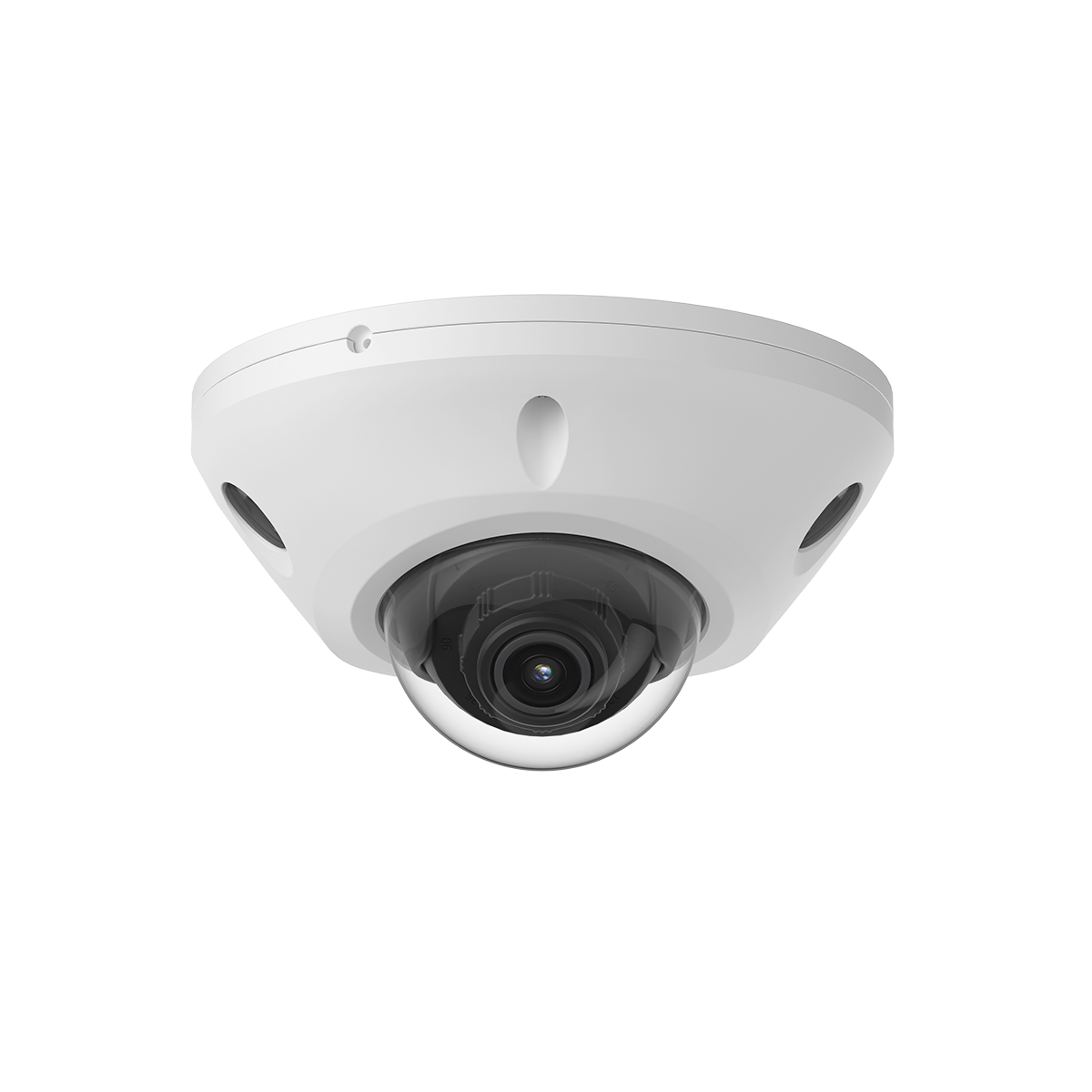

VA50-P28

Video Standard

H.265

Image Sensor

1/3" 5MP CMOS

Lens

2.8 mm Fixed Lens

Effective Pixels

5 Megapixels-2592(H) x 1944(V)

Viewing Angle

122°(Diagonal), 102°(Horizontal), 55°(Vertical)

Frame per Second

30fps@ 5MP (2592x1944)

AI Function

Face Recognition & AcuSearch

Audio

Built-in Microphone (10-15ft)

Image Rotation

Flip Vertical, Flip Horizontal, 180°, 90° Clockwise (CW), 90° Counterclockwise (CCW)

Image Adjust

Adjustable Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%)

Privacy Mask

4 Areas

Night Mode

Smart AI Color Mode, Full Color Mode, Black& White Mode

Night Vision

Infrared Lights with a Range of up to 100ft

Housing

Strong Water-Proof Housing, IP66 Rated

Working Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V or 12V DC ± 10%

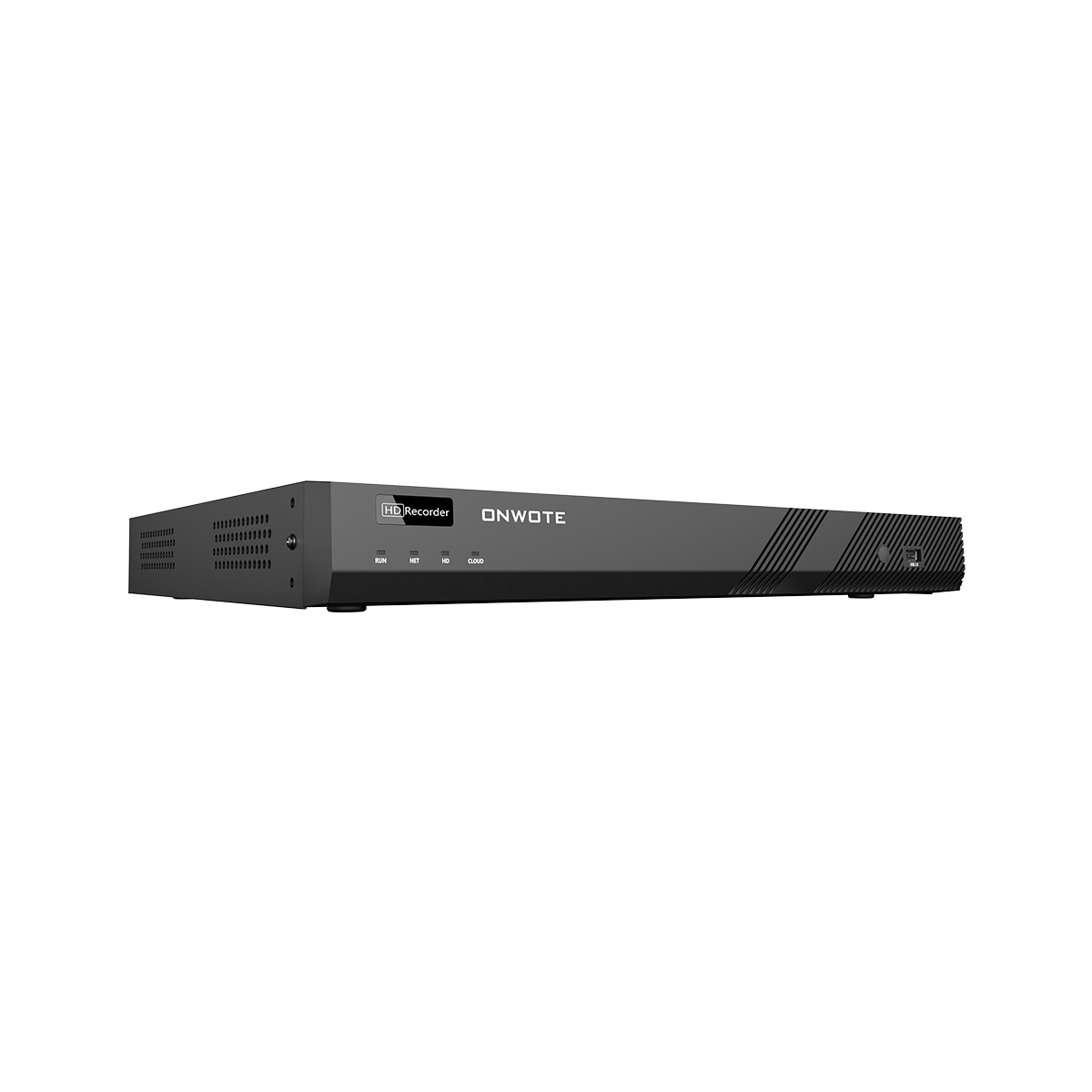

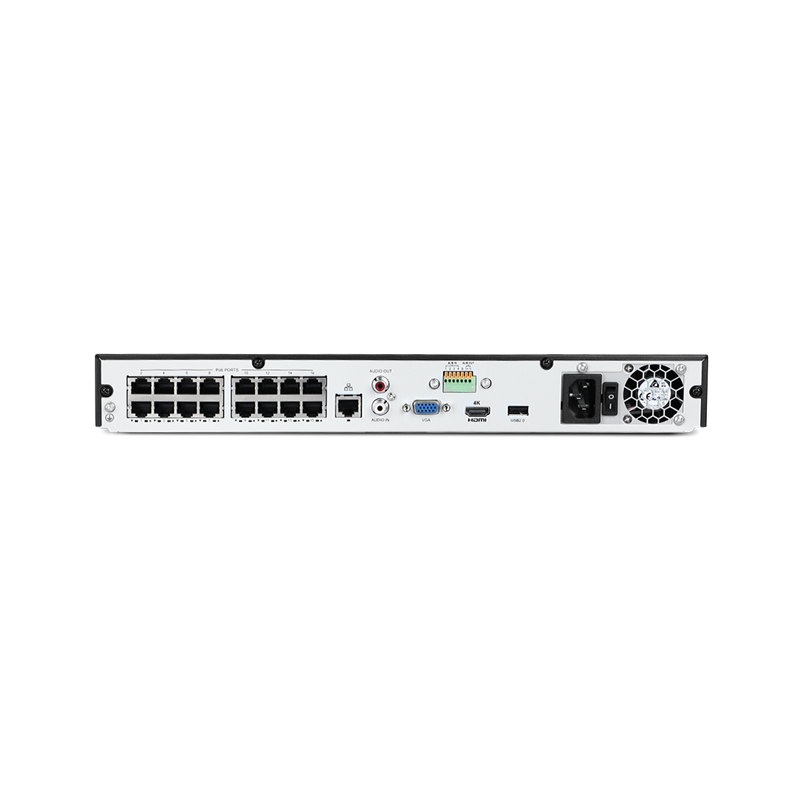

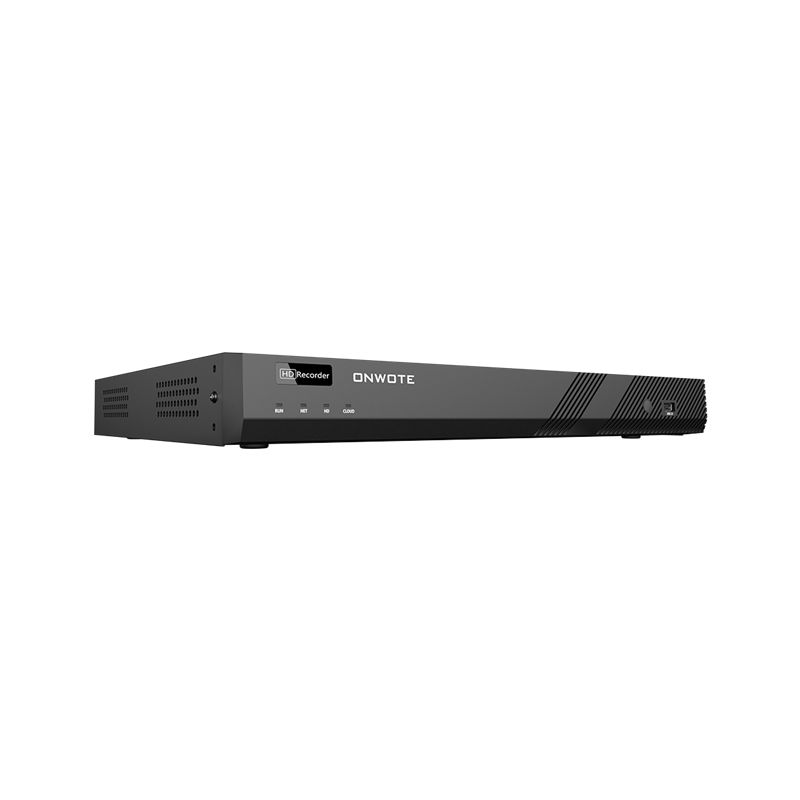

PNS-1216

NVR 30...Series

H.265+/ H.265/ H.264 decoding format

Decoding Capability

1x4K@30, 2x4MP@30, 3x3MP@25, 4x1080P@30, 8x720P@30, 16xD1

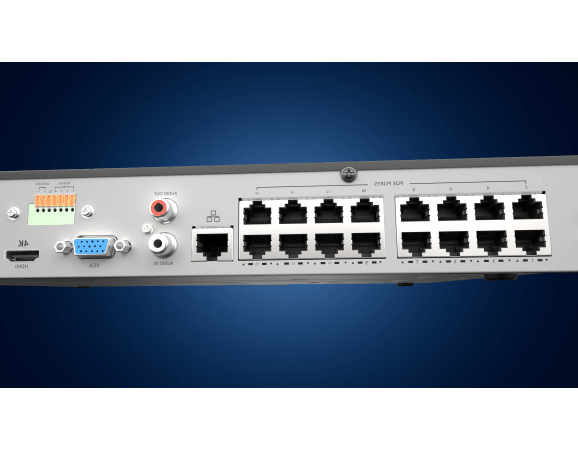

Video Audio Input

16ch IPC, 16-ch 12MP/ 8MP/ 6MP/ 5MP

Video Audio Output

Video‌: 1-ch HDMI (up to 4K), 1-ch VGA (up to 1080p) ‌Audio‌: 1-ch HDMI & 1-ch RCA

Recording Resolution

12MP/8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Storage Capacity

4TB HDD is pre-installed; 2×SATA interfaces, max 10TB/HDD, total 20TB (HDD not included)

Local Synchronous Playback

16-ch simultaneous playback

Bandwidth

Incoming-160Mbps; outgoing-128Mbps

Remote Access

128 users; Mobile (iOS/Android); PC (Windows/macOS)

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

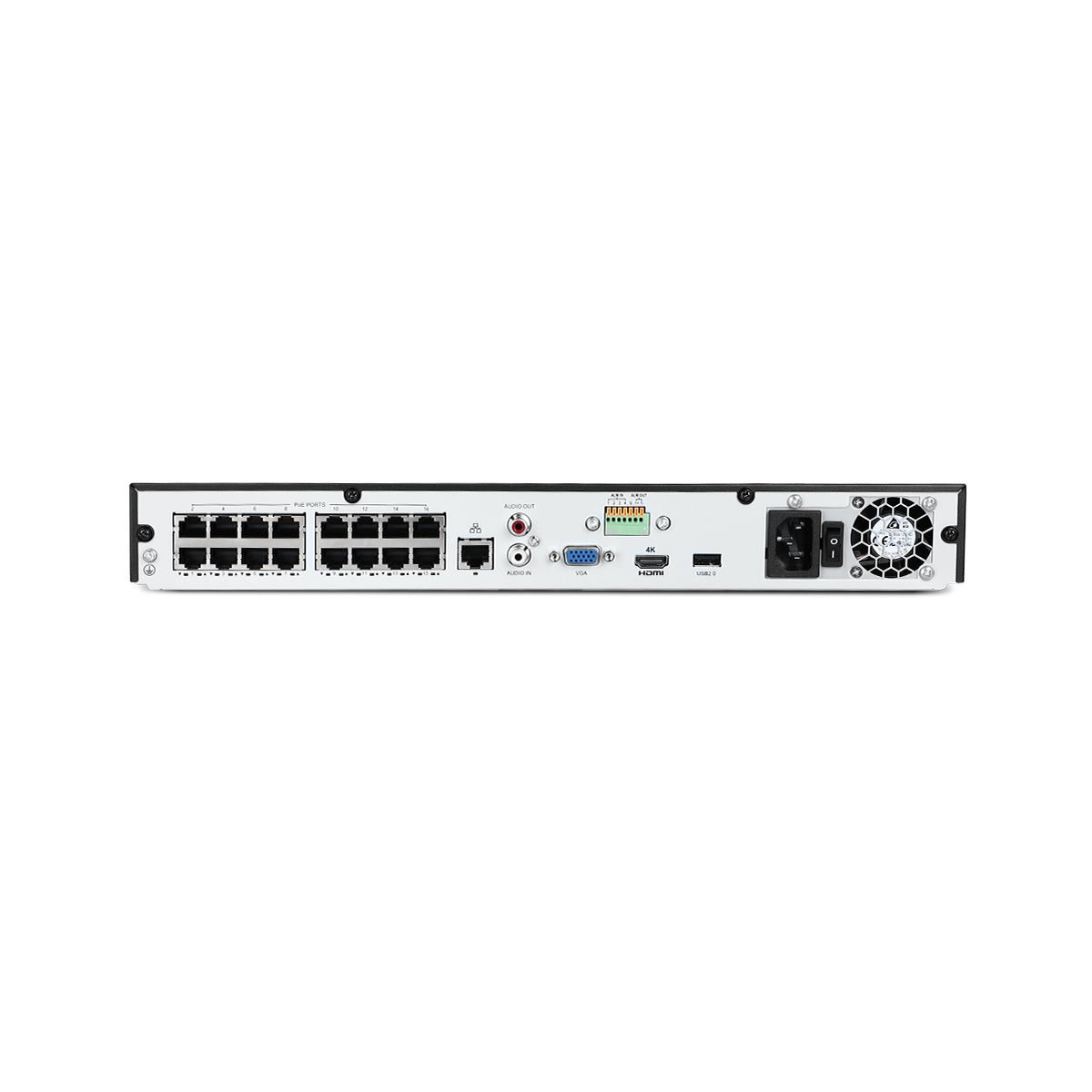

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive ethernet interfaces

USB Interface

Front: 1×USB 2.0; rear: 1×USB 3.0

Power Supply

12V DC; Power consumption: ≤12W (without HDD)

Working Environment

Temperature: -10°C to +55°C (+14°F to +131°F); Humidity: ≤90% RH (non-condensing)

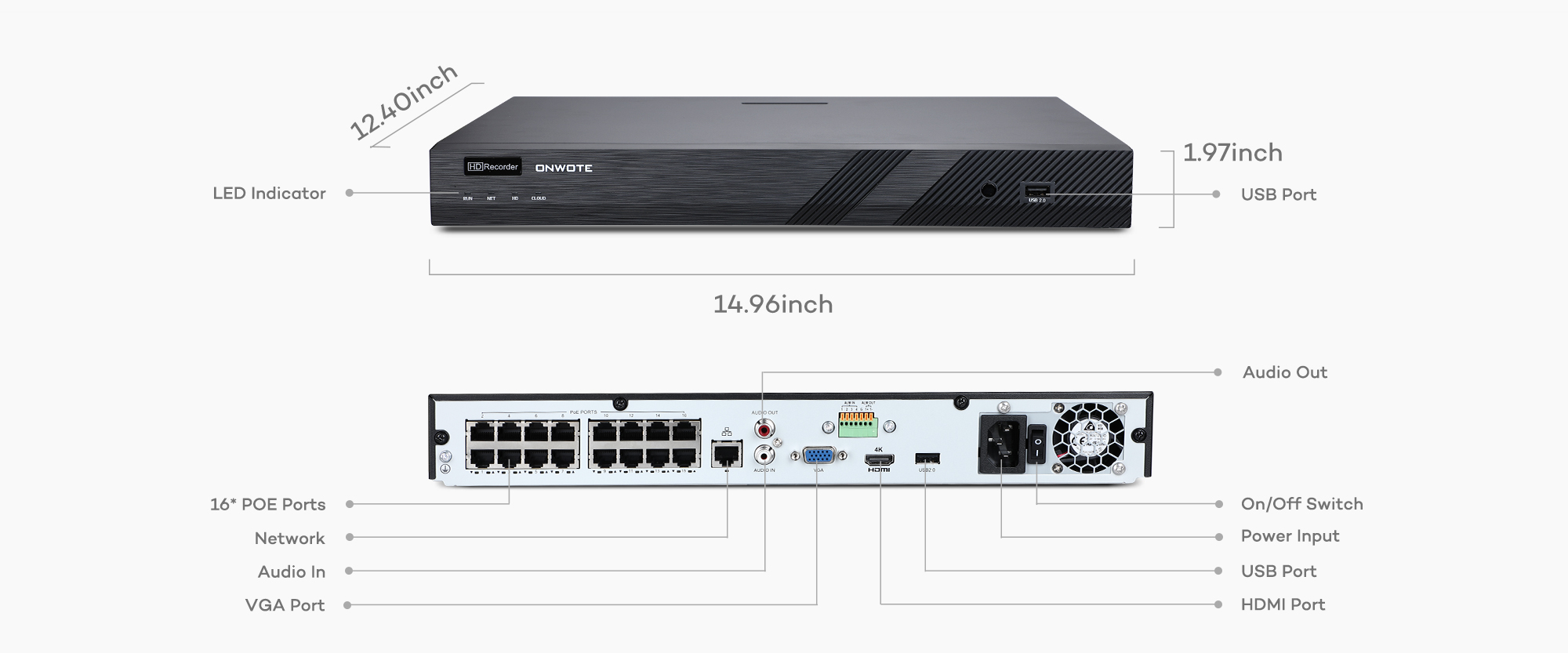

Dimensions & Weight

380mm×322mm×53mm (15.0"×12.7"×2.1"); Weight: ≤3.34kg (7.36lb)

Compatibility

Not plug-and-play with third-party cameras; requires ONWOTE PoE IP cameras (12MP/8MP/6MP/5MP/4MP)

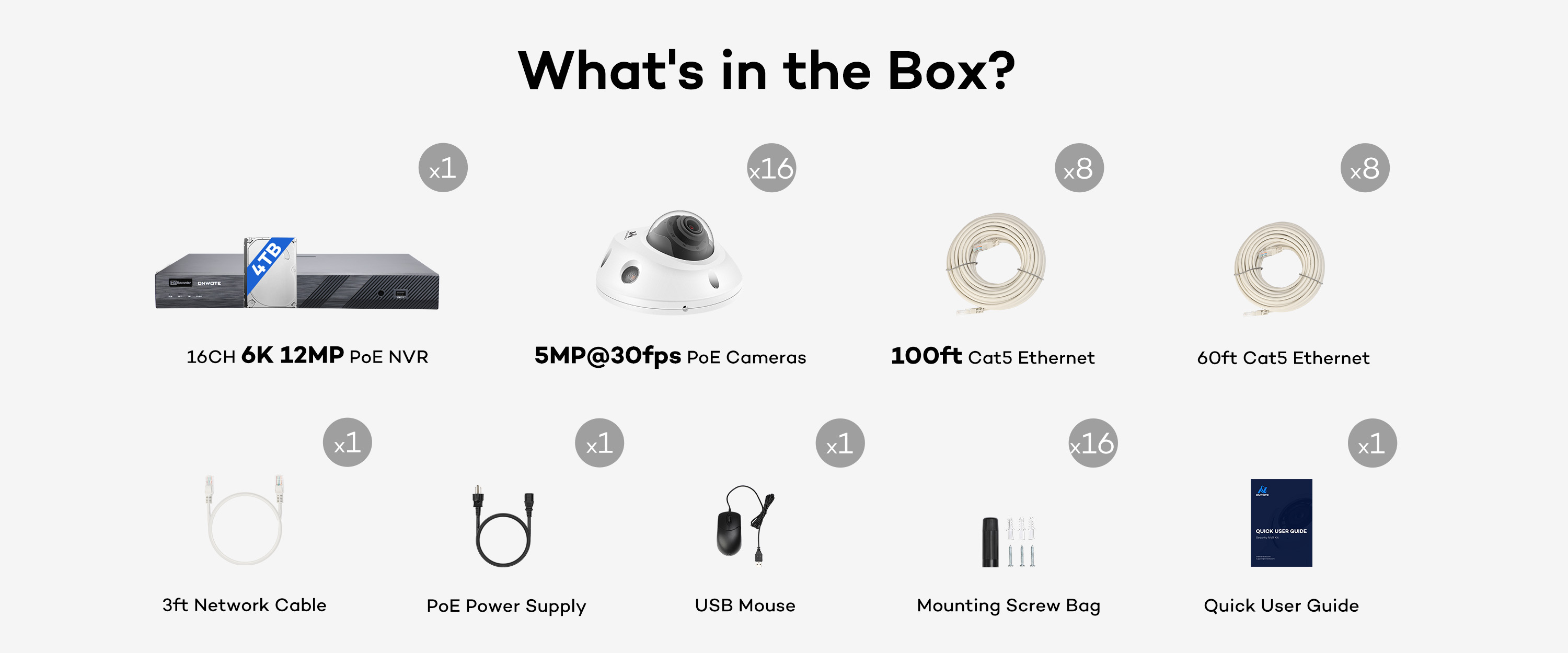

Packing List

Videos

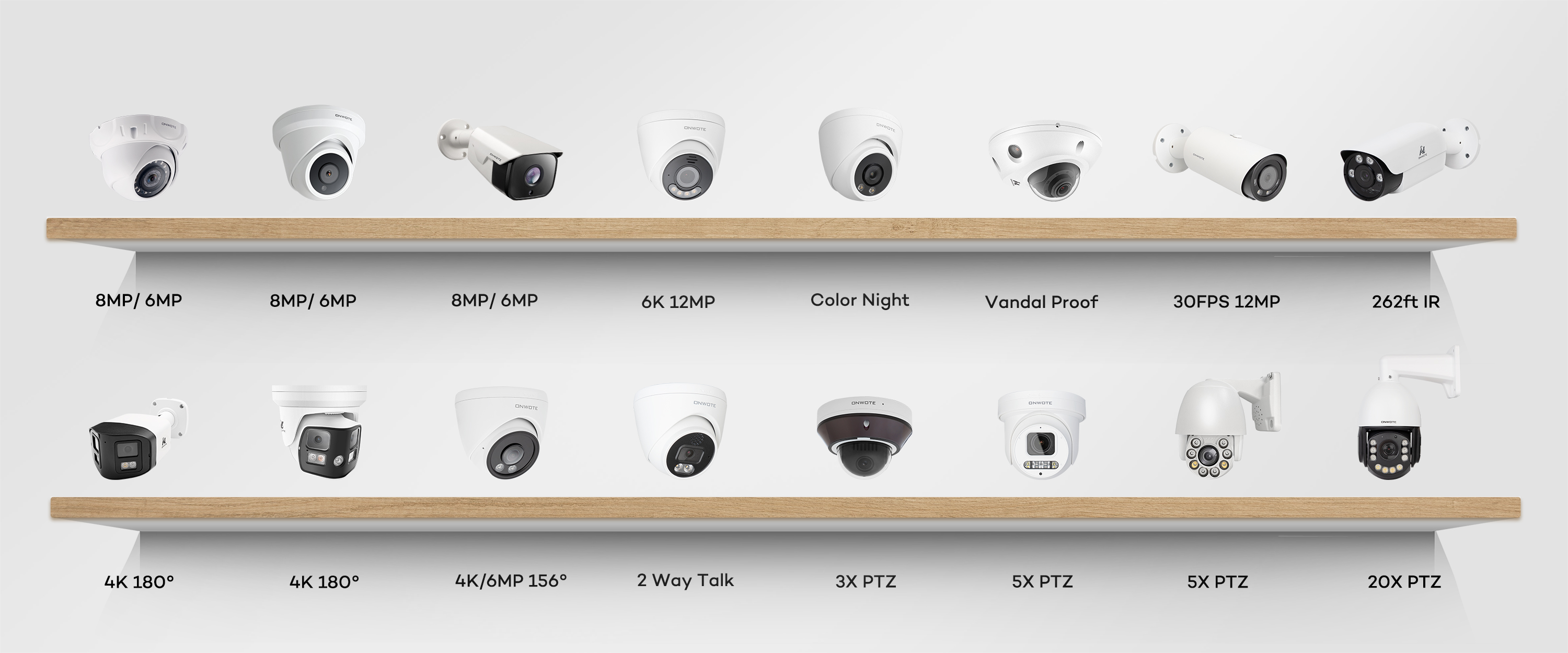

Add-on

PTZ20X 4K/8MP PoE Camera

$273.59 Save $26.40
PTZ5X 4K/8MP PoE PTZ Camera

$153.59 Save $16.40
PTZ 5X 4K 8MP PoE Camera

$134.39 Save $15.60
PTZ 5X 4K 8MP PoE Camera

$143.99 Save $16.00
5X Optical Zoom 4K 8MP PoE Camera

$101.75 Save $14.24
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
6K/12MP PoE Camera

$138.23 Save $21.76
6K/12MP PoE Camera

$138.23 Save $21.76
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60

Comparison

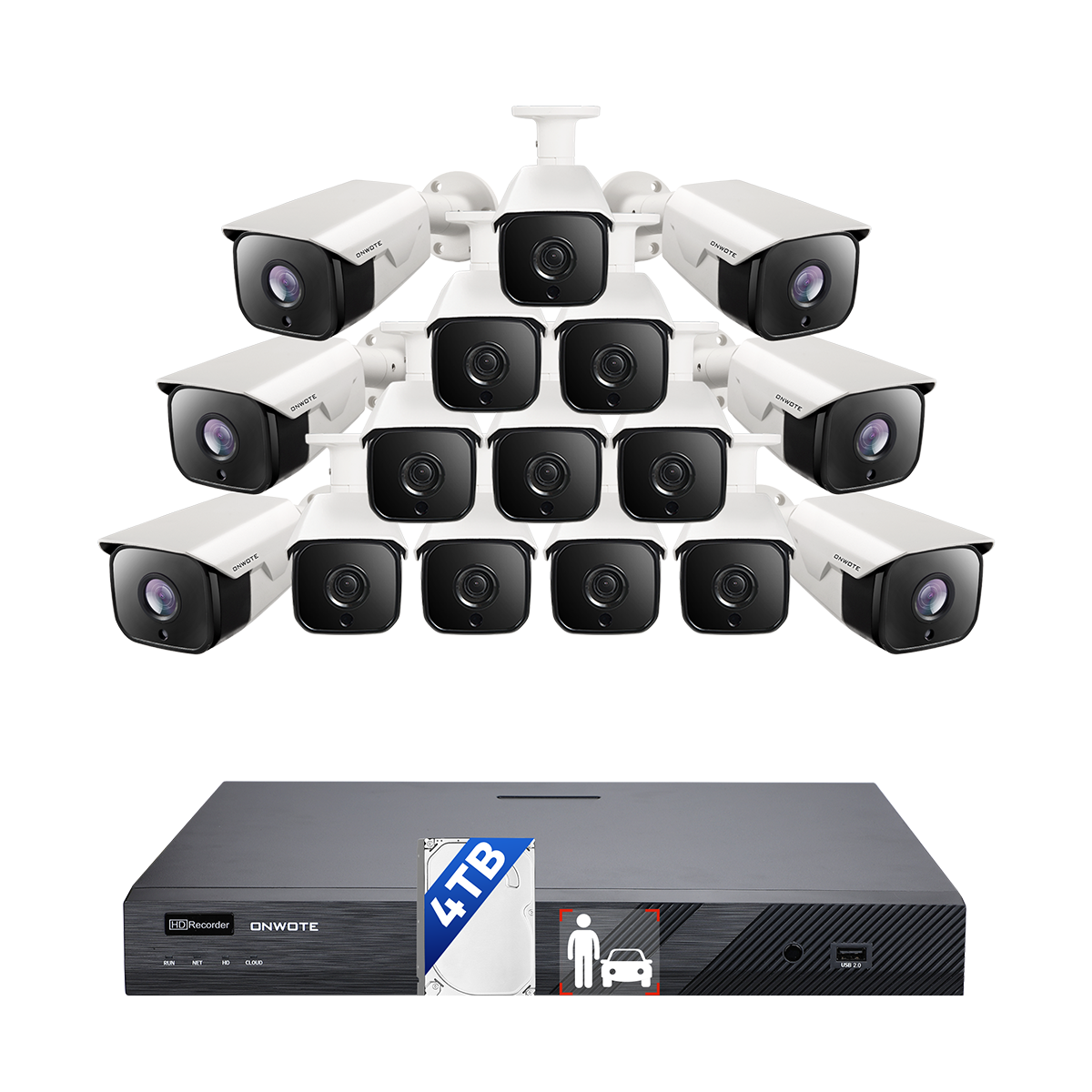

	16CH 5MP PoE System $ 1073.49	16CH 4K PoE System $ 1379.99	16CH 5MP PoE System $ 979.99	16CH 4K PoE System $ 1379.99	16CH 4K PoE System $ 1359.99
Resolution	5MP@30FPS	8MP@20FPS	5MP@25FPS	8MP@20FPS	8MP
Field of View	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)
Audio	Two Way Audio	Two Way Audio	Built-in Microphone	Built-in Microphone	Built-in Microphone
AI Function	Face Recognition & AcuSearch	Face Recognition & AcuSearch	AI Human Vehicle Detection & AcuSearch	AI Human Vehicle Detection	Face Recognition& AcuSearch
NVR Channels	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR
HDD Pre-installed	4TB HDD	4TB HDD	4TB HDD	4TB HDD	4TB HDD
Storage Capacity	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	/	/	/	/	/


16CH 5MP PoE System $ 1073.49
16CH 4K PoE System $ 1379.99
16CH 5MP PoE System $ 979.99
16CH 4K PoE System $ 1379.99
16CH 4K PoE System $ 1359.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
5MP@30FPS	122°(D), 102°(Hl), 55°(V)	Two Way Audio	Face Recognition & AcuSearch	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition & AcuSearch	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
5MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	AI Human Vehicle Detection & AcuSearch	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
