NVR 30...Series
Incoming: smart off-384Mbps, smart on-200Mbps. Outgoing: smart off-384Mbps, smart on-200Mbps

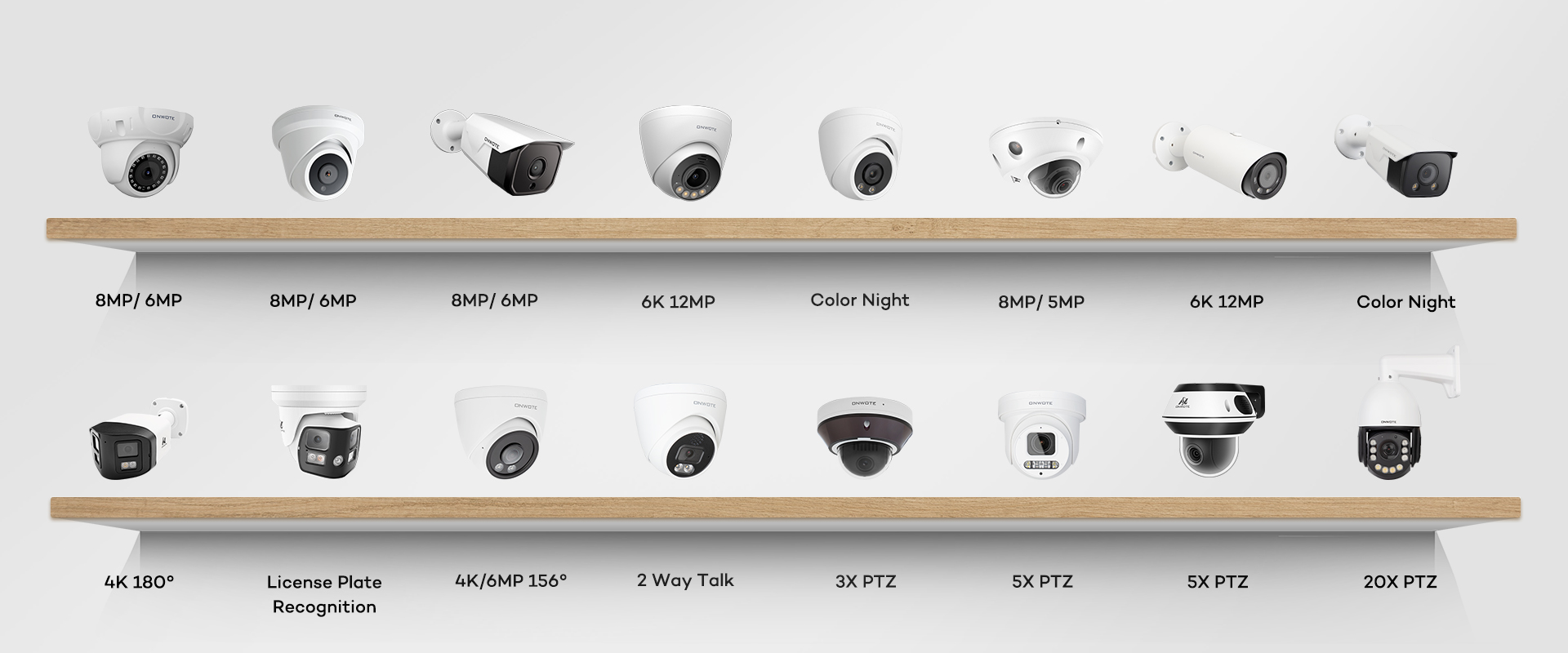

Compatibilty

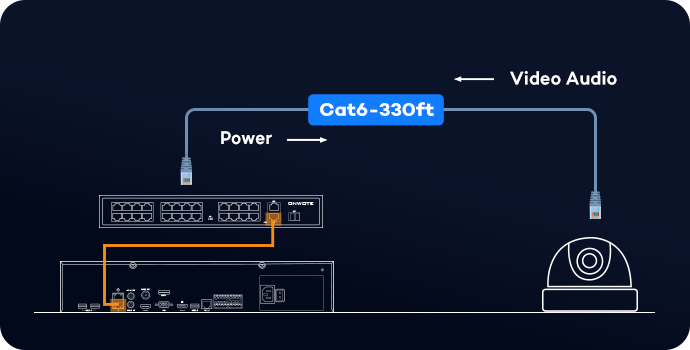

Not compatible with cameras from other brands; requires ONWOTE PoE IP cameras (12MP/8MP/6MP/5MP/4MP)
No Hard Drive Included
A hard drive(not included) needs to be installed for recording.
Decoding Capability
Smart Off: 2x32MP@30, 4x16MP@30, 5x12MP@30, 8x8MP@30, 10x6MP@30, 12x5MP@30, 16x4MP@30, 20x3MP@30, 32x1080P@30, 64x720P@30 Smart On: 1x32MP@30, 3x16MP@30, 4x12MP@30, 6x8MP@30, 8x6MP@30, 9x5MP@30, 12x4MP@30, 16x3MP@30, 24x1080P@30, 48x720P@30
Video Audio Input
Smart off: 64CH IPC, 24CH 32MP, 48CH 16MP/ 12MP, 64CH 8MP/ 6MP/ 5MP/ 4MP Smart on: 64CH IPC, 12CH 32MP, 25CH 16MP/ 12MP, 33CH 8MP/ 6MP/ 5MP, 57CH 4MP

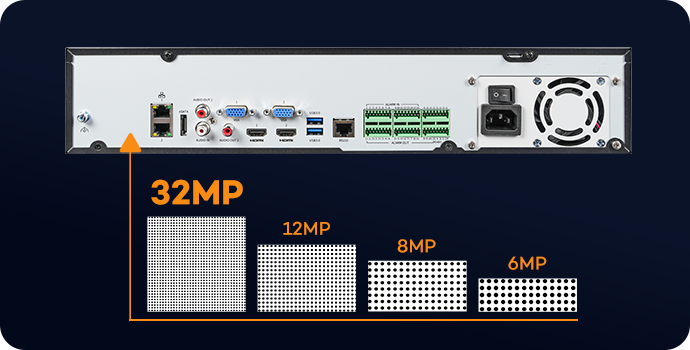

Video Audio Output

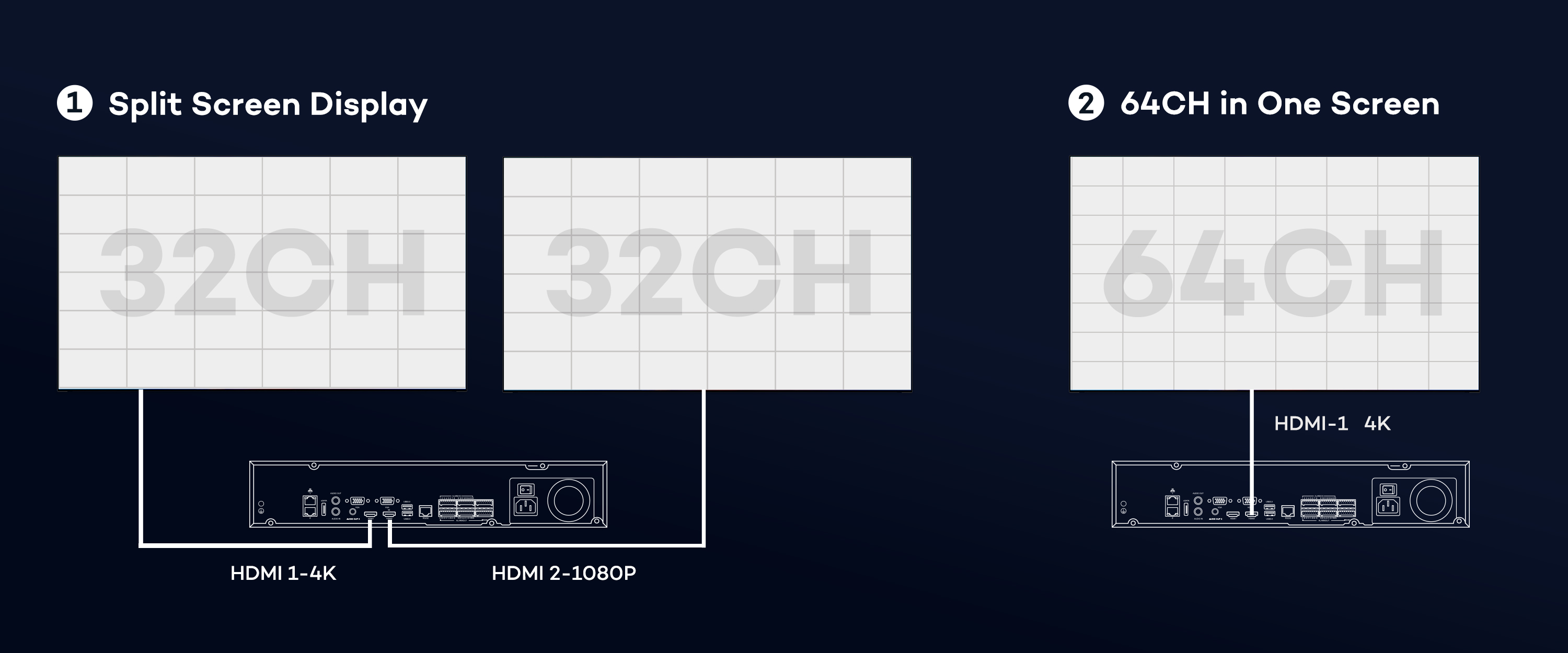

Video: 2*HDMI- 4K (3840x2160) 60Hz; 2*VGA-(1920x1080P) 60Hz Audio: HDMI & RCA
Recording Resolution
32MP/16MP/12MP/8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

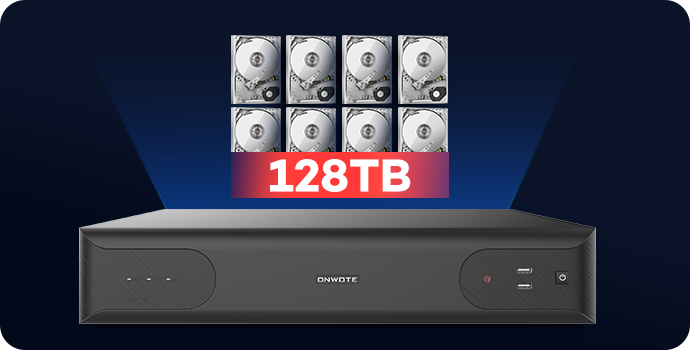

Storage Capacity
8×SATA interfaces, max 16TB/HDD, total 128TB (HDD not included)
Disk Array Type
RAID 0, 1, 5, 6, 10
Local Synchronous Playback
16-ch simultaneous playback
Smart AI (Camera Must Support)

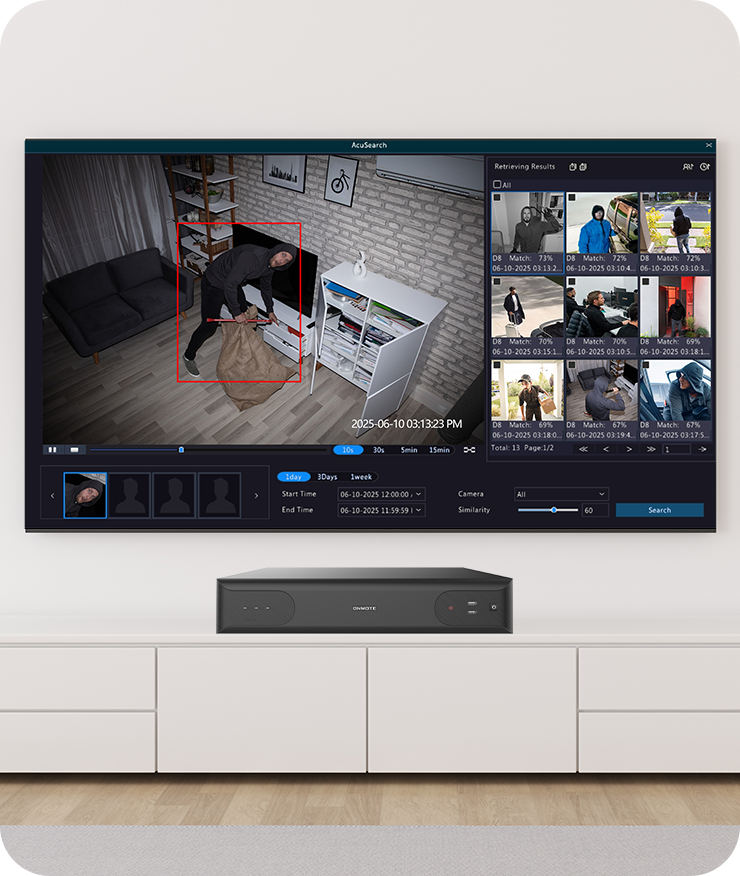

Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non Motor Vehicle Search, Human Body Search, General Search, AcuSearch.
Remote Access
128 users; Mobile (iOS/Android); PC (Windows/macOS)
Protocols
TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; 802.1x; IPV6

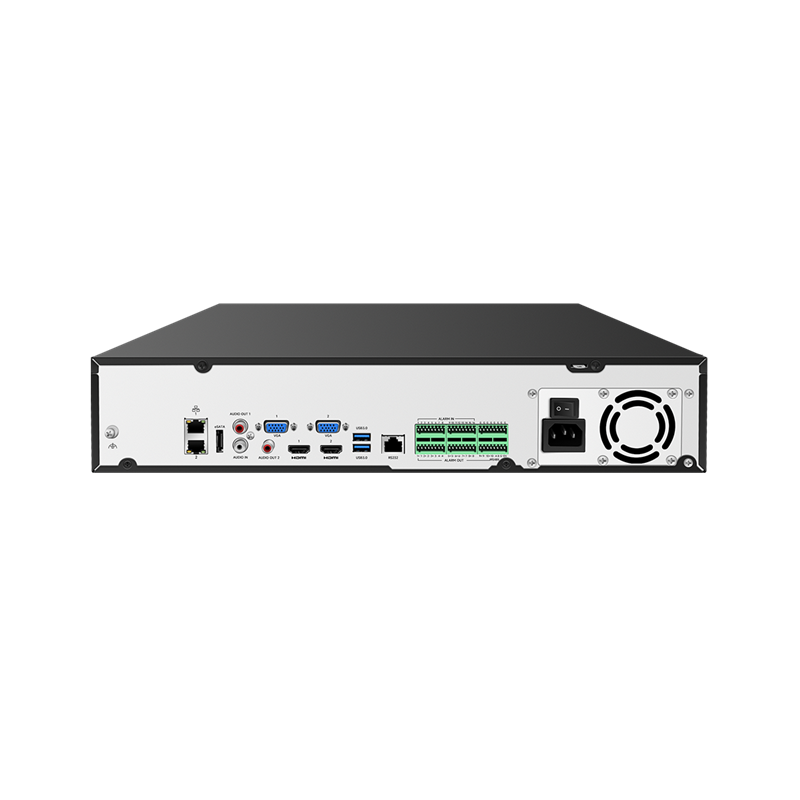

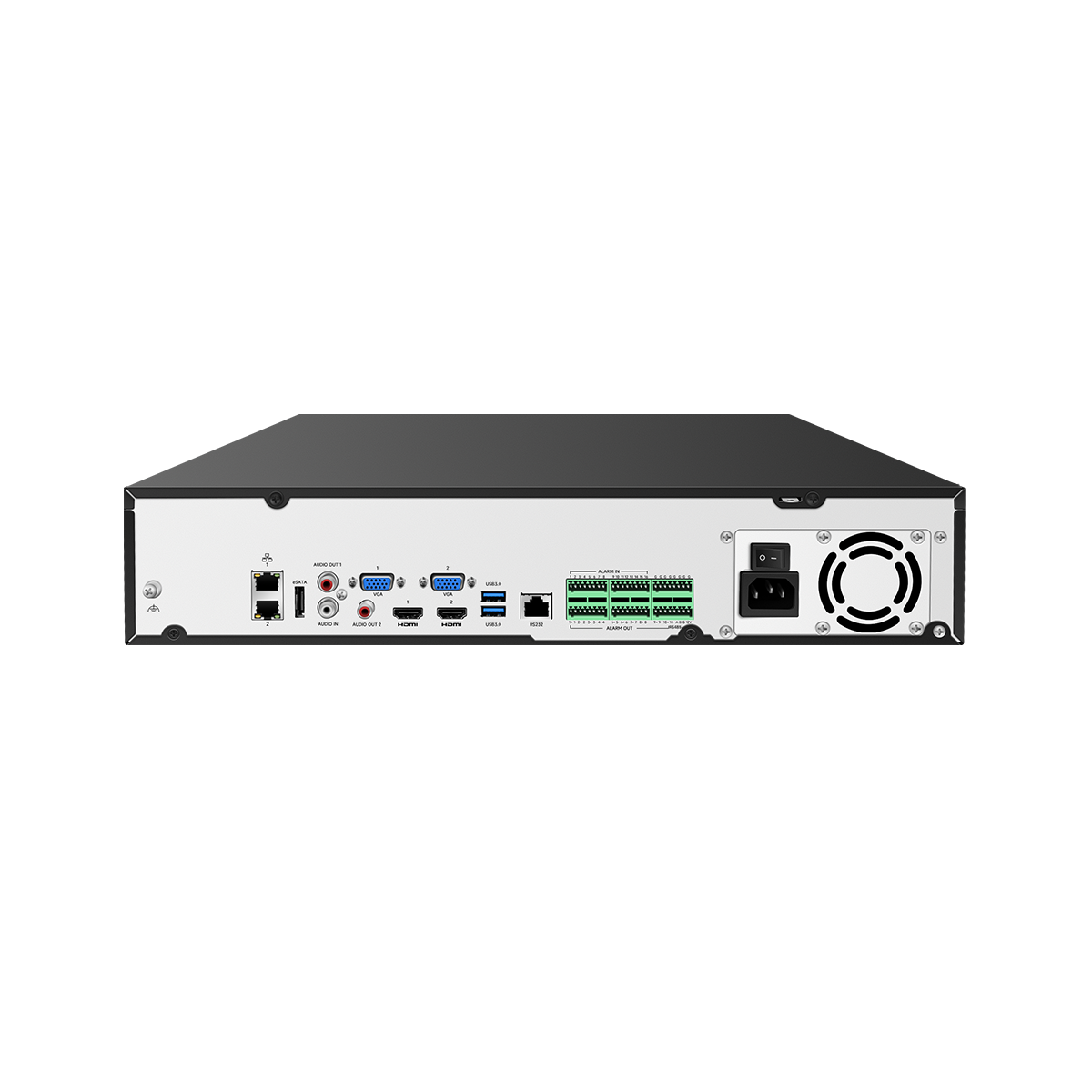

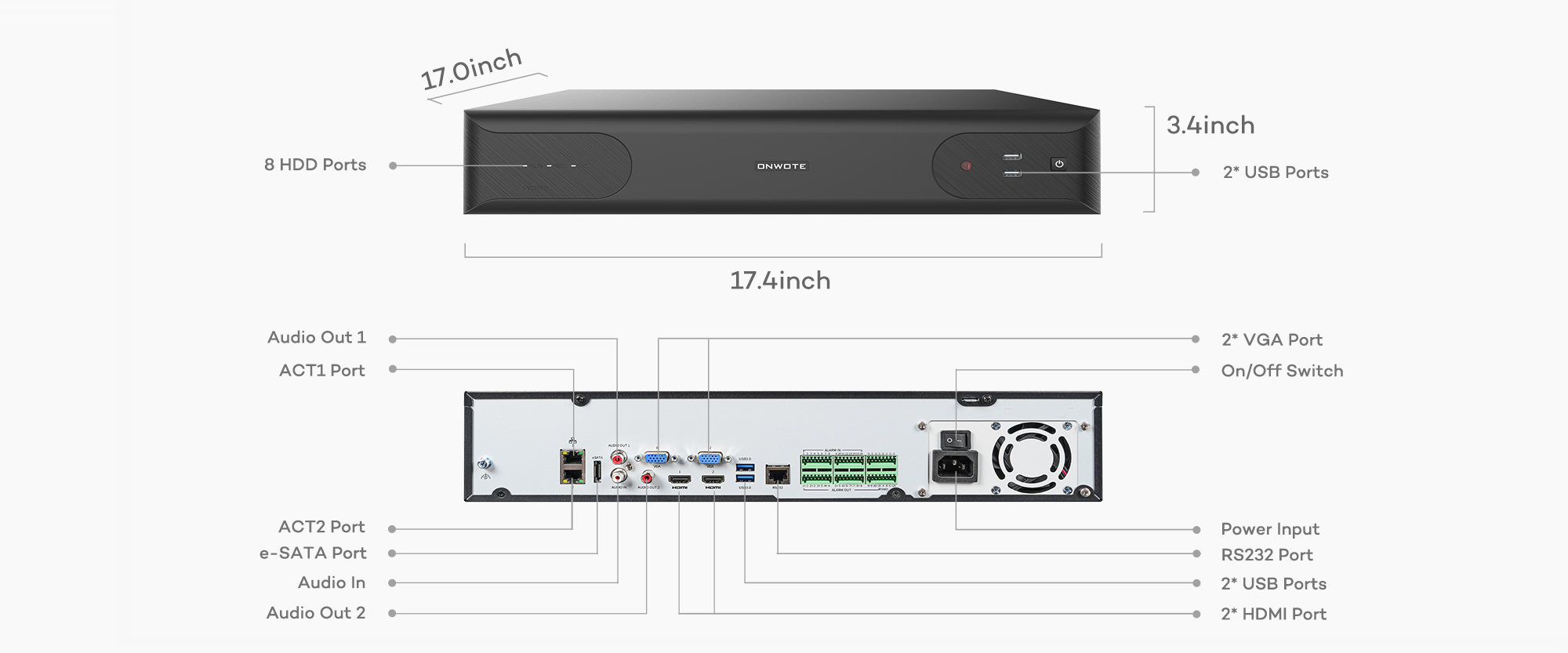

Network/ USB Interface
2 RJ-45 10M/100M/1000M self-adaptive ethernet interfaces. Front: 2×USB 2.0; rear: 2×USB 3.0
Power Supply
100 to 240V AC; Power consumption: ≤20W (without HDD)
Working Environment
Temperature: -10°C to +50°C (+14°F to +122°F); Humidity: ≤90% RH (non-condensing)
