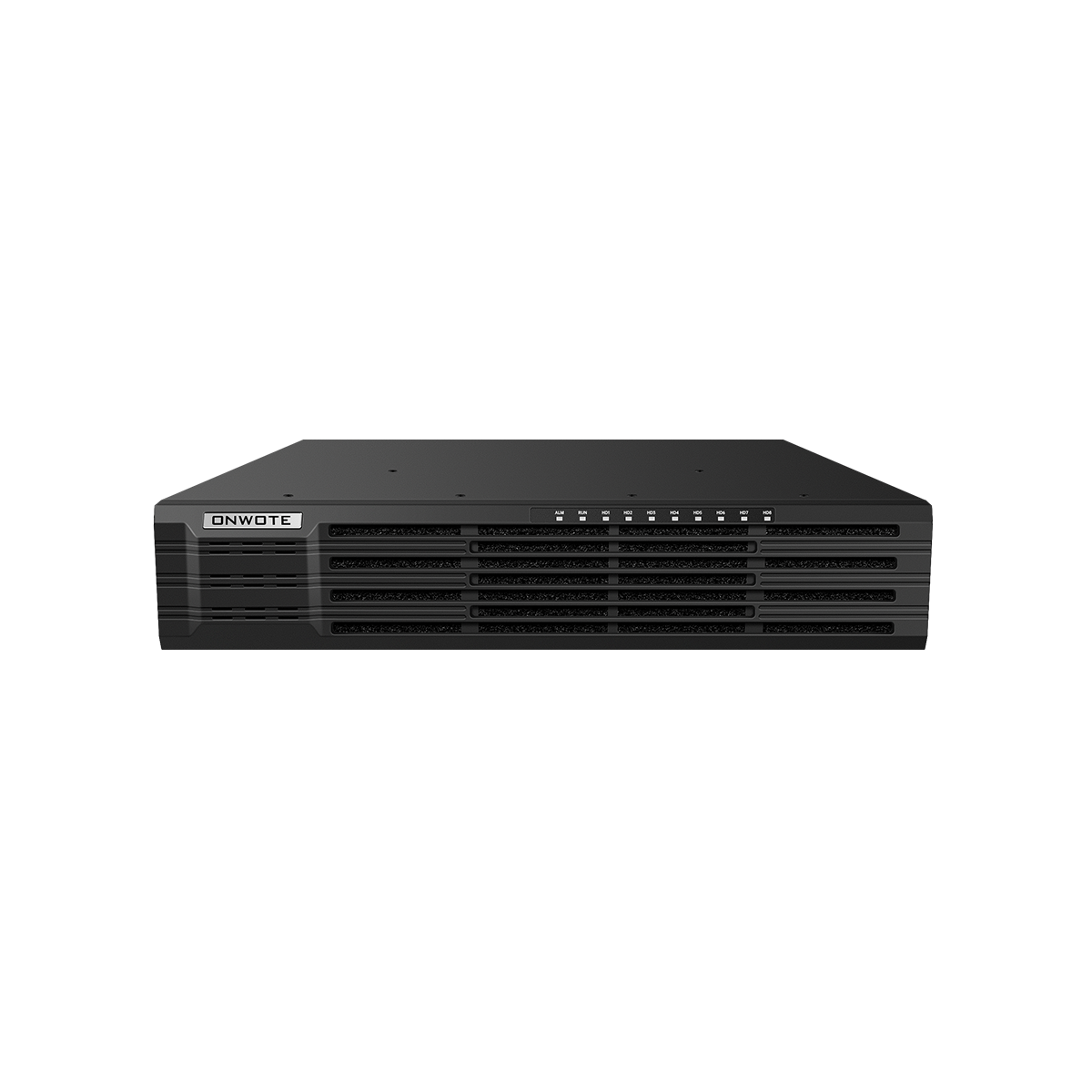

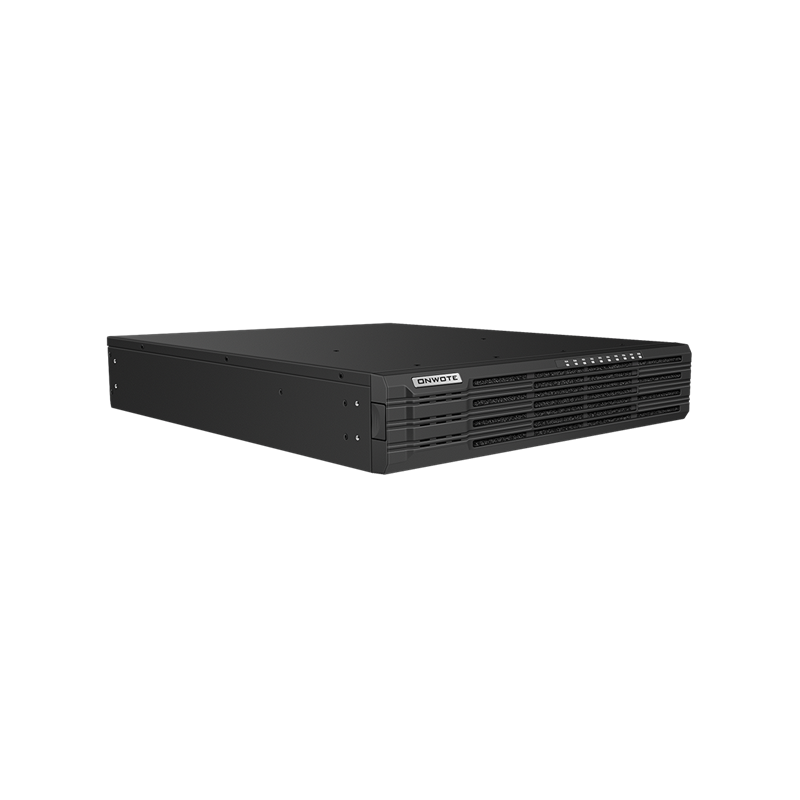

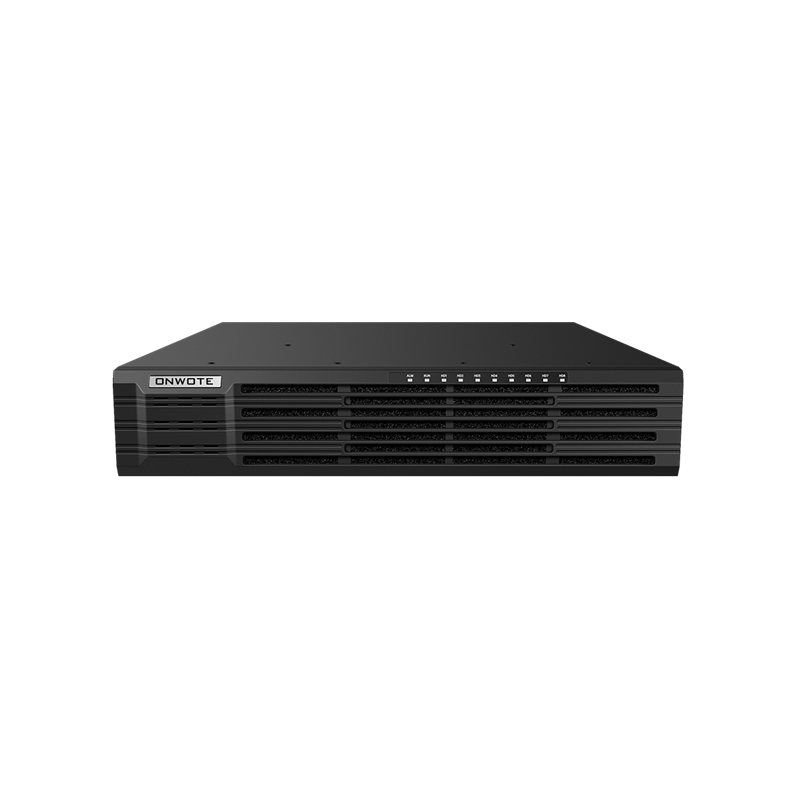

NVR 30...Series
H.265+/ H.265/ H.264 decoding format
Decoding Capability
3x12MP@25, 4x4K@30, 8x4MP@30, 16x1080P@30, 32x960P@25, 36x720P@30, 64xD1
Video Audio Input
64-ch IPC, 53-ch 12MP, 64-ch 8MP/6MP/5MP/4MP/3MP/1080p

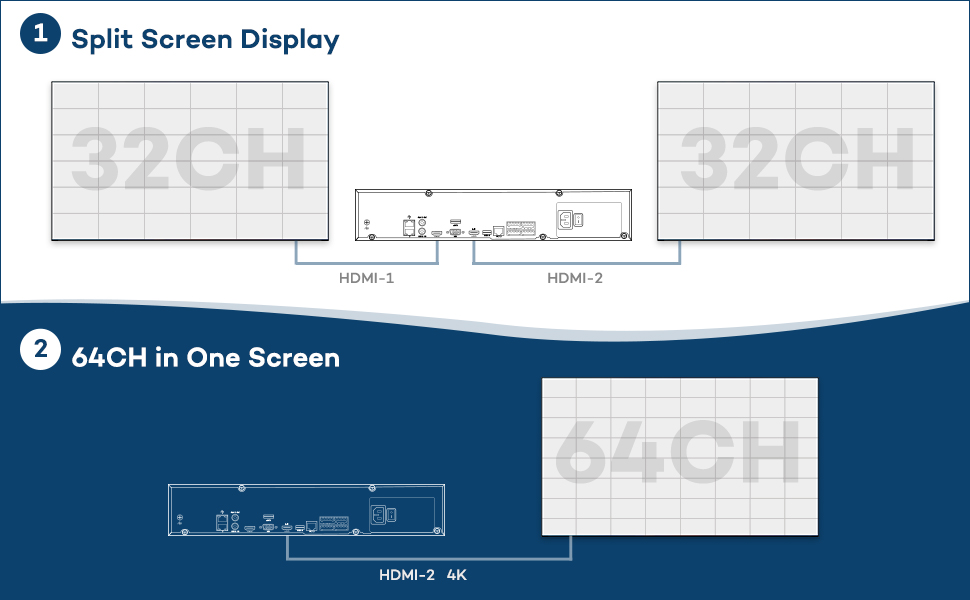

Video Audio Output
Video: HDMI2 (up to 4K), HDMI1/ VGA (up to 1080p) Audio: HDMI & RCA
Recording Resolution
12MP/8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

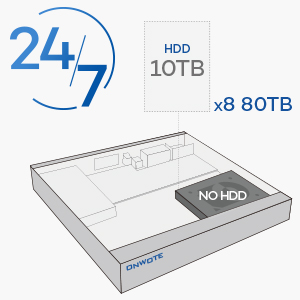

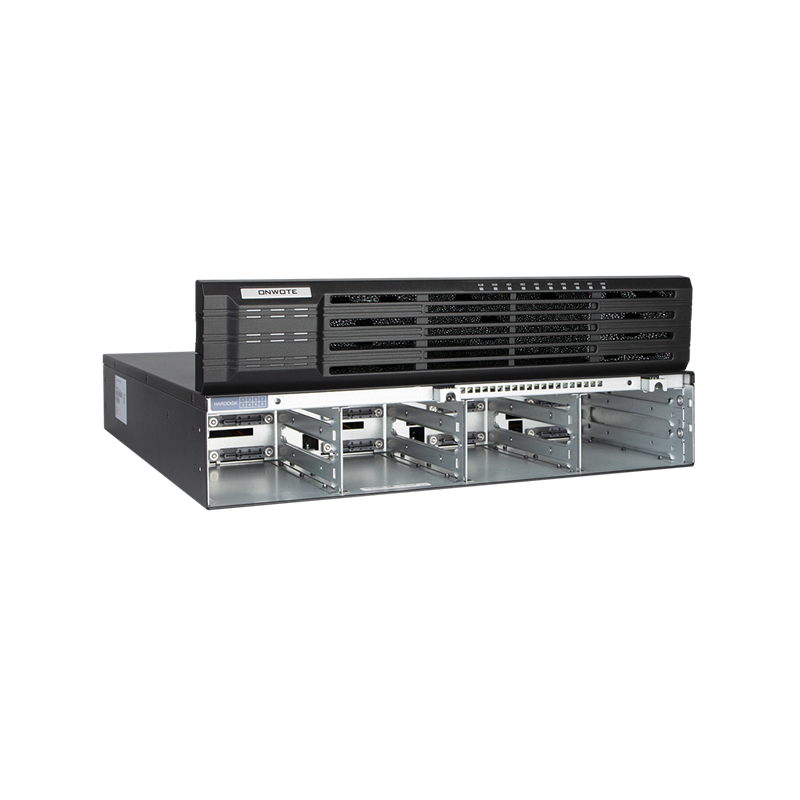

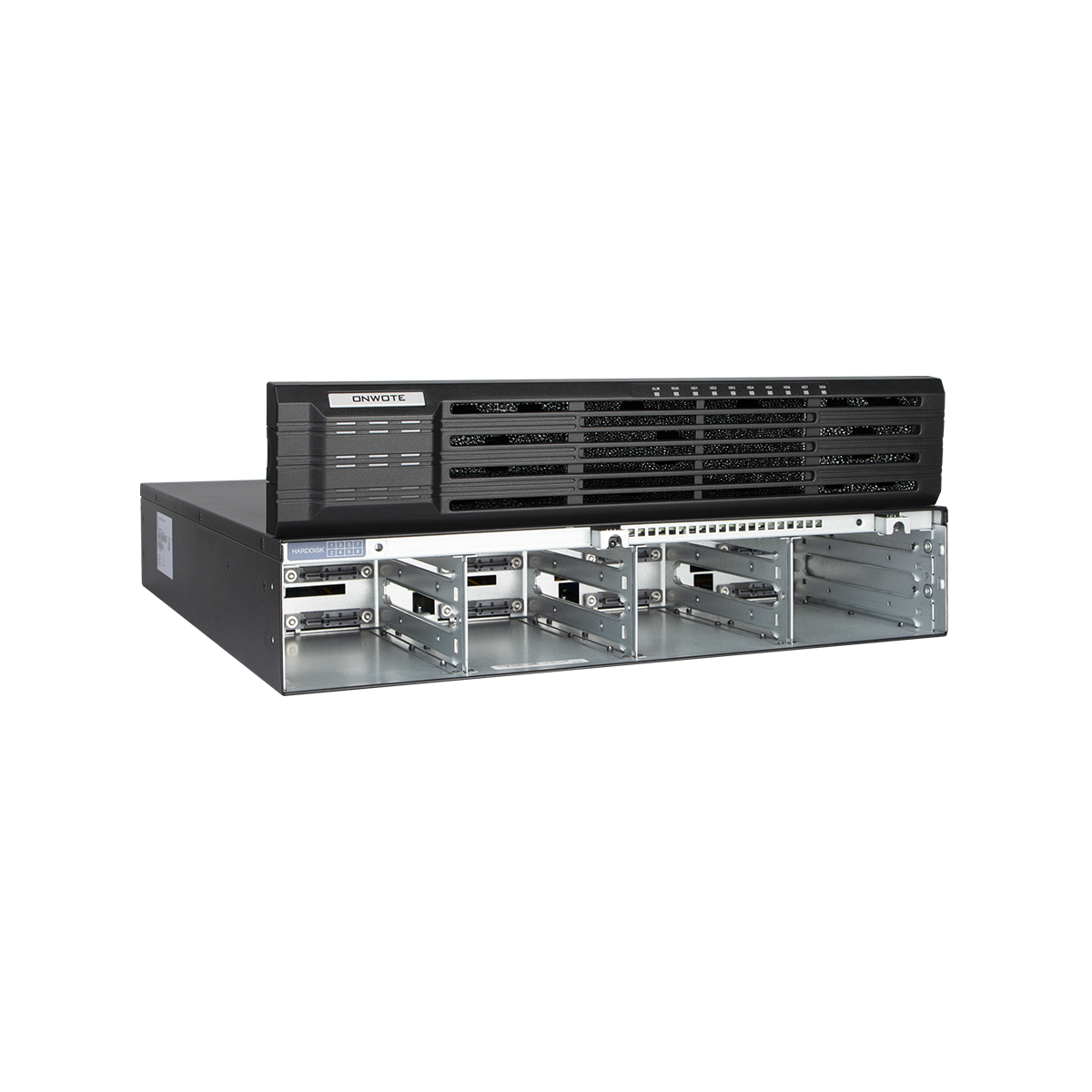

Storage Capacity
8×SATA interfaces, max 10TB/HDD, total 80TB (HDD not included)
Disk Array Type
RAID 0, 1, 5, 6, 10

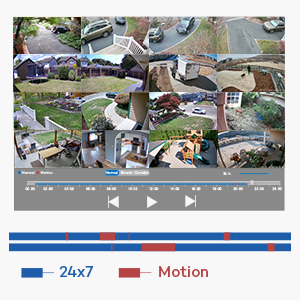

Local Synchronous Playback
16-ch simultaneous playback
Bandwidth
Incoming-320Mbps; outgoing-320Mbps
Remote Access
128 users; Mobile (iOS/Android); PC (Windows/macOS)
Protocols
P2P, UPnP, NTP, DHCP, PPPoE

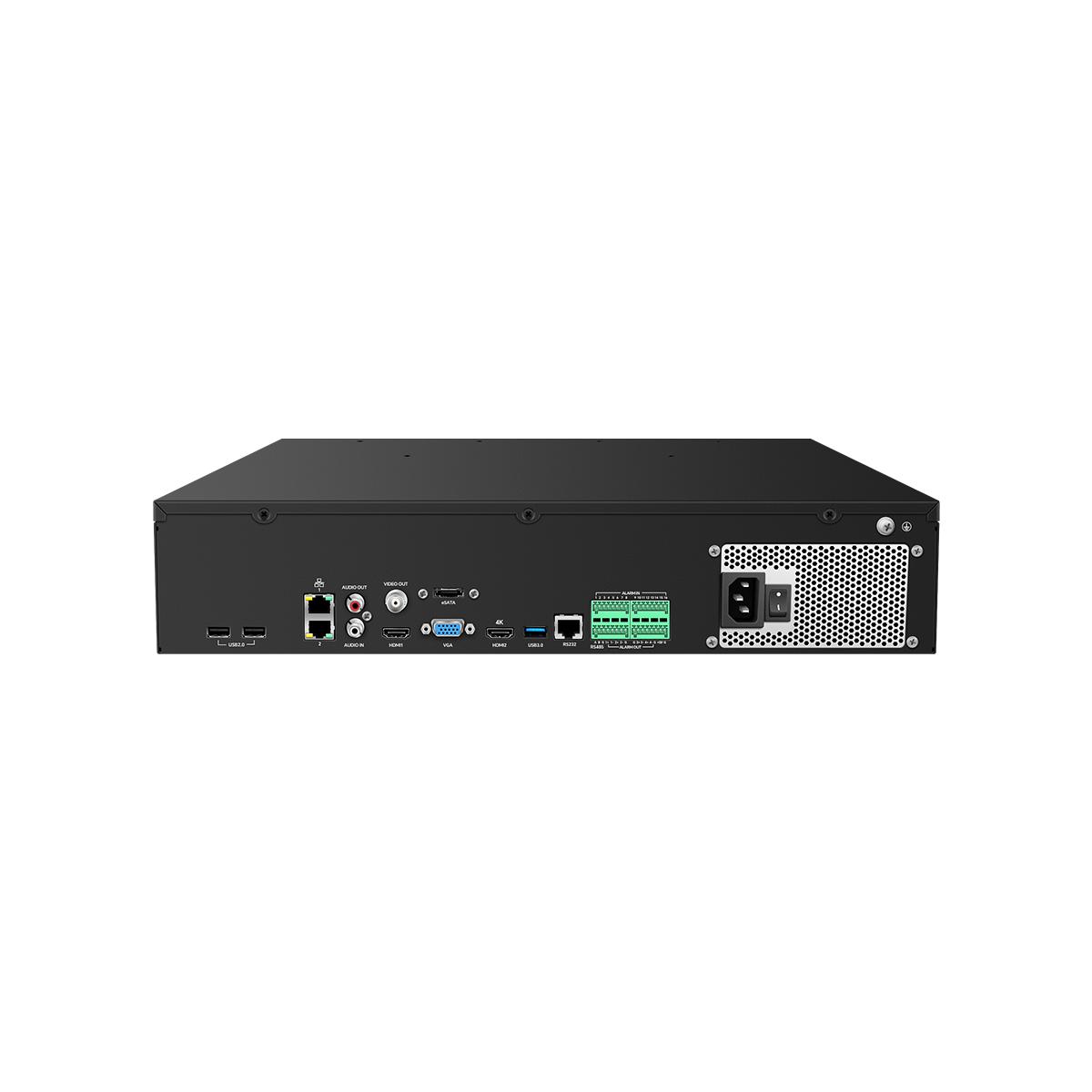

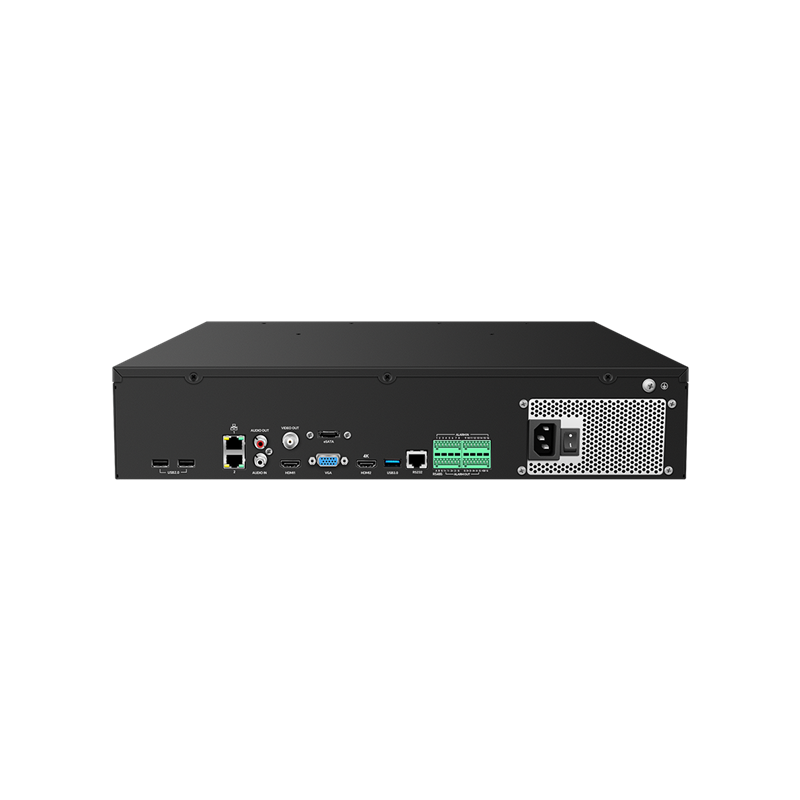

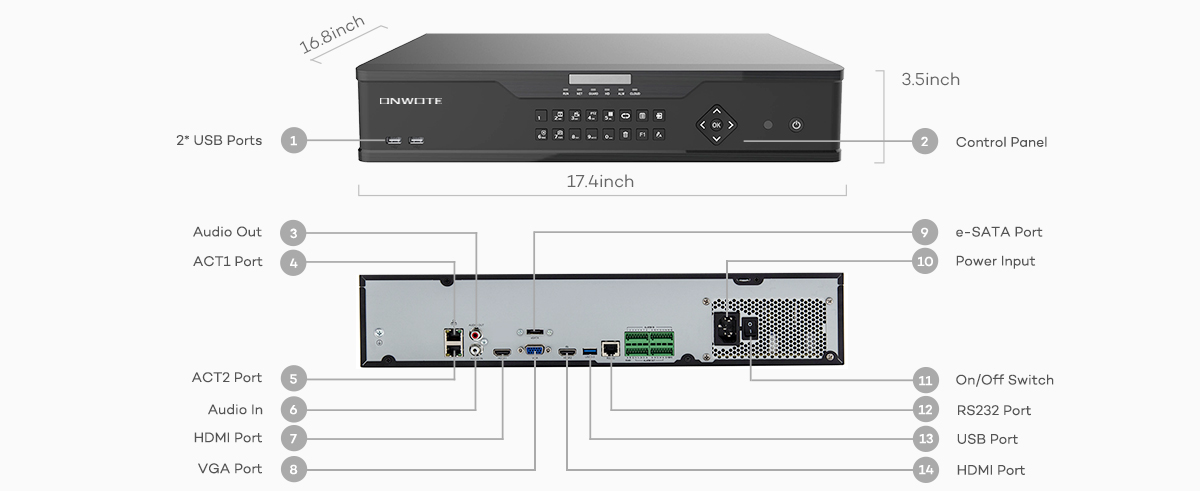

Network/ USB Interface
2 RJ-45 10M/100M/1000M self-adaptive ethernet interfaces. Front: 2×USB 2.0; rear: 1×USB 3.0
Power Supply
100 to 240V AC; Power consumption: ≤20W (without HDD)
Working Environment
Temperature: -10°C to +55°C (+14°F to +131°F); Humidity: ≤90% RH (non-condensing)
Dimensions & Weight
442mm×531mm×86mm (17.4"×20.9"×3.4"); Weight (without HDD): ≤ 5.13kg (11.31lb)
Compatibility

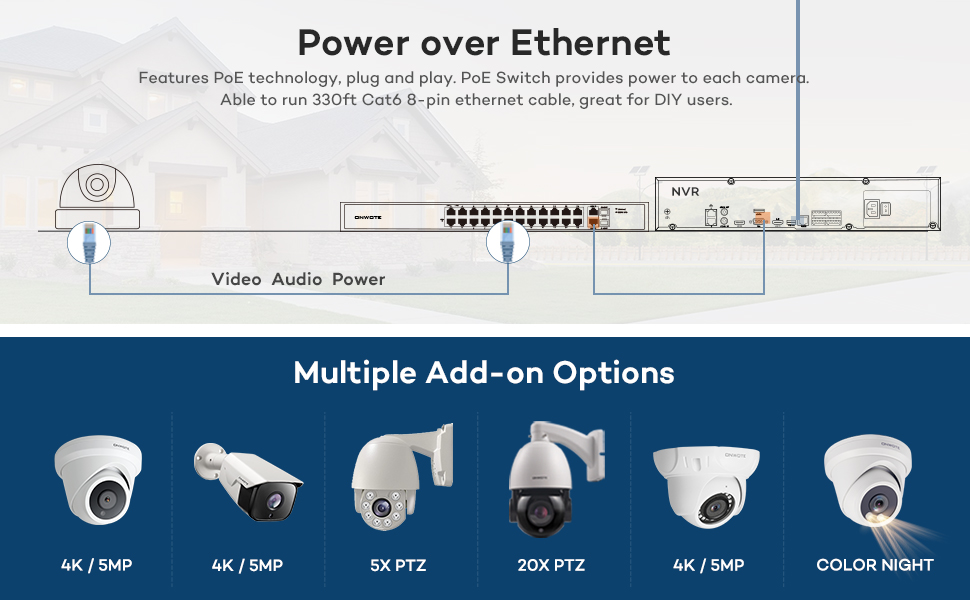

Not plug-and-play with third-party cameras; requires ONWOTE PoE IP cameras (12MP/8MP/6MP/5MP/4MP)
