ONWOTE

Overview

Field Of
View

Smart Search
& Playback

4K 8MP HD Video

8 Megapixels = 3840(H) × 2160(V), offering 4 times the clarity of 1080P to ensure sharp live viewing and detailed recordings of important events.

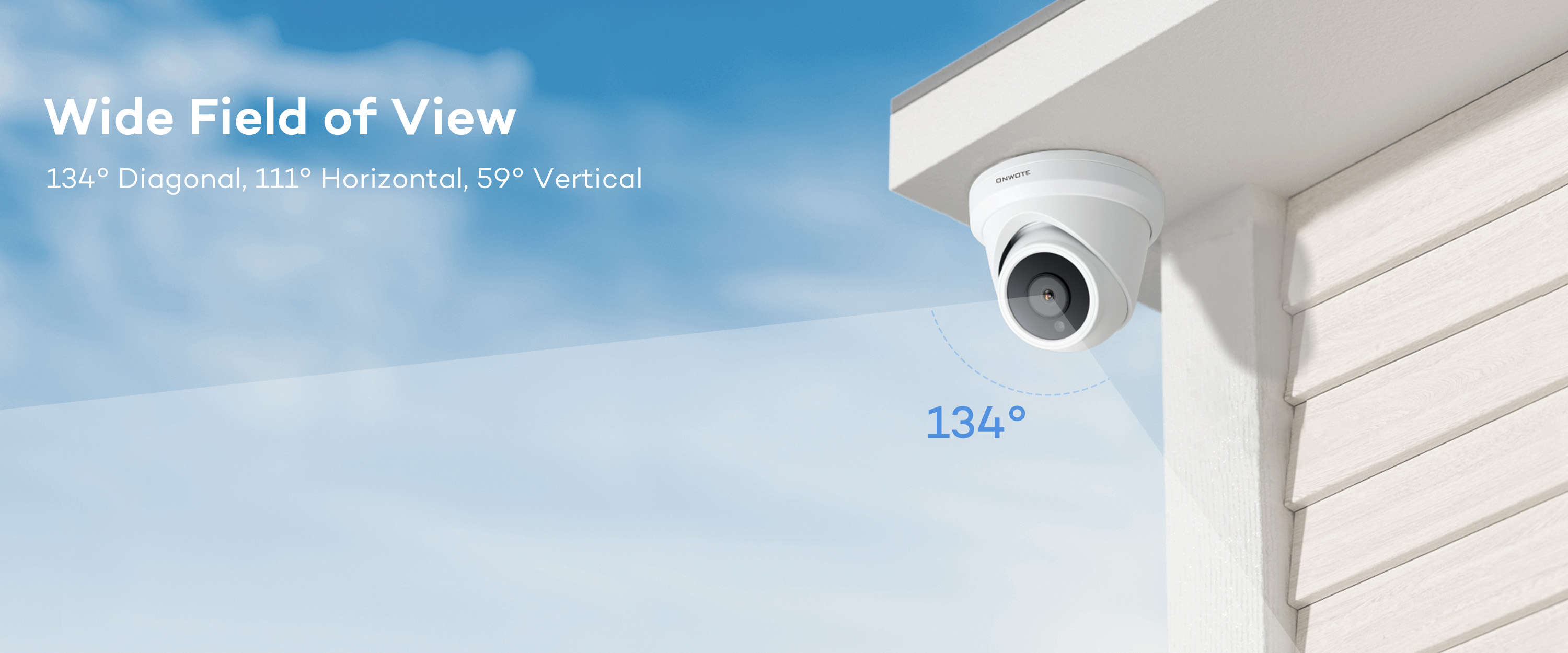

Wide Field of View

AI Human & Vehicle Detection

Reduces false alarms from shadows, insects, wind, and rain, helping you save storage space.

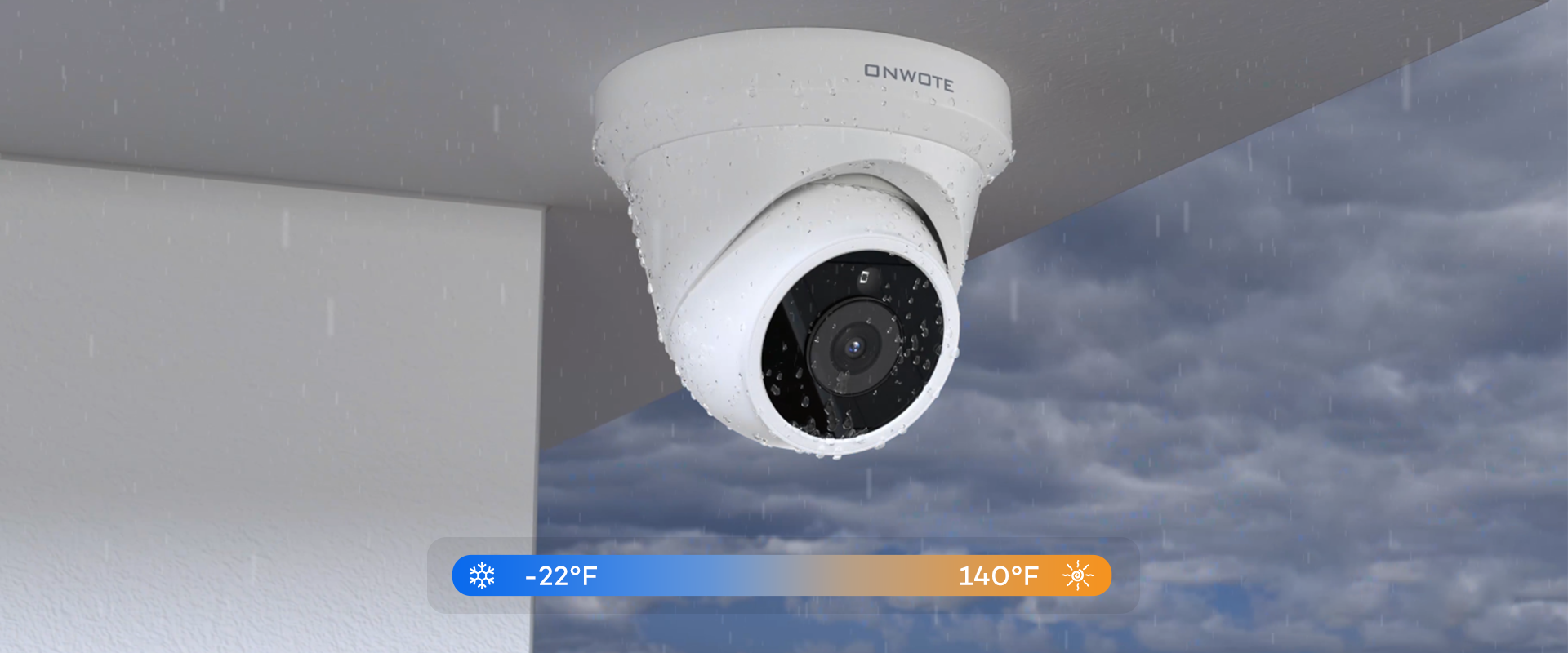

IP66-Rated Weatherproof Reliability

Durable weatherproof metal housing suitable for both indoor and outdoor use.

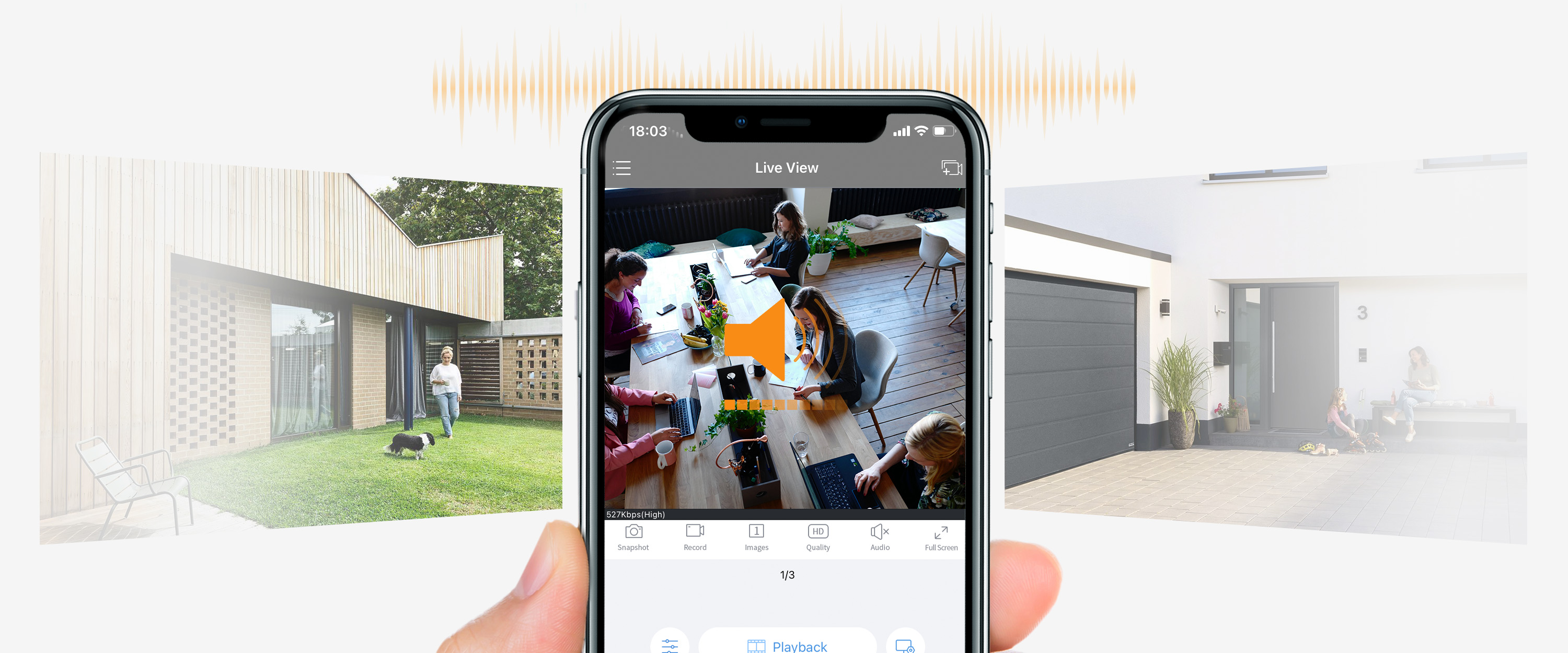

Capture & Record Audio

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app.

Audio Capture Mobile App Playback HD TV Output

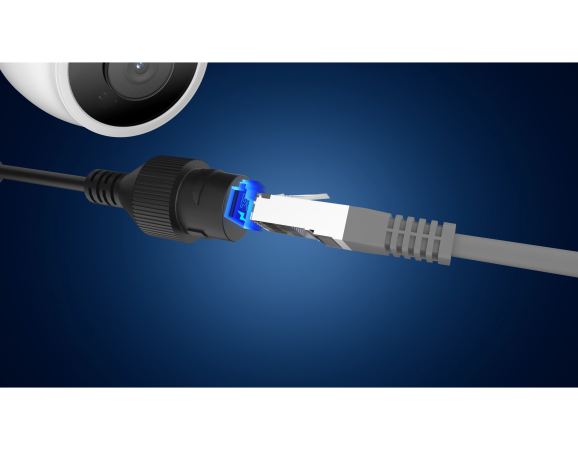

Effortless Setup — One Ethernet Cable Does It Al

PoE technology allows a single Cat5 Ethernet cable to transmit video, audio, and power—making installation simpler than traditional DVR systems. Just plug and play.

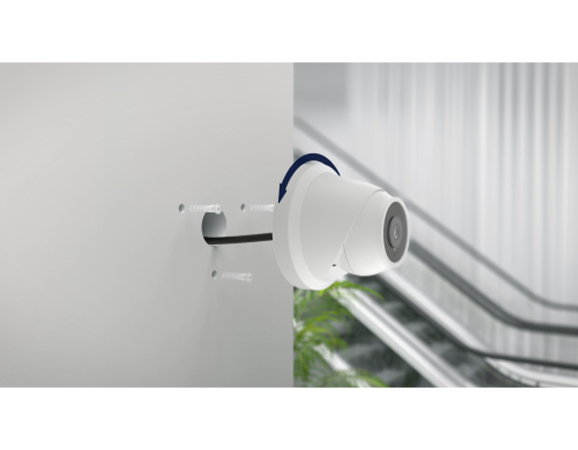

Hassle-Free Installation

Our cameras are designed with simplicity in mind. Whether you're a professional installer or a first-time user, setting up your surveillance system has never been easier.

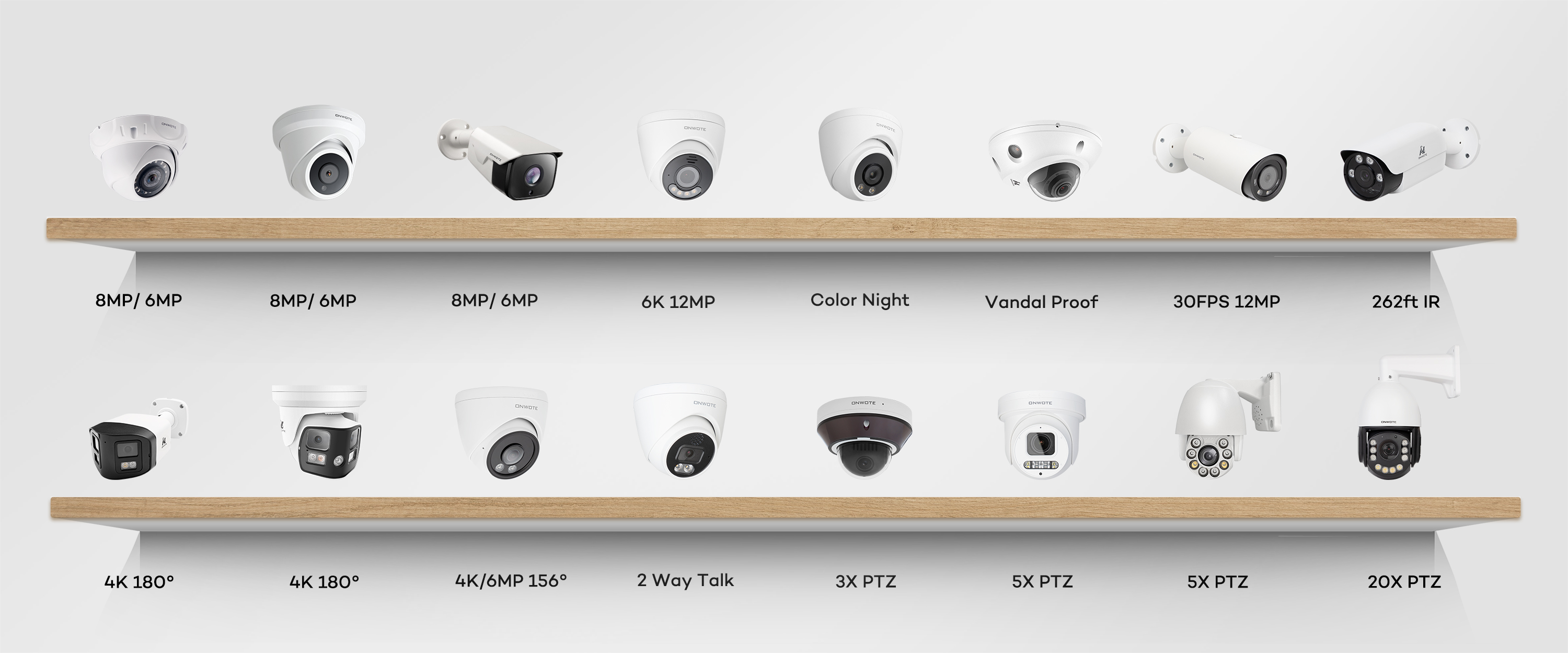

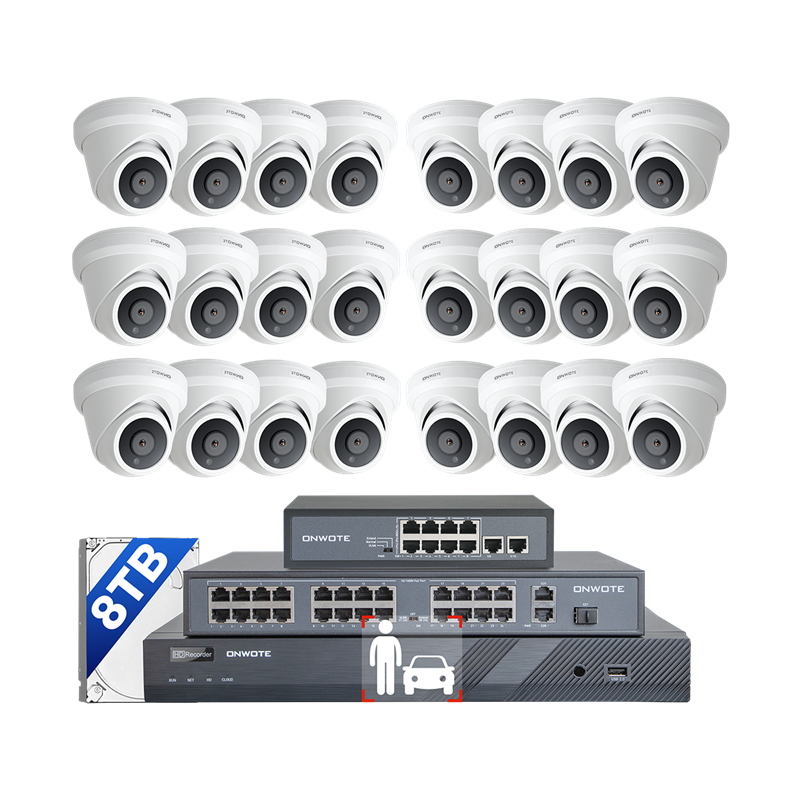

One-Stop DIY Solution

The NVR supports up to 32 cameras, with resolution options of 6K (12MP) or 4K (8MP).
A variety of add-ons are available, including pan-tilt-zoomand two-way audio cameras.

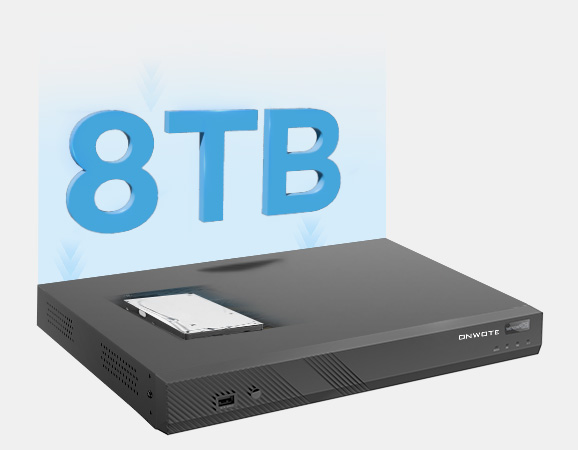

8TB Storage Pre-Installed

An 8TB hard drive comes pre-installed in the NVR, offering free local
storage. HEVC advanced encoding helps reduce file sizes and save space.

Expandable Up to 20TB

With four 2 ports, the system supports up to 20TB of total storage capacity.

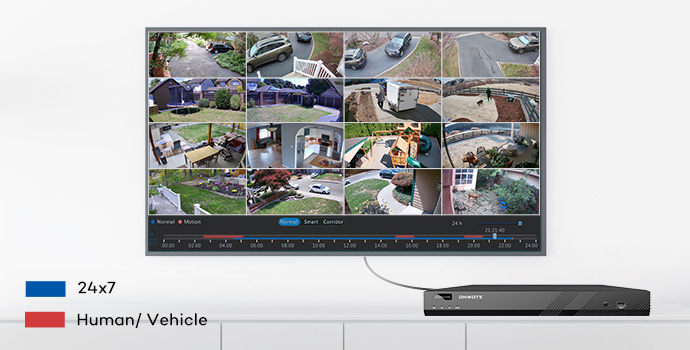

Smart Playback

Quickly locate footage using smart person/vehicle event filters. Play
back recordings from up to 16 cameras simultaneously on an HD monitor or
computer.

Specification

Camera NVR POE Switch

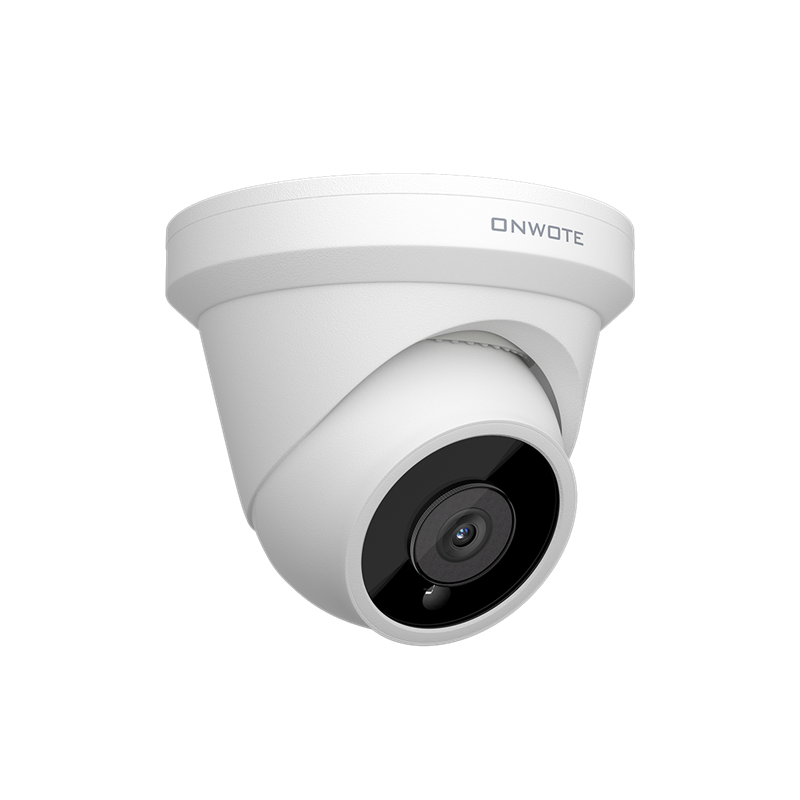

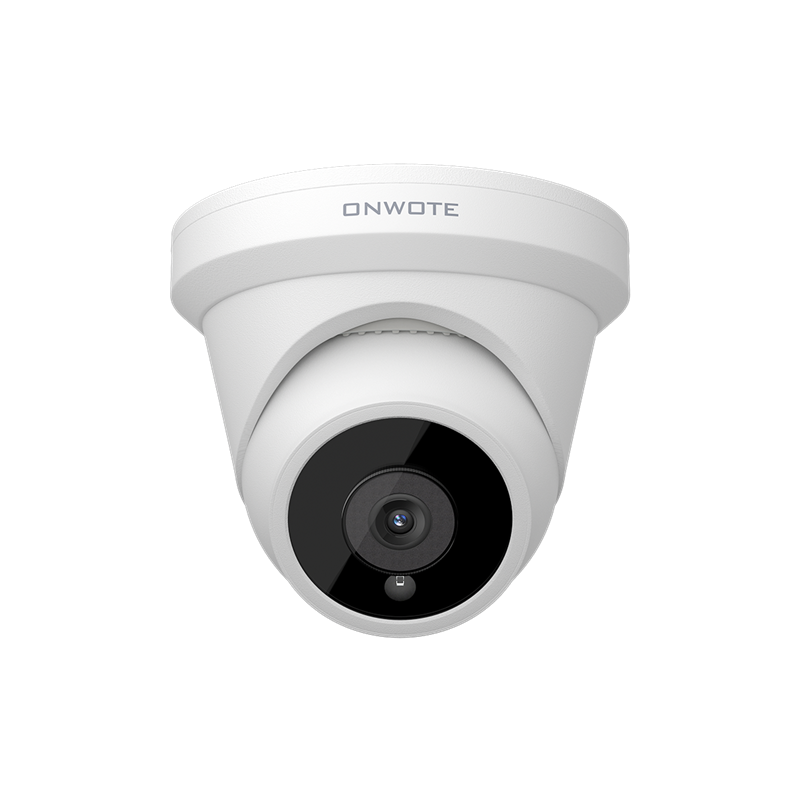

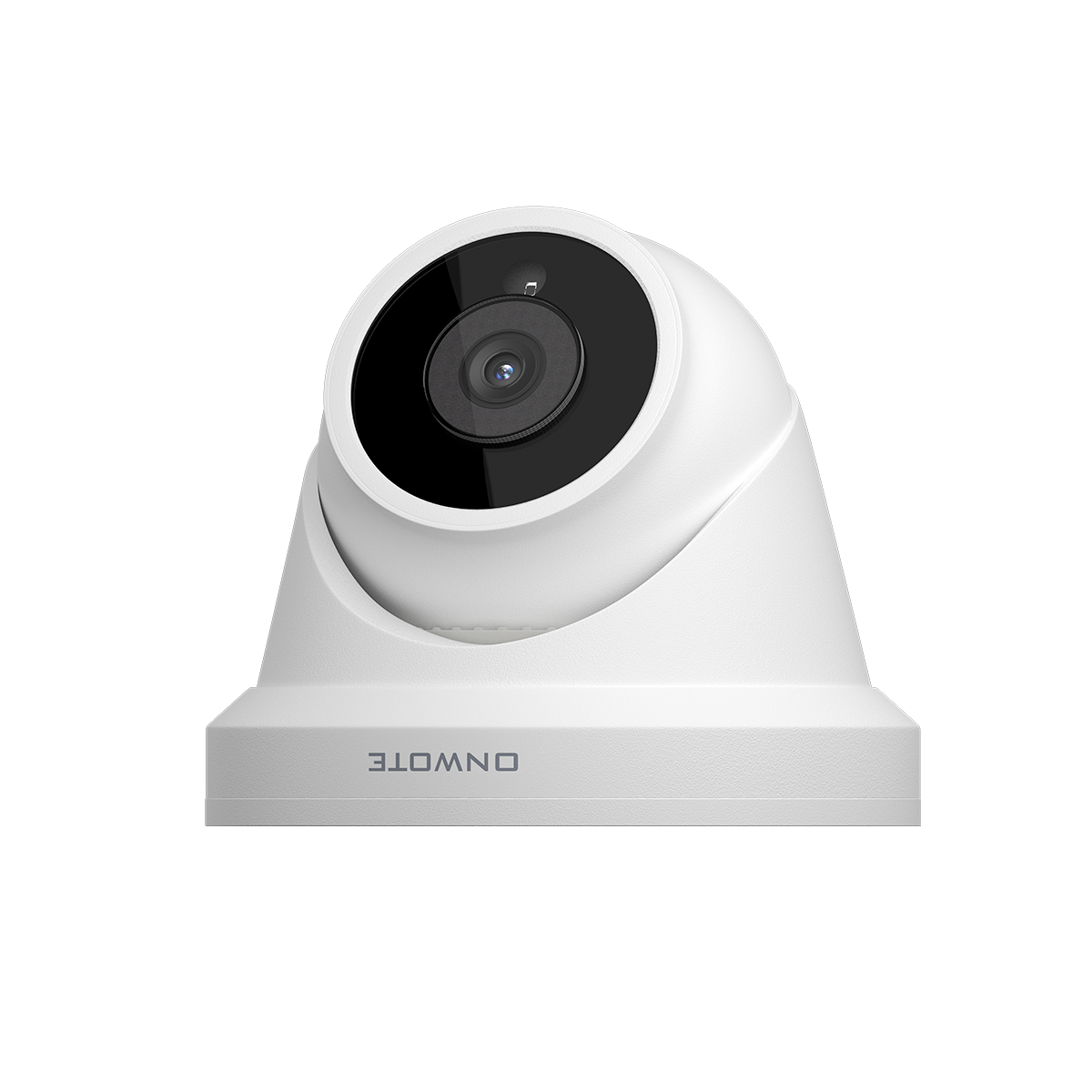

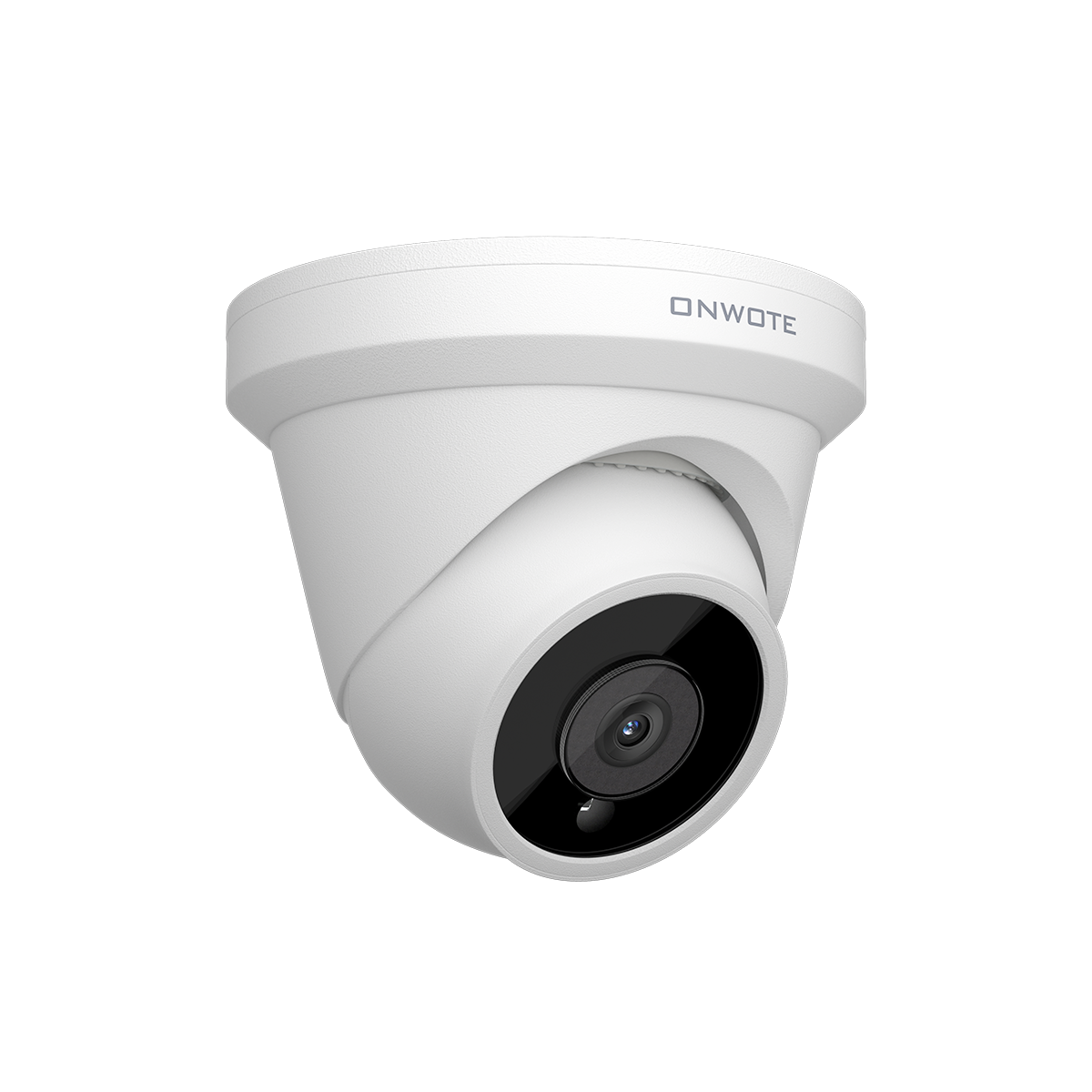

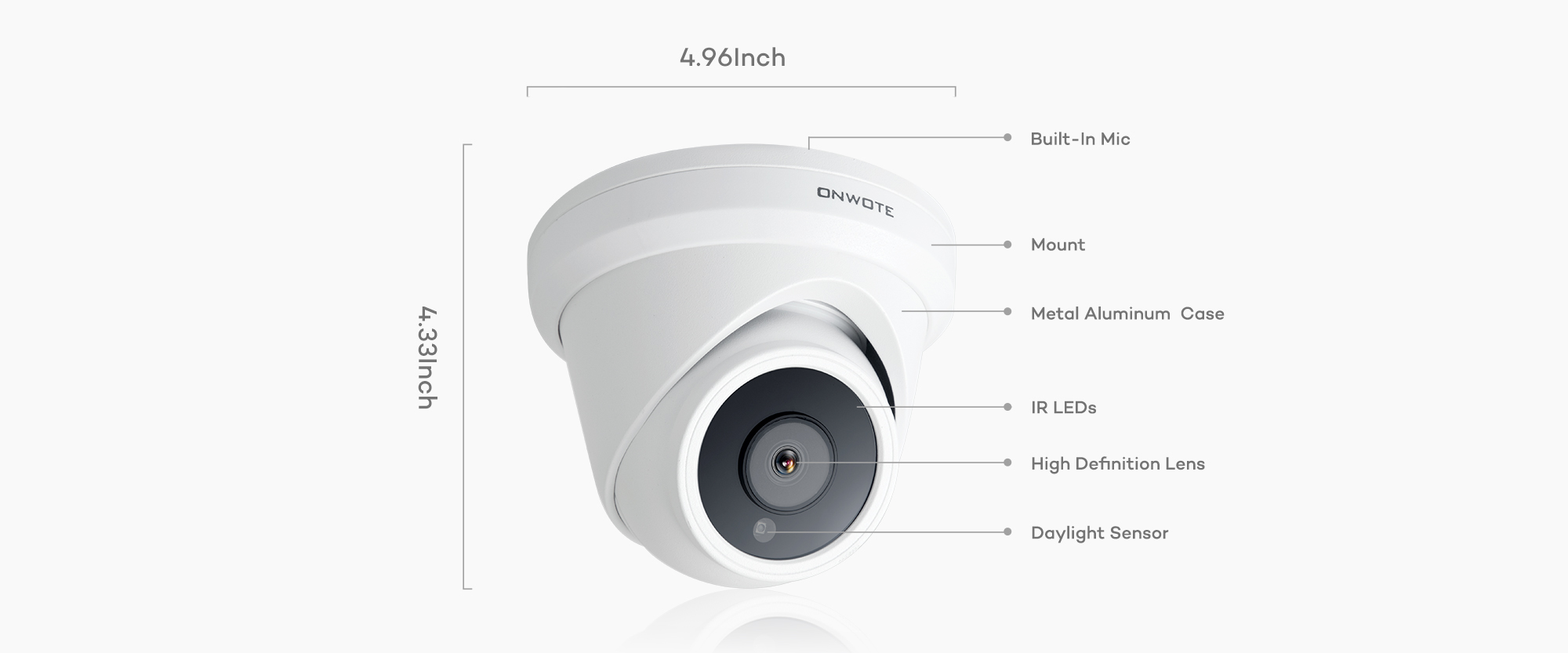

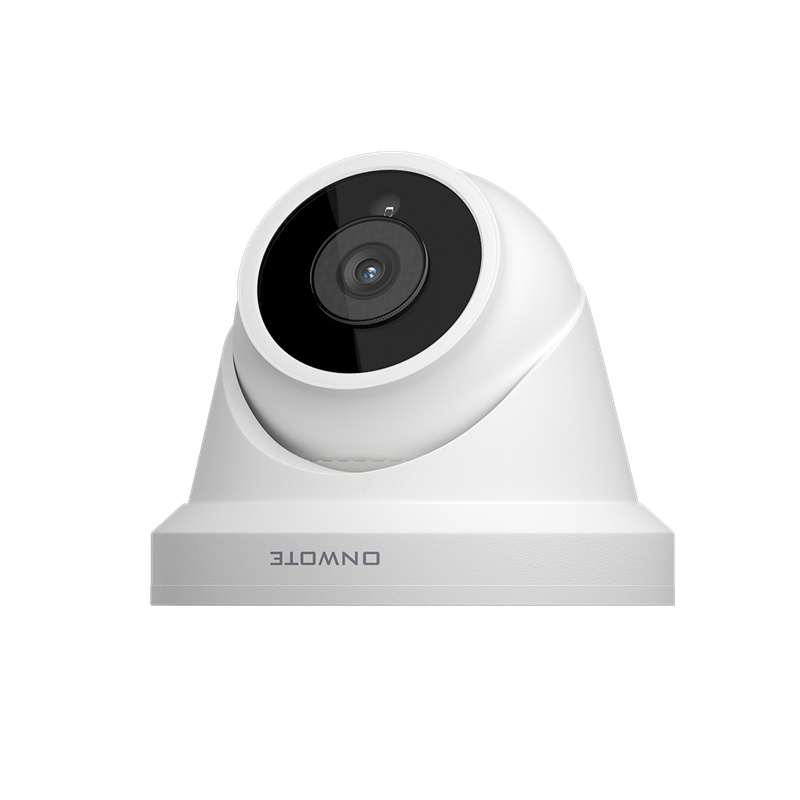

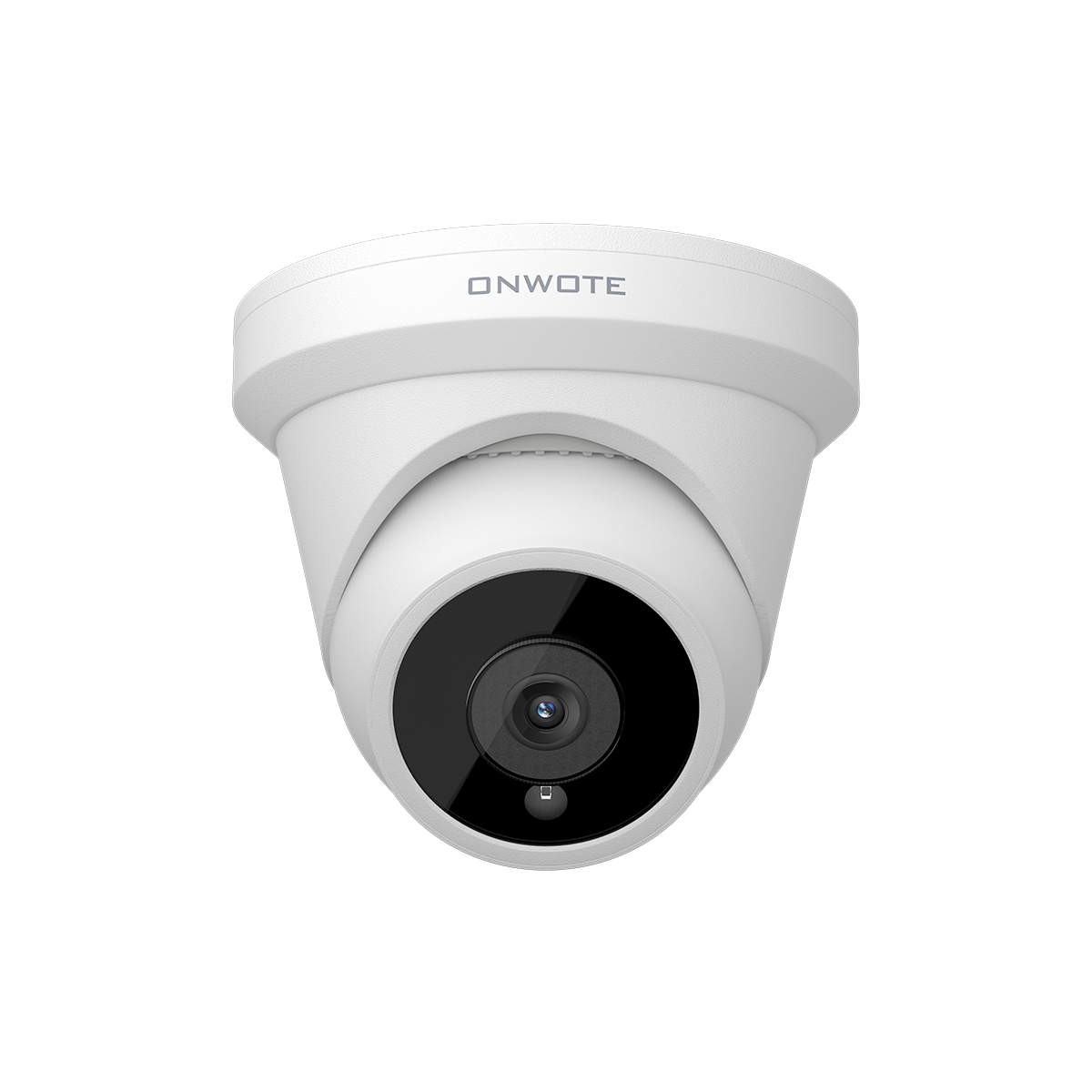

SA80-P36

4K Ultra HD Camera

8 Megapixels-3840(H) x 2160(V) @20FPS

Viewing Angle

134°(Diagonal), 111°(Horizontal), 59°(Vertical)

AI Function

Smart AI Human Vehicle Detection

Audio

Built-in Microphone (10-15ft)

Night Vision

IR distance up to 100ft (depends on environment)

IP66 Metal Housing

Aluminum Alloy, Indoors & Outdoors

Operating Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V; 12V DC ± 10%

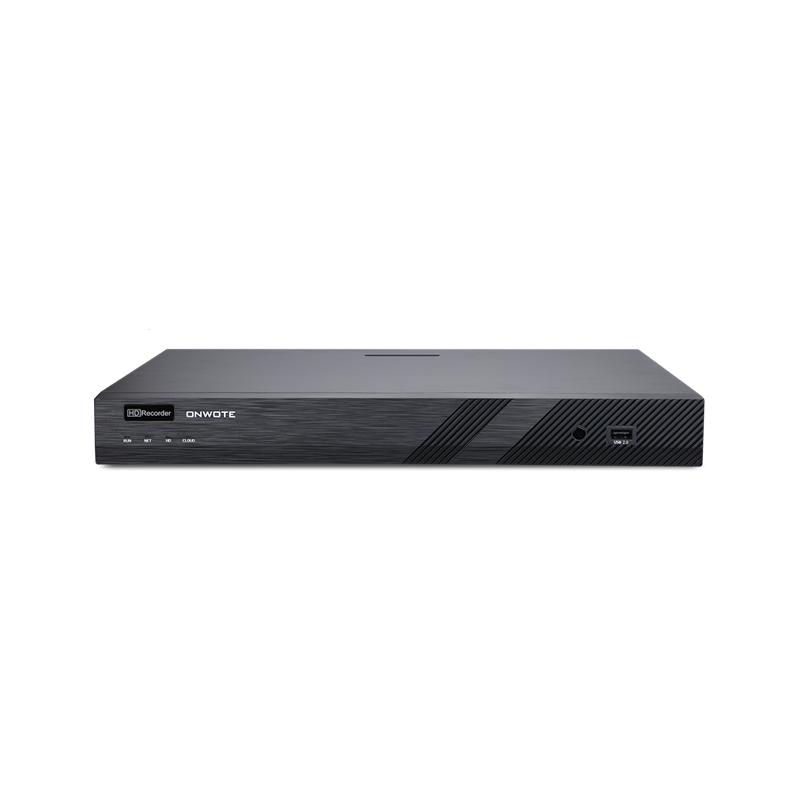

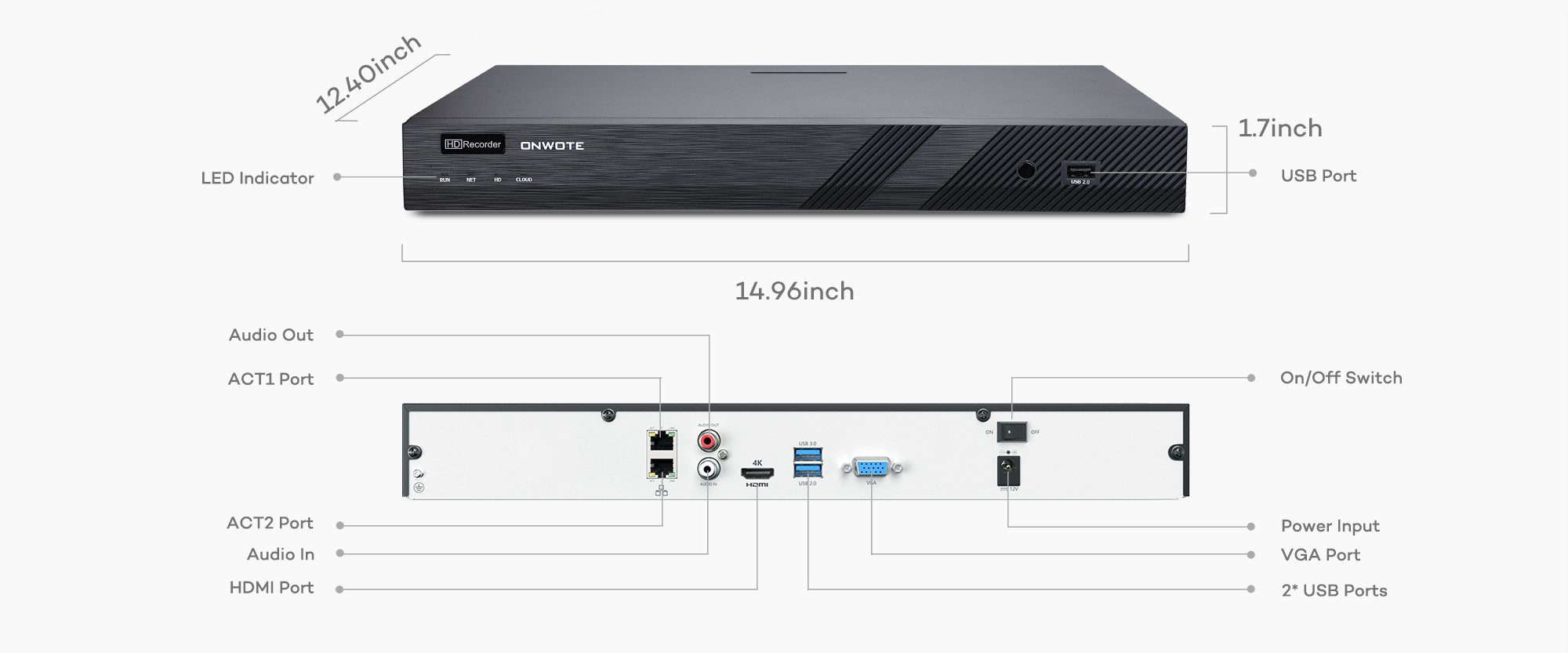

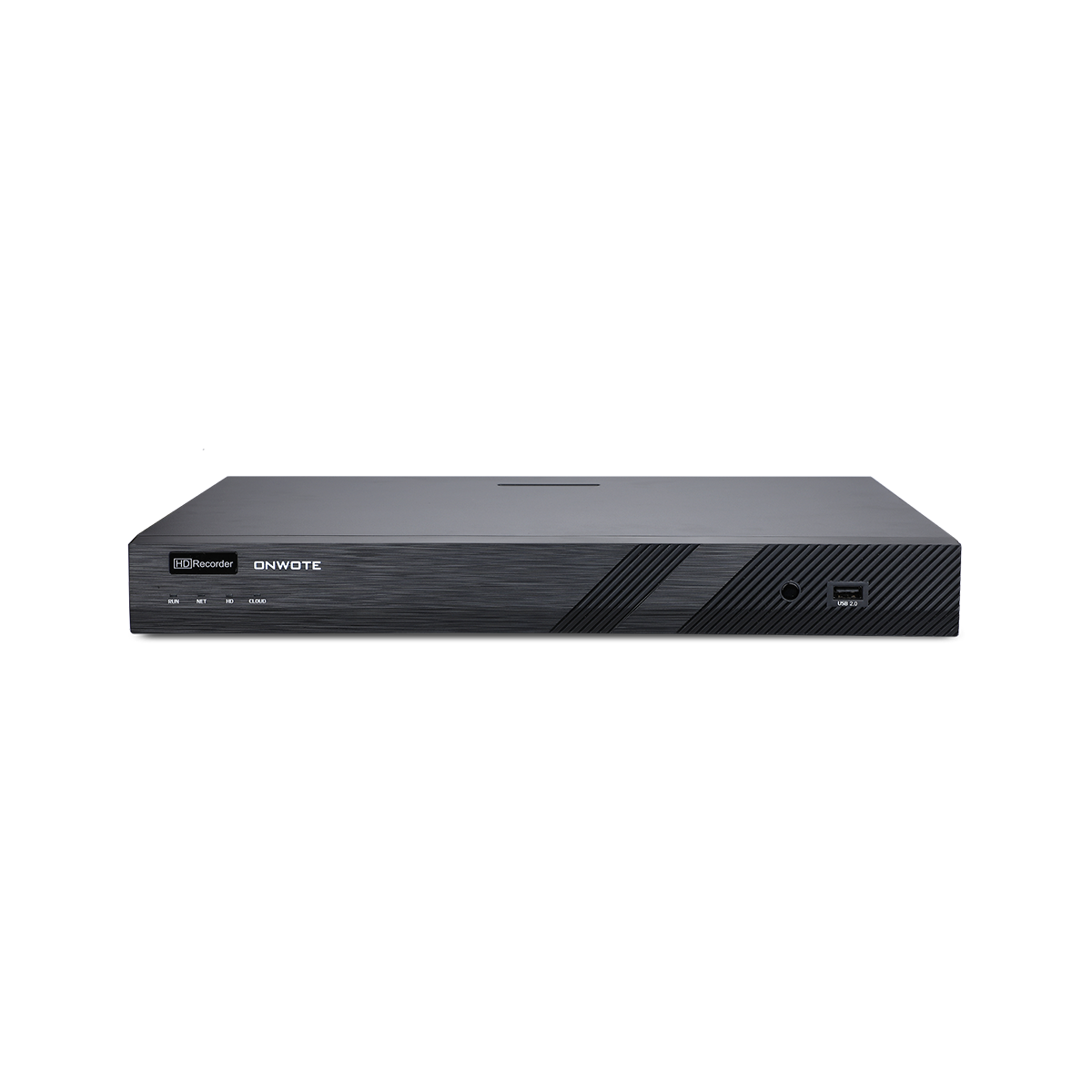

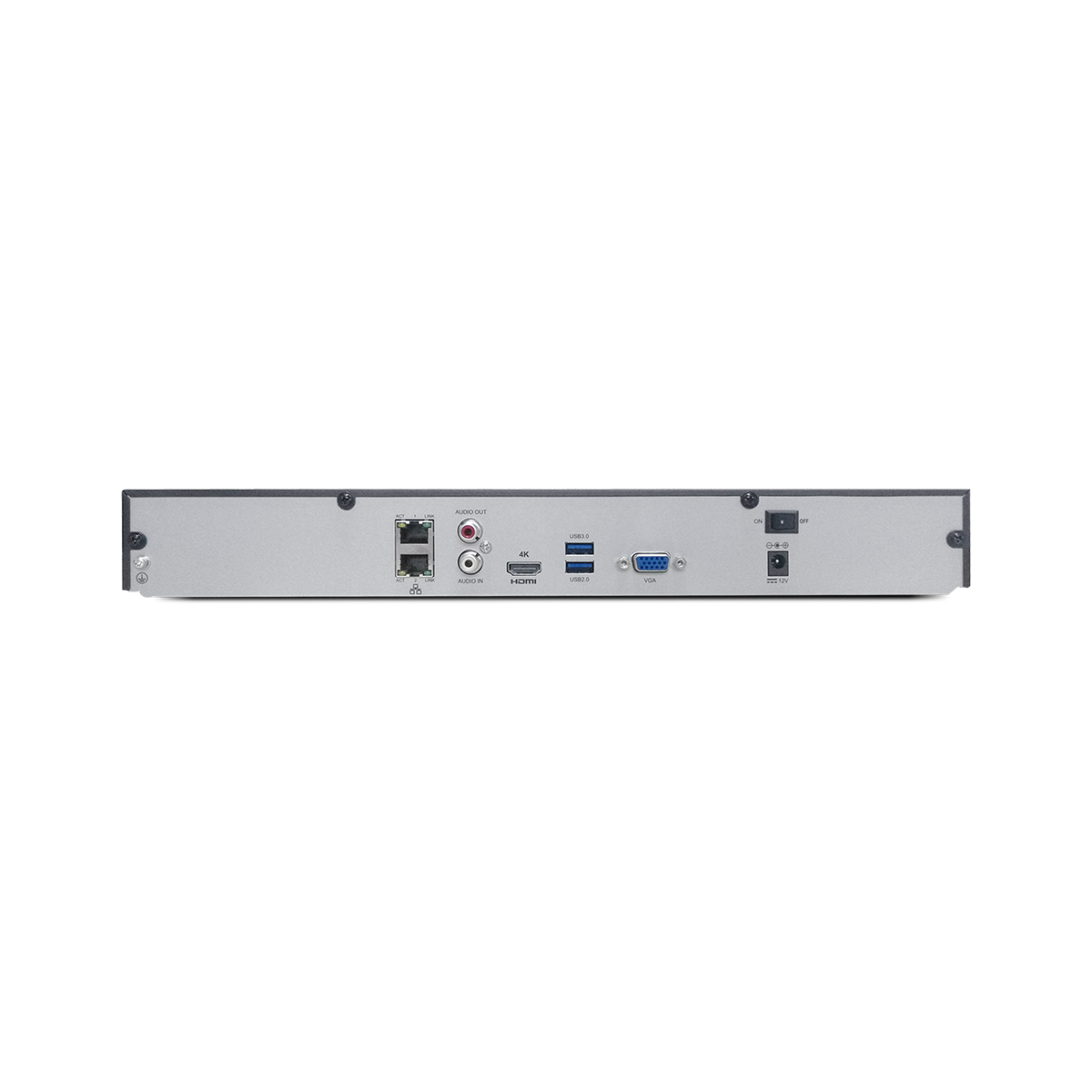

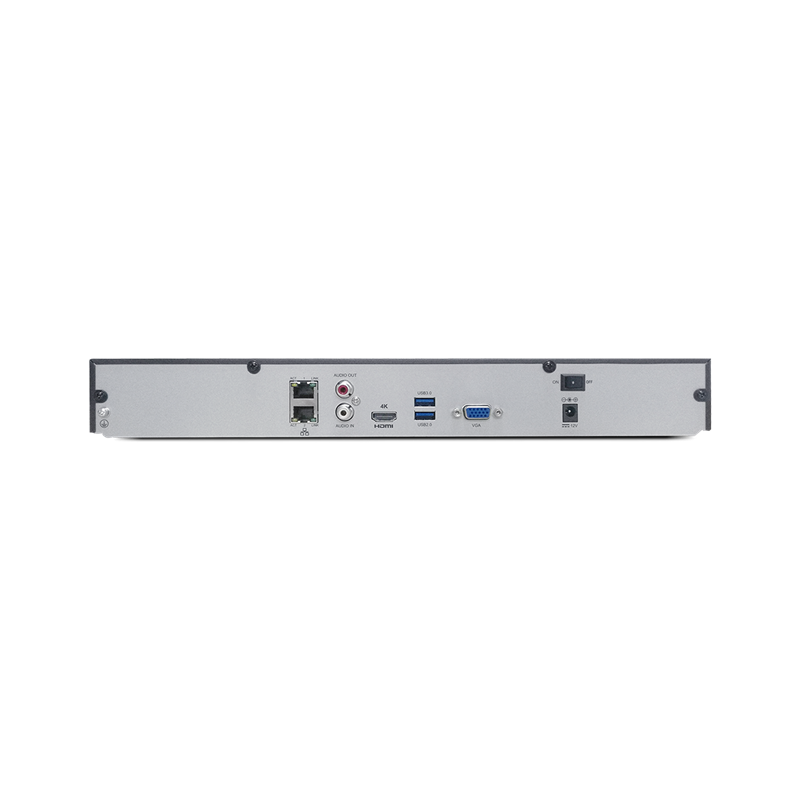

PNS-1232

32CH 6K 12MP NVR

Dual stream technology & advanced HEVC video compression

Network Bandwidth

Incoming-160Mbps; outgoing-64Mbps

Video Audio Input

32CH IPC, 26CH 12MP, 32CH 8MP/ 6MP/ 5MP

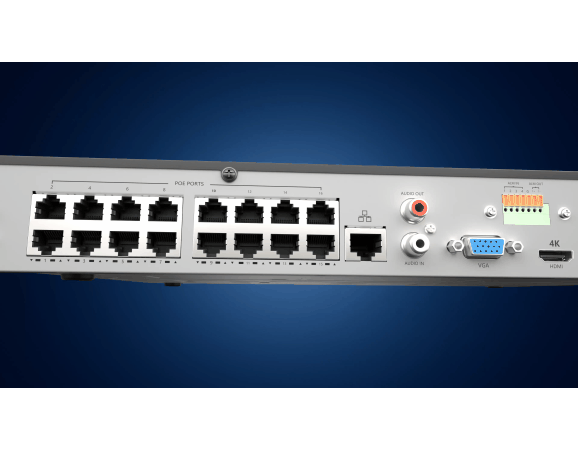

Video Audio Output

1-CH HDMI up to 4K, 1-CH VGA up to 1080P

Storage Capacity

Built-in 8TB HDD, 2 SATA interfaces support up to 20TB

Synchronous Playback

Playback 16 cameras simultaneously on HD monitor or computer

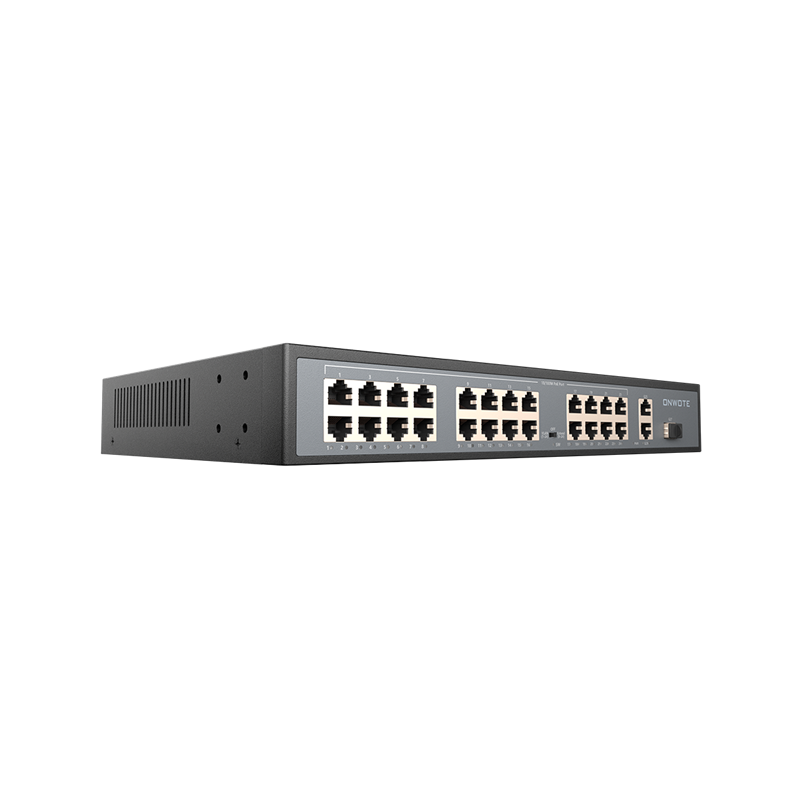

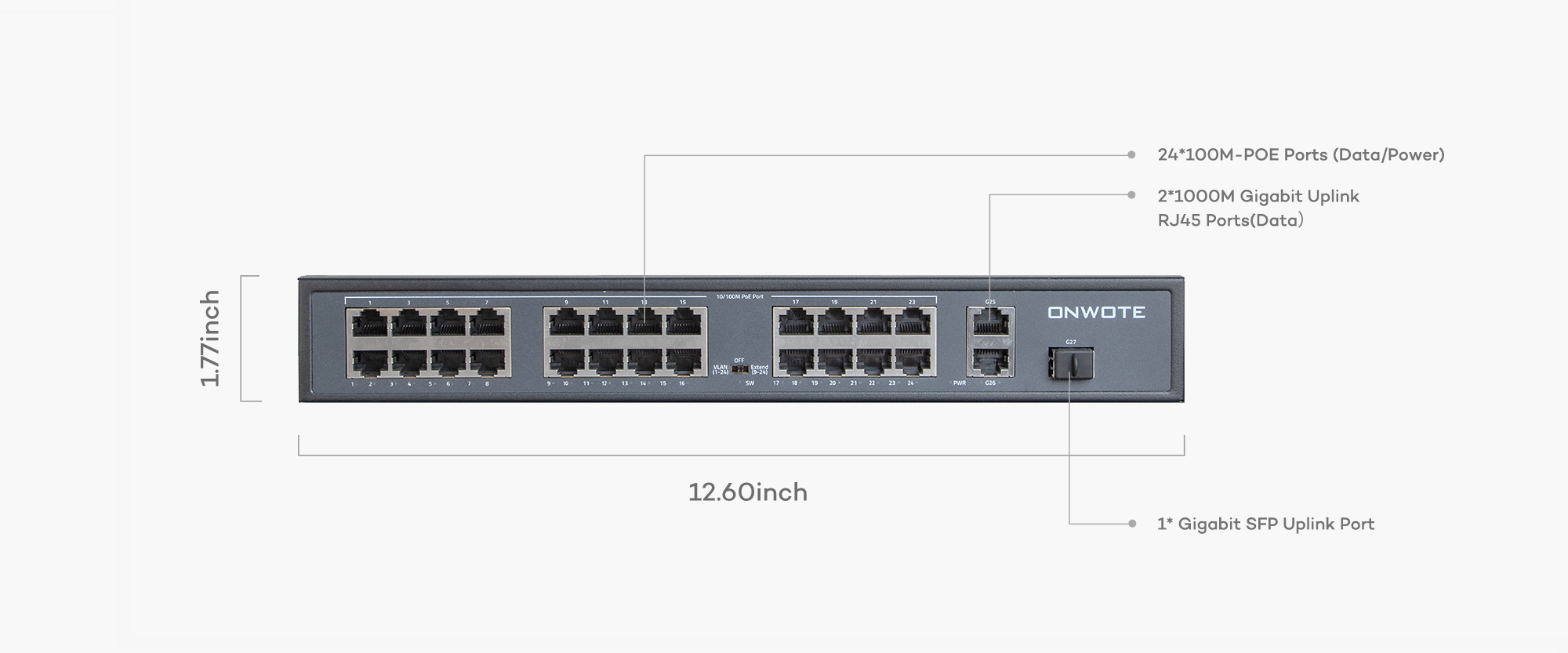

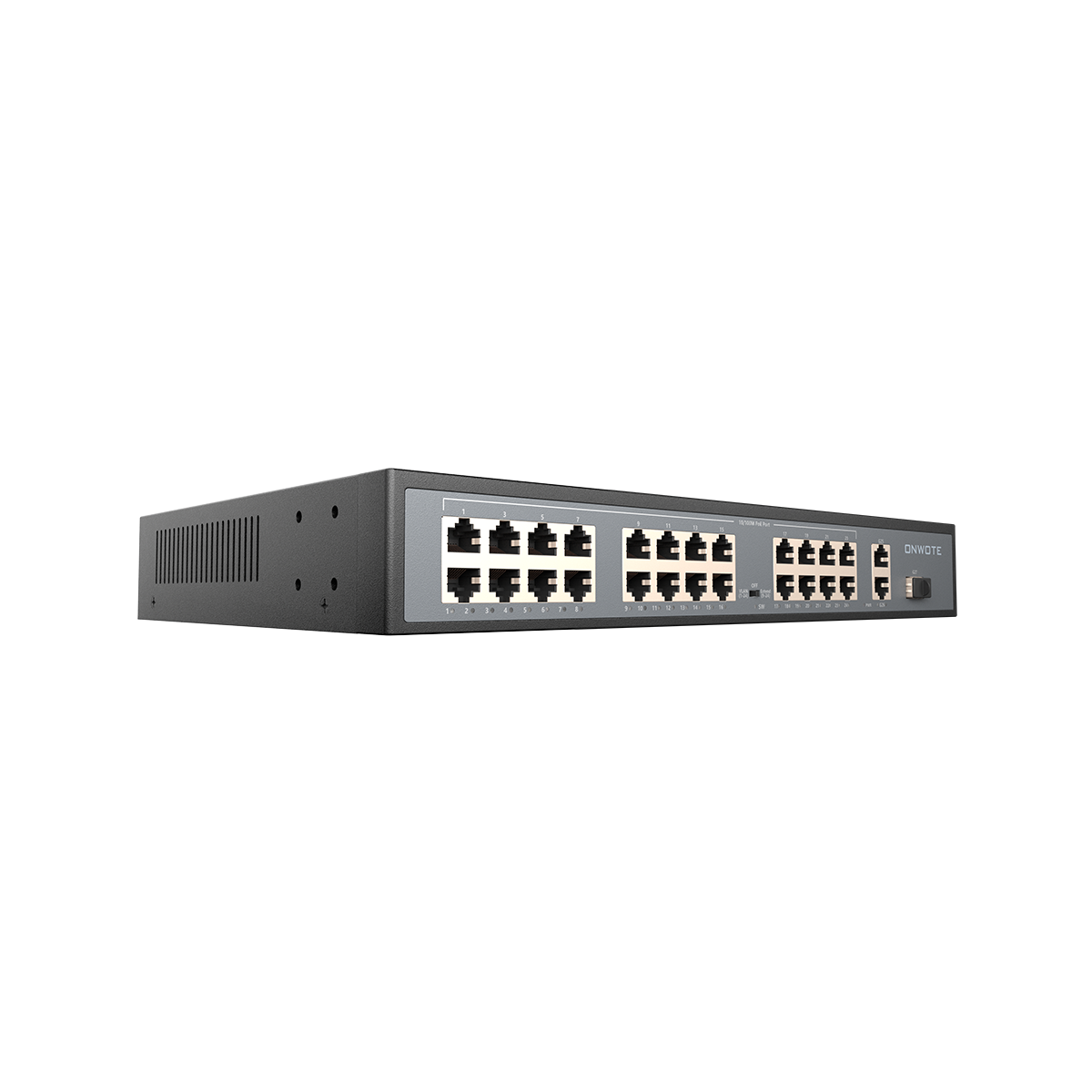

24 Ports PoE Switch

24 Ports: 24* 100M ports+ 2* gigabit ports+ 2* combo SFP Slots

Operating Temperature

'-10°C～ 55°C, 14°F~131°F, 10% ～ 90%RH(non-condensing)

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

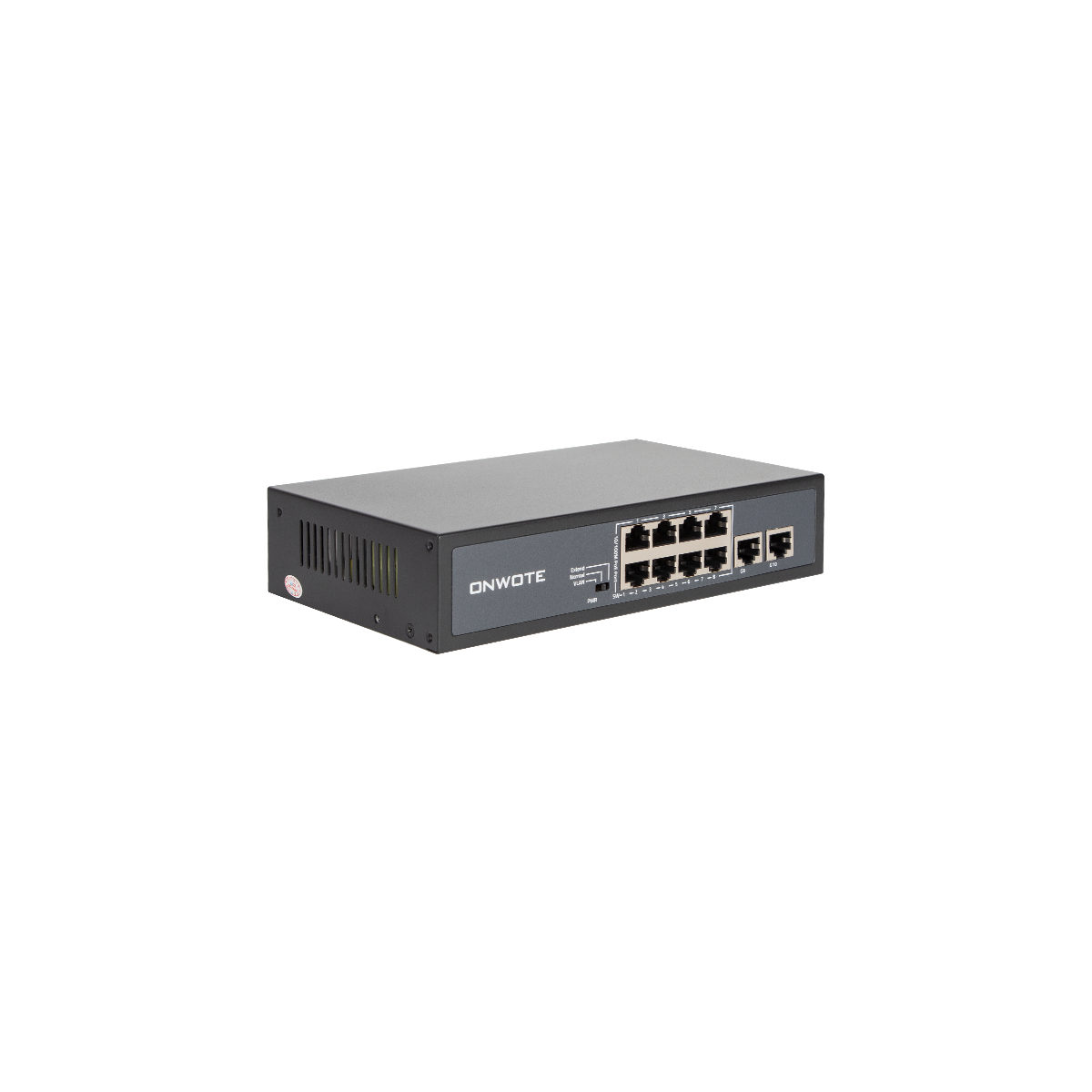

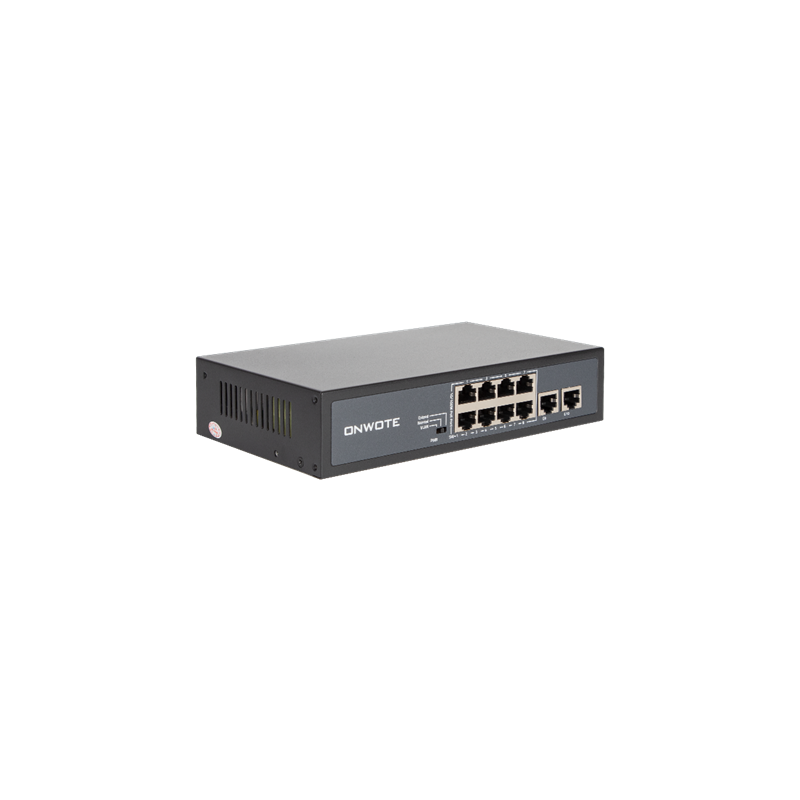

PS-8M2G

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

120W

PoE Protocol

IEEE802.3af (15.4W); IEEE802.3at (30W)

PoE Ports

8 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports

Transfer Mode

Store and forward

Switching Capacity

5.6Gbps

Forwarding Rate

4.166Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting: Powered; Un-Light: No Power

Switch Mode

Lighting:VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-10 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

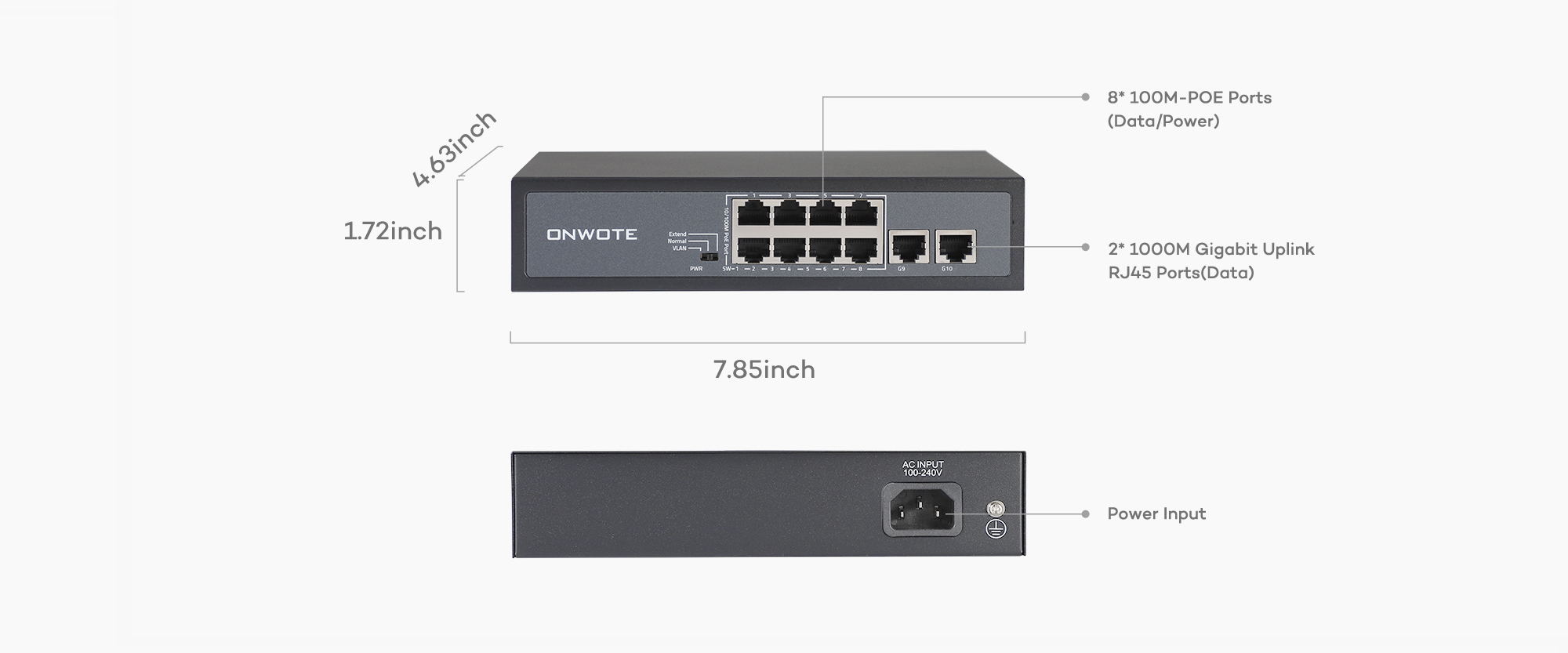

Product Dimensions

7.87*4.65*1.73inch

Net Weight

1.36lbs

Package List

1x 8 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

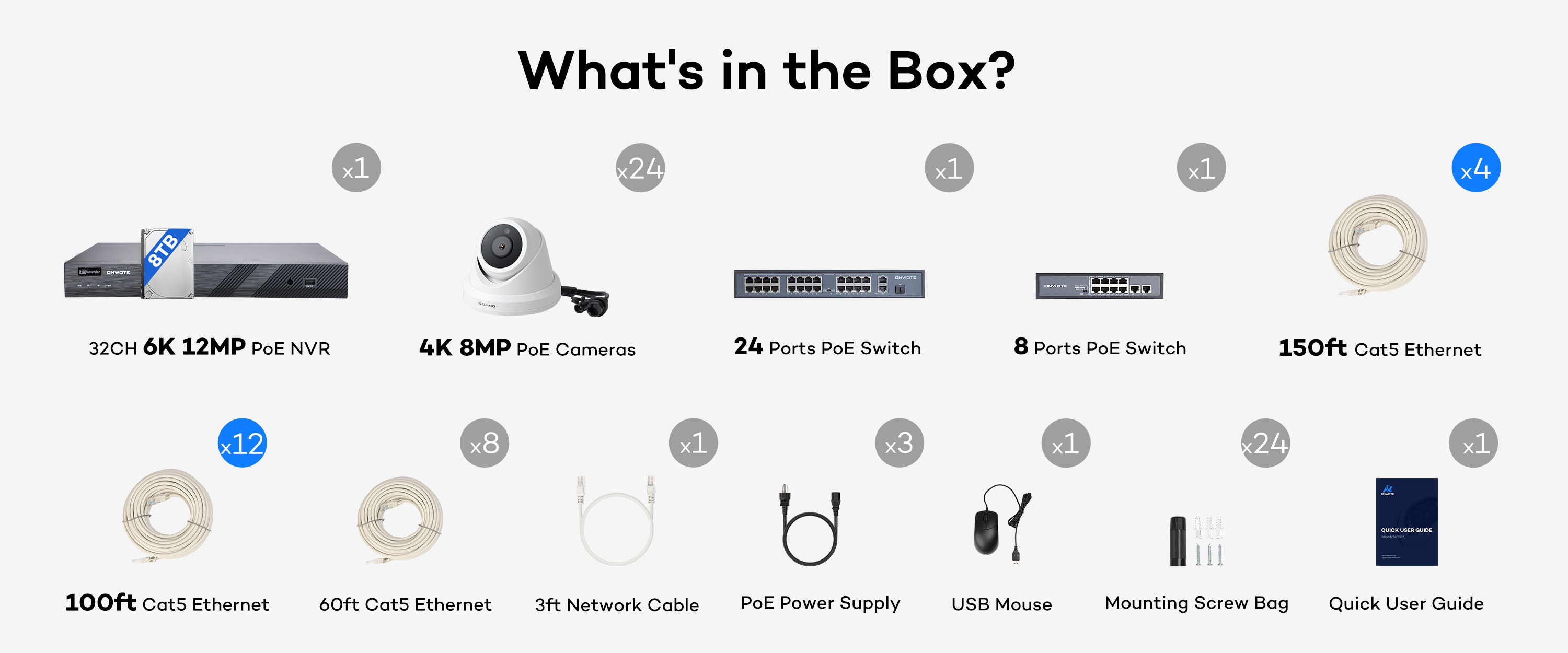

Packing List

Videos

Add-on

PTZ20X 4K/8MP PoE Camera

$273.59 Save $26.40
PTZ5X 4K/8MP PoE PTZ Camera

$153.59 Save $16.40
PTZ 5X 4K 8MP PoE Camera

$134.39 Save $15.60
PTZ 5X 4K 8MP PoE Camera

$143.99 Save $16.00
$101.75 Save $14.24
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
6K/12MP PoE Camera

$138.23 Save $21.76
6K/12MP PoE Camera

$138.23 Save $21.76
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60

Comparison

	32CH 4K PoE System $ 2526.99	32CH 5MP PoE System $ 2324.99	32CH 5MP PoE System $ 2279.99	32CH 4K PoE System $ 2799.99
Resolution	8MP@20FPS	5MP@25FPS	5MP@25FPS	8MP@20FPS
Field of View	134°(D), 111°(H), 59°(V)	122°(D), 102°(Hl), 55°(V)	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)
Audio	Built-in Microphone	Built-in Microphone	Built-in Microphone	Built-in Microphone
AI Function	AI Human Vehicle Detection	Smart AI Human & Vehicle Detection& AcuSearch	Human & Vehicle Detection	Face Recognition& AcuSearch
NVR Channels	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	8TB HDD	8TB HDD	8TB HDD	8TB HDD
Storage Capacity	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch

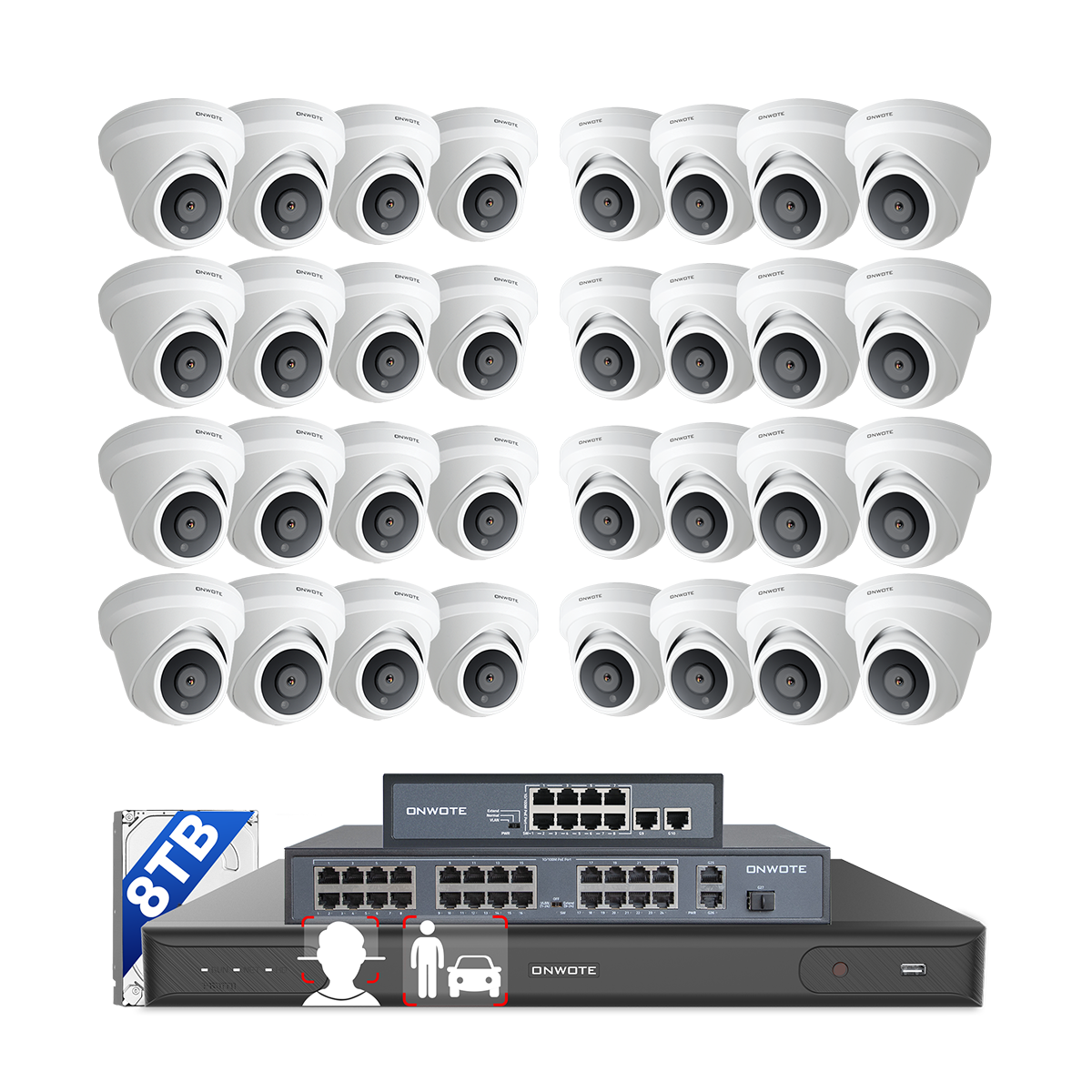

32CH 4K PoE System $ 2526.99

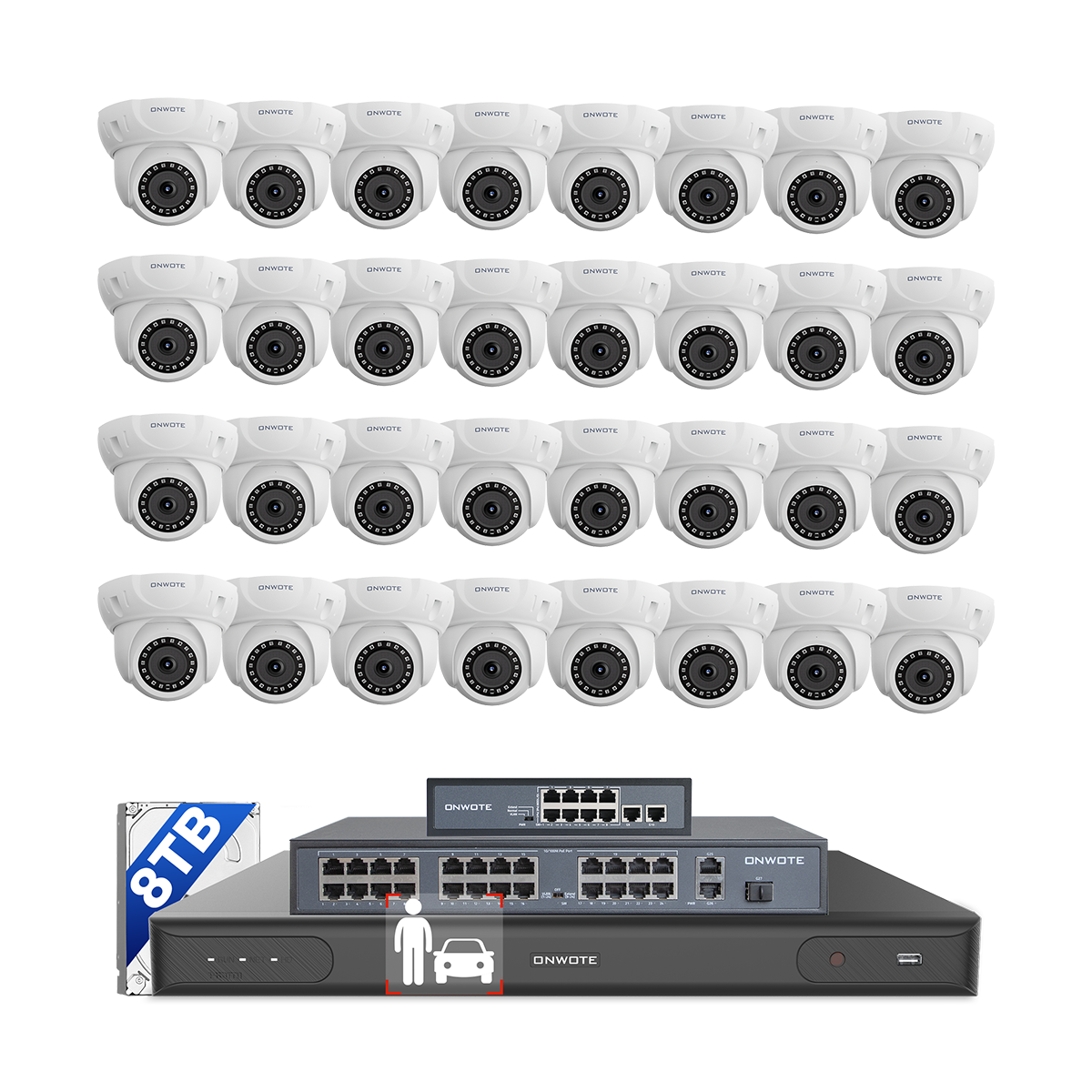

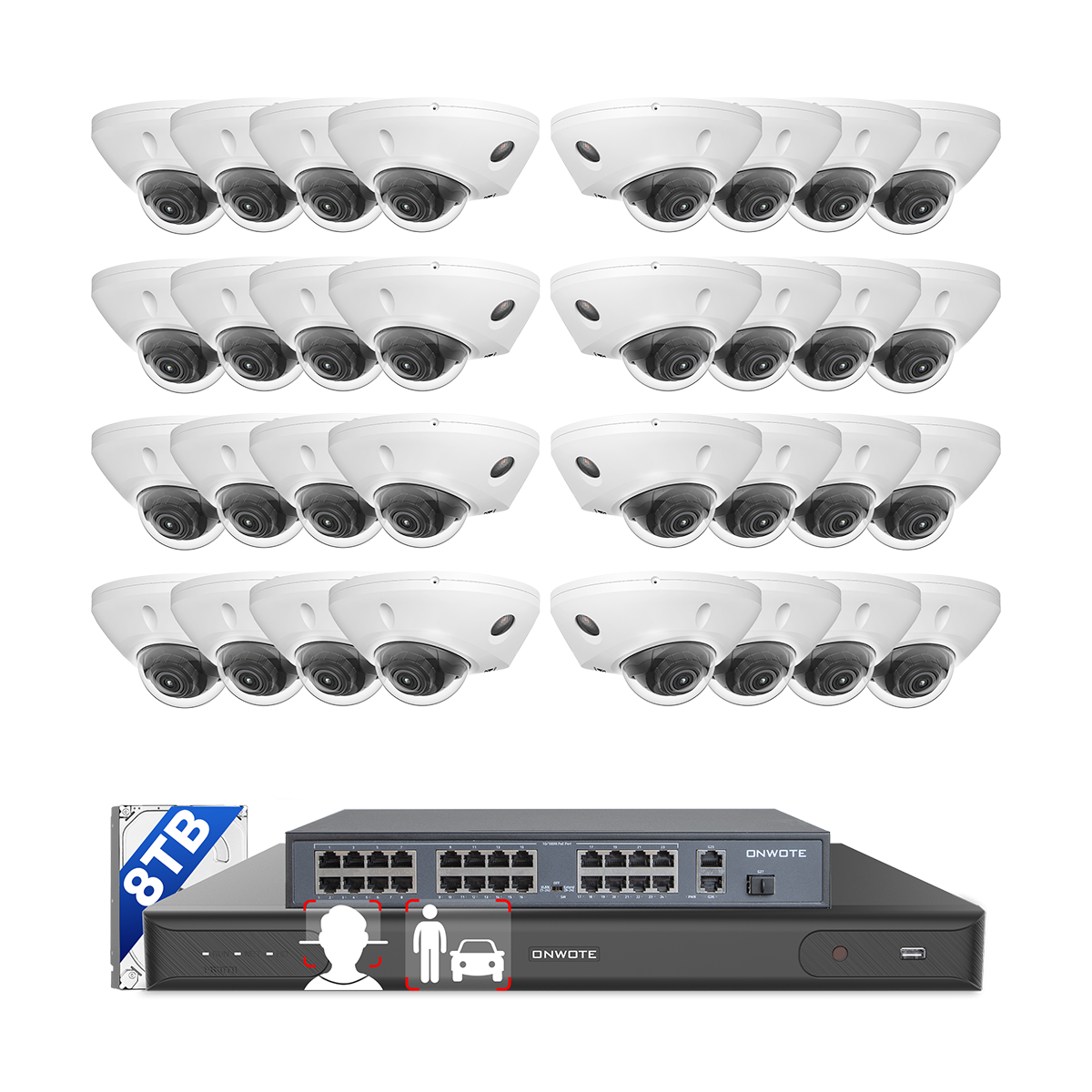

32CH 5MP PoE System $ 2324.99

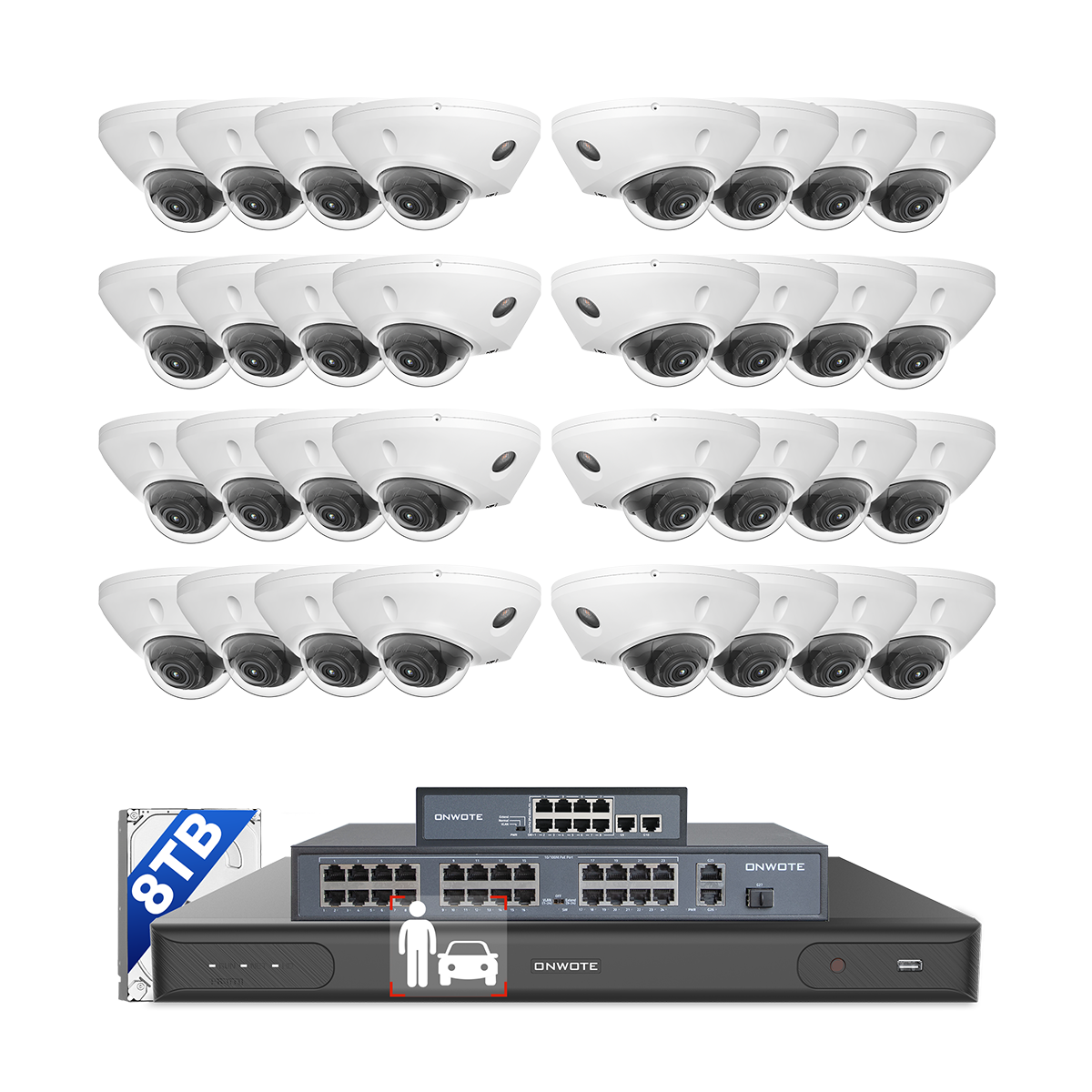

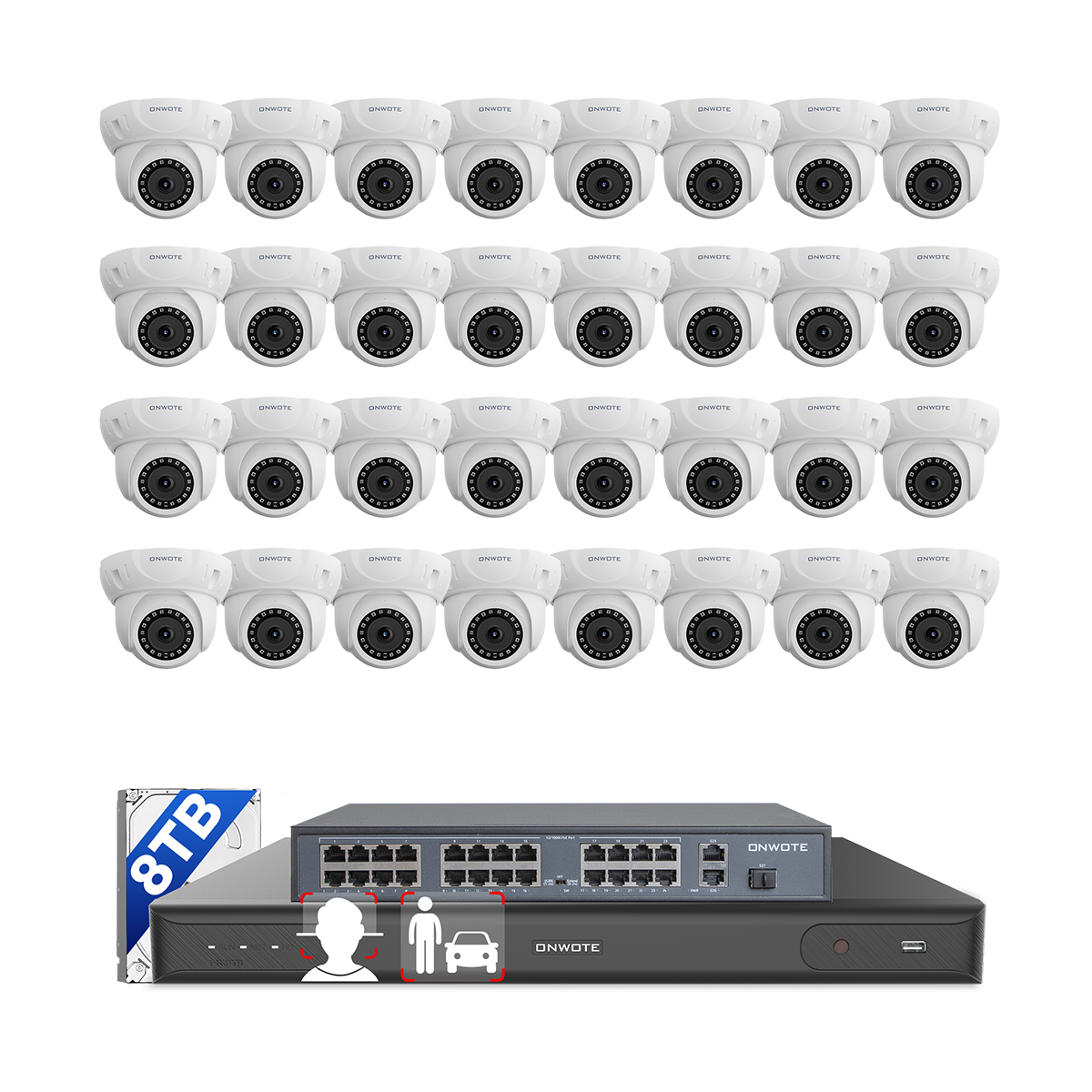

32CH 5MP PoE System $ 2279.99
32CH 4K PoE System $ 2799.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
5MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Smart AI Human & Vehicle Detection& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
5MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Human & Vehicle Detection	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
