Overview

View Angle

4K 8MP HD

8 Megapixels = 3840(H) × 2160(V), offering 4 times the clarity of 1080P to ensure sharp live viewing and detailed recordings of important events.

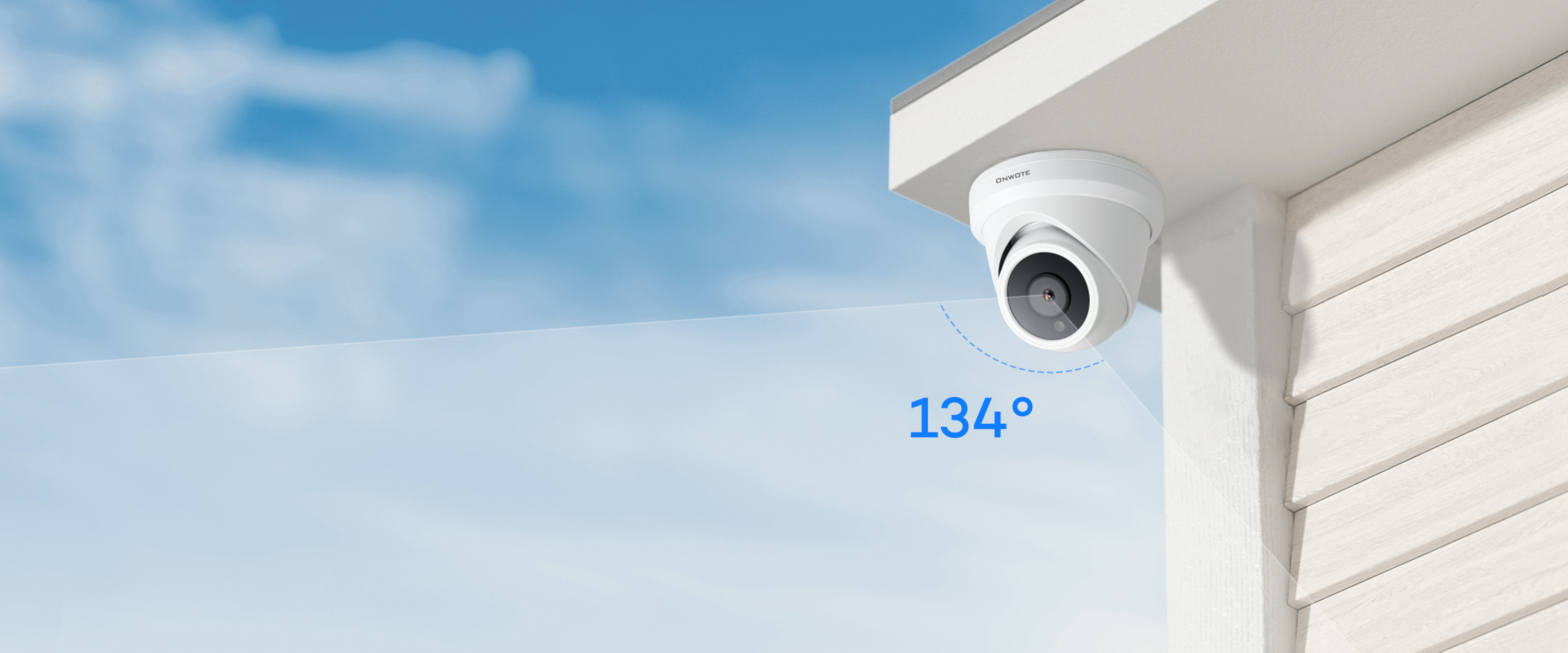

Wide Field of View

134° Diagonal, 111° Horizontal, 59° Vertical

AcuSearch Technology

Smart Detection & Analysis

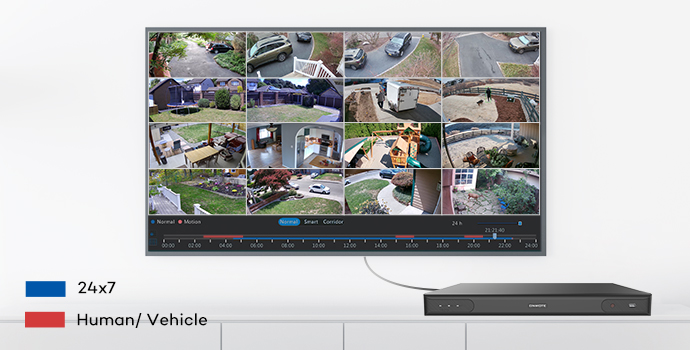

Discovery & Playback

Discovery & Playback Access

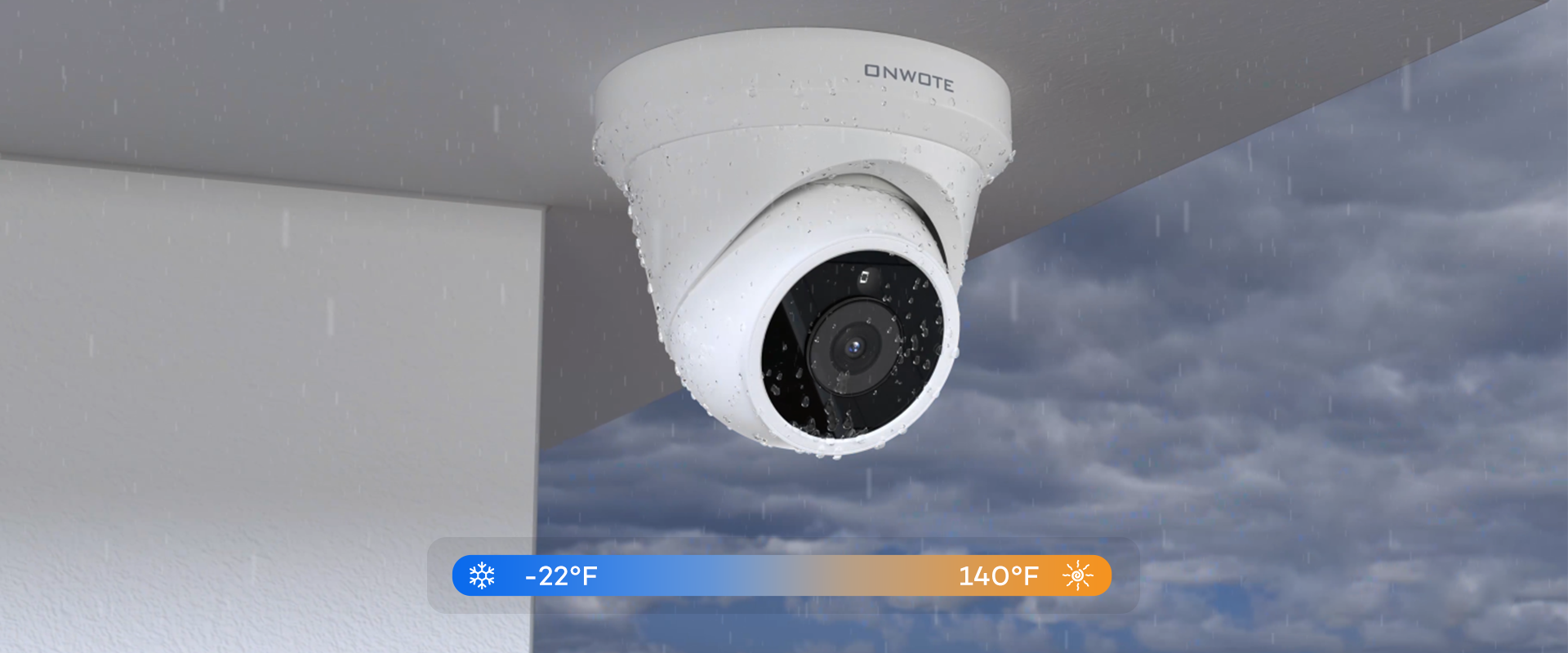

IP66 Metal housing

IP66-Rated Weatherproof Reliability, durable weatherproof metal housing suitable for both indoor and outdoor use.

Capture & Record Audio

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app.

Audio Capture Mobile App Playback HD TV Output

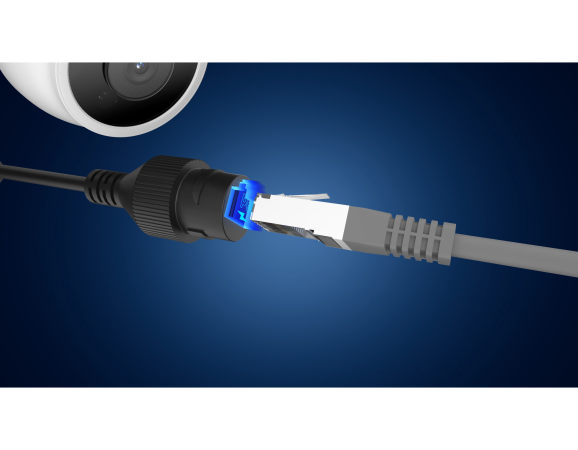

POE

Effortless Setup —a Ethernet Cable Does It All

PoE technology allows a single Cat5 Ethernet cable to transmit video, audio, and power—making installation simpler than traditional DVR systems. Just plug and play.

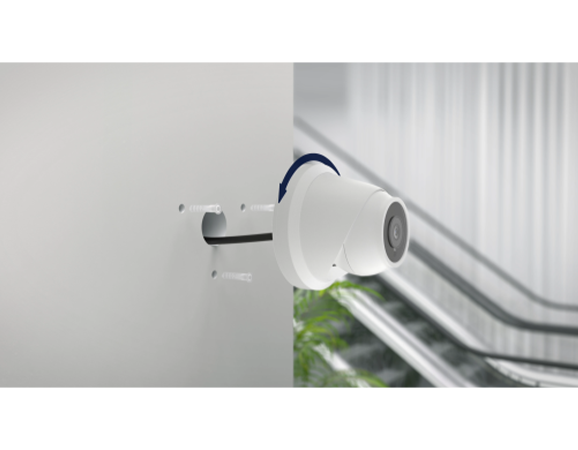

Hassle-Free Installation

Our cameras are designed with simplicity in mind. Whether you're a professional installer or a first-time user, setting up your surveillance system has never been easier.

40TB storage capacity.

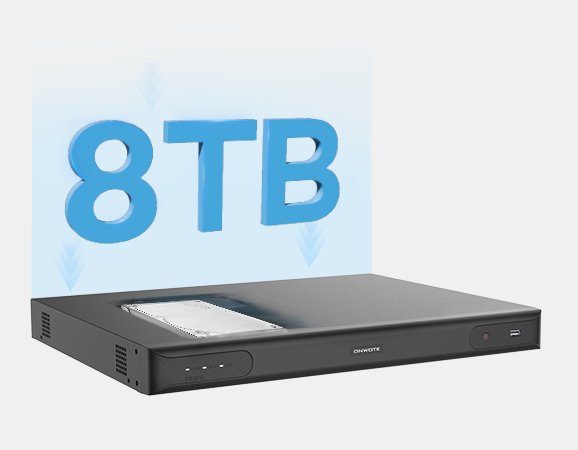

8TB Storage Pre-Installed

An 8TB hard drive comes pre-installed in the NVR, offering free local storage. HEVC advanced encoding helps reduce file sizes and save space.

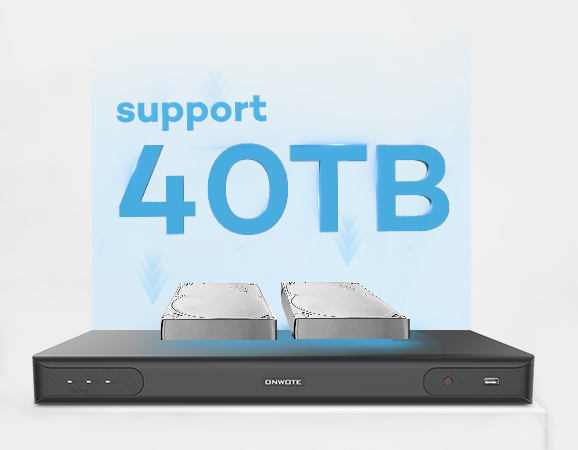

Expandable Up to 40TB

With four 4 ports, the system supports up to 40TB of total storage capacity.

Specification

Camera NVR POE Switch

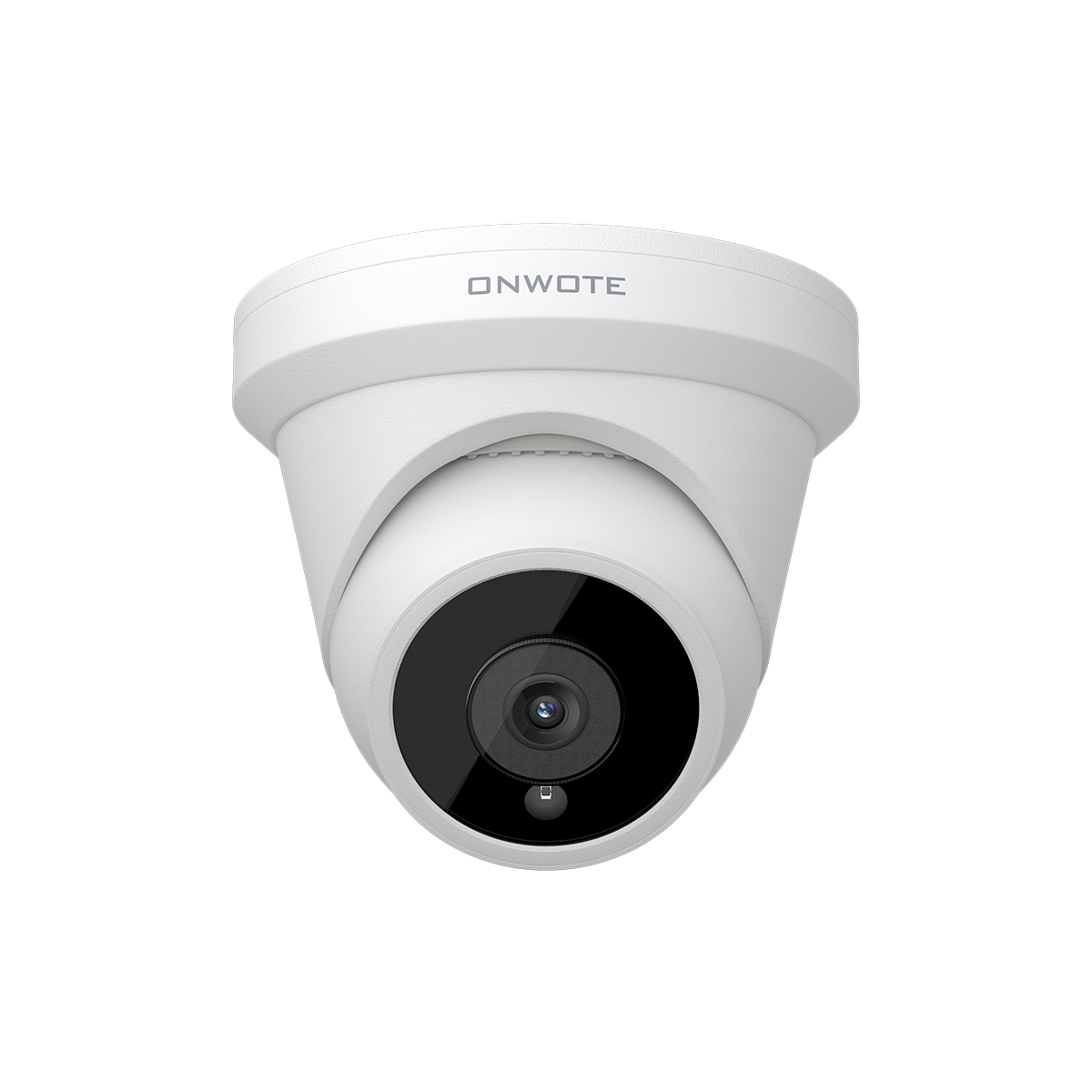

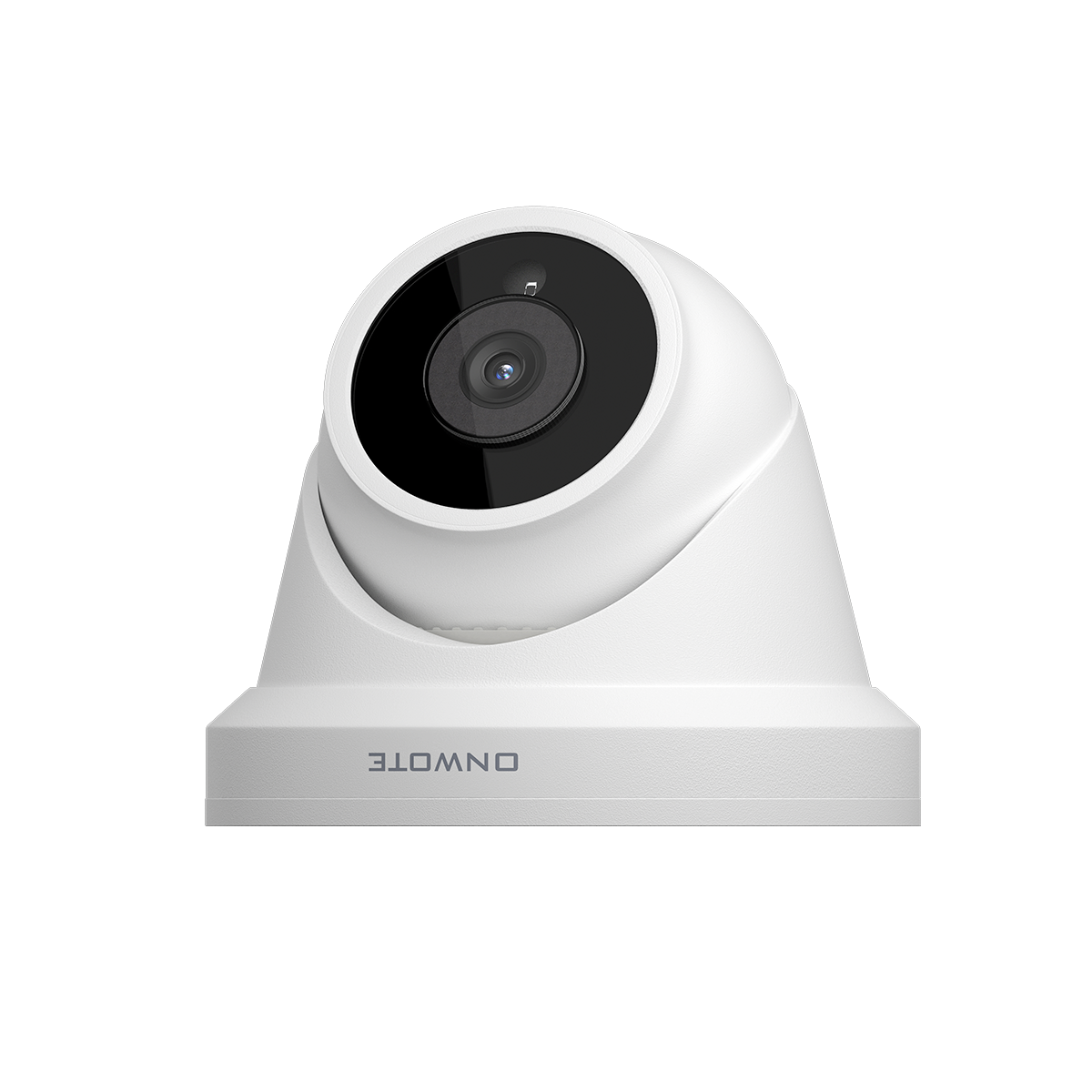

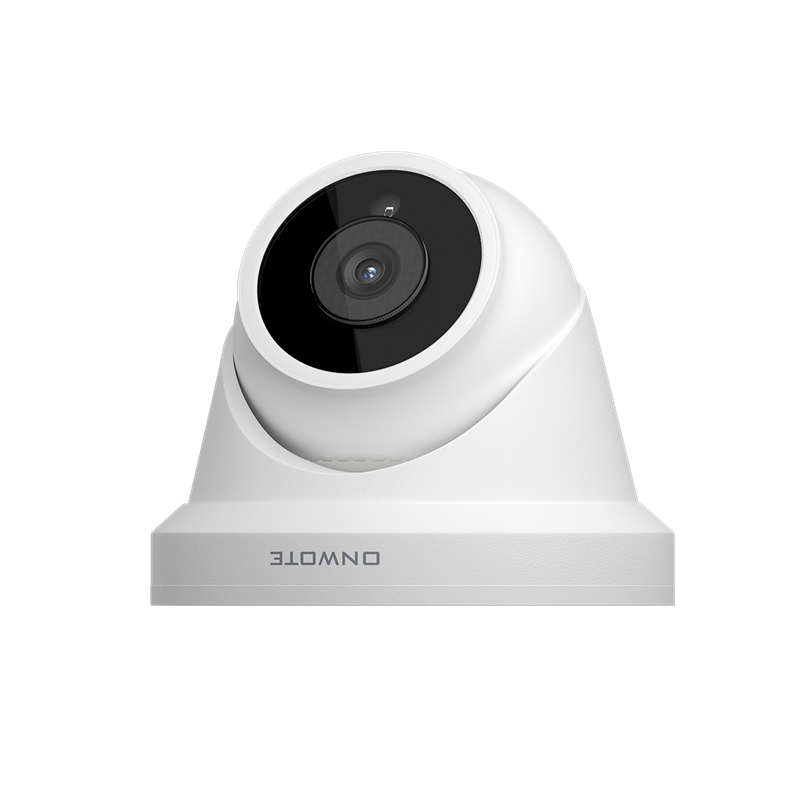

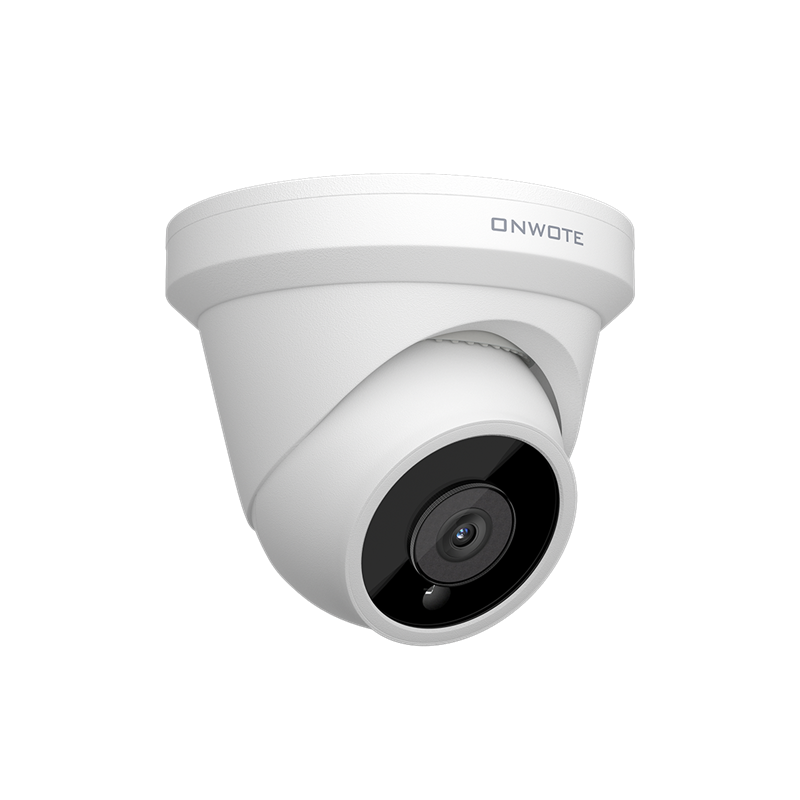

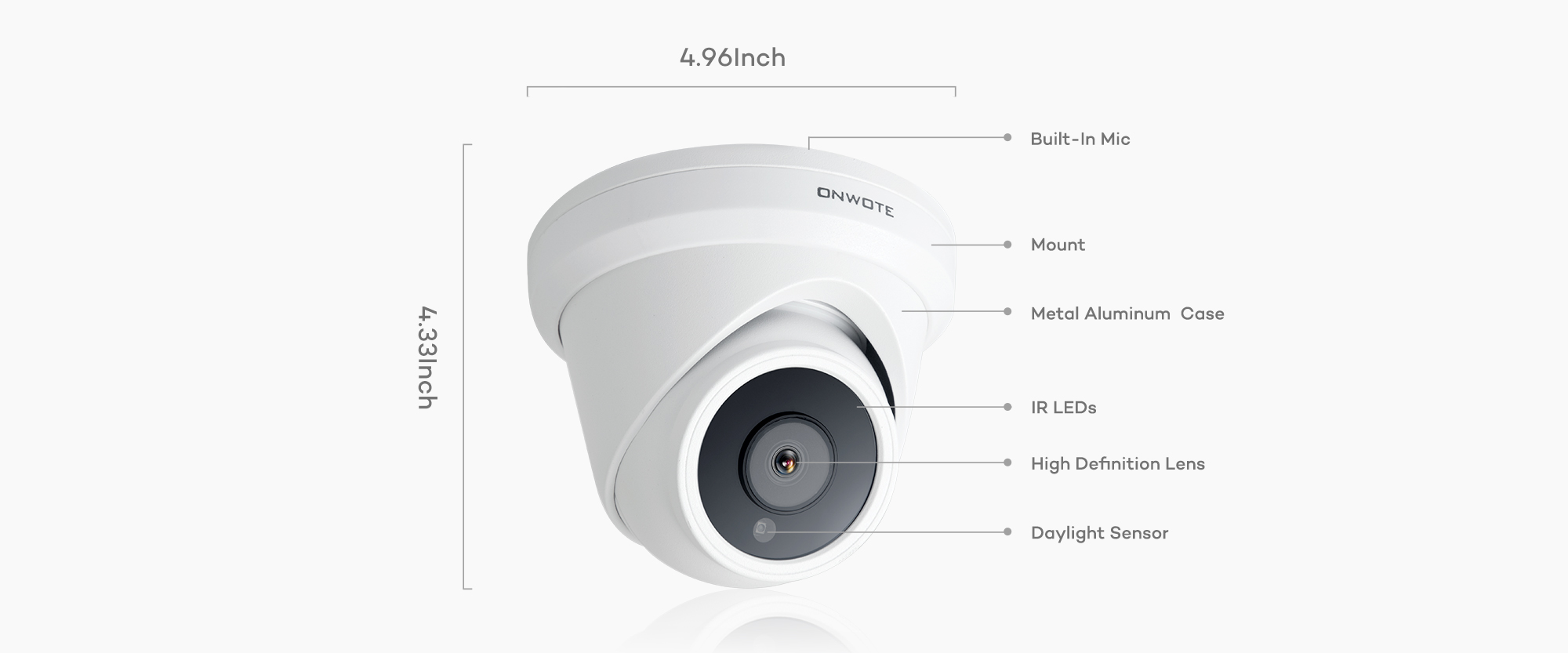

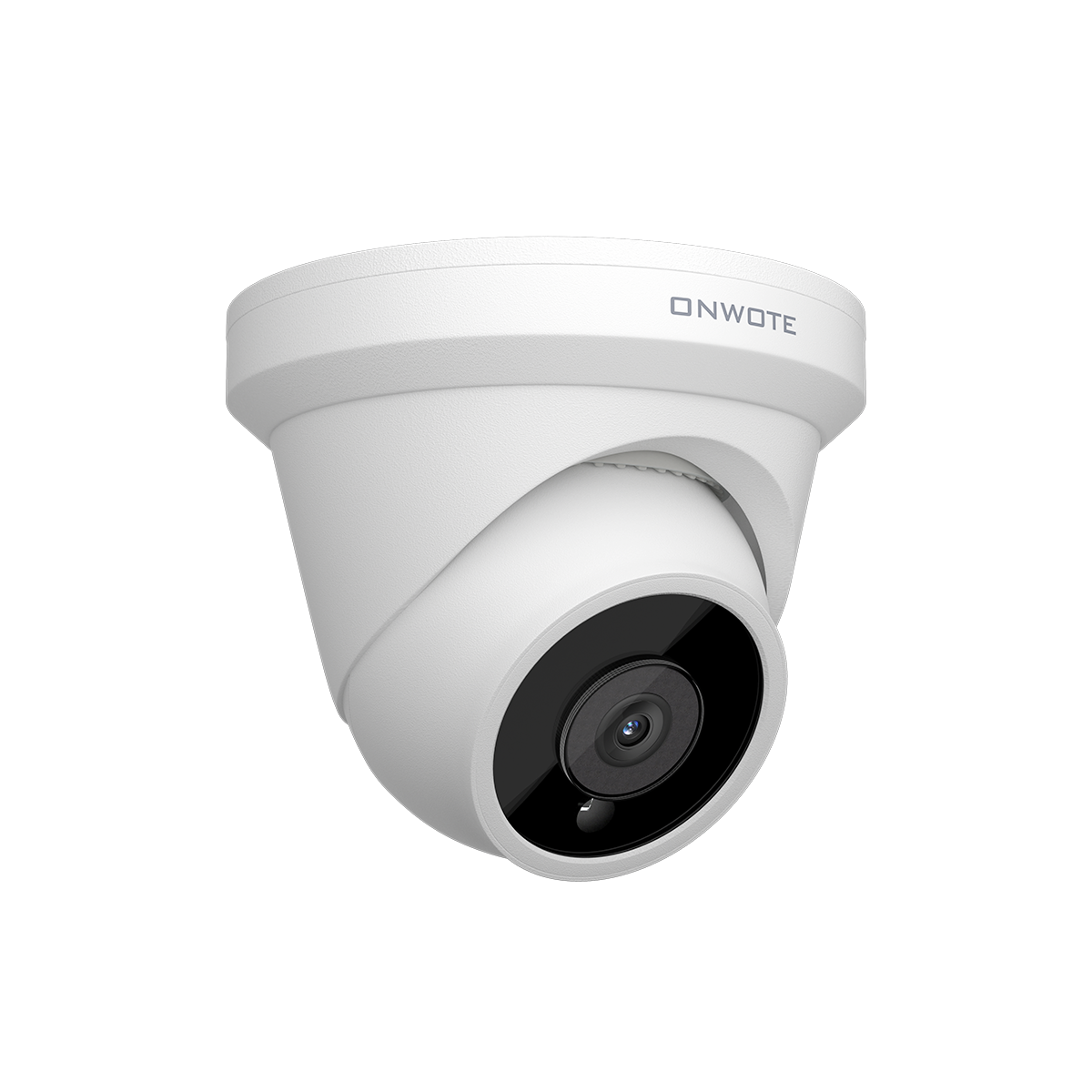

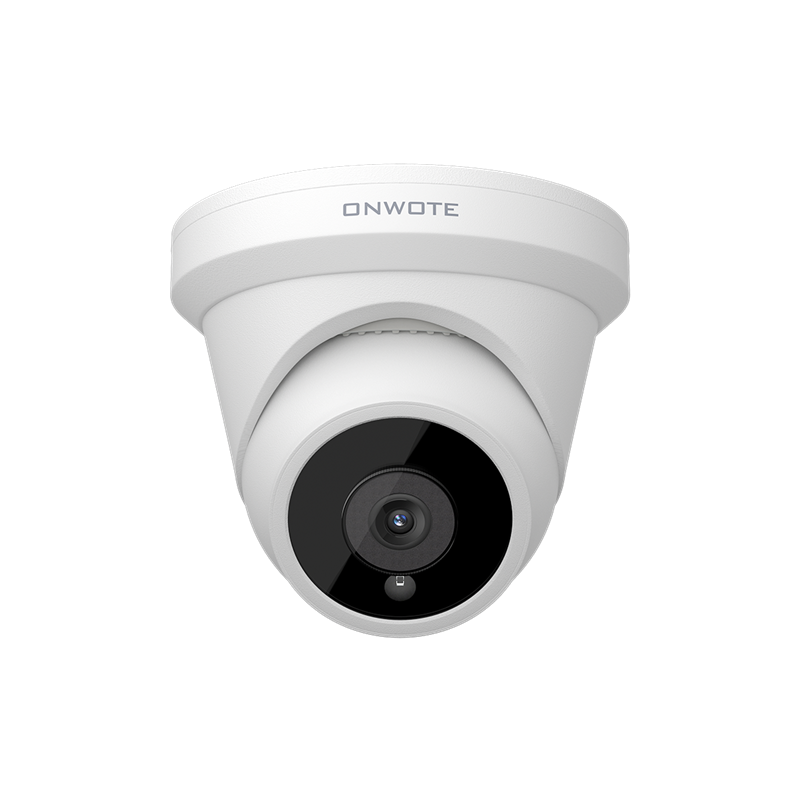

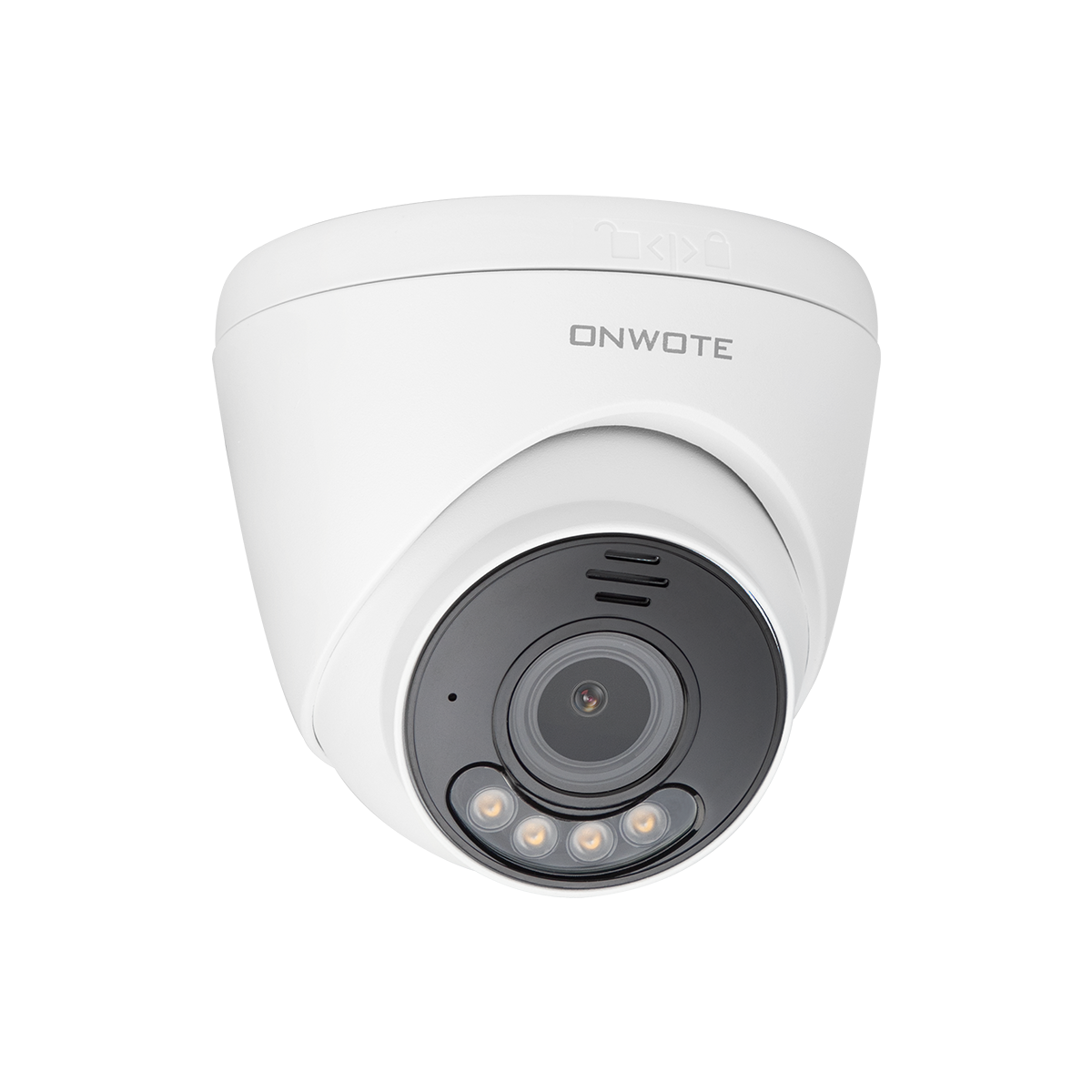

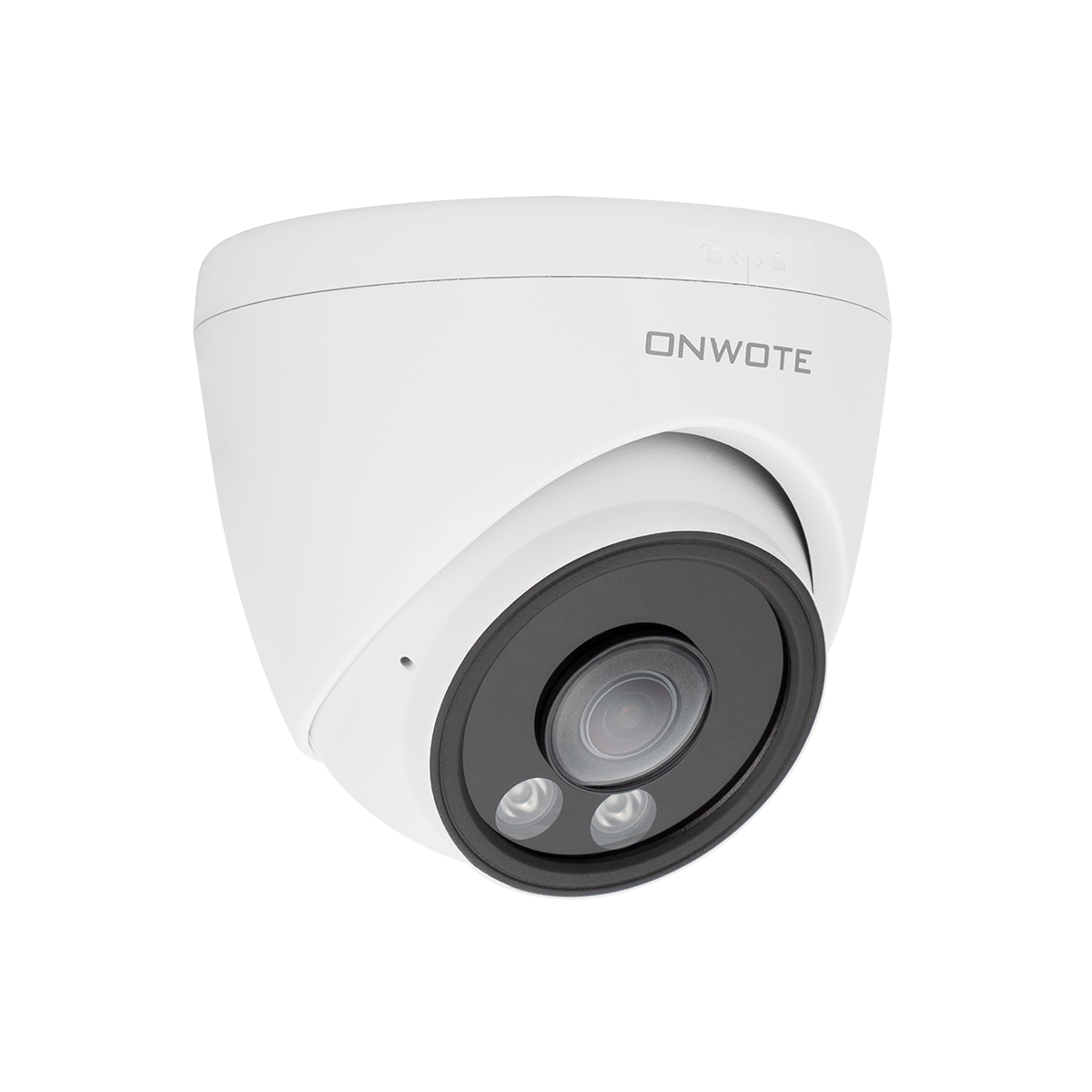

SA80-P36

Video Standard

H.265

Image Sensor

1/2.7" 8MP CMOS

Lens

2.8 mm Fixed Lens

Effective Pixels

8 Megapixels-3840(H) x 2160(V)

Viewing Angle

134°(Diagonal), 111°(Horizontal), 59°(Vertical)

Frame per Second

20fps@ 8MP(3840x2160), 30fps@ 6MP(3072x2048)/ 5MP(2592x1944)

AI Function

AI-Powered Face Recognition, Face Detection, Human Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area）

Audio

Built-in Microphone (10-15ft)

Image Rotation

Flip Vertical, Flip Horizontal, 180°, 90° Clockwise (CW), 90° Counterclockwise (CCW)

Image Adjust

Adjustable Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%)

Privacy Mask

4 Areas

Night Mode

Black& White Mode

Night Vision

Infrared Lights with a Range of up to 100ft

Housing

Strong Water-Proof Housing, IP66 Rated

Working Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V or 12V DC ± 10%

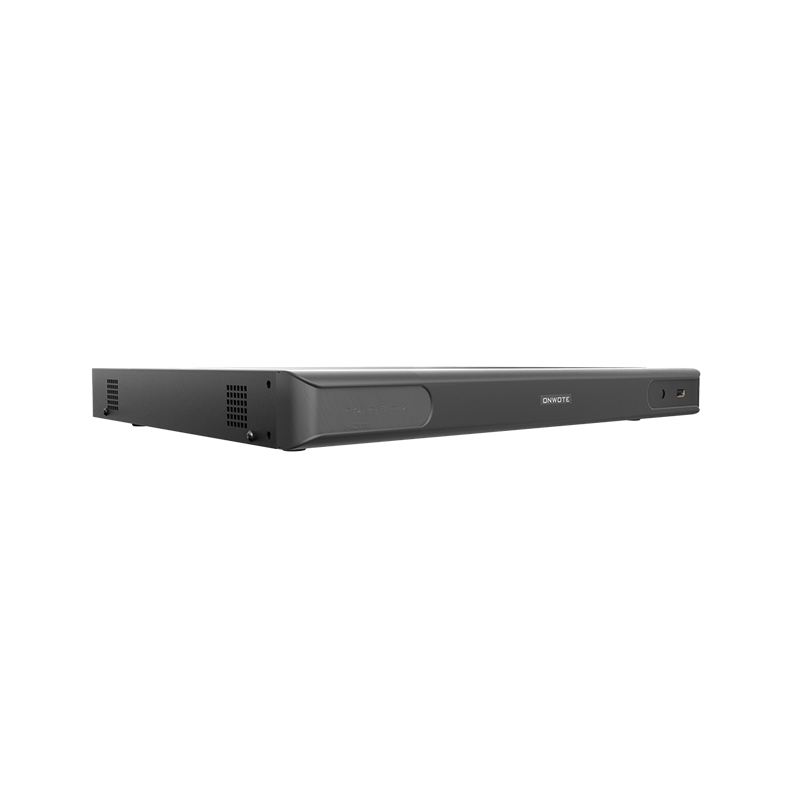

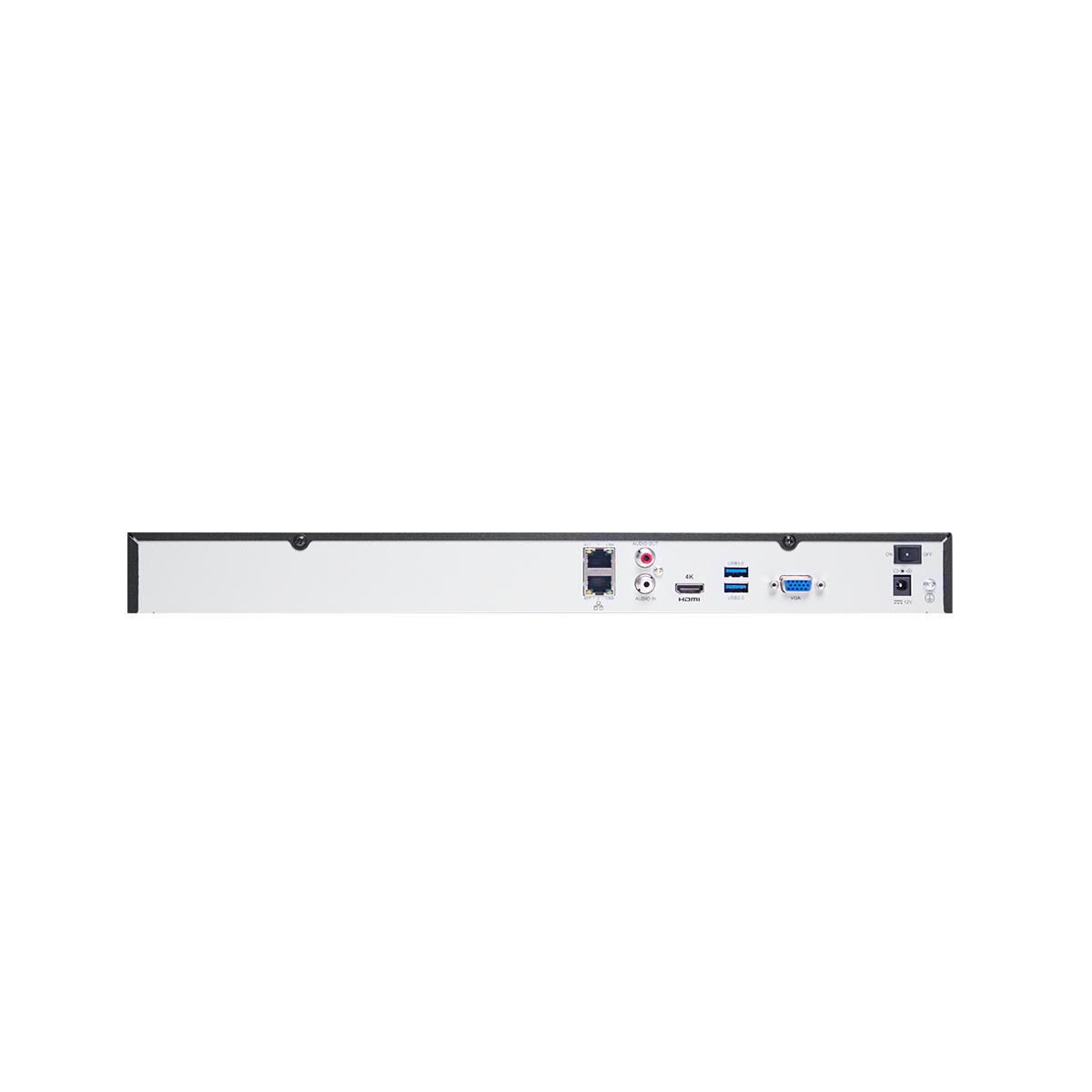

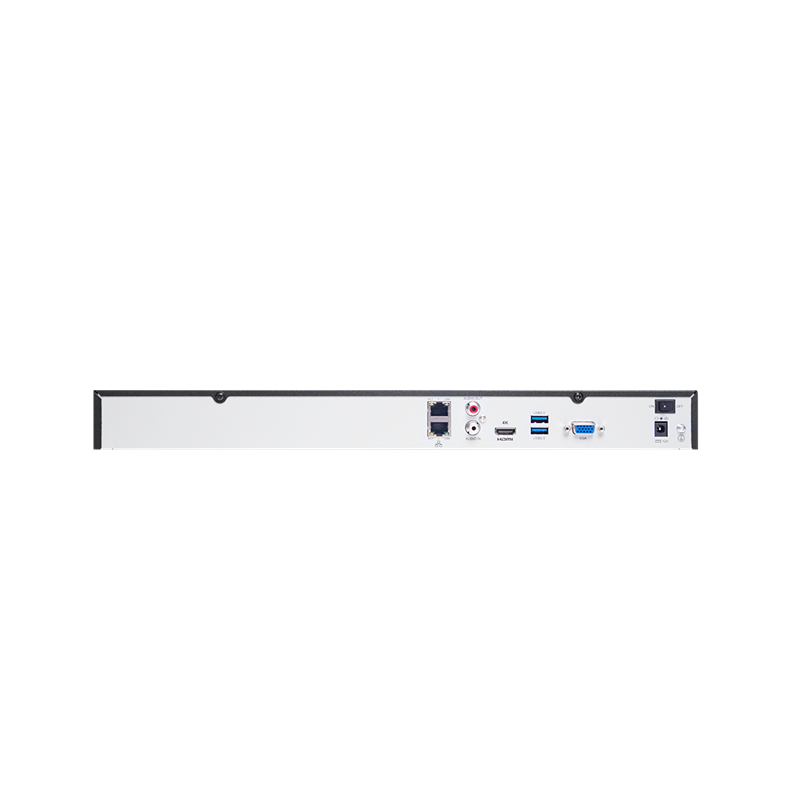

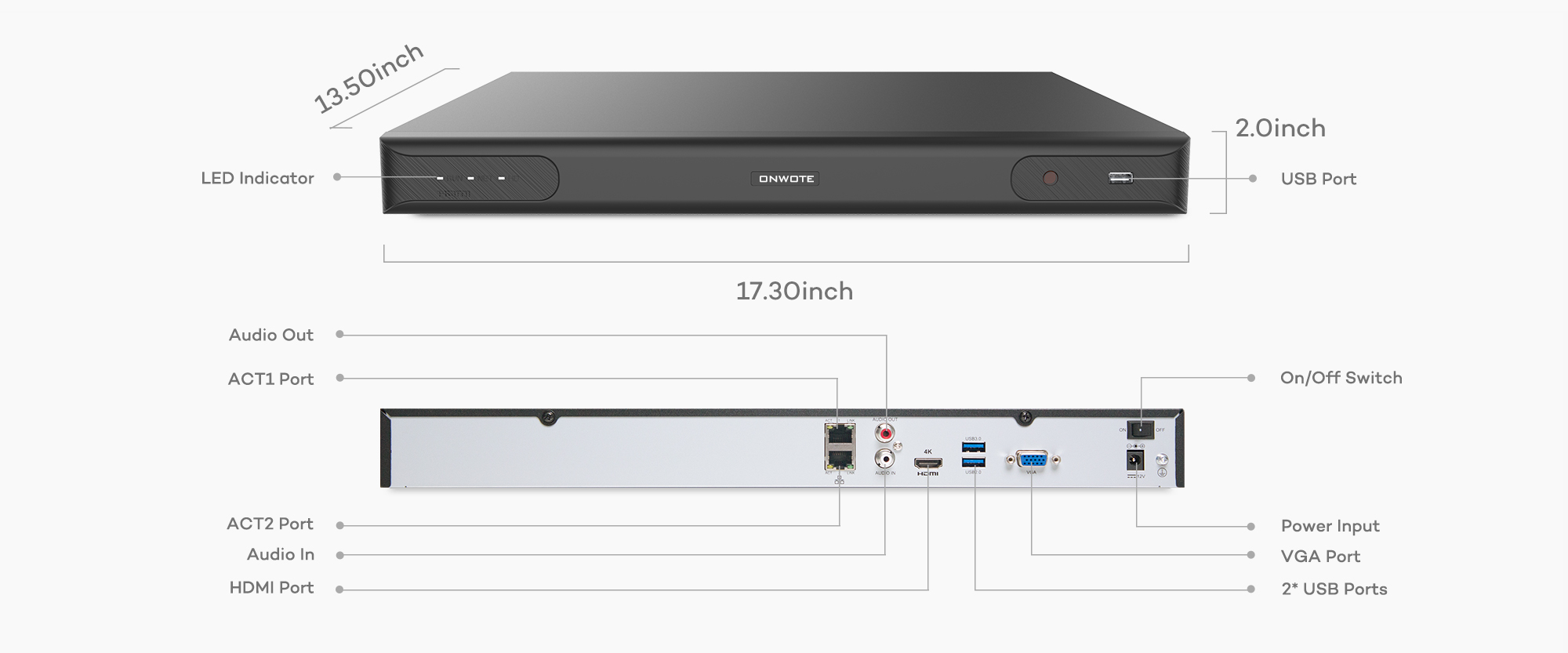

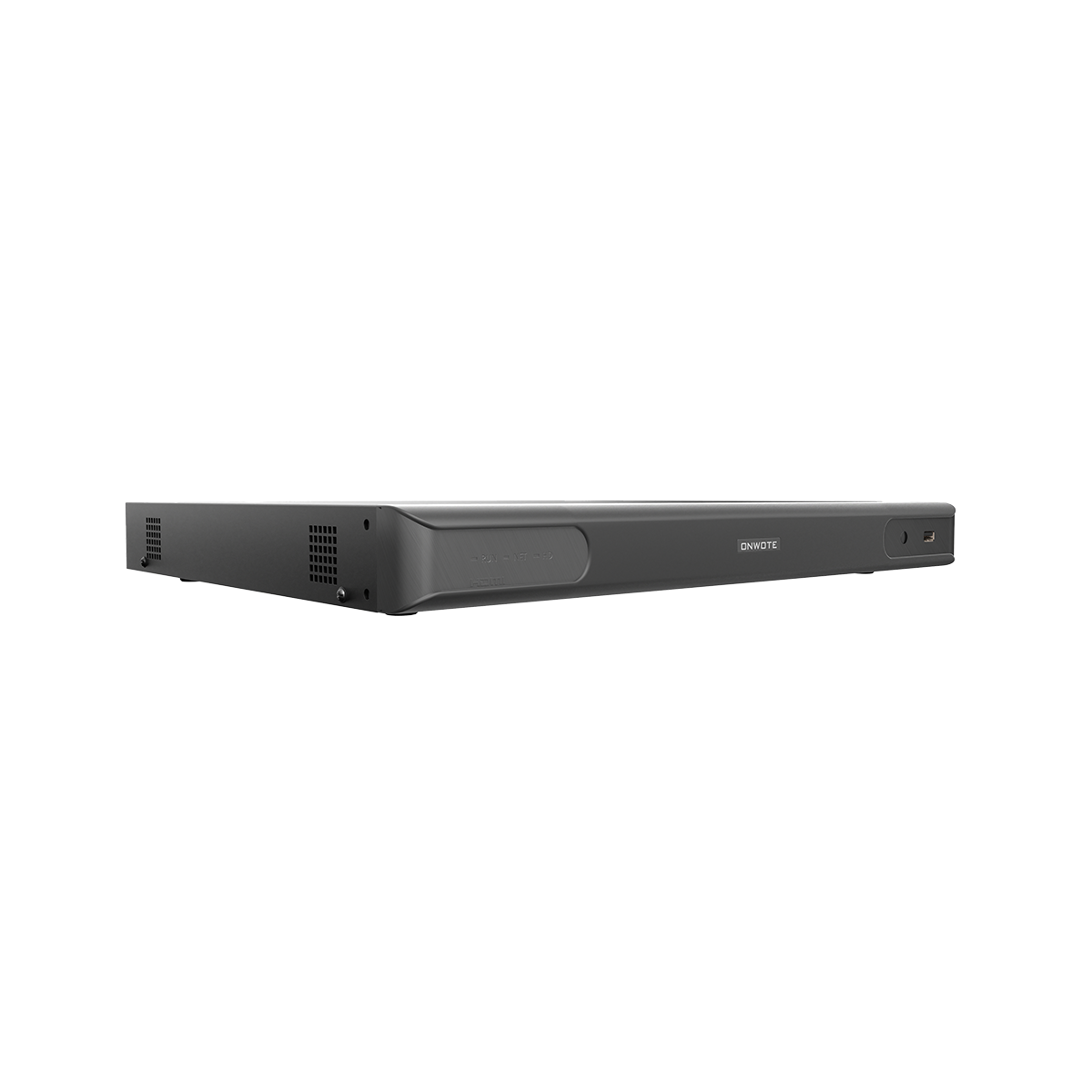

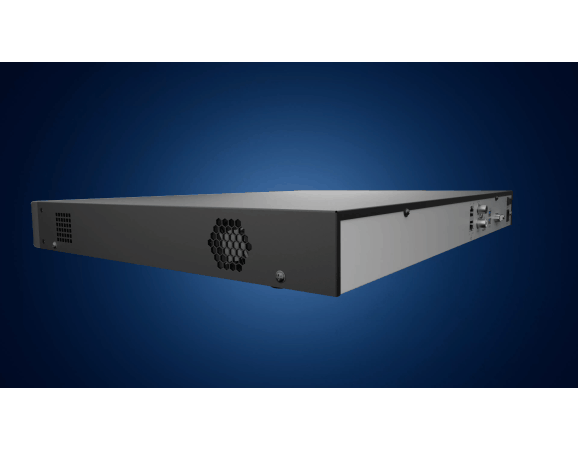

PNA-1232

32CH 6K 12MP NVR

Incoming-160Mbps; outgoing-128Mbps

Video Audio Input

32CH IPC, 20CH 12MP, 26CH 8MP/6MP/5MP, 32CH 4MP

Video Audio Output

AI Function

Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch

Remote Access

128 remote users; Mobile (iPhone/ Android); PC (Windows/ Mac)

Storage Capacity

Built-in 8TB HDD, 4 SATA interfaces support up to 40TB

24 Ports & 8 Ports PoE Switch

24 Ports: 24* 100M ports+ 2* gigabit ports+ 2* combo SFP Slots; 8 Ports: 8* 100M ports+ 2* gigabit ports

Operating Temperature

'-10°C～ 55°C, 14°F~131°F, 10% ～ 90%RH(non-condensing)

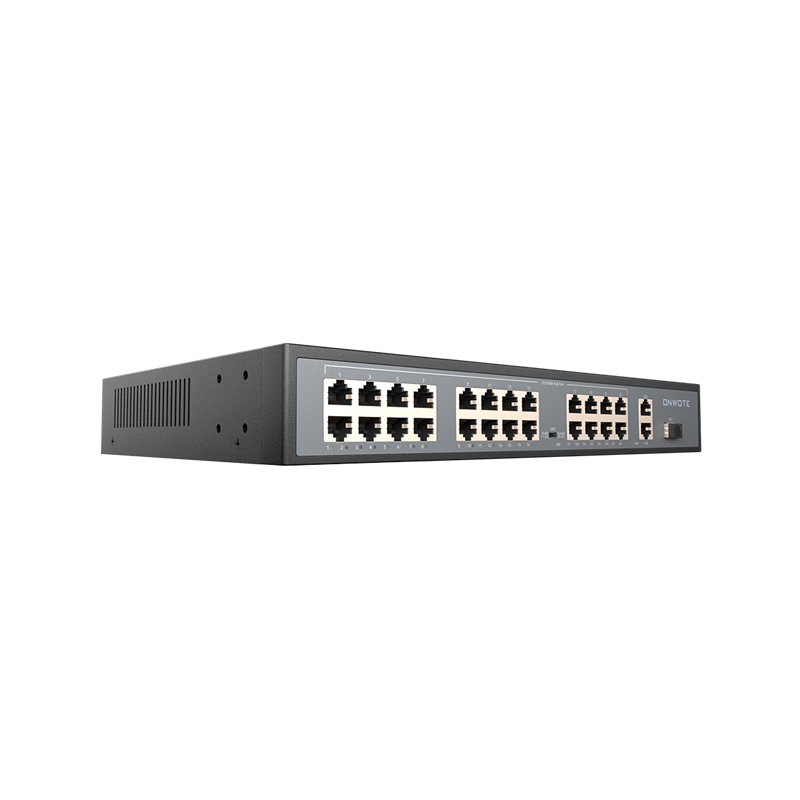

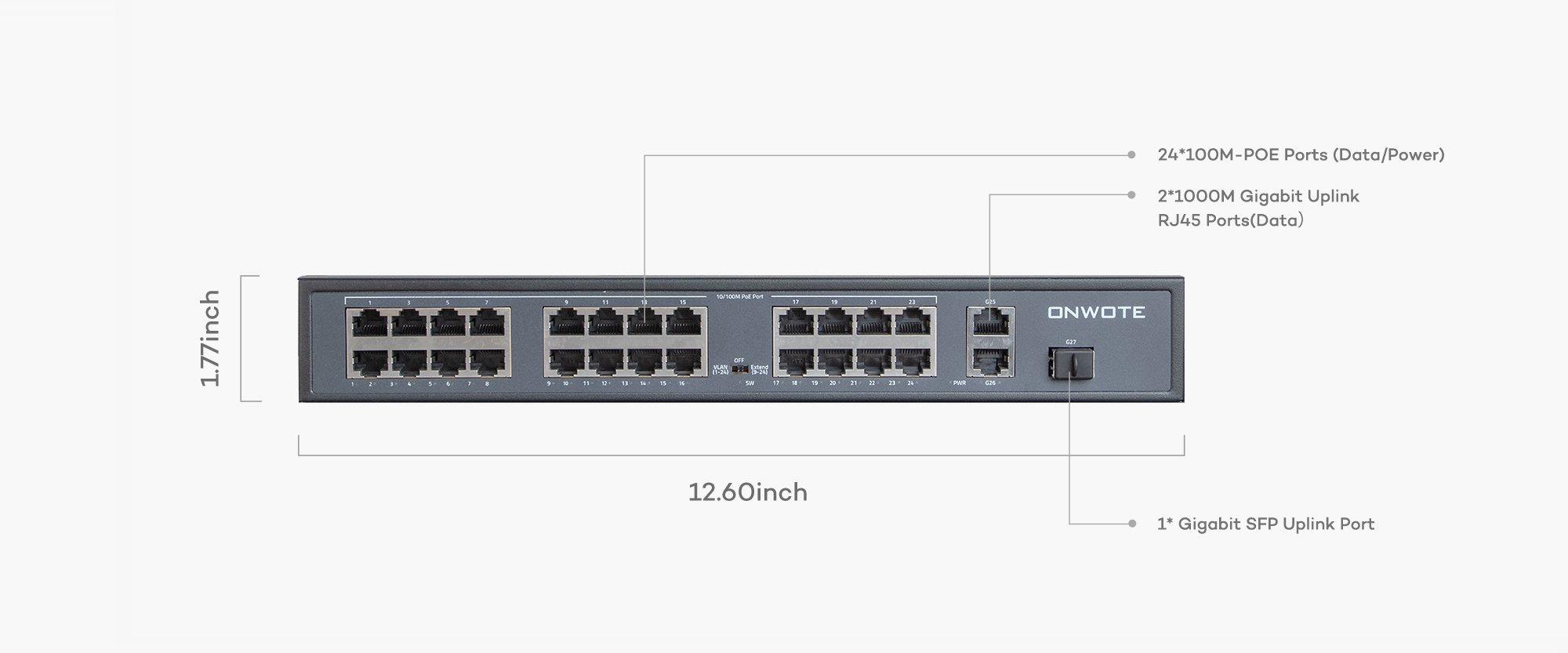

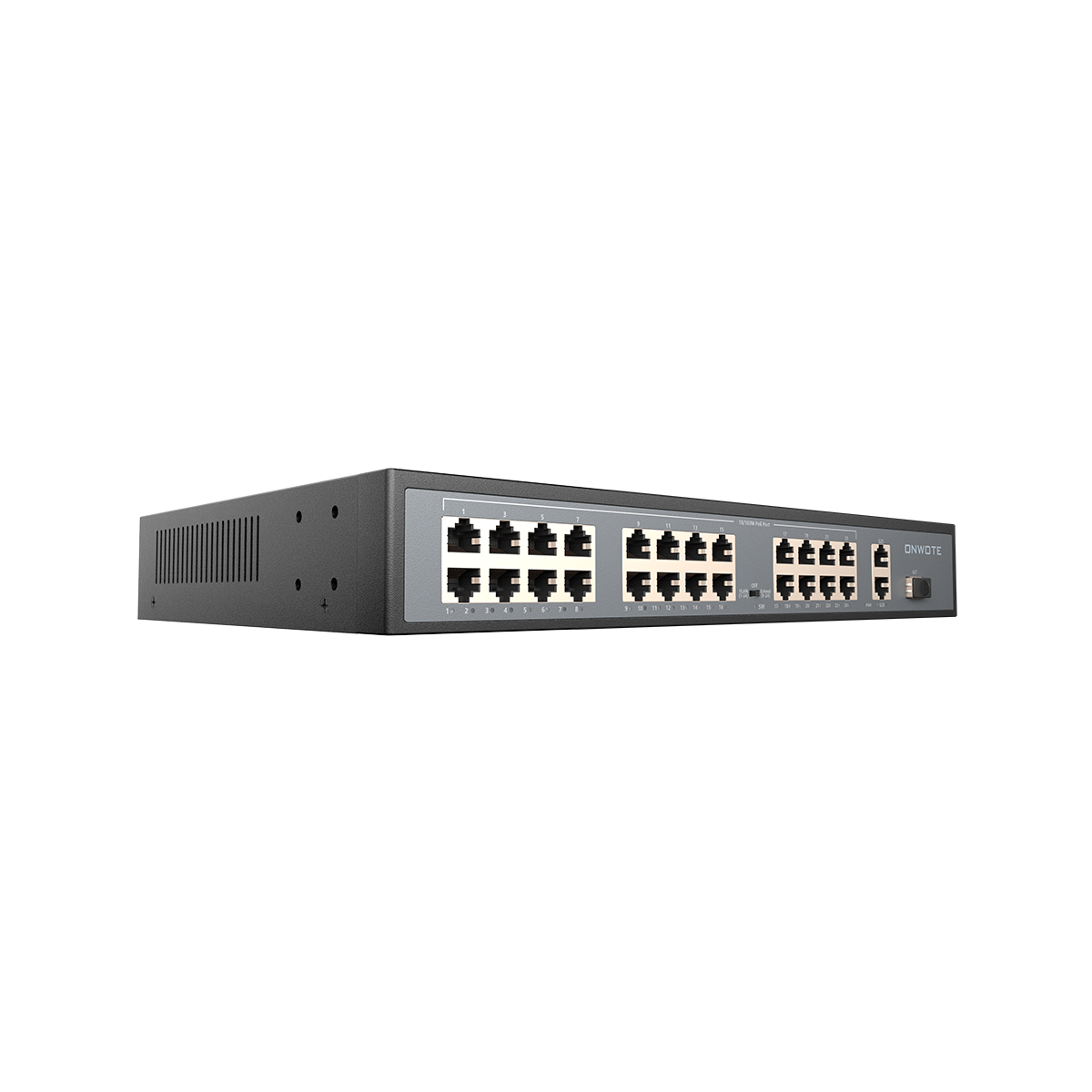

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

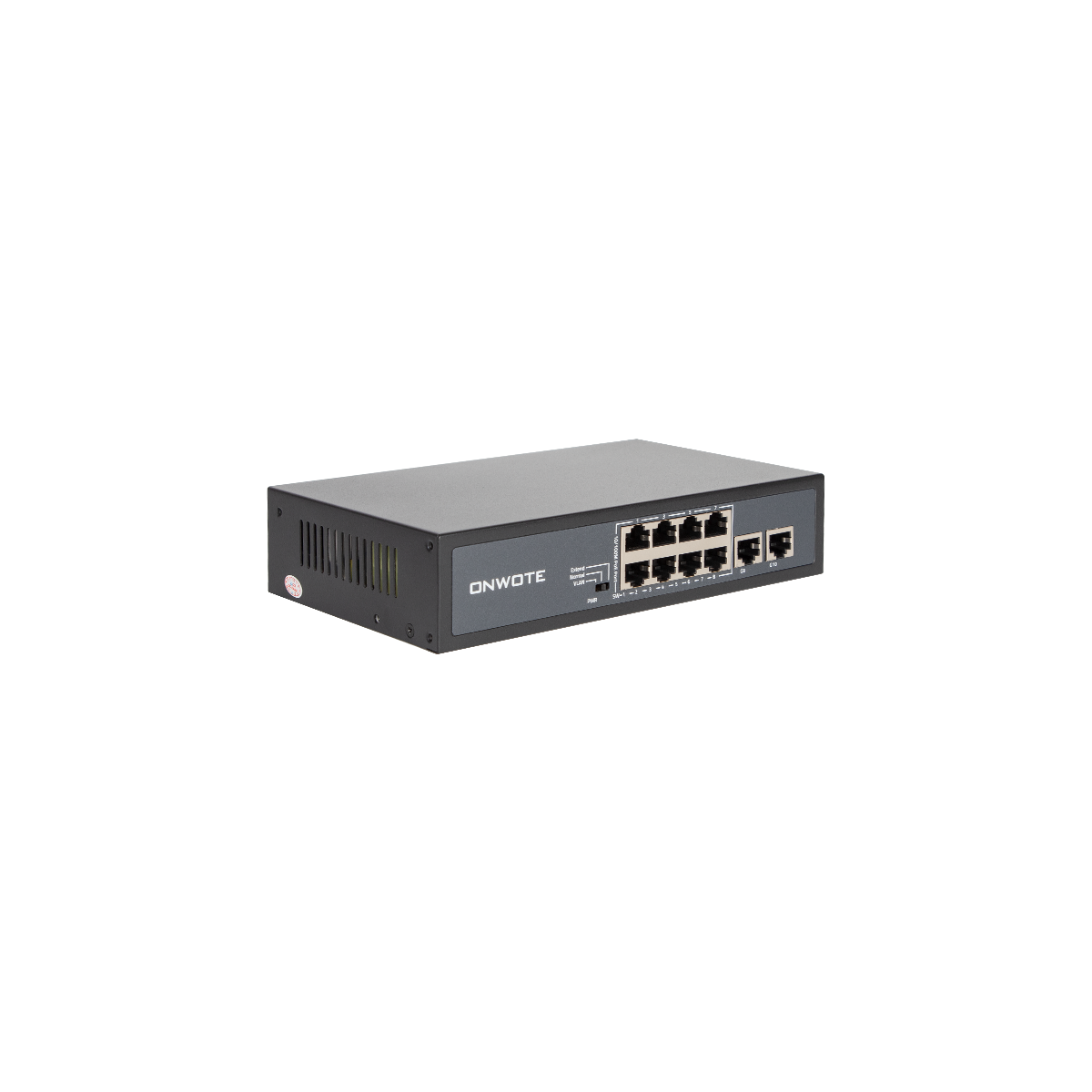

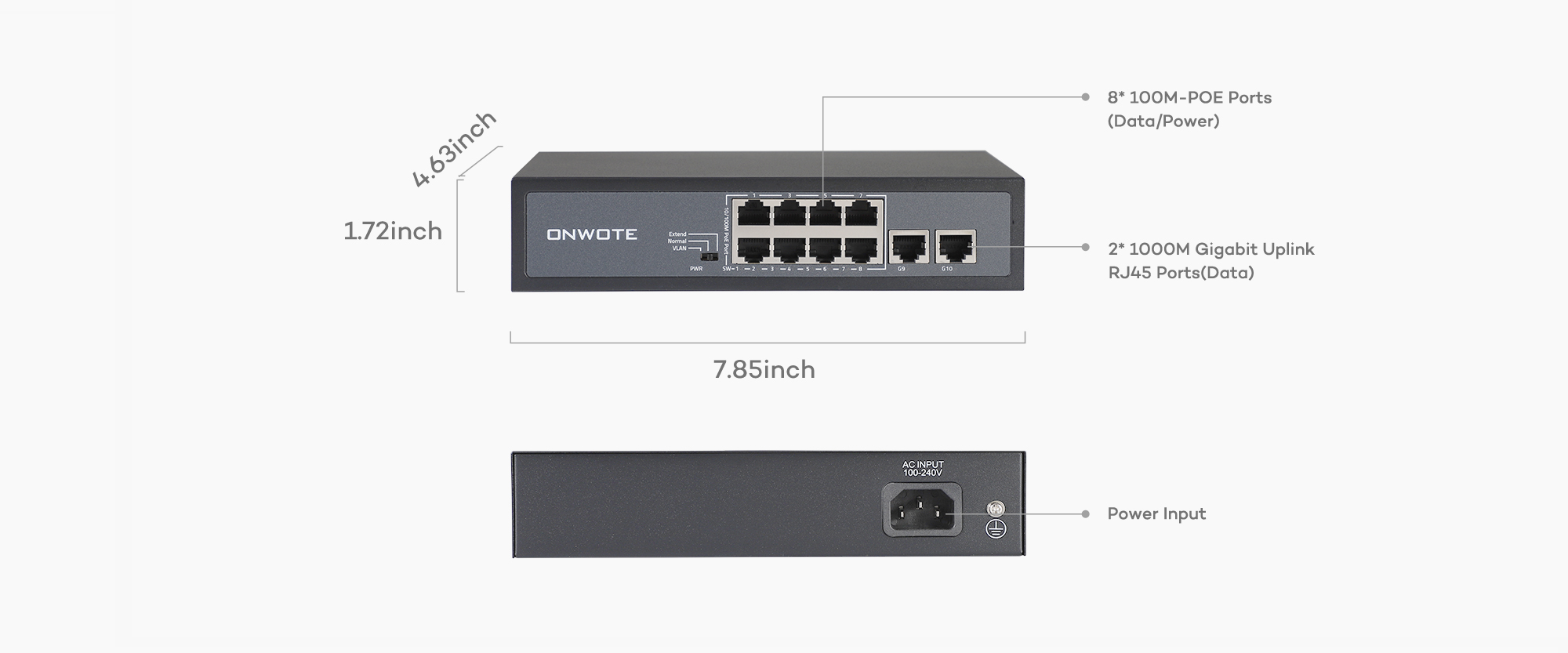

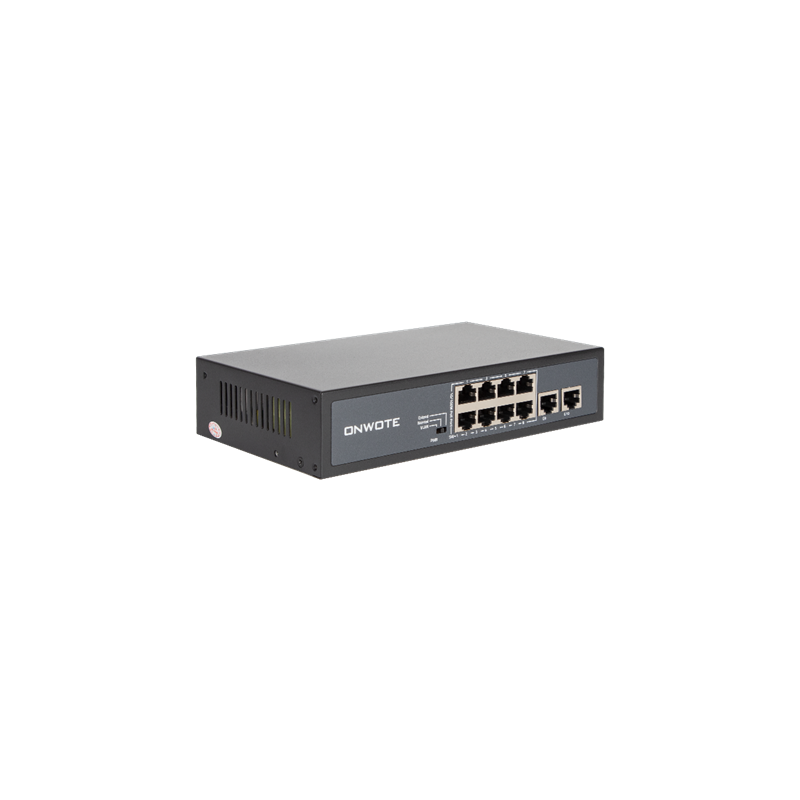

PS-8M2G

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

120W

PoE Protocol

IEEE802.3af (15.4W); IEEE802.3at (30W)

PoE Ports

8 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports

Transfer Mode

Store and forward

Switching Capacity

5.6Gbps

Forwarding Rate

4.166Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting: Powered; Un-Light: No Power

Switch Mode

Lighting:VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-10 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

7.87*4.65*1.73inch

Net Weight

1.36lbs

Package List

1x 8 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

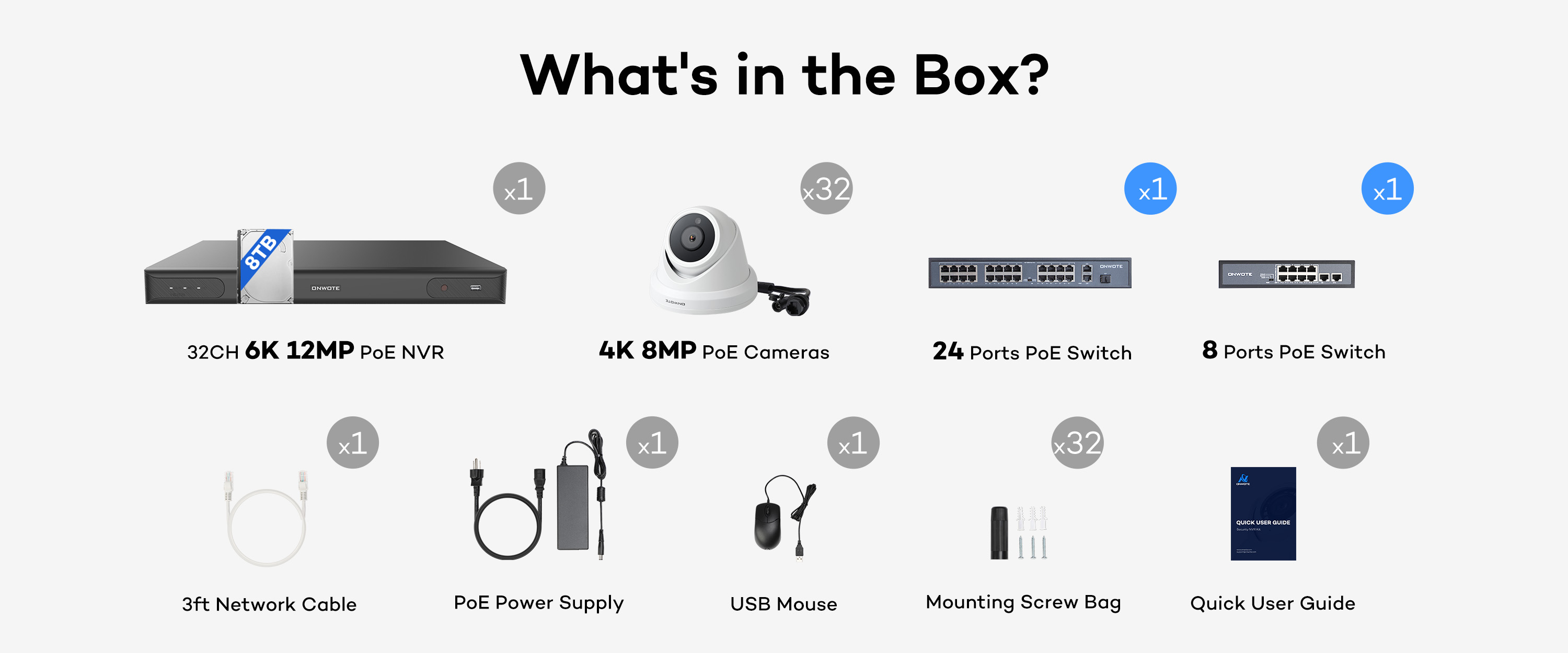

Packing List

Videos

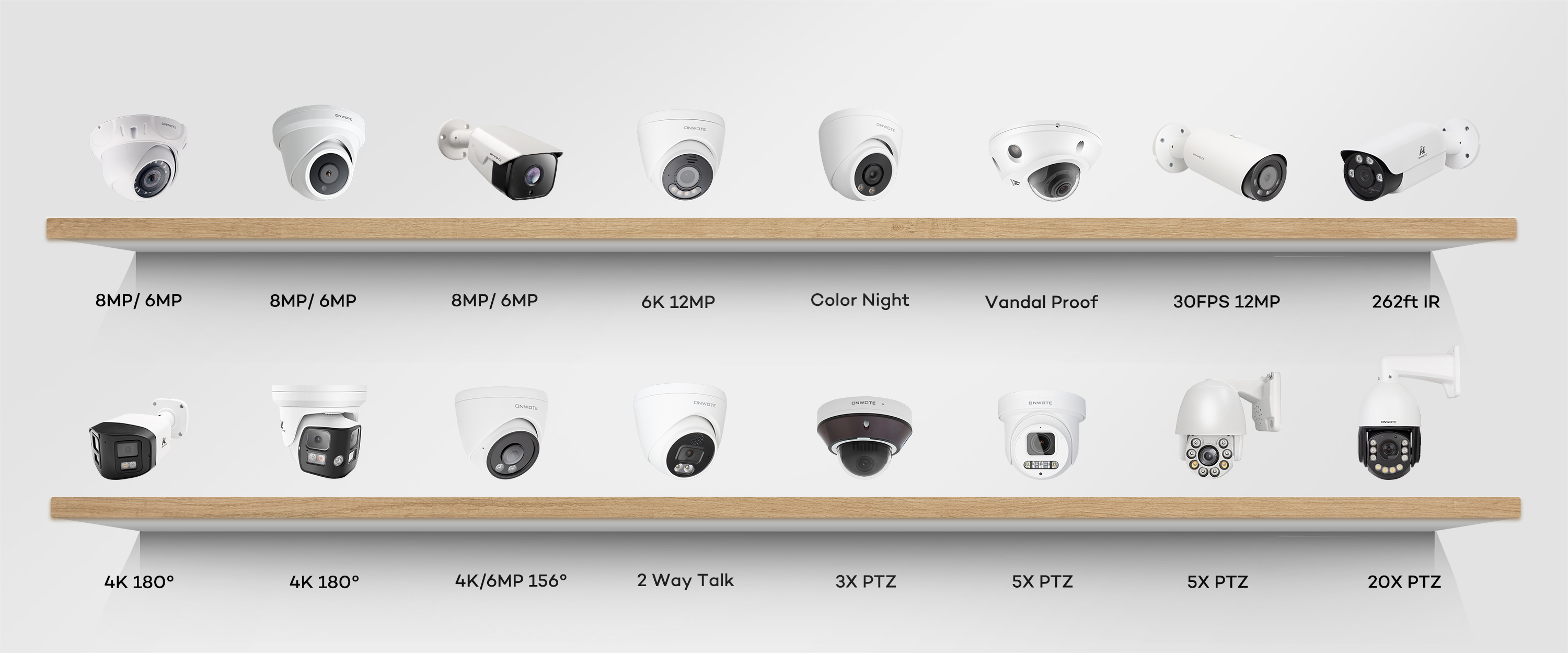

Add-on

PTZ20X 4K/8MP PoE Camera

$273.59 Save $26.40
PTZ5X 4K/8MP PoE PTZ Camera

$153.59 Save $16.40
PTZ 5X 4K 8MP PoE Camera

$134.39 Save $15.60
5X Optical Zoom 4K 8MP PoE Camera

$101.75 Save $14.24
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
4K/8MP PoE Camera

$78.39 Save $11.60
156° 4K 8MP PoE Camera

$107.79 Save $12.20
6K/12MP PoE Camera

$138.23 Save $21.76
6K/12MP PoE Camera

$138.23 Save $21.76
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60

Comparison

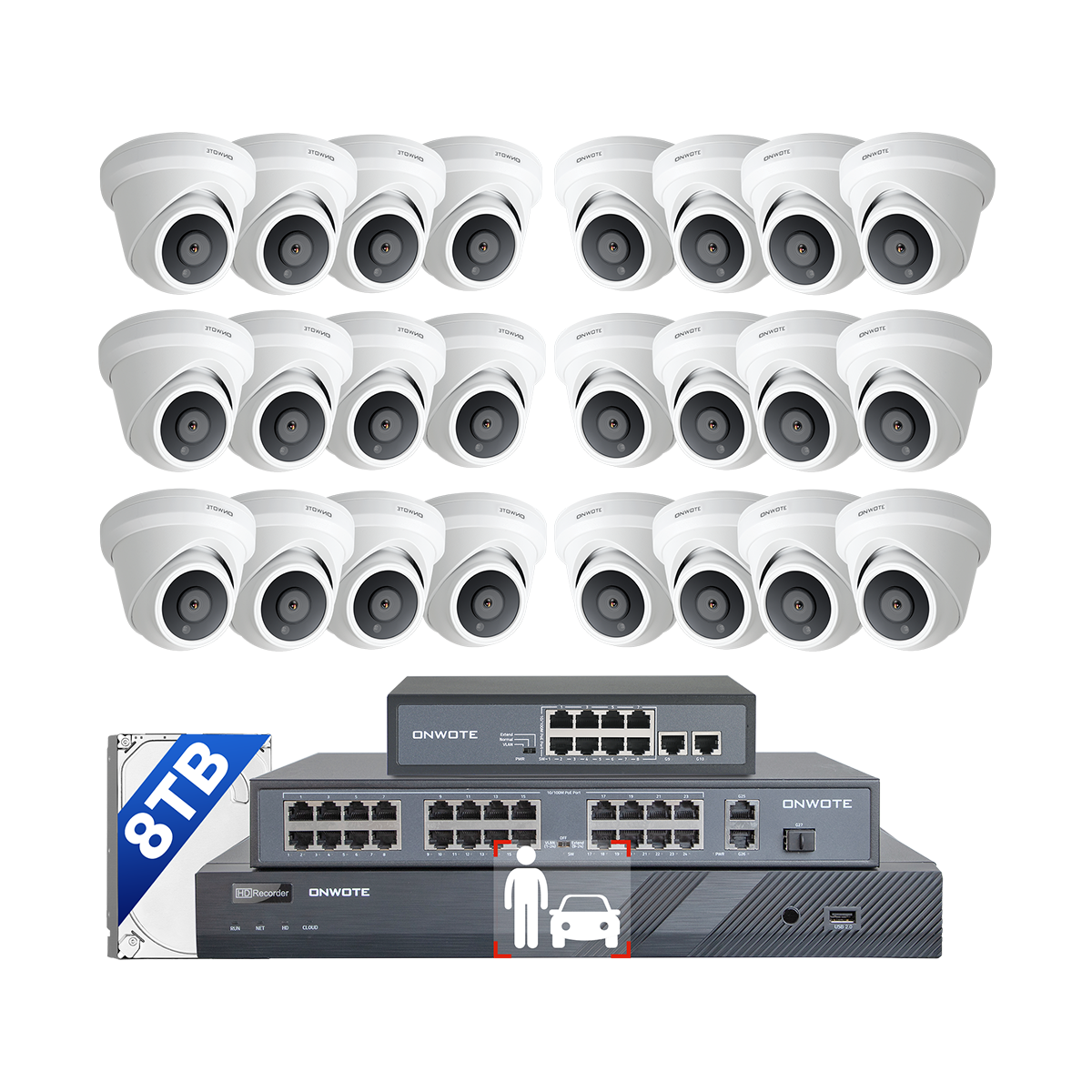

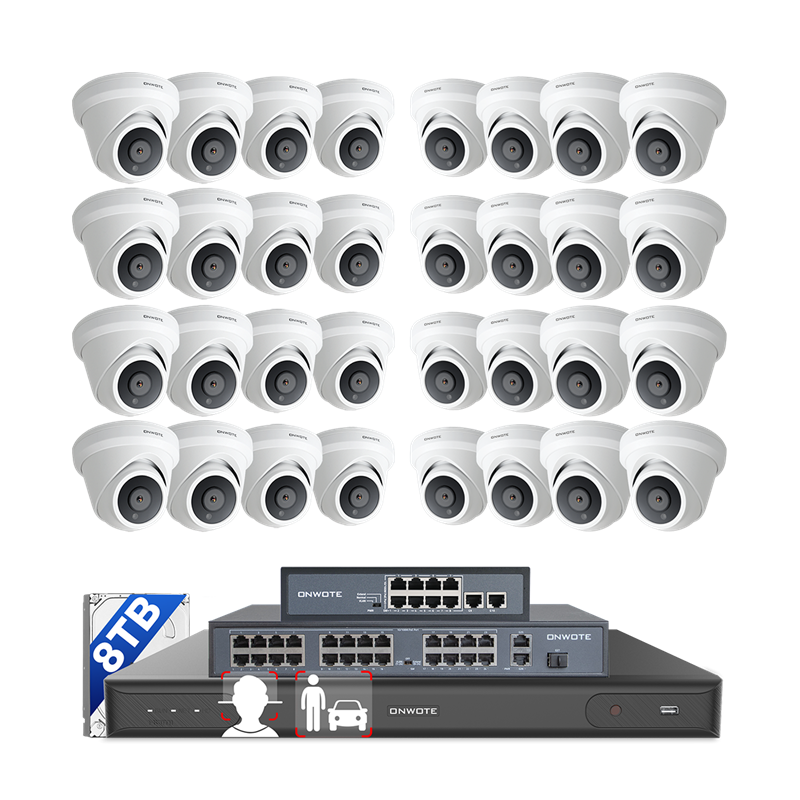

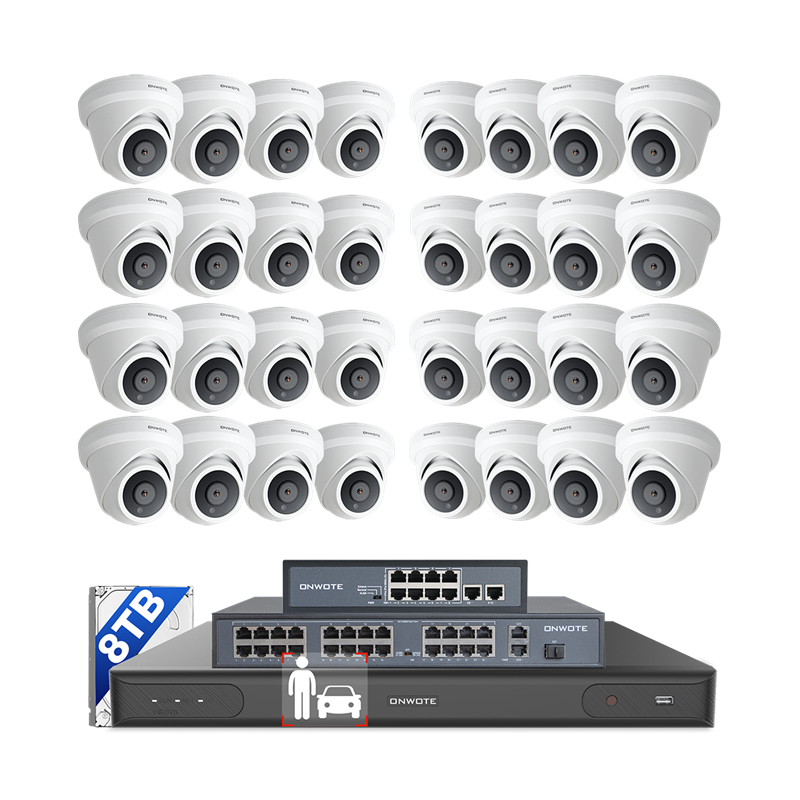

	32CH 4K PoE System $ 2849.99	32CH 4K PoE System $ 2526.99
Resolution	8MP@20FPS	8MP@20FPS
Field of View	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)
Audio	Built-in Microphone	Built-in Microphone
AI Function	Face Recognition& AcuSearch	AI Human Vehicle Detection
NVR Channels	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	8TB HDD	8TB HDD
Storage Capacity	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch


32CH 4K PoE System $ 2849.99
32CH 4K PoE System $ 2526.99

	Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
	8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
	8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
