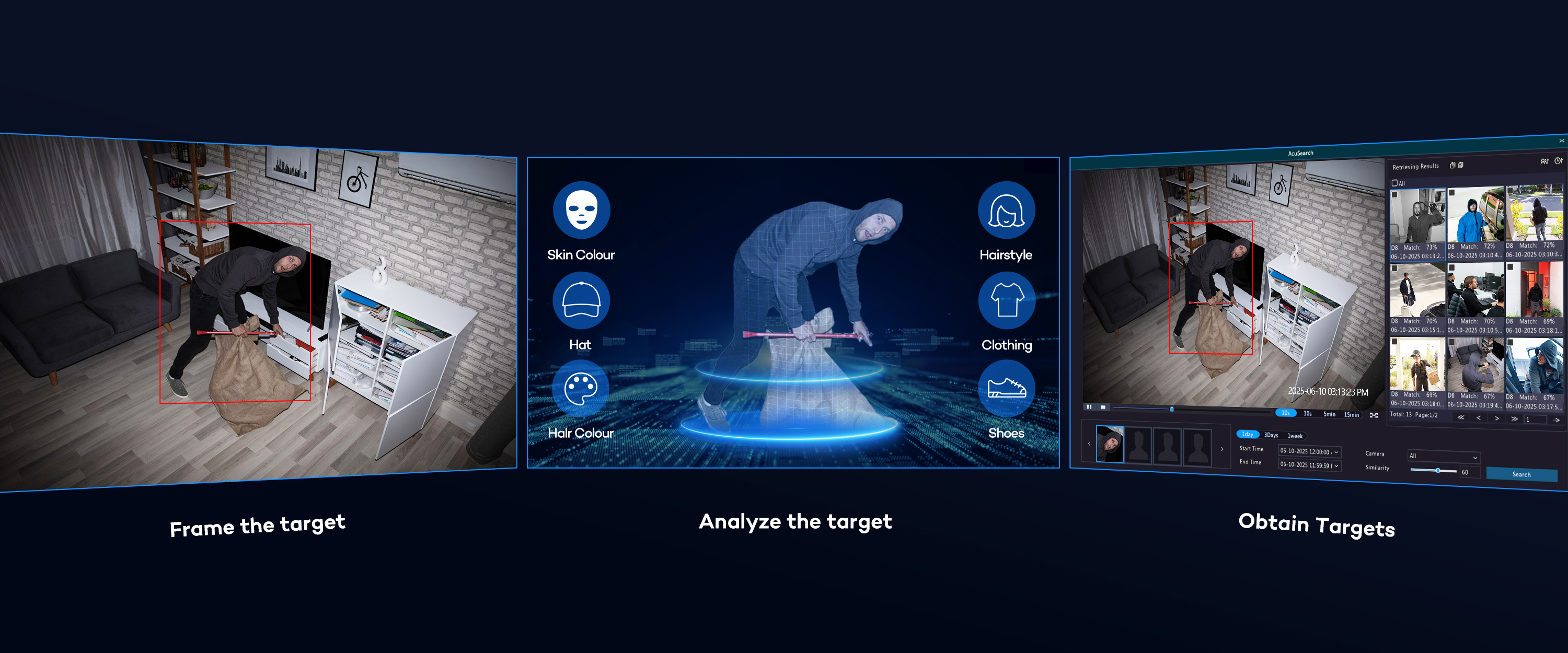

AcuSearch Technology

Smart Detection & Analysis

Discovery & Playback

Discovery & Playback Access

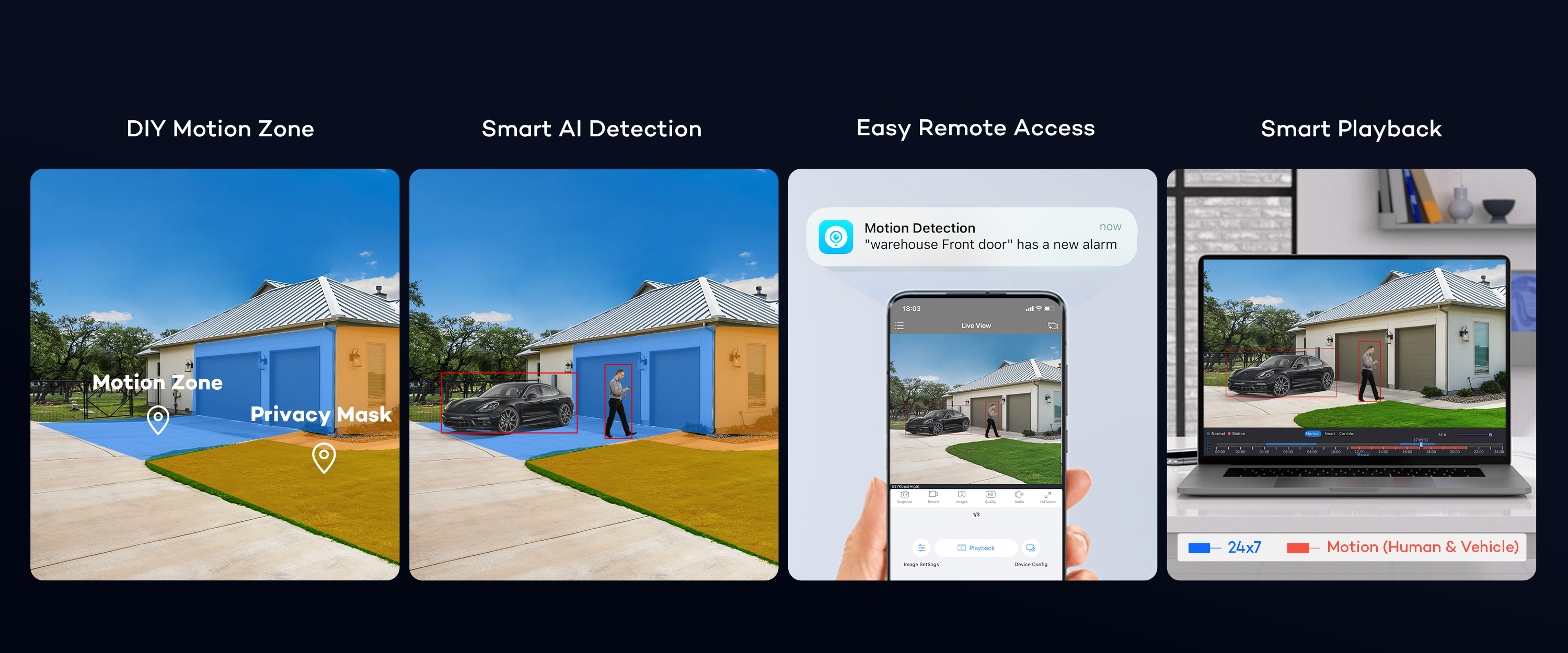

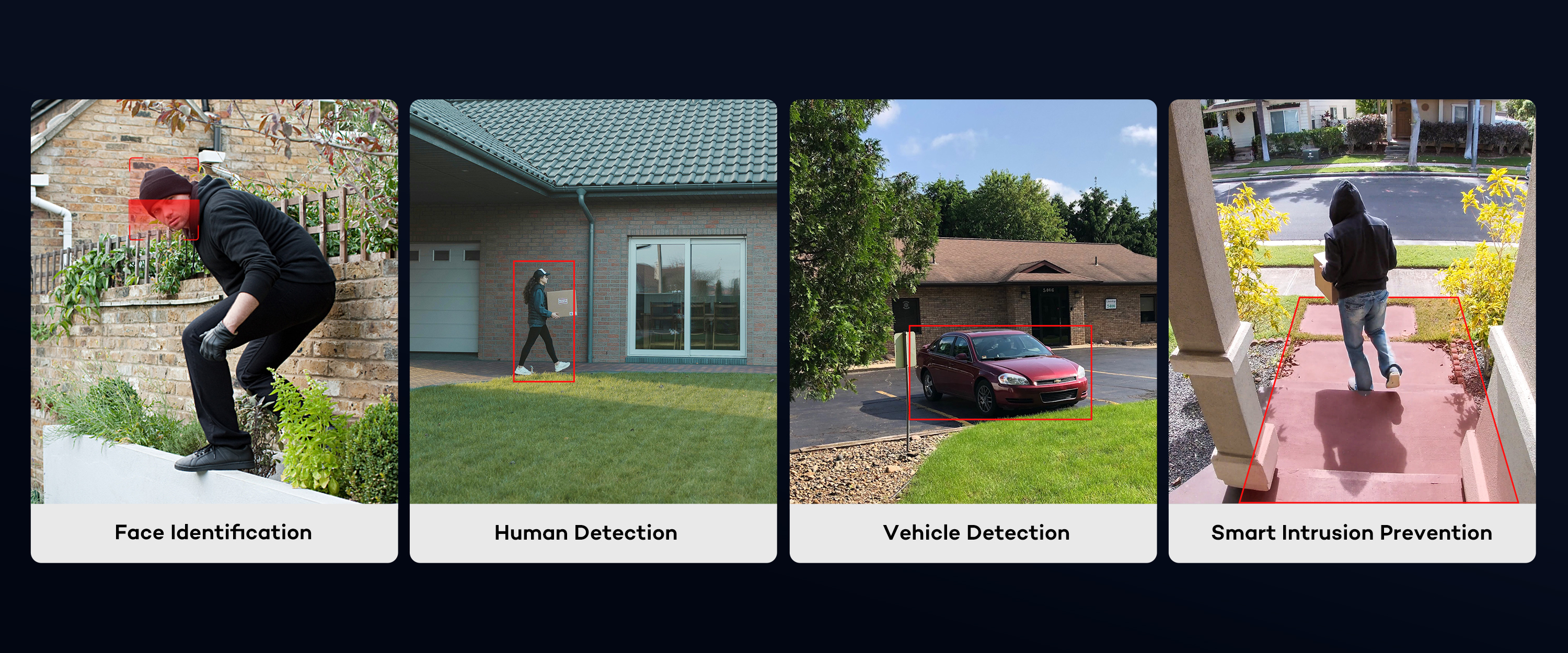

Smart detection &Color night vision

AI detection activates spotlights, enables color night vision, and triggers real-time alerts and video recording.

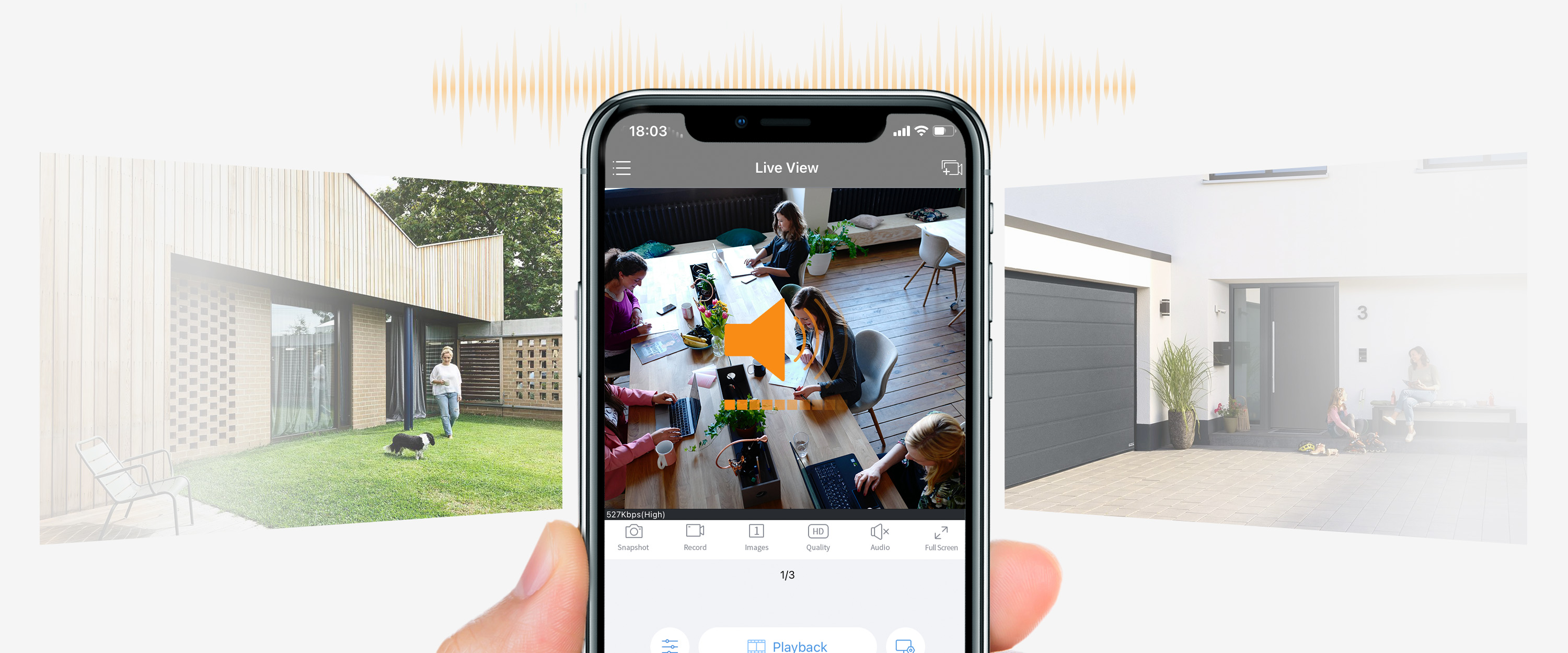

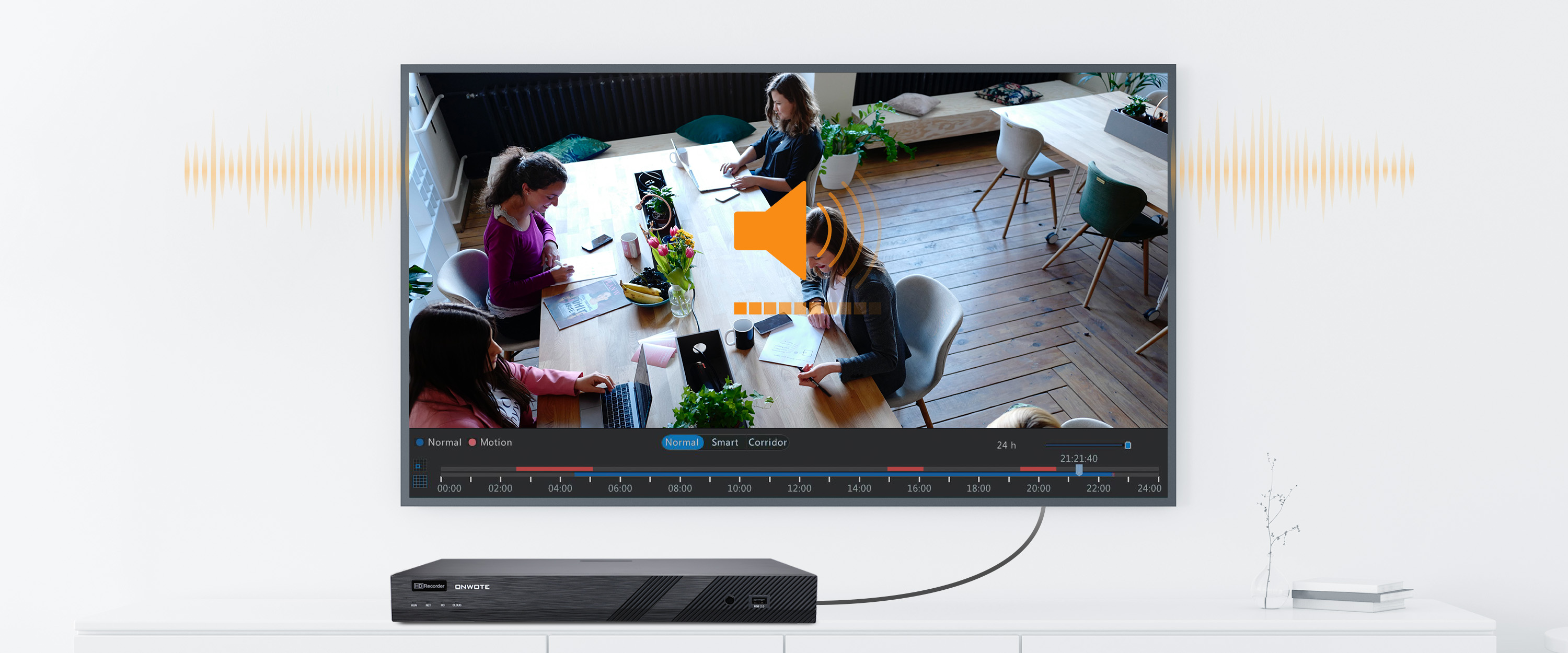

Capture & Record Audio

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app.

Audio Capture Mobile App Playback HD TV Output

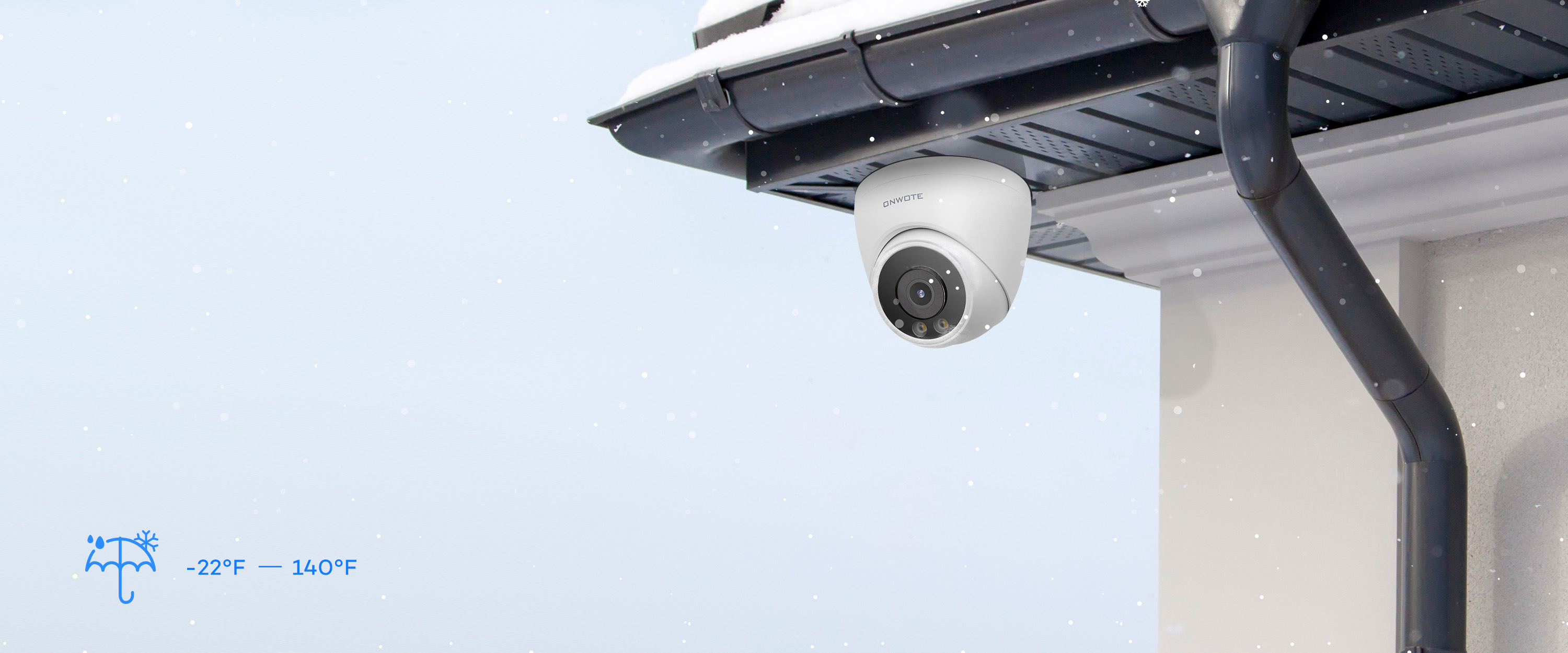

IP66-Rated Weatherproof Reliability

Durable weatherproof metal housing suitable for both indoor and outdoor use.

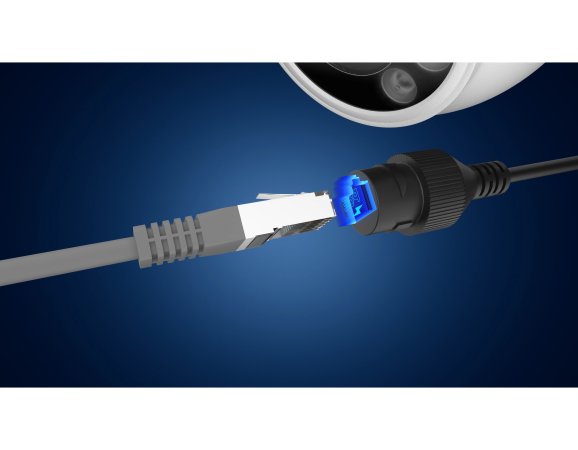

Effortless Setup —A Ethernet Cable Does It All

PoE technology allows a single Cat5 Ethernet cable to transmit video, audio, and power—making installation simpler than traditional DVR systems. Just plug and play.

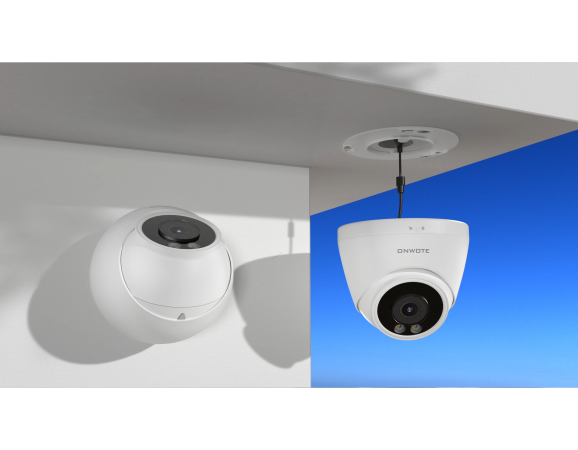

Hassle-Free Installation

Our cameras are designed with simplicity in mind. Whether you're a professional installer or a first-time user, setting up your surveillance system has never been easier.

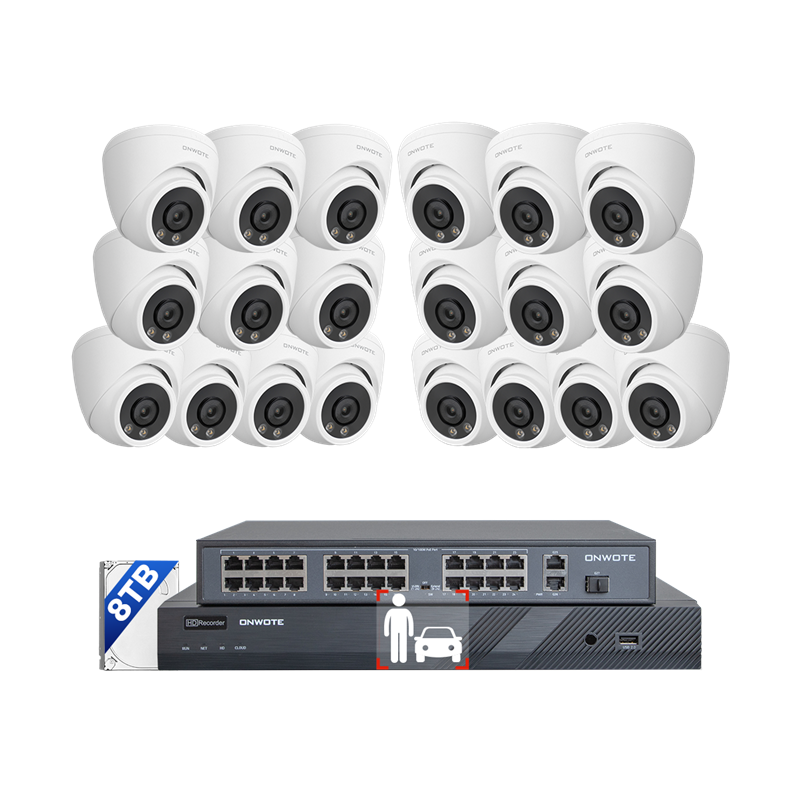

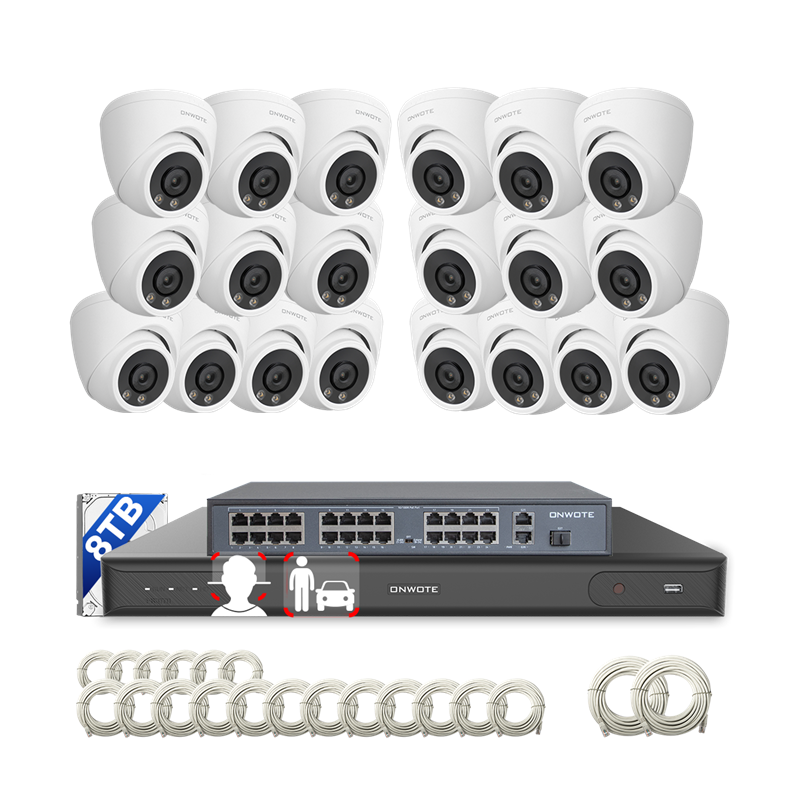

One Stop DIY

The NVR supports up to 32 cameras, with options for 6K 12MP or 4K 8MP resolution.
Multiple add-on options are available, such as pan-tilt-zoom and two-way audio cameras.

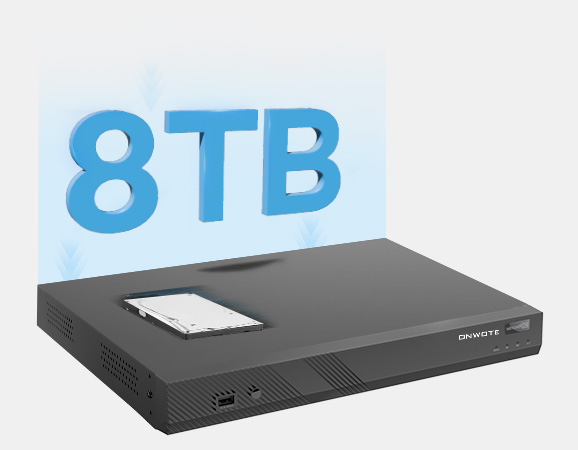

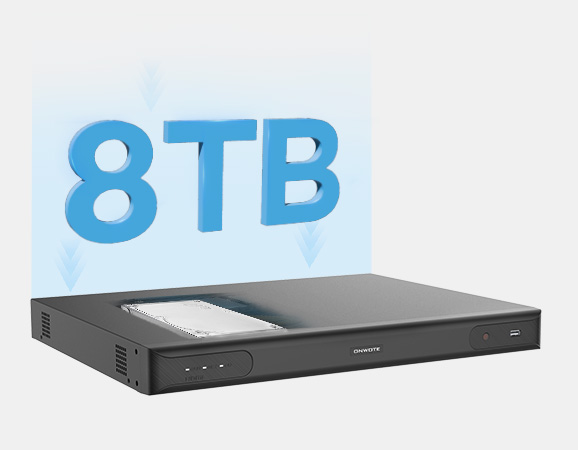

8TB Storage Pre-Installed

An 8TB hard drive comes pre-installed in the NVR, offering free local storage. HEVC advanced encoding helps reduce file sizes and save space.

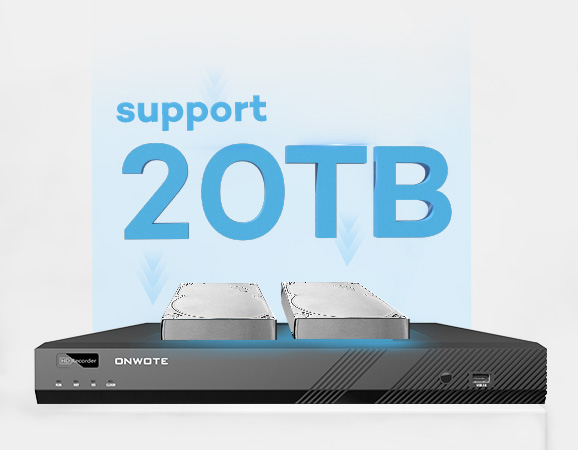

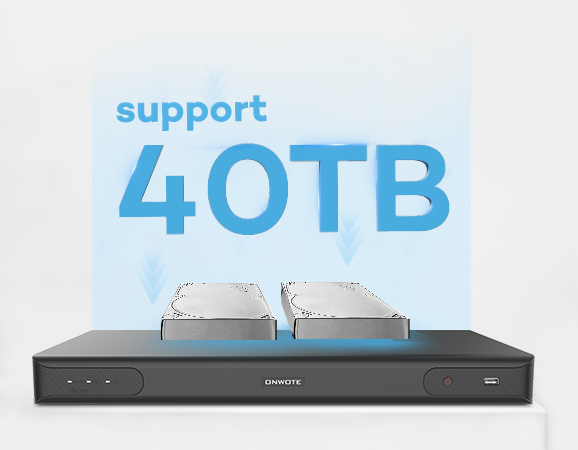

Expandable Up to 40TB

With 4 ports, the system supports up to 40TB of total storage capacity

Specification

Camera NVR POE Switch

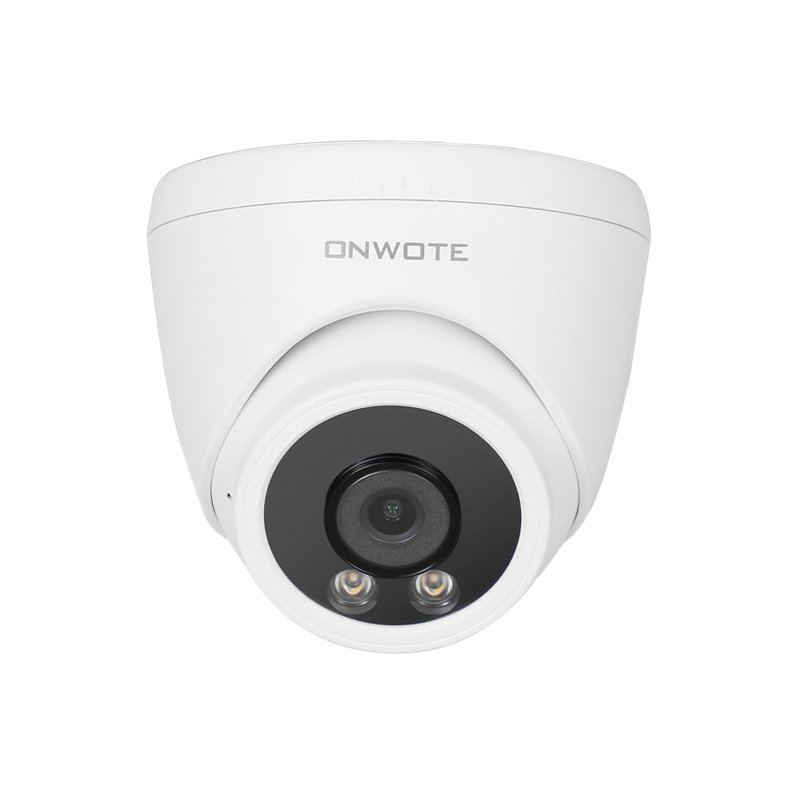

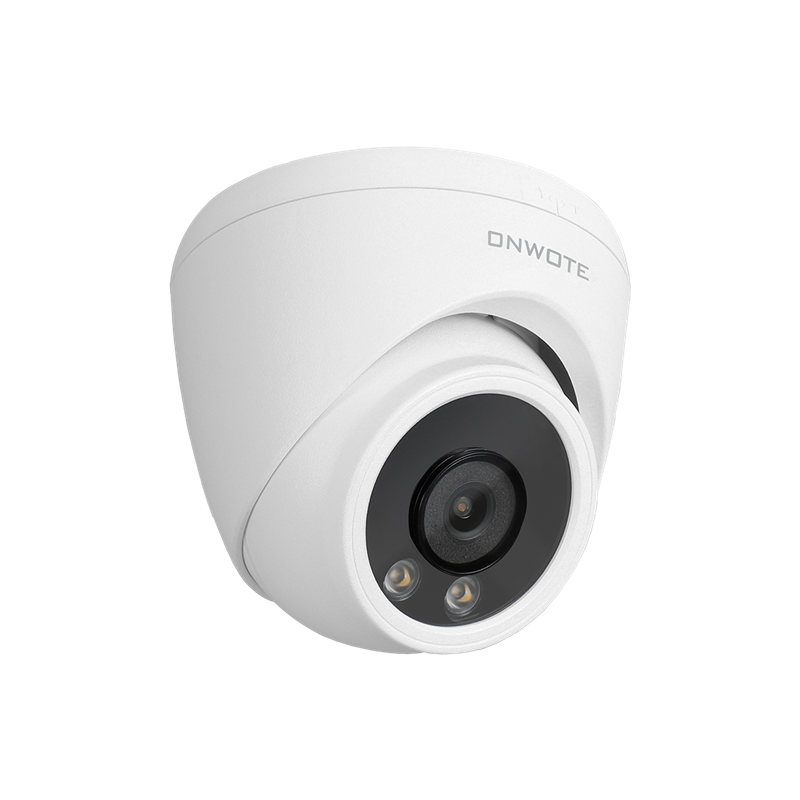

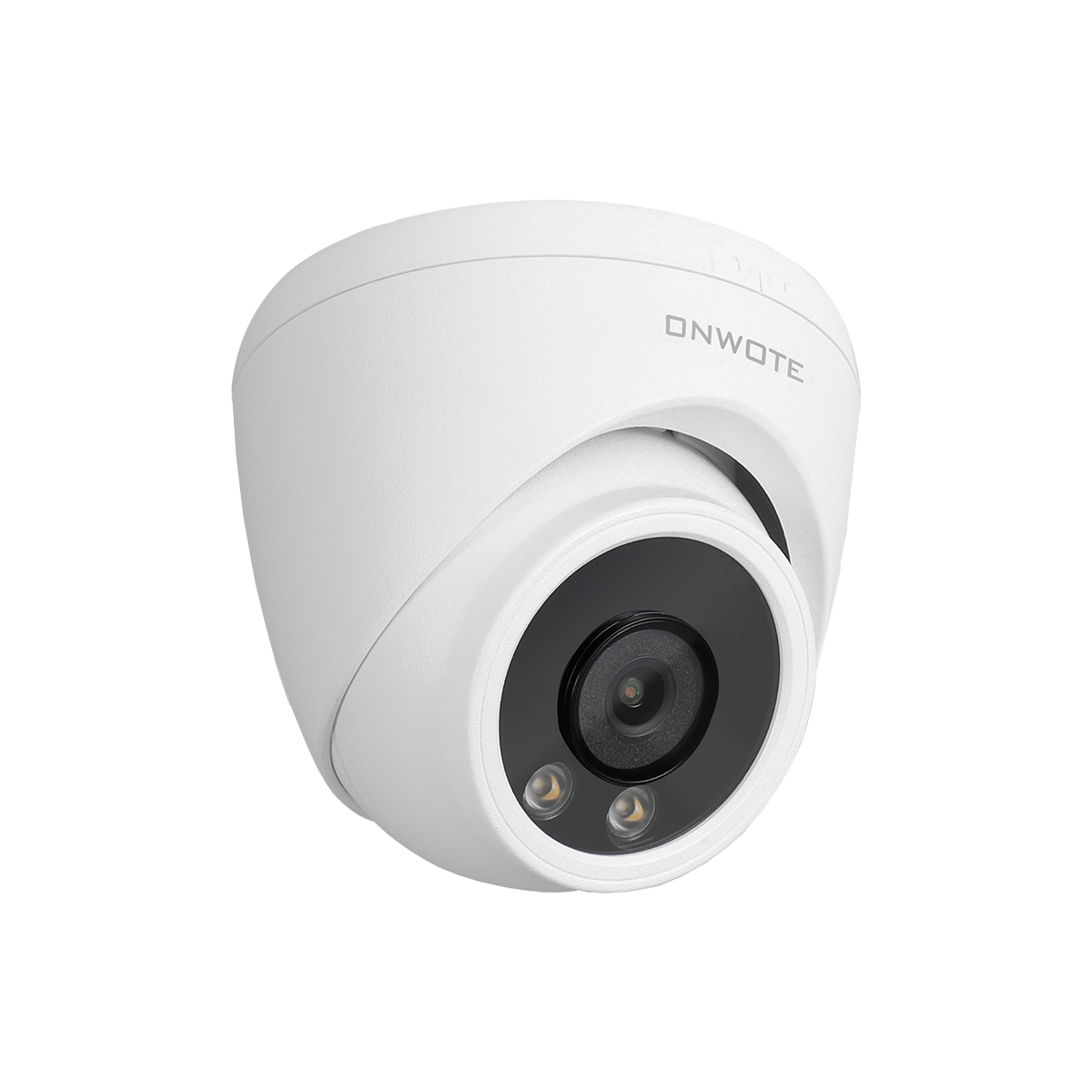

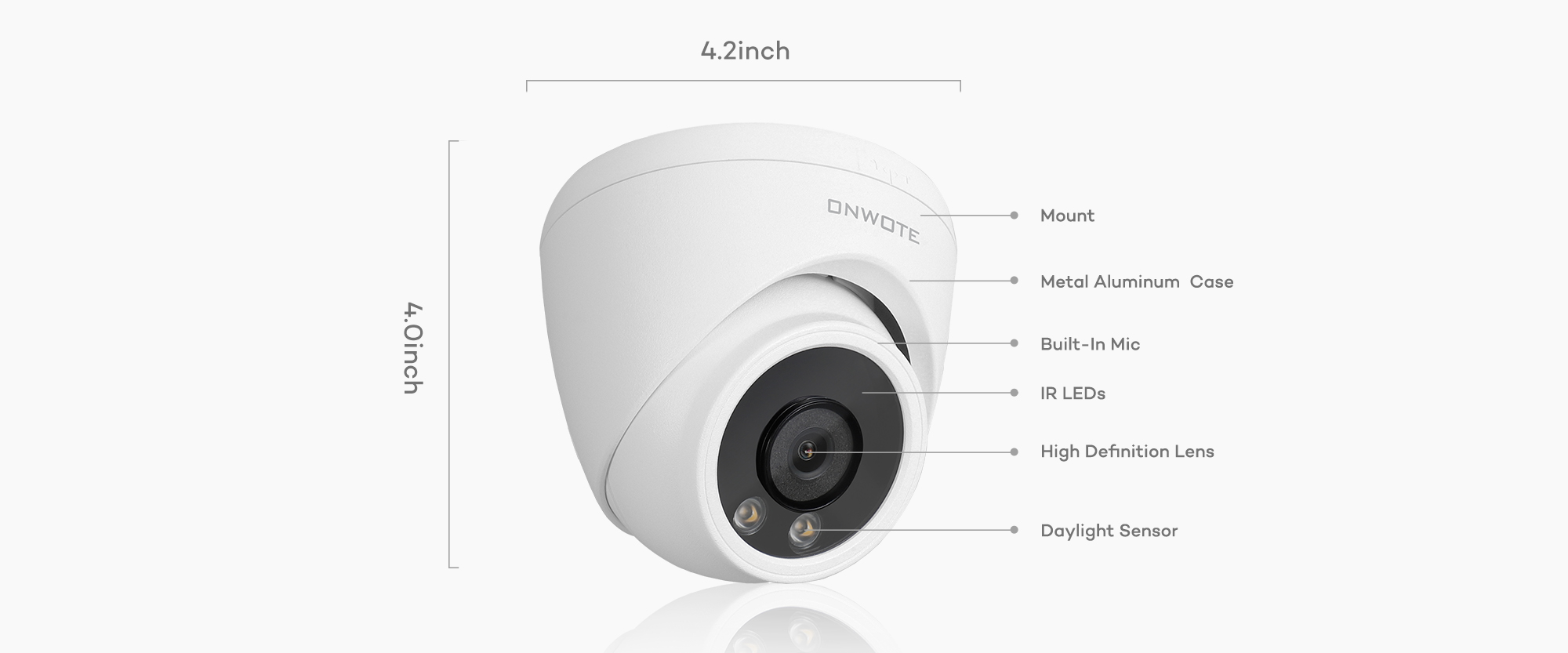

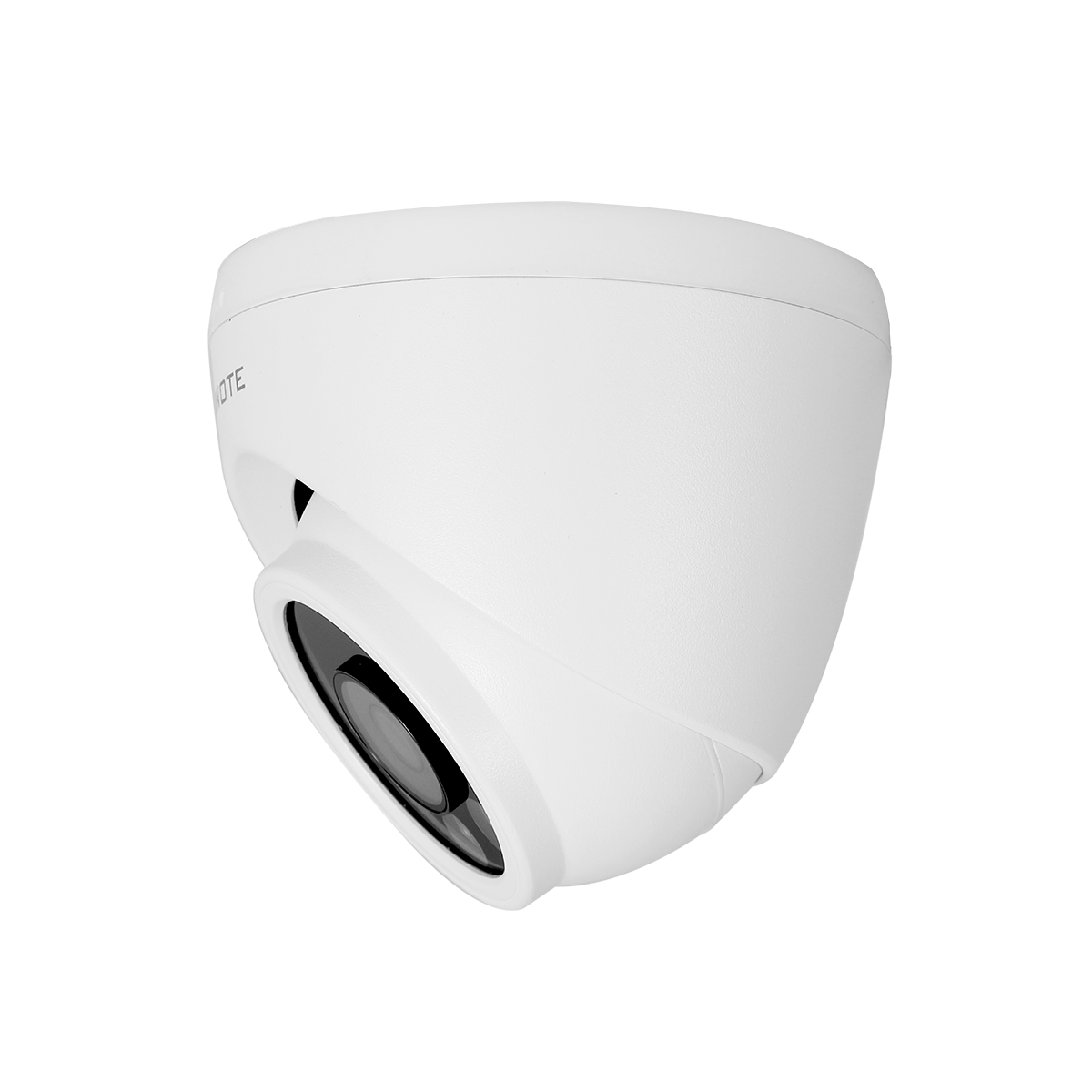

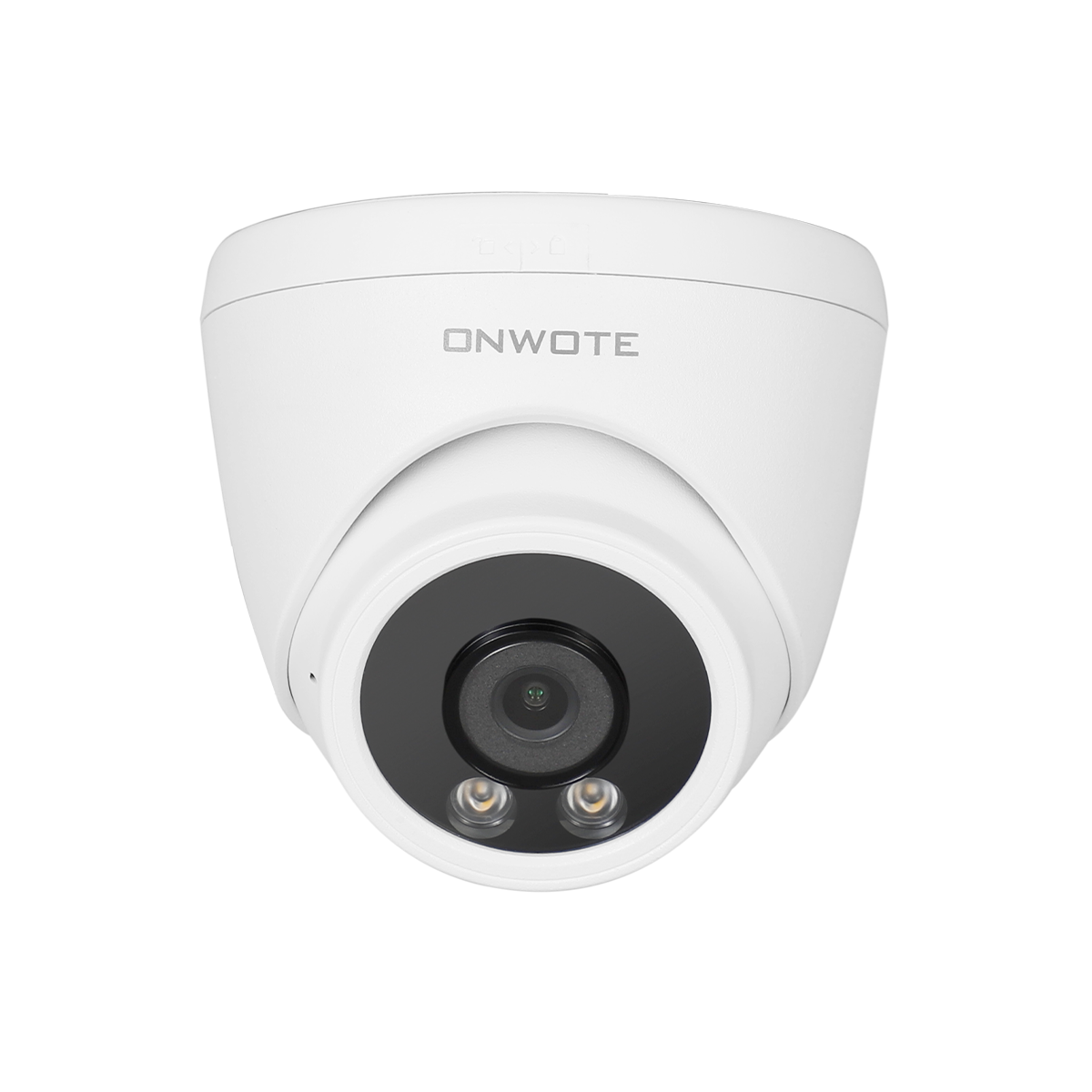

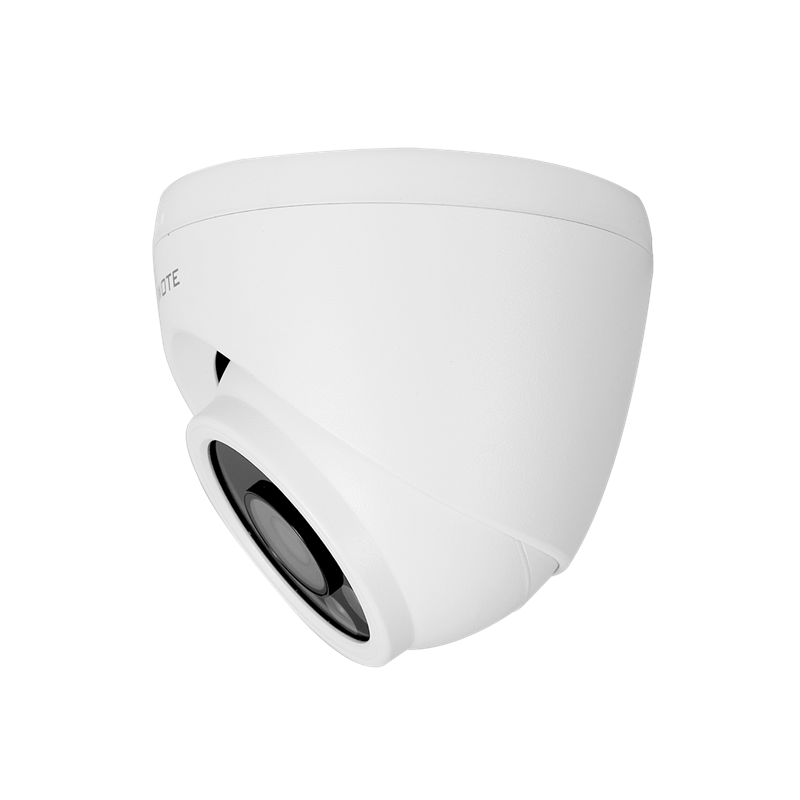

TA60-P28

6MP HD Camera

6 Megapixels-3072(H) x 2048(V) @25FPS

Viewing Angle

122°(Diagonal), 102°(Horizontal), 55°(Vertical)

AI Function

AI Human Vehicle Detection

Audio

Built-in Microphone (10-15ft)

Night Mode

Smart AI Color Mode/ Full Color Mode/ Black& White Mode

IP66 Metal Housing

Aluminum Alloy, Indoors & Outdoors

Operating Temperature

PoE 802.3af/at 48V; 12V DC ± 10%

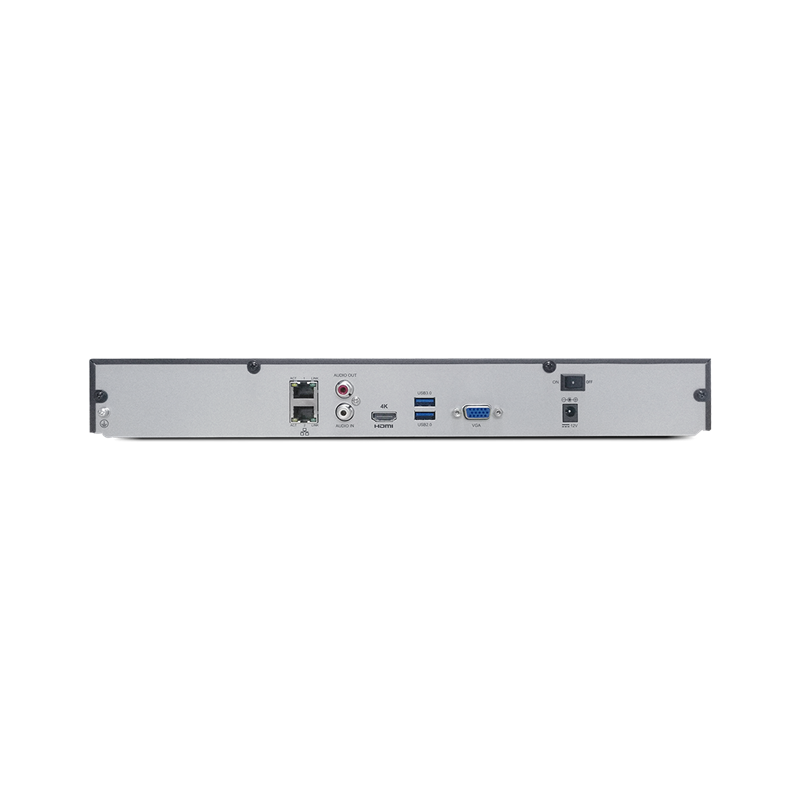

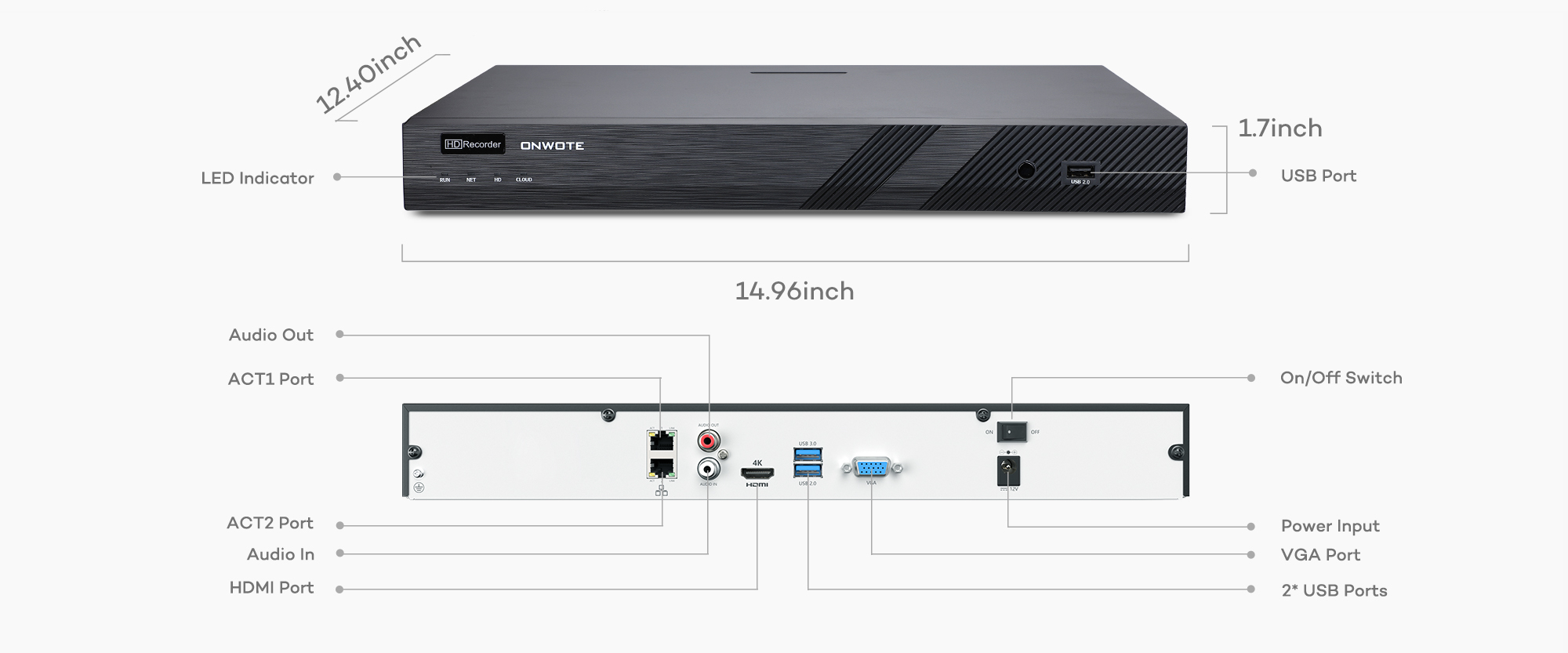

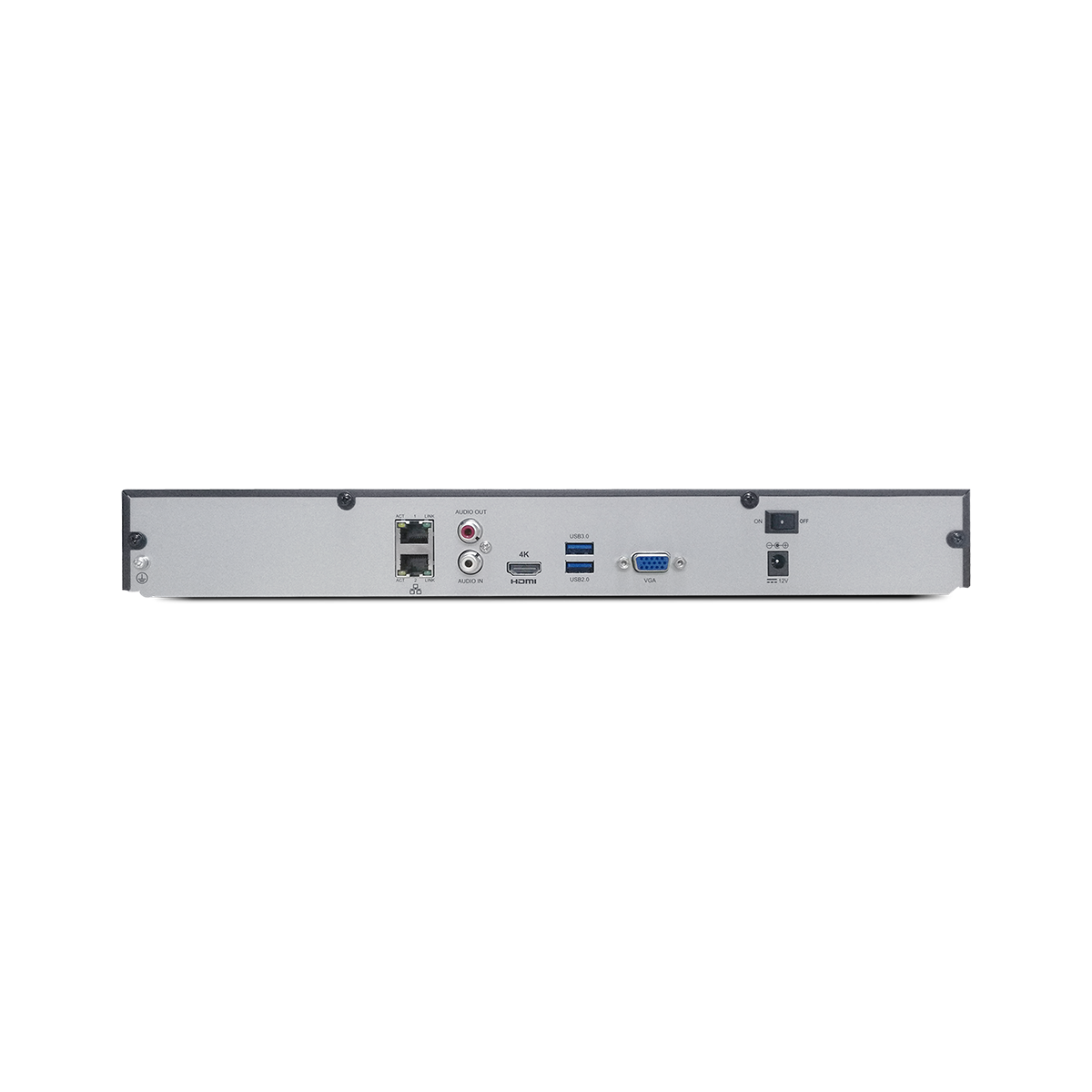

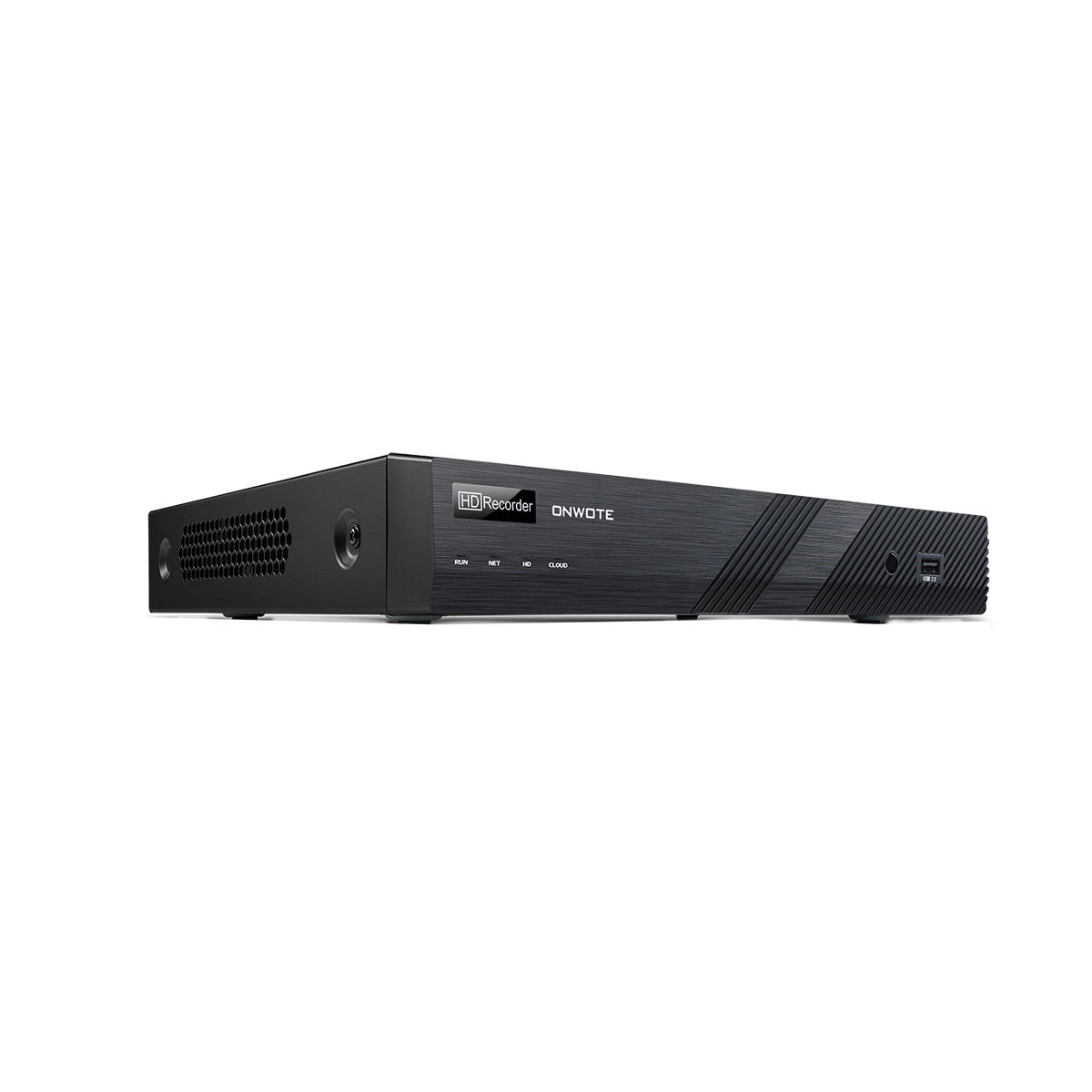

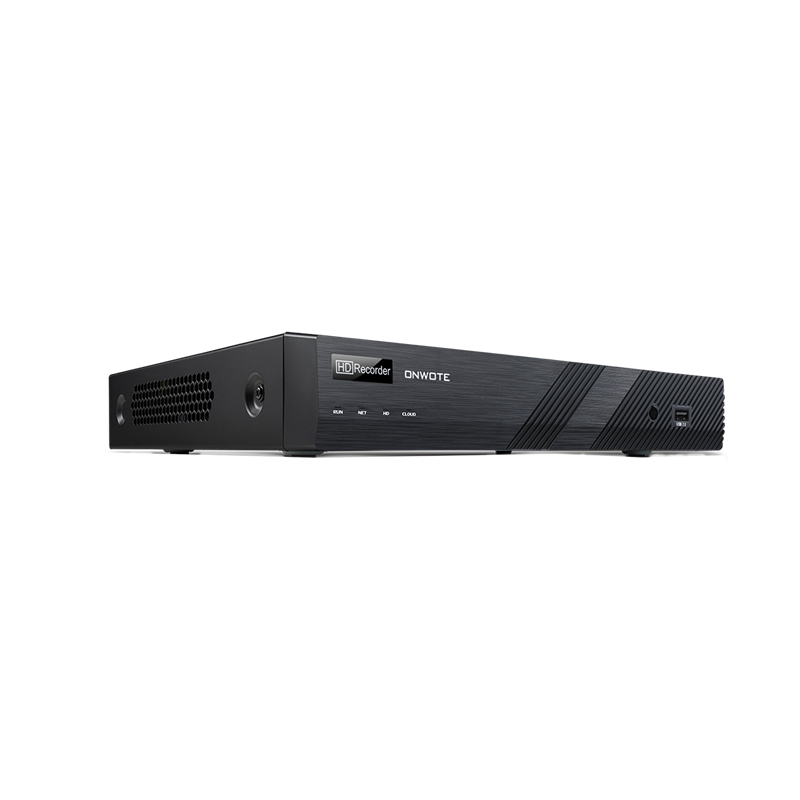

PNS-1232

32CH 6K 12MP NVR

Dual stream technology & advanced HEVC video compression

Network Bandwidth

Incoming-160Mbps; outgoing-64Mbps

Video Audio Input

32CH IPC, 26CH 12MP, 32CH 8MP/ 6MP/ 5MP

Video Audio Output

1-CH HDMI up to 4K, 1-CH VGA up to 1080P

Storage Capacity

Built-in 8TB HDD, 2 SATA interfaces support up to 20TB

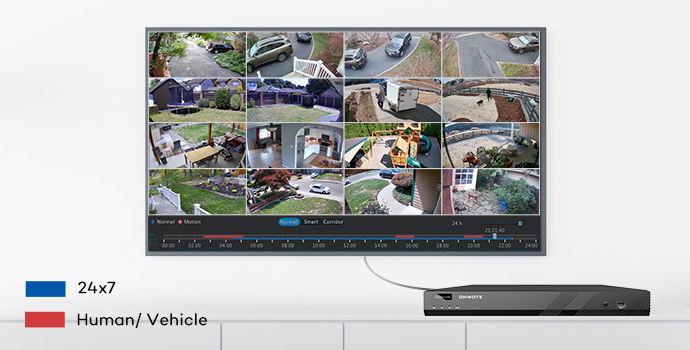

Synchronous Playback

Playback 16 cameras simultaneously on HD monitor or computer

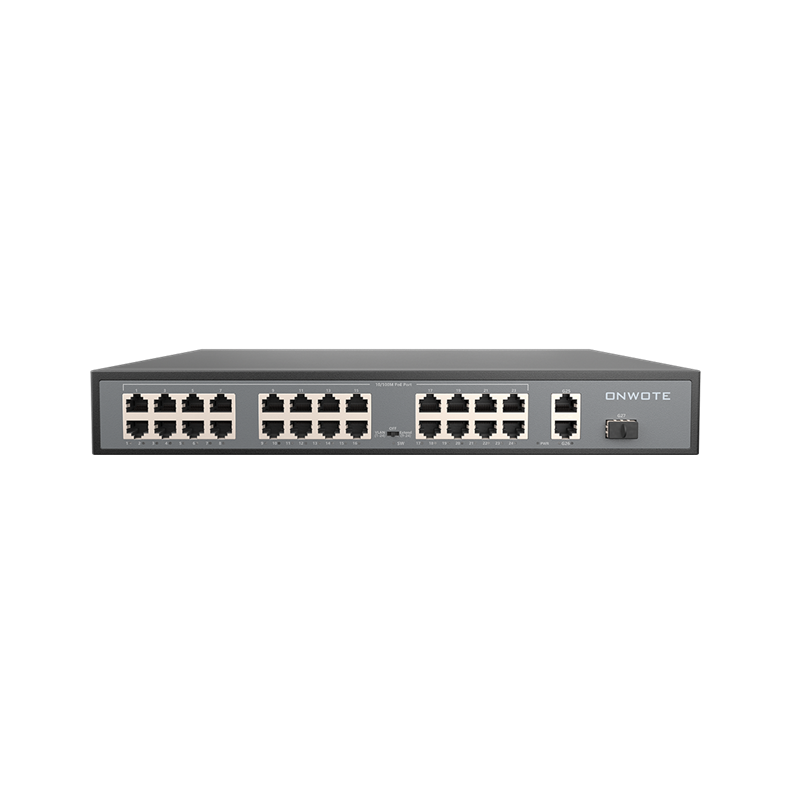

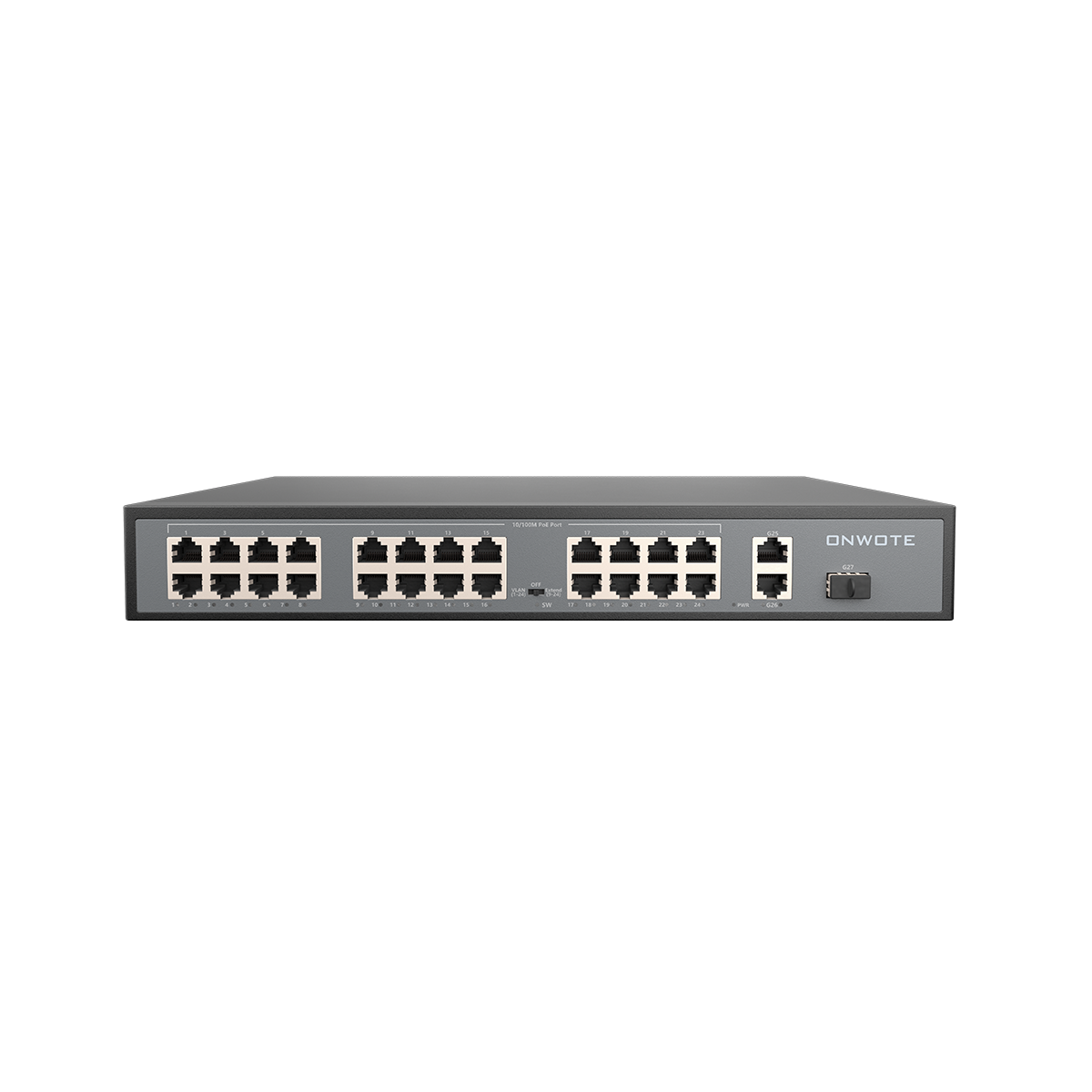

24 Ports PoE Switch

24 Ports: 24* 100M ports+ 2* gigabit ports+ 2* combo SFP Slots

Operating Temperature

'-10°C～ 55°C, 14°F~131°F, 10% ～ 90%RH(non-condensing)

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

Packing List

Videos

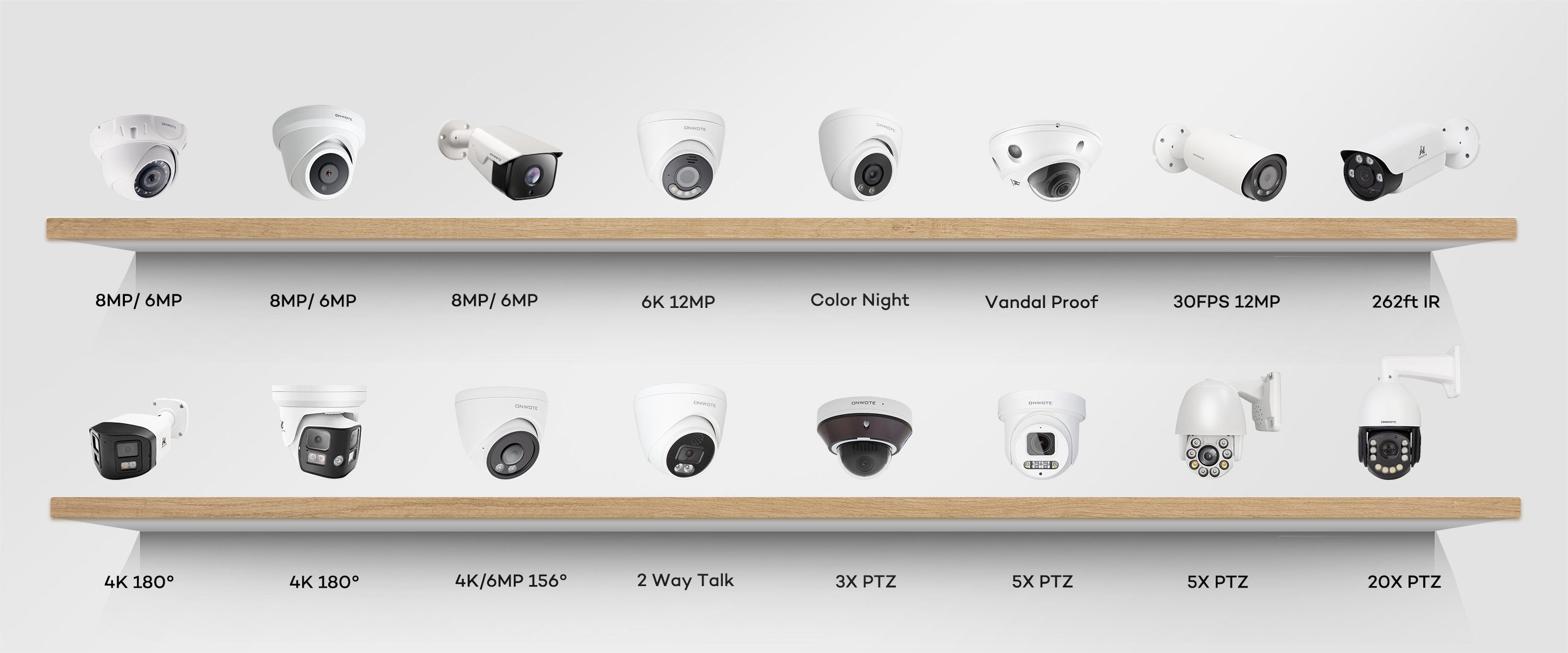

Add-on

PTZ 5X 4K 8MP PoE Camera

$134.39 Save $15.60
PTZ 5X 4K 8MP PoE Camera

$143.99 Save $16.00
$101.75 Save $14.24
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
6K/12MP PoE Camera

$138.23 Save $21.76
6K/12MP PoE Camera

$138.23 Save $21.76
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60

Comparison

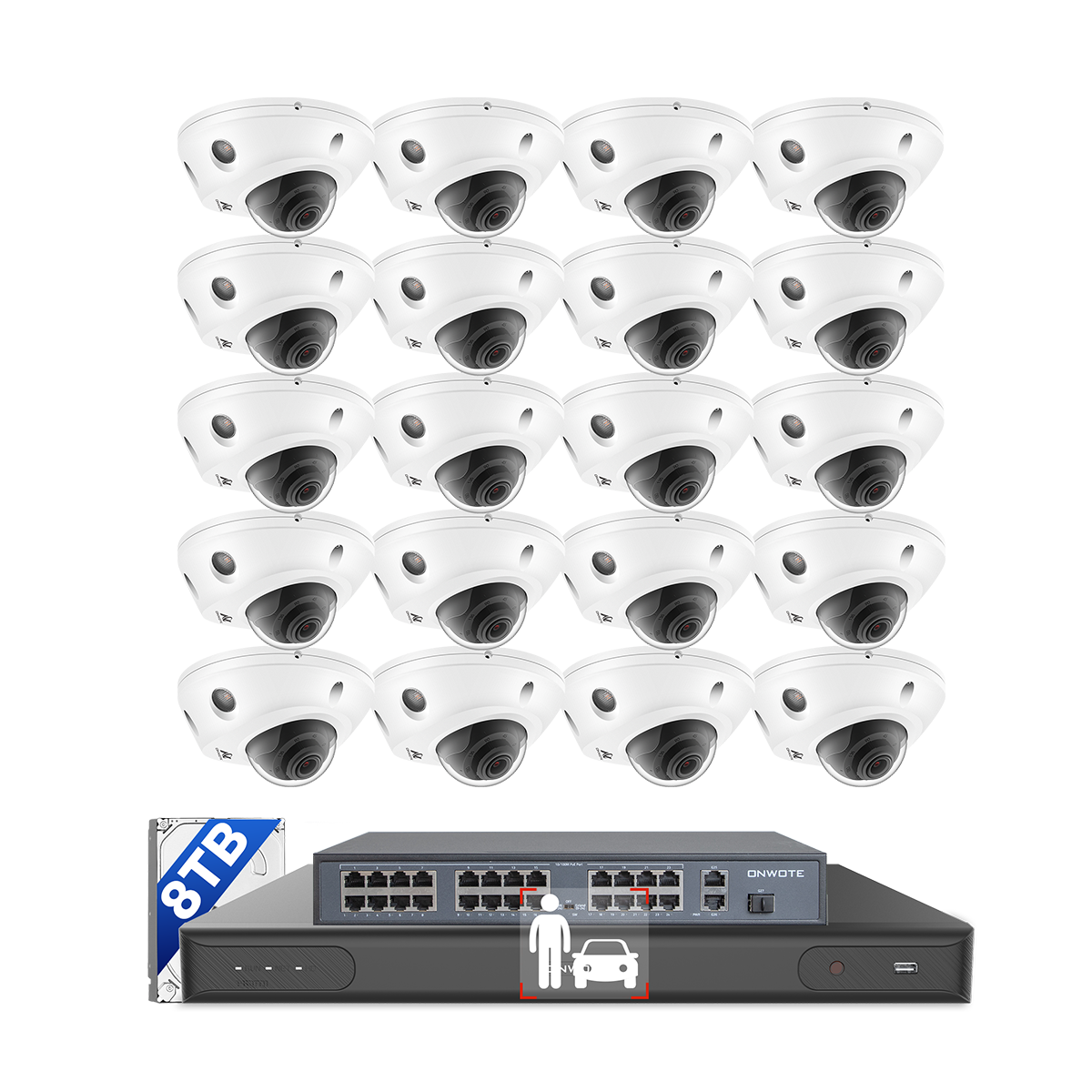

	32CH 6MP PoE System $ 1899.99	32CH 4K PoE System $ 2279.99	32CH 5MP PoE System $ 2279.99	32CH 5MP PoE System $ 2324.99
Resolution	6MP@25FPS	8MP@20FPS	5MP@25FPS	5MP@25FPS
Field of View	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)	122°(D), 102°(Hl), 55°(V)	122°(D), 102°(Hl), 55°(V)
Audio	Built-in Microphone	Two Way Audio	Built-in Microphone	Built-in Microphone
AI Function	Face Recognition & AcuSearch	Face Recognition& AcuSearch	Human & Vehicle Detection	Smart AI Human & Vehicle Detection& AcuSearch
NVR Channels	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	8TB HDD	8TB HDD	8TB HDD	8TB HDD
Storage Capacity	Support 40TB via 4 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	24 Ports PoE Switch	24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch


32CH 6MP PoE System $ 1899.99
32CH 4K PoE System $ 2279.99
32CH 5MP PoE System $ 2279.99
32CH 5MP PoE System $ 2324.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
6MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Face Recognition & AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 40TB via 4 SATA Ports	24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	24 Ports PoE Switch
5MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Human & Vehicle Detection	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
5MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	Smart AI Human & Vehicle Detection& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
