Overview

AcuSearch Technology

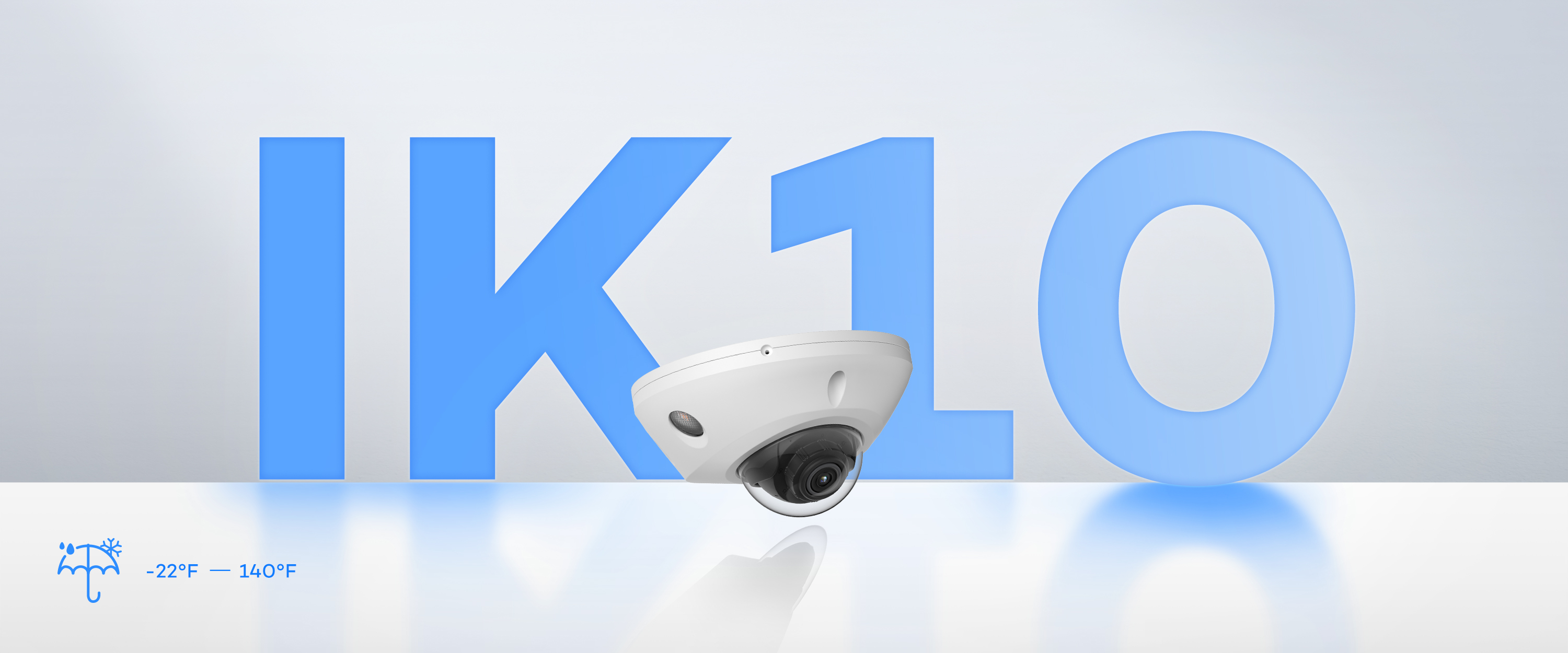

IK10 & IP66

IK10 vandal-proof for solid, durable protection. IP66 weatherproof, suitable for indoor or outdoor use in temperatures from -22℉ to 140℉.

Two-Way Audio

Listen and talk in real time through the cameras’ built-in microphone and speaker using the free ONWOTE app.

Smart Detection & Analysis

3 Night Vision Mode

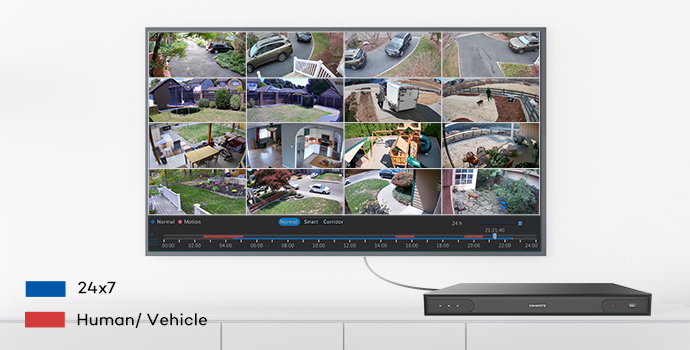

Discovery & Playback

Discovery & Playback Access

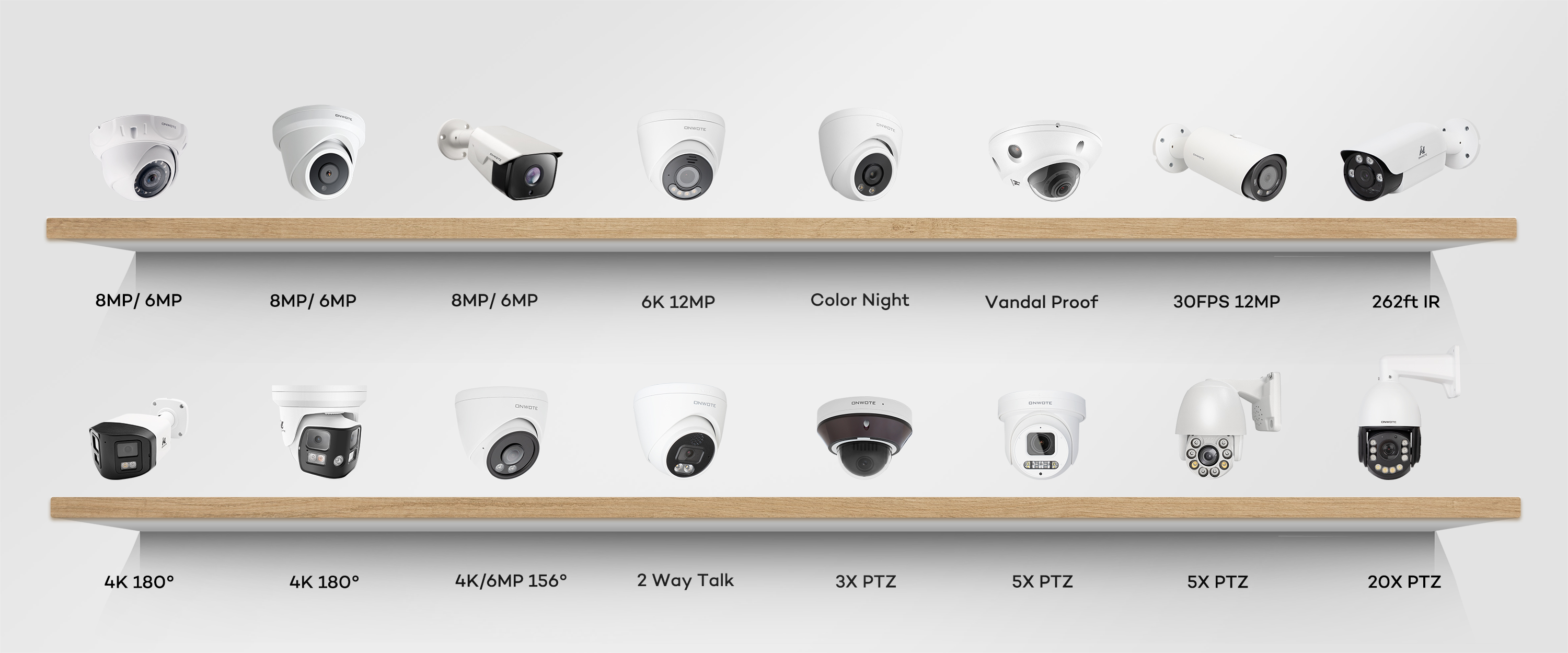

One Stop DIY

The NVR supports up to 16 cameras, with options for 6K 12MP or 4K 8MP resolution. Multiple add-on options are available, such as pan-tilt-zoom and two-way audio cameras

8TB Storage Pre-Installed

An 8TB hard drive is pre-installed in the NVR for free local storage, with HEVC advanced encoding to save space.

Expandable Up to 40TB

4 HDD ports support up to 40TB of total storage capacity.

Specification

Camera NVR POE Switch

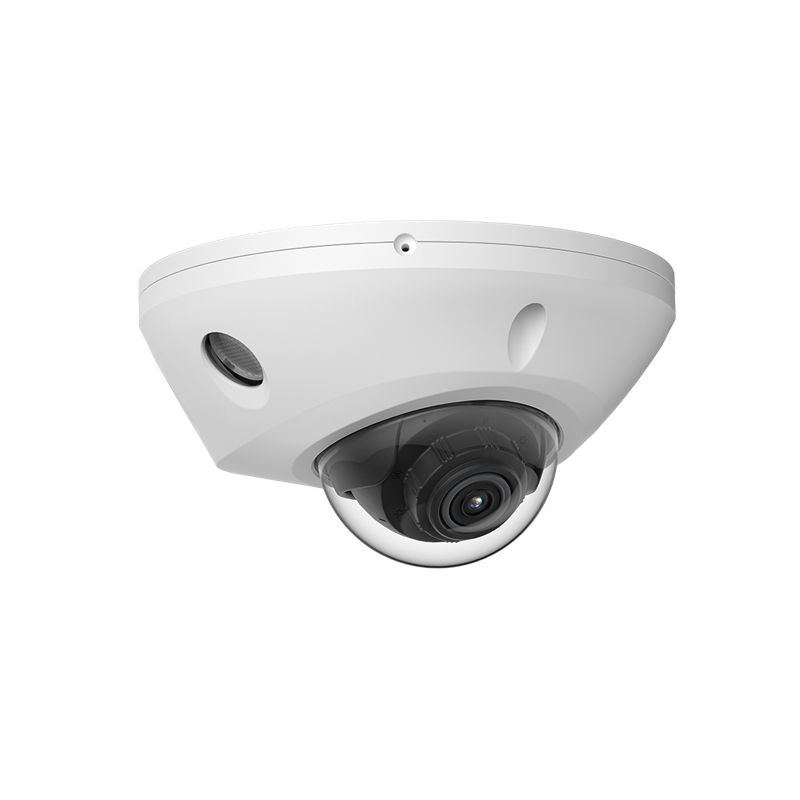

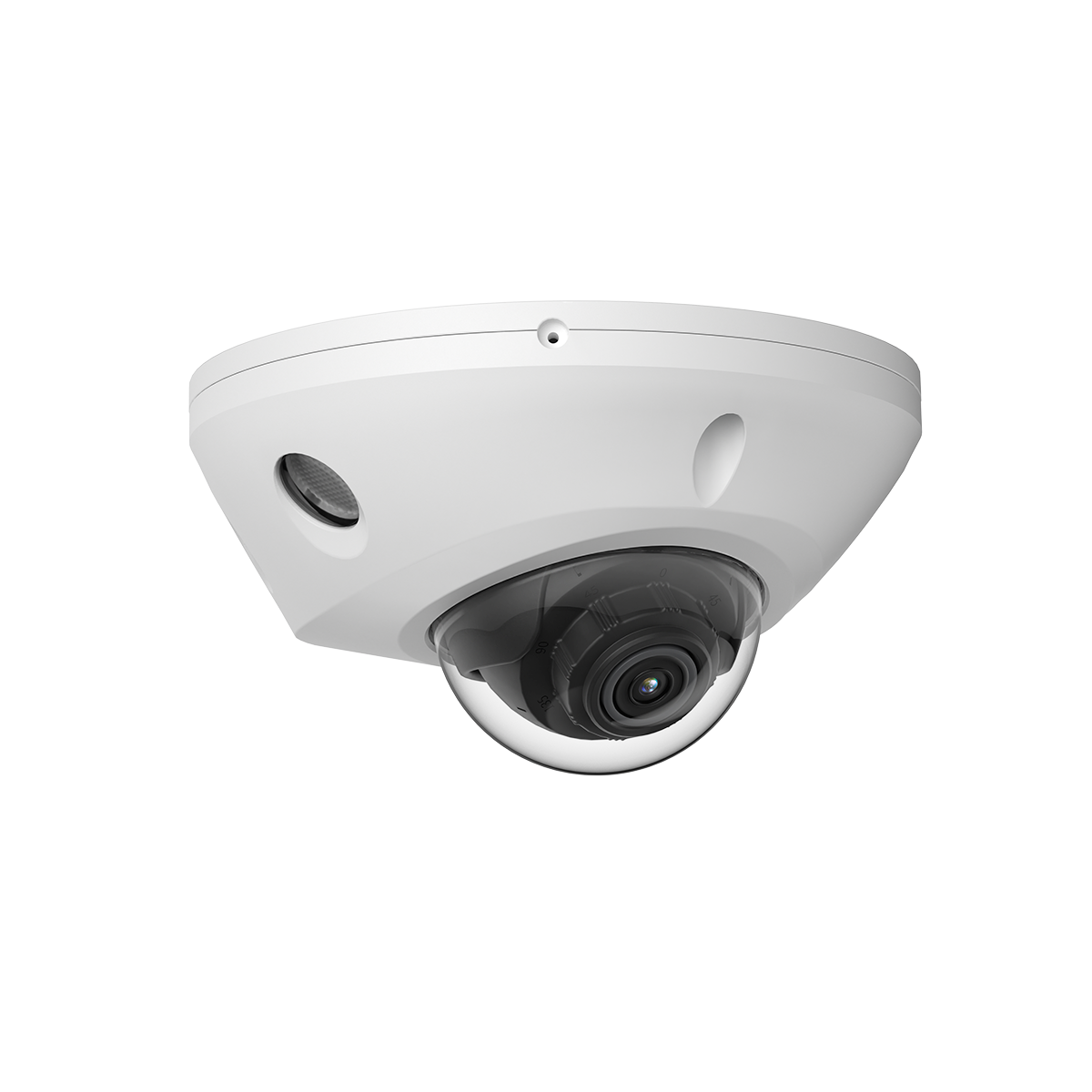

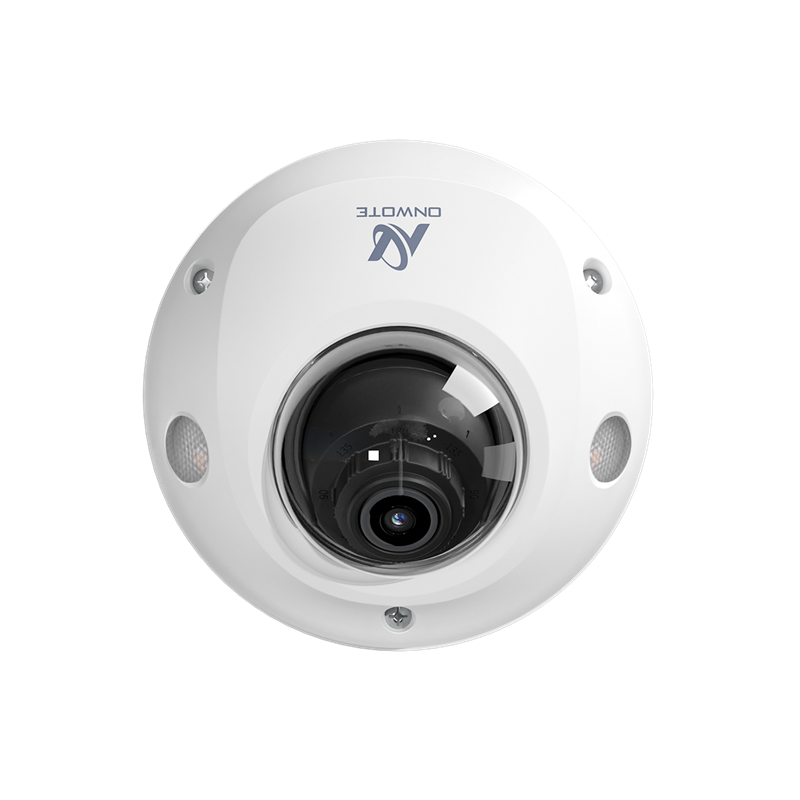

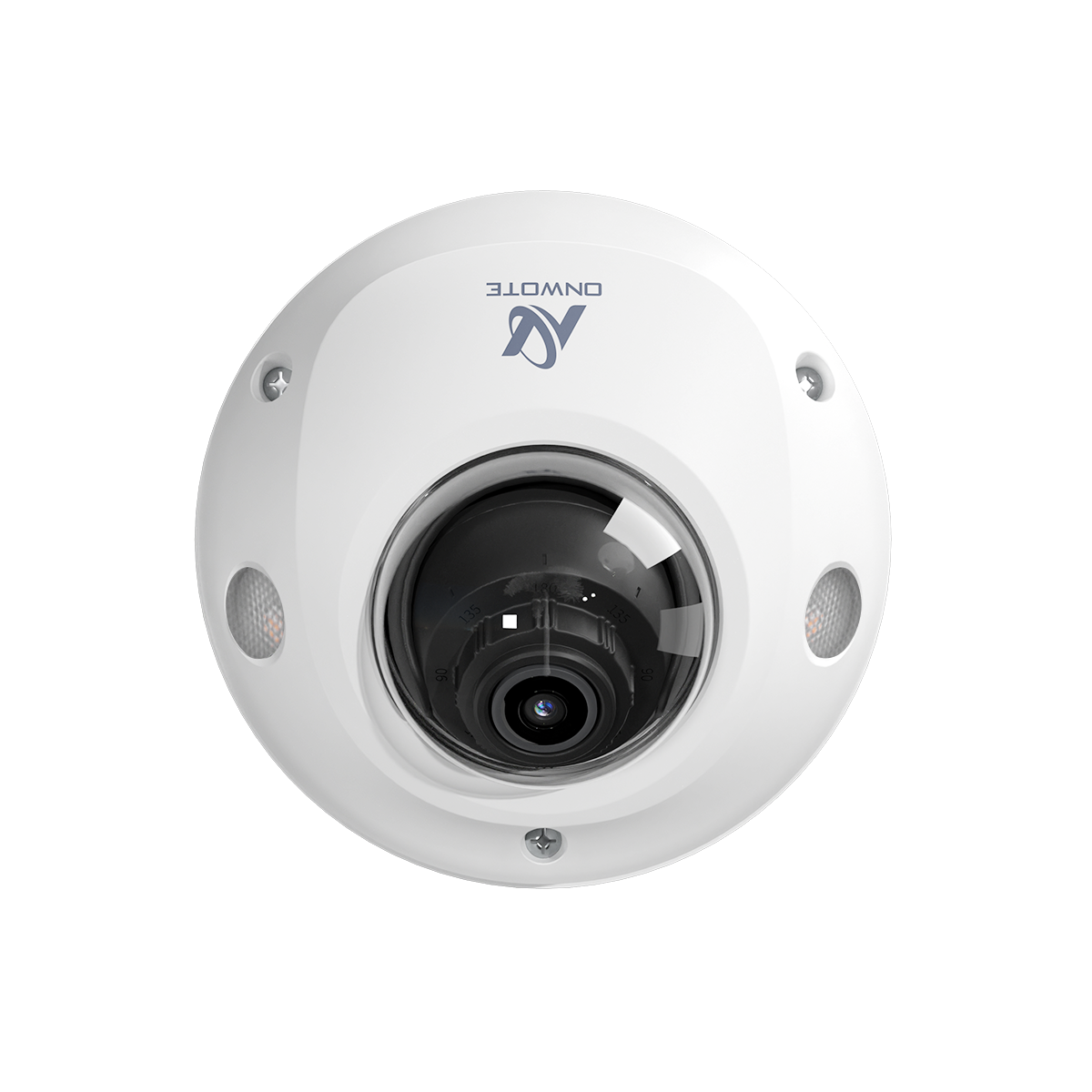

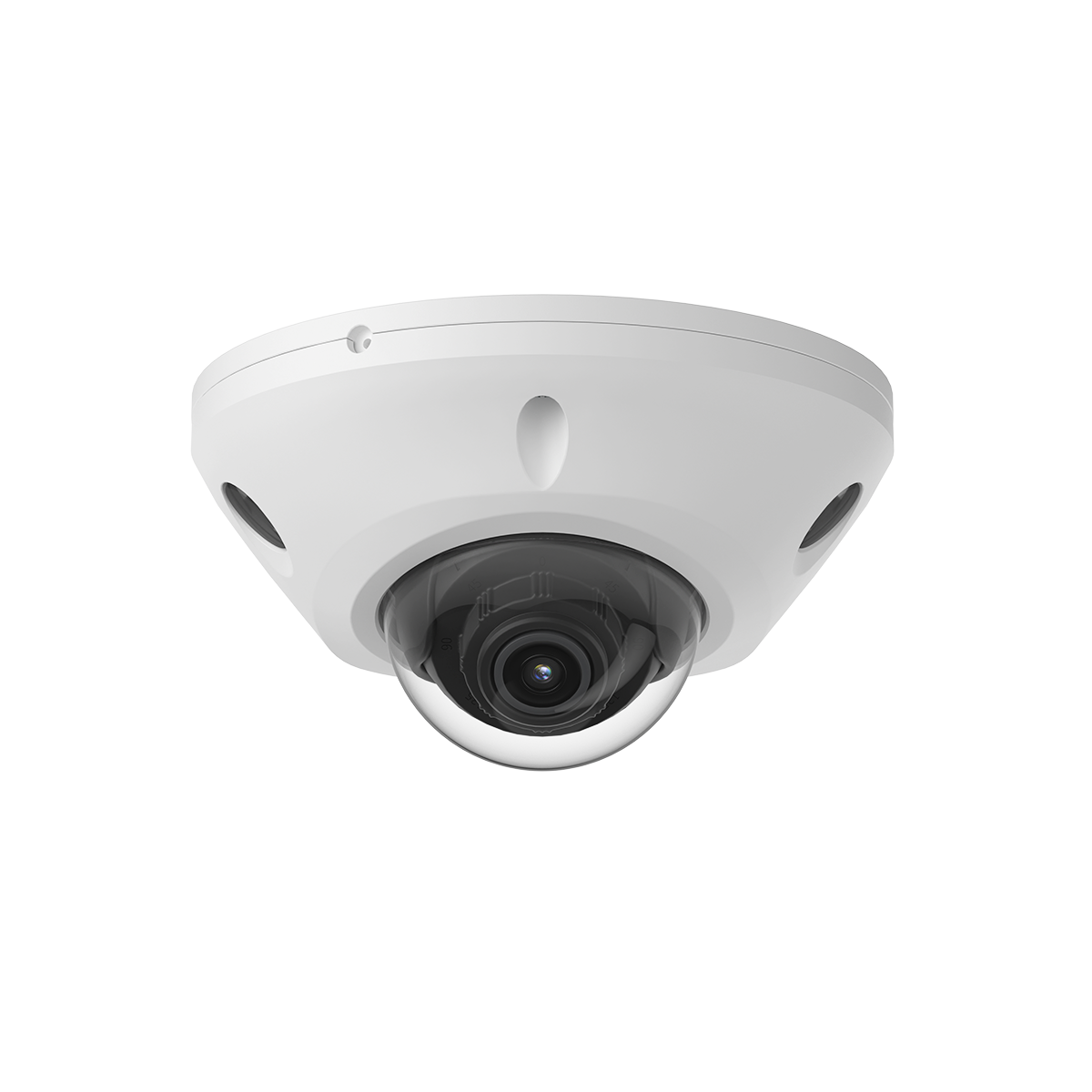

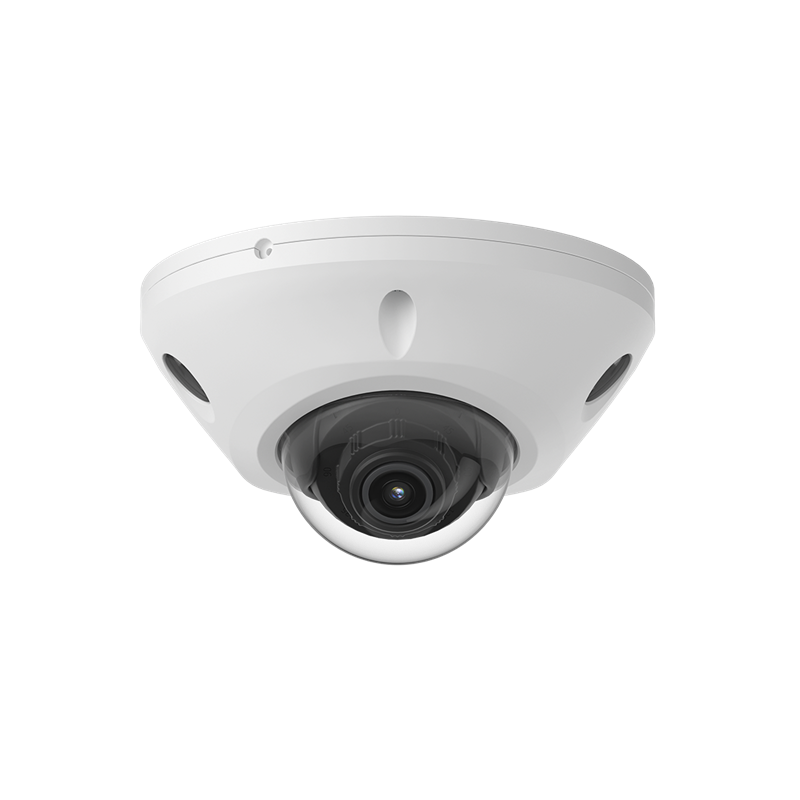

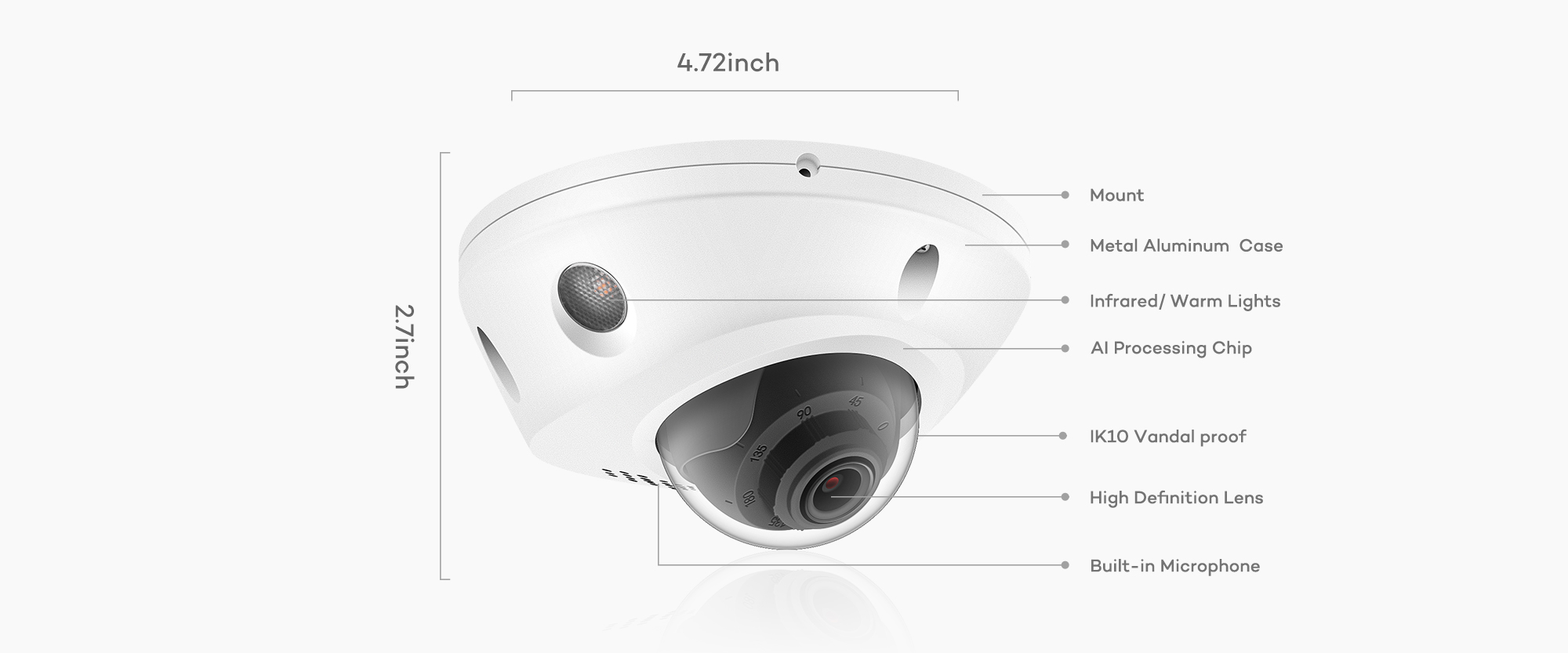

VA80-P28

4K Ultra HD Camera

8 Megapixels-3840(H) x 2160(V) @20FPS

Viewing Angle

134°(Diagonal), 111°(Horizontal), 59°(Vertical)

AI Function

Face Detection, Human Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area）

Two Way Audio

Built-in Microphone (10-15ft) and Speaker

Night Mode

Smart AI Color Mode/ Full Color Mode/ Black& White Mode

IP66 Metal Housing

Aluminum Alloy, Indoors & Outdoors

Operating Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V; 12V DC ± 10%

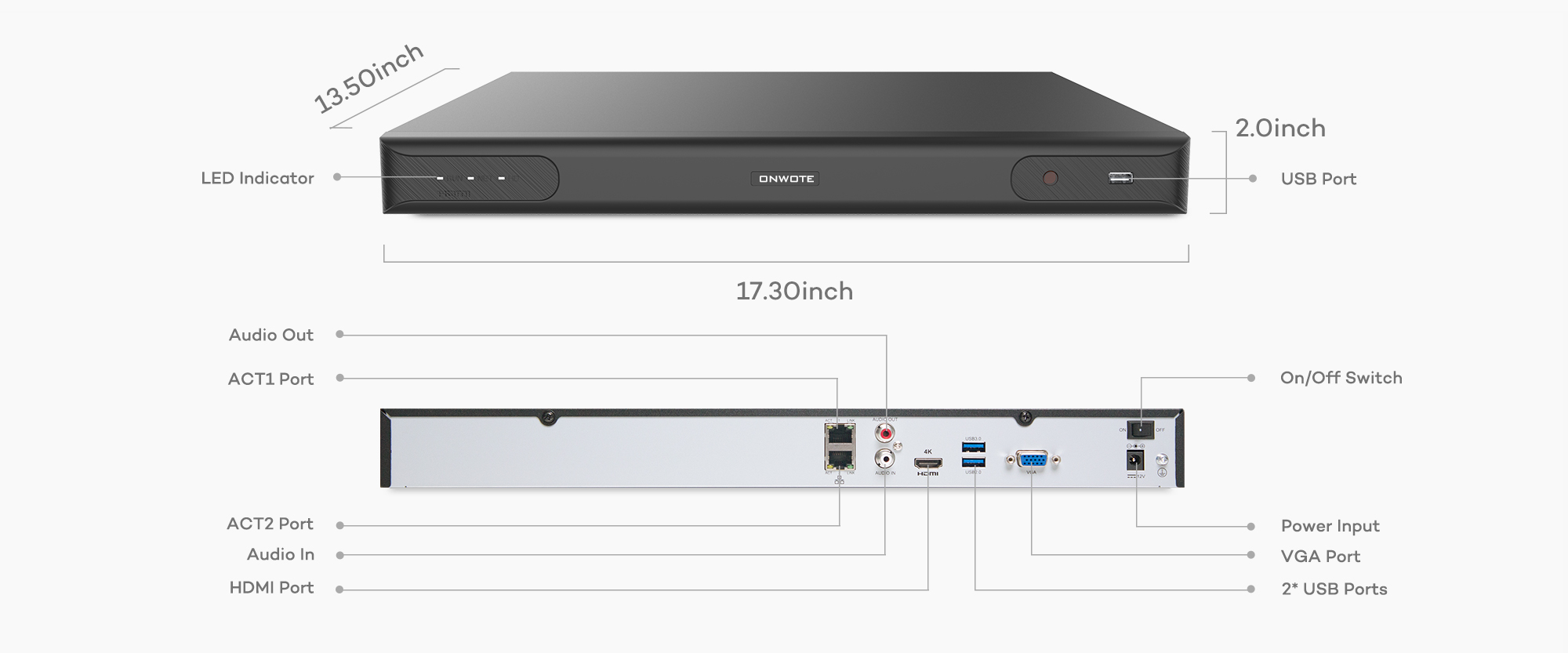

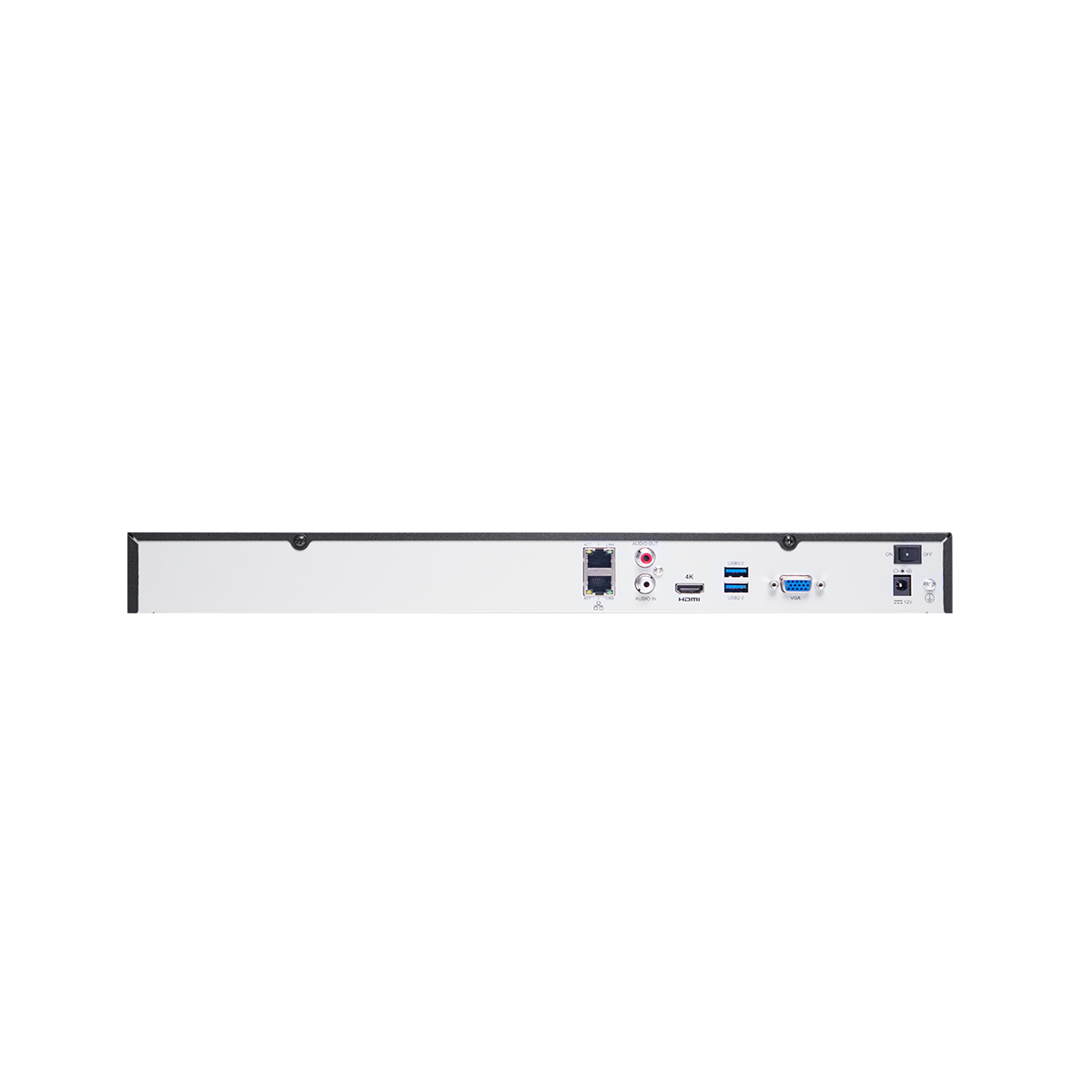

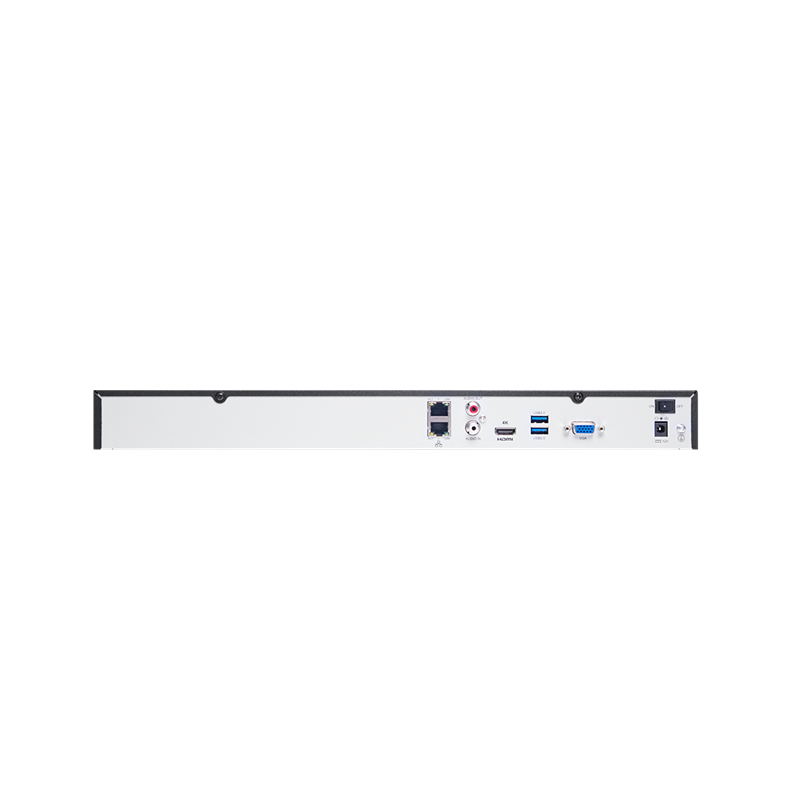

PNA-1232

32CH 6K 12MP NVR

Incoming-160Mbps; outgoing-128Mbps

Video Audio Input

32CH IPC, 20CH 12MP, 26CH 8MP/6MP/5MP, 32CH 4MP

Video Audio Output

AI Function

Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch

Remote Access

128 remote users; Mobile (iPhone/ Android); PC (Windows/ Mac)

Storage Capacity

Built-in 8TB HDD, 4 SATA interfaces support up to 40TB

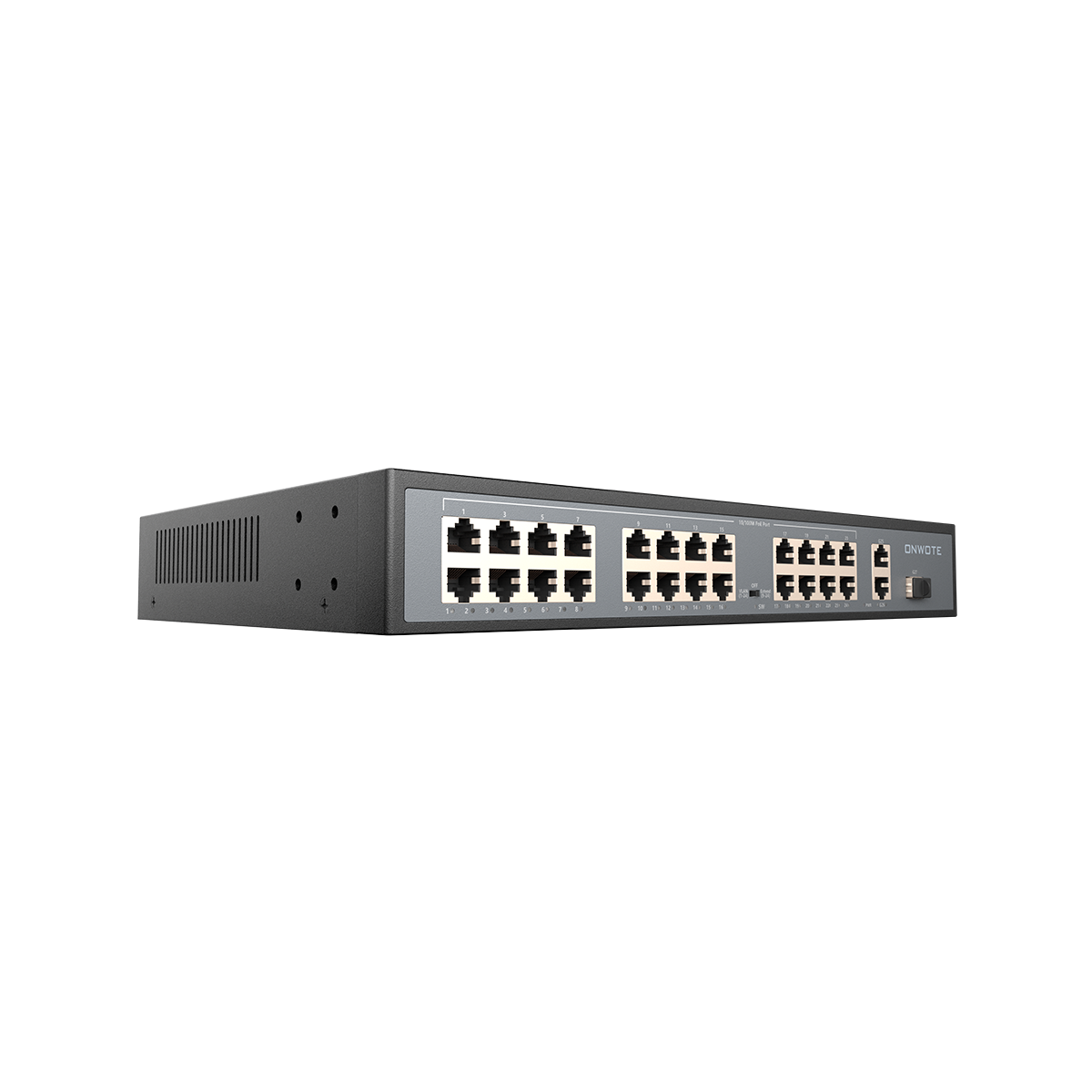

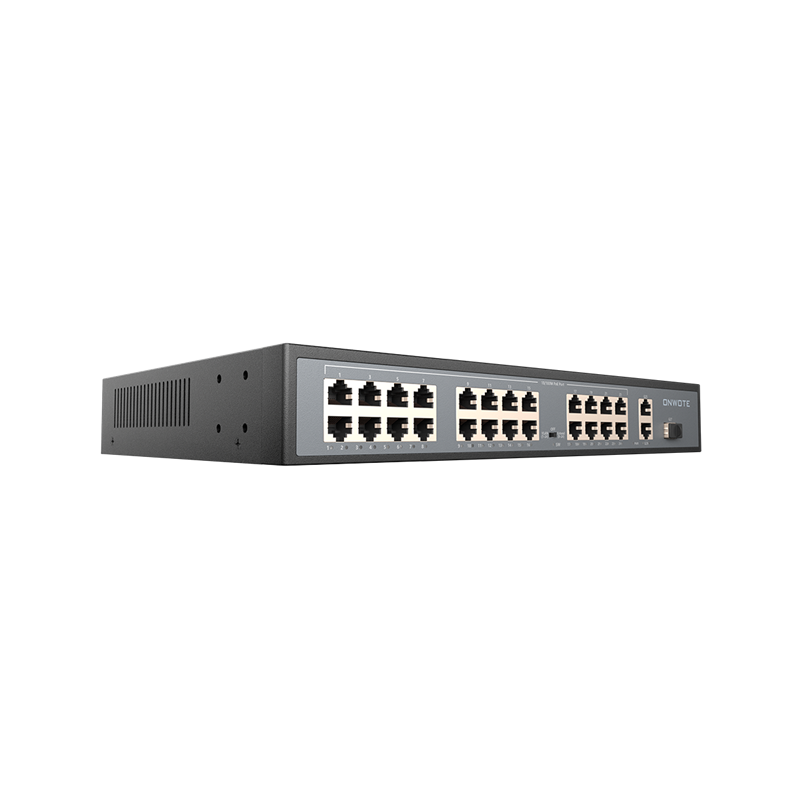

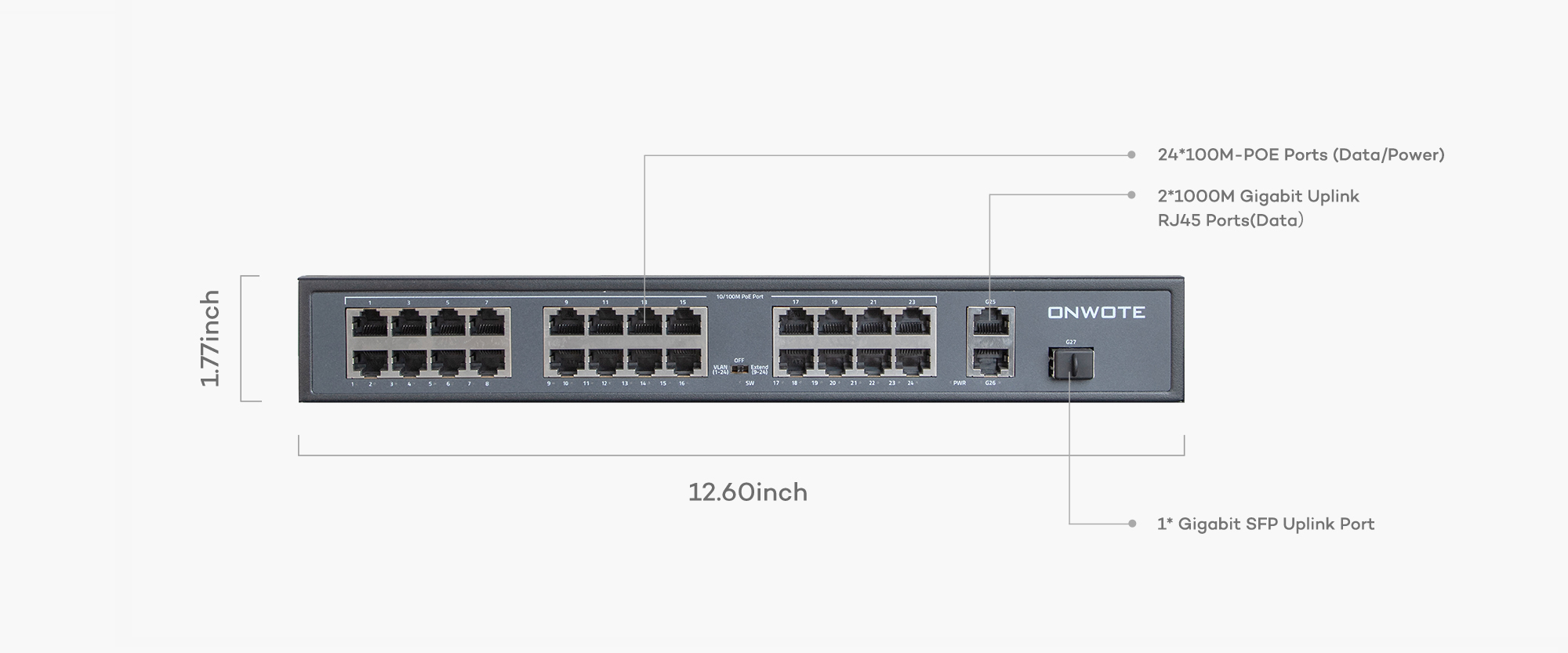

24 Ports & 8 Ports PoE Switch

24 Ports: 24* 100M ports+ 2* gigabit ports+ 2* combo SFP Slots; 8 Ports: 8* 100M ports+ 2* gigabit ports

Operating Temperature

'-10°C～ 55°C, 14°F~131°F, 10% ～ 90%RH(non-condensing)

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

Packing List

Videos

Add-on

PTZ20X 4K/8MP PoE Camera

$275.99 Save 8%
PTZ5X 4K/8MP PoE PTZ Camera

$169.99
PTZ 5X 4K 8MP PoE Camera

$137.99 Save $12.00
PTZ 5X 4K 8MP PoE Camera

$147.19 Save 8%
$112.99
180° Dual-Lens 4K 8MP PoE Camera

$165.59 Save 8%
180° Dual-Lens 4K 8MP PoE Camera

$165.59 Save 8%
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
6K/12MP PoE Camera

$153.99
6K/12MP PoE Camera

$141.67 Save 8%
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00
4K/8MP PoE Camera

$76.99 Save $13.00

Comparison

	32CH 4K PoE System $ 2369.99	32CH 4K PoE System $ 2815.99	32CH 4K PoE System $ 2489.99
Resolution	8MP@20FPS	8MP@20FPS	8MP@20FPS
Field of View	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)
Audio	Two Way Audio	Built-in Microphone	Built-in Microphone
AI Function	Face Recognition& AcuSearch	Face Recognition& AcuSearch	AI Human Vehicle Detection
NVR Channels	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	8TB HDD	8TB HDD	8TB HDD
Storage Capacity	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch

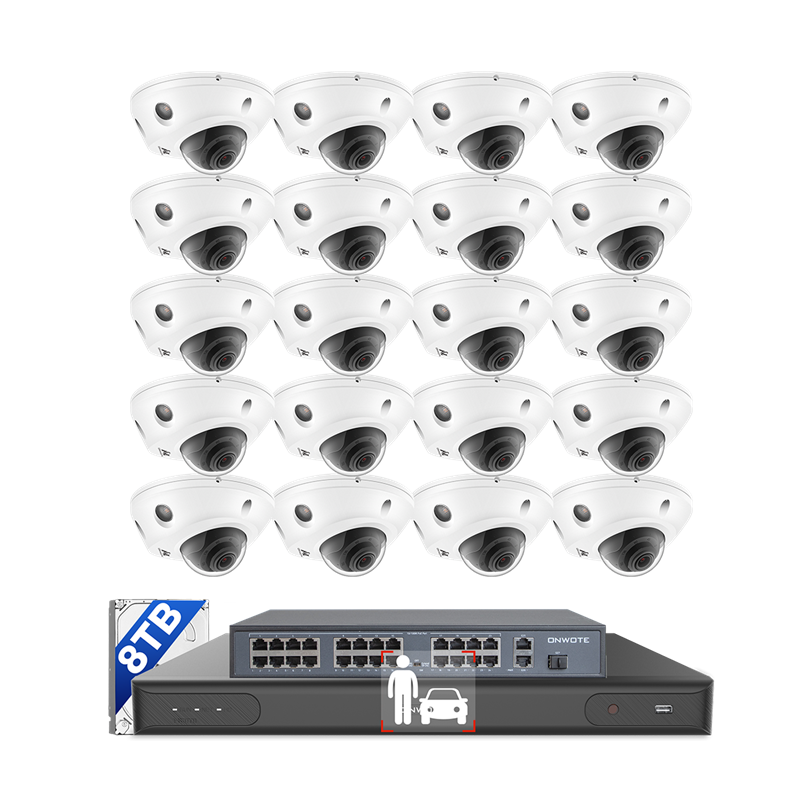

32CH 4K PoE System $ 2369.99
32CH 4K PoE System $ 2815.99
32CH 4K PoE System $ 2489.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
