Overview

Smart Search
& Playback

4K 8MP HD Video

8 Megapixels = 3840(H) × 2160(V), offering 4 times the clarity of 1080P to ensure sharp live viewing and detailed recordings of important events.

AcuSearch Technology

Facial Recognition

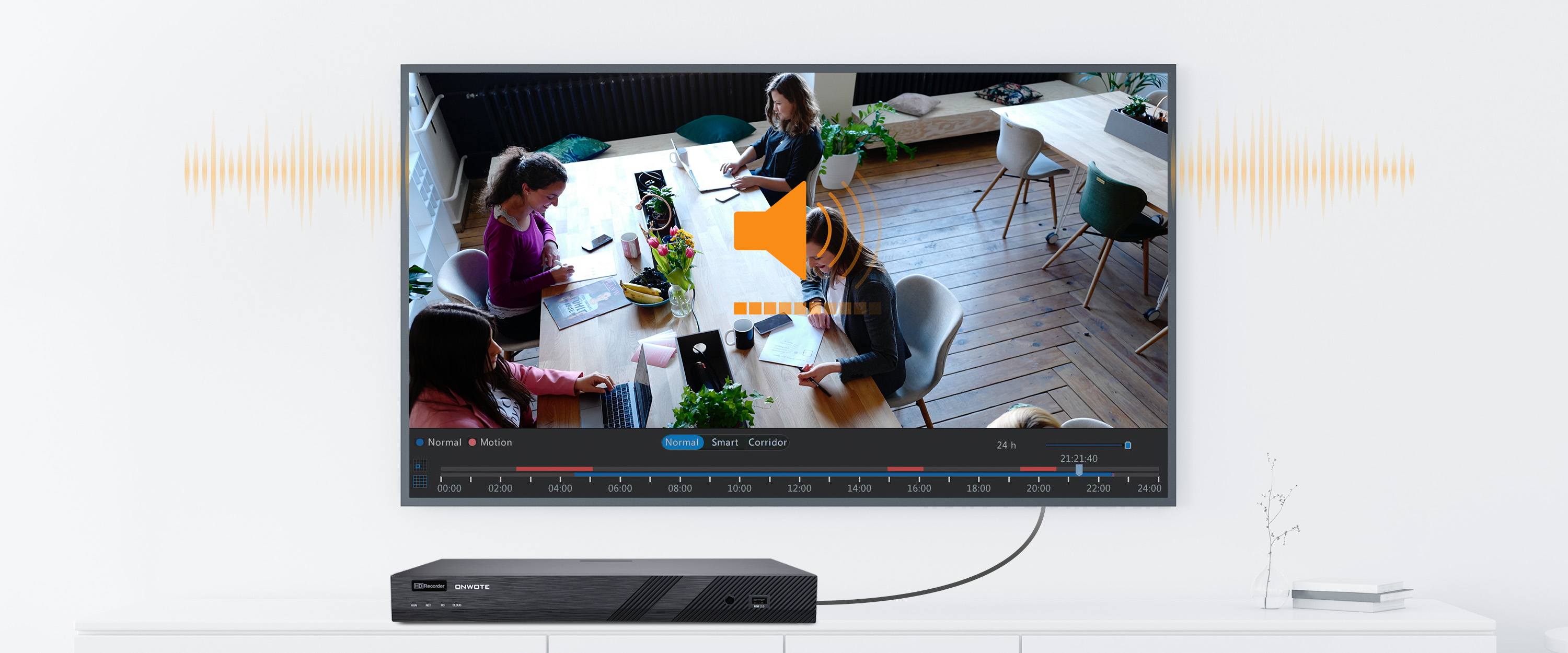

Capture & Record Audio

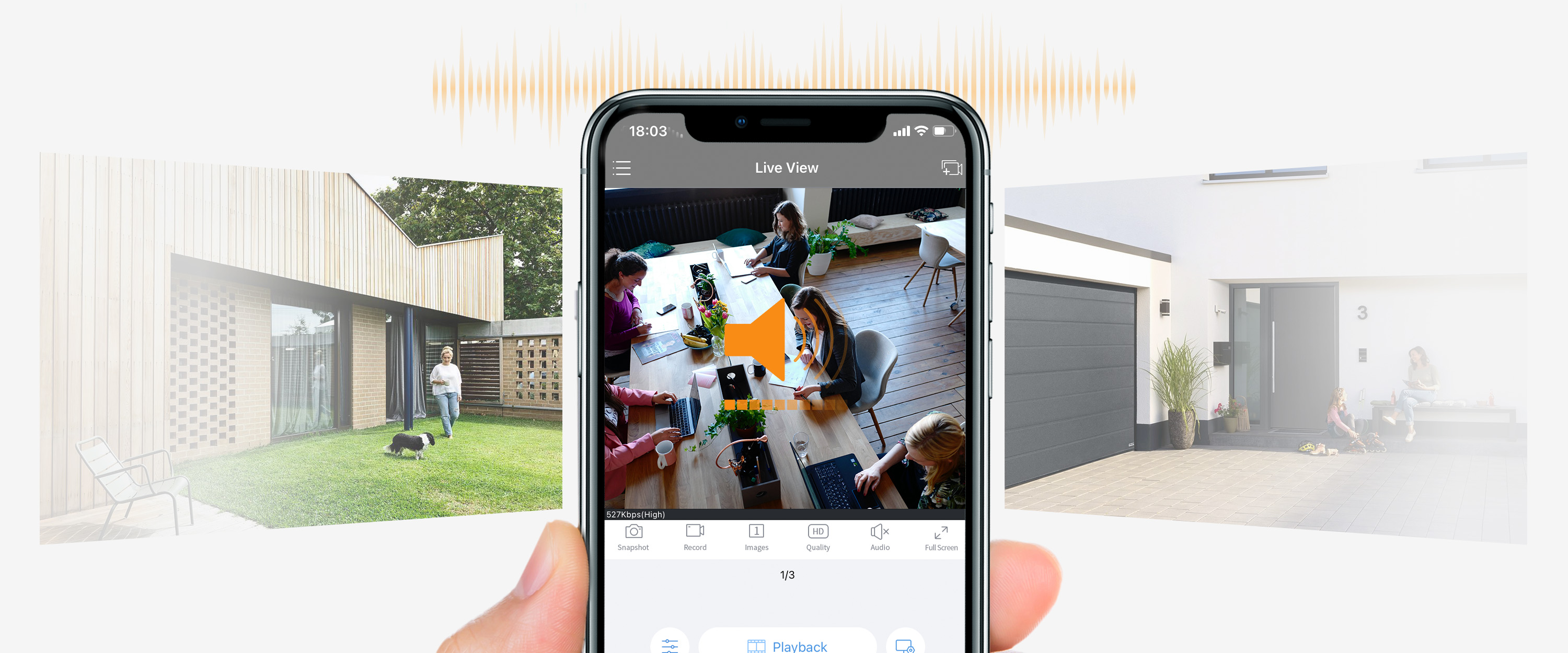

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app.

Audio Capture Mobile App Playback HD TV Output

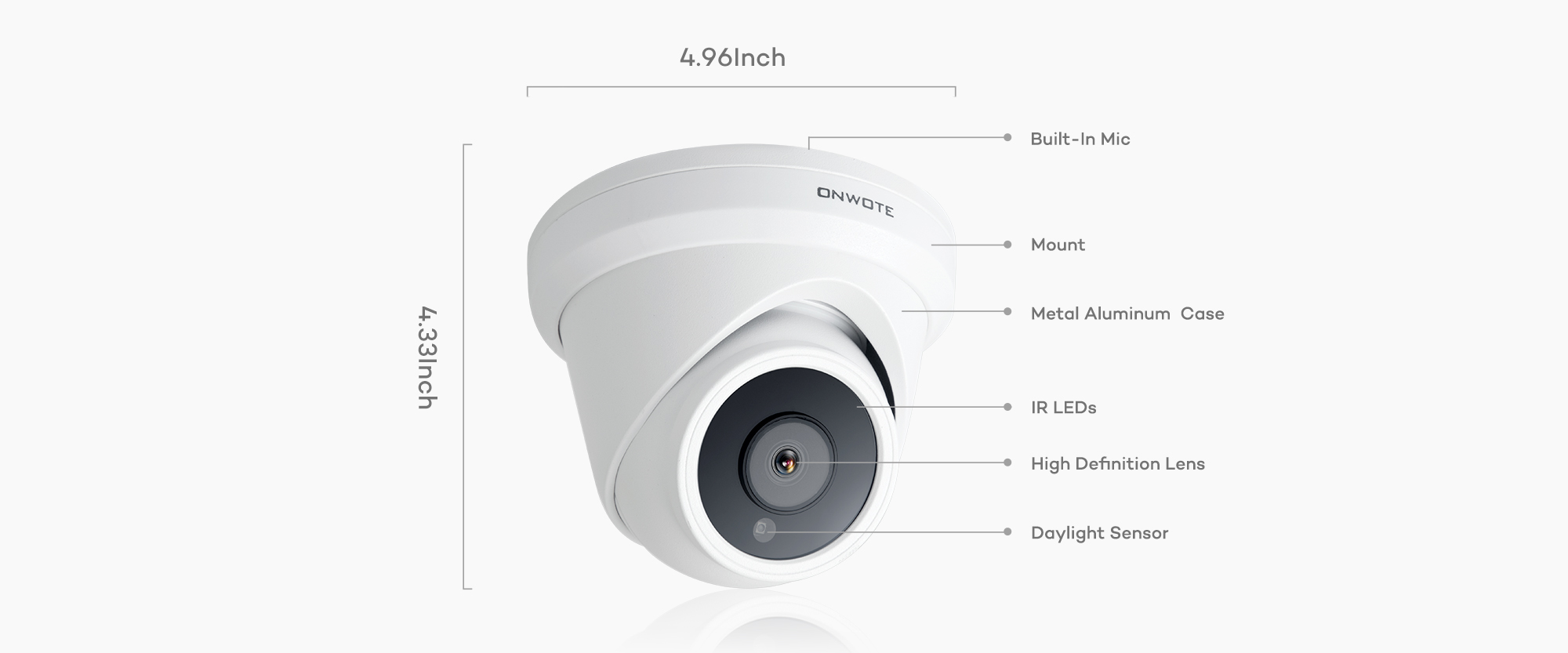

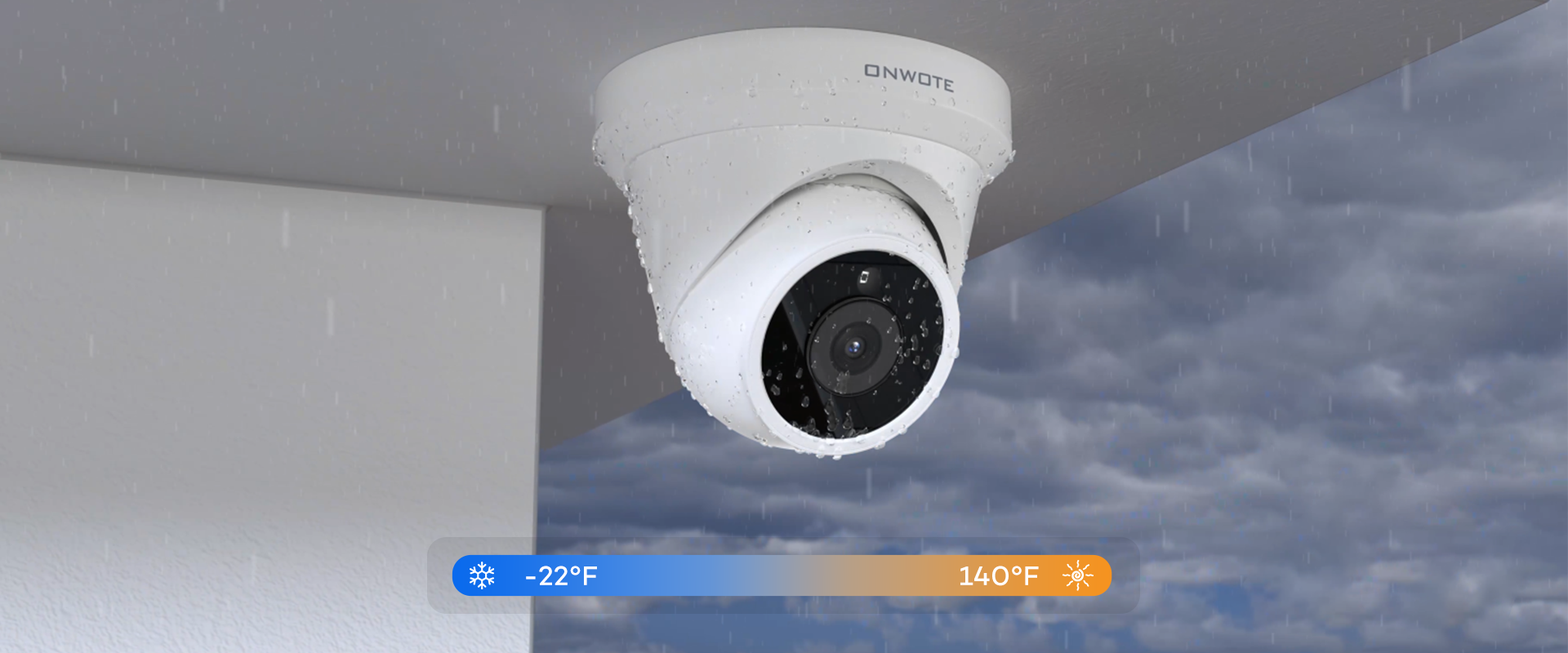

IP66-Rated Weatherproof Reliability

Durable weatherproof metal housing suitable for both indoor and outdoor use

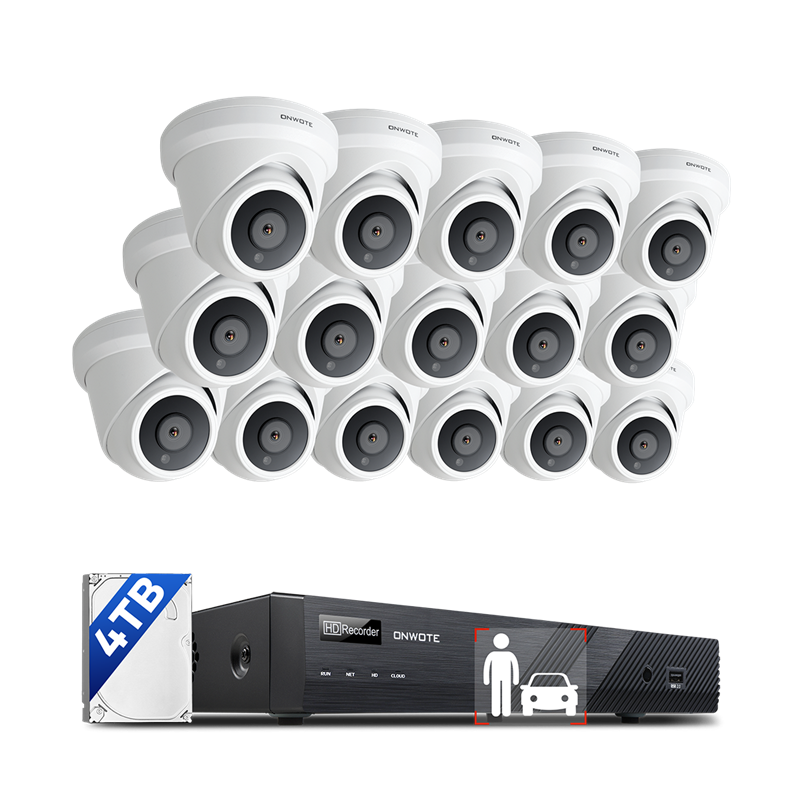

6K 12MP NVR

This system supports up to 16 PoE IP cameras in 12MP, 8MP, or 6MP resolutions, with multiple add-on options available from ONWOTE

24/7 Free Local Storage

A 4TB hard drive is pre-installed for 24/7 local recording with no monthly fees. Need more space? Expand the storage capacity up to 20TB for even longer recording periods.

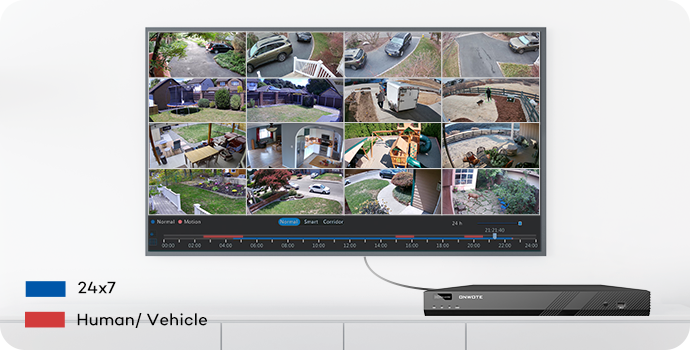

Smart Search & Playback

Quickly locate footage using smart person/vehicle event filters. Play back recordings from up to 16 cameras simultaneously on an HD monitor or computer.

Specification

Camera NVR

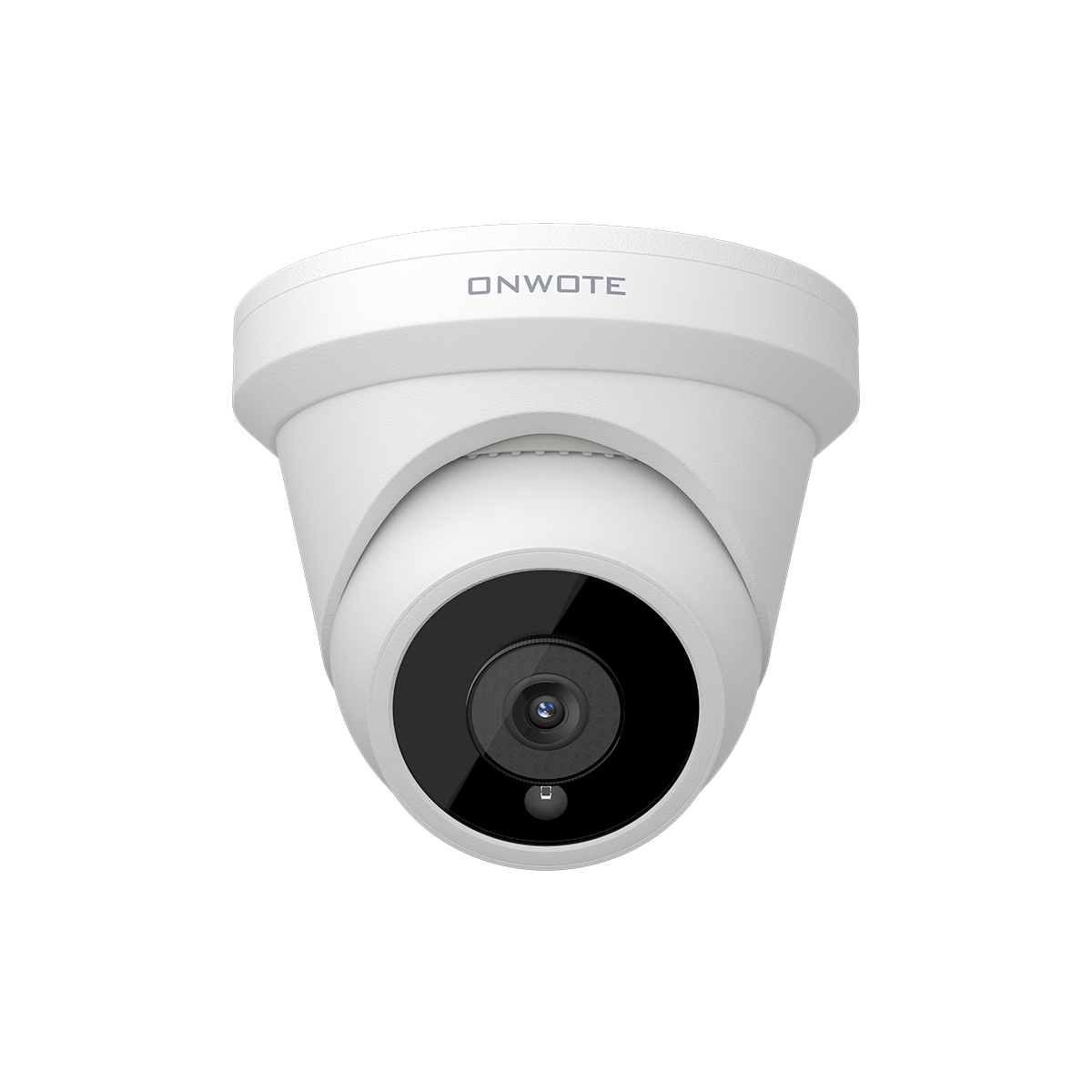

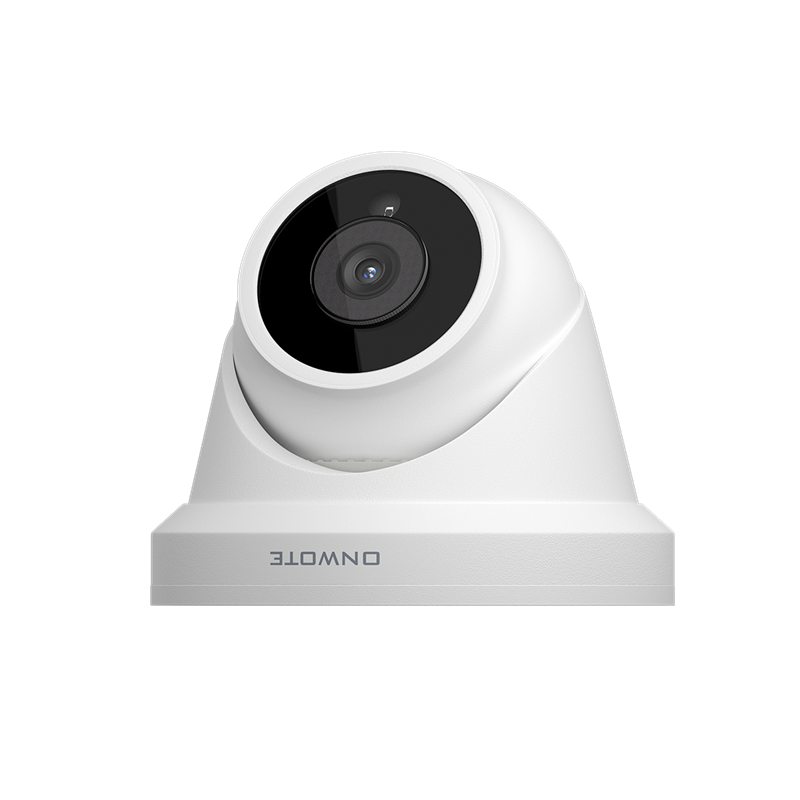

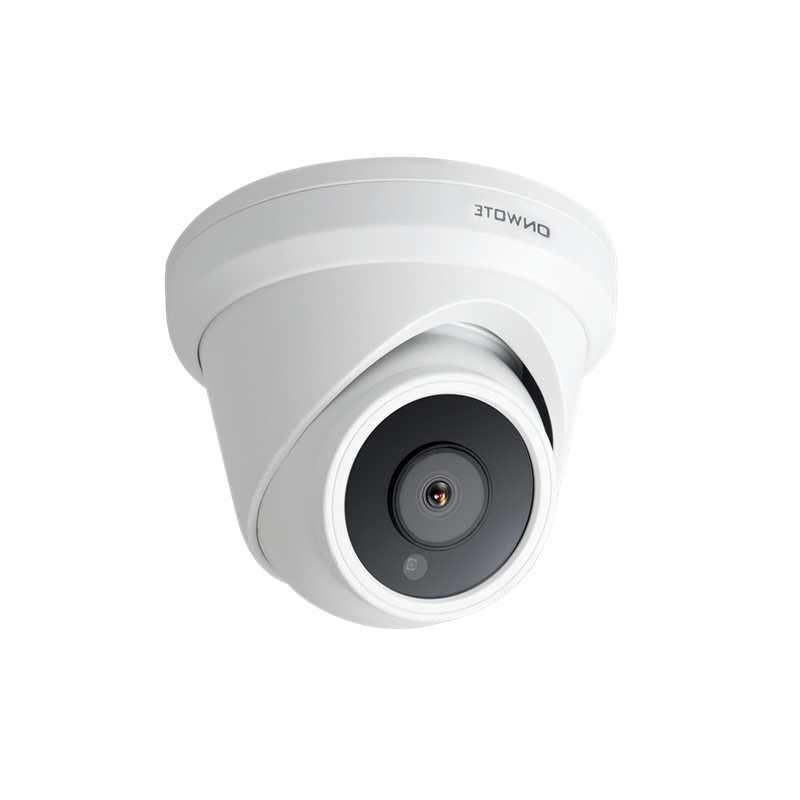

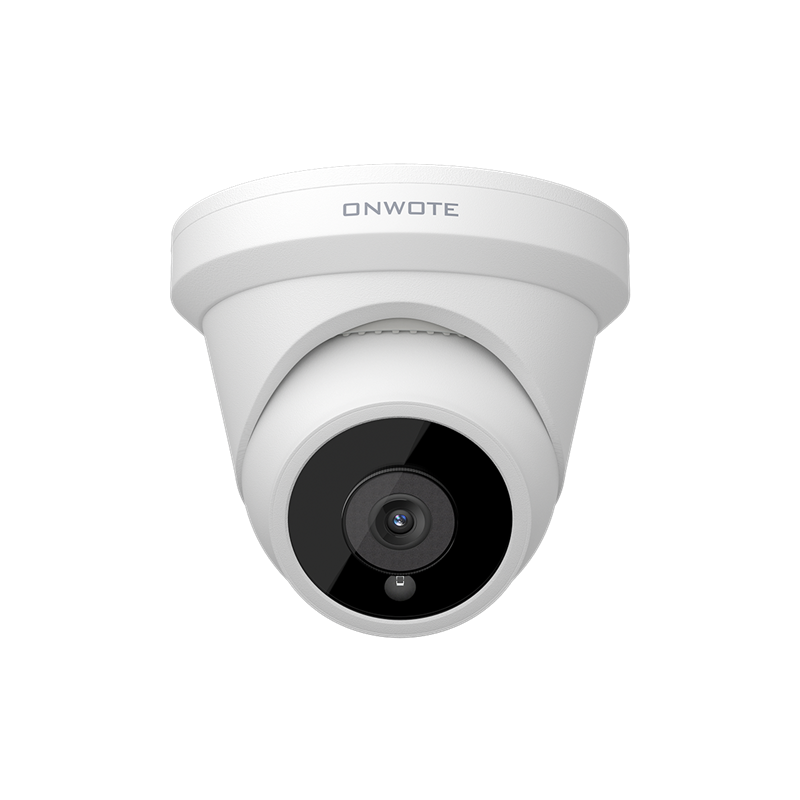

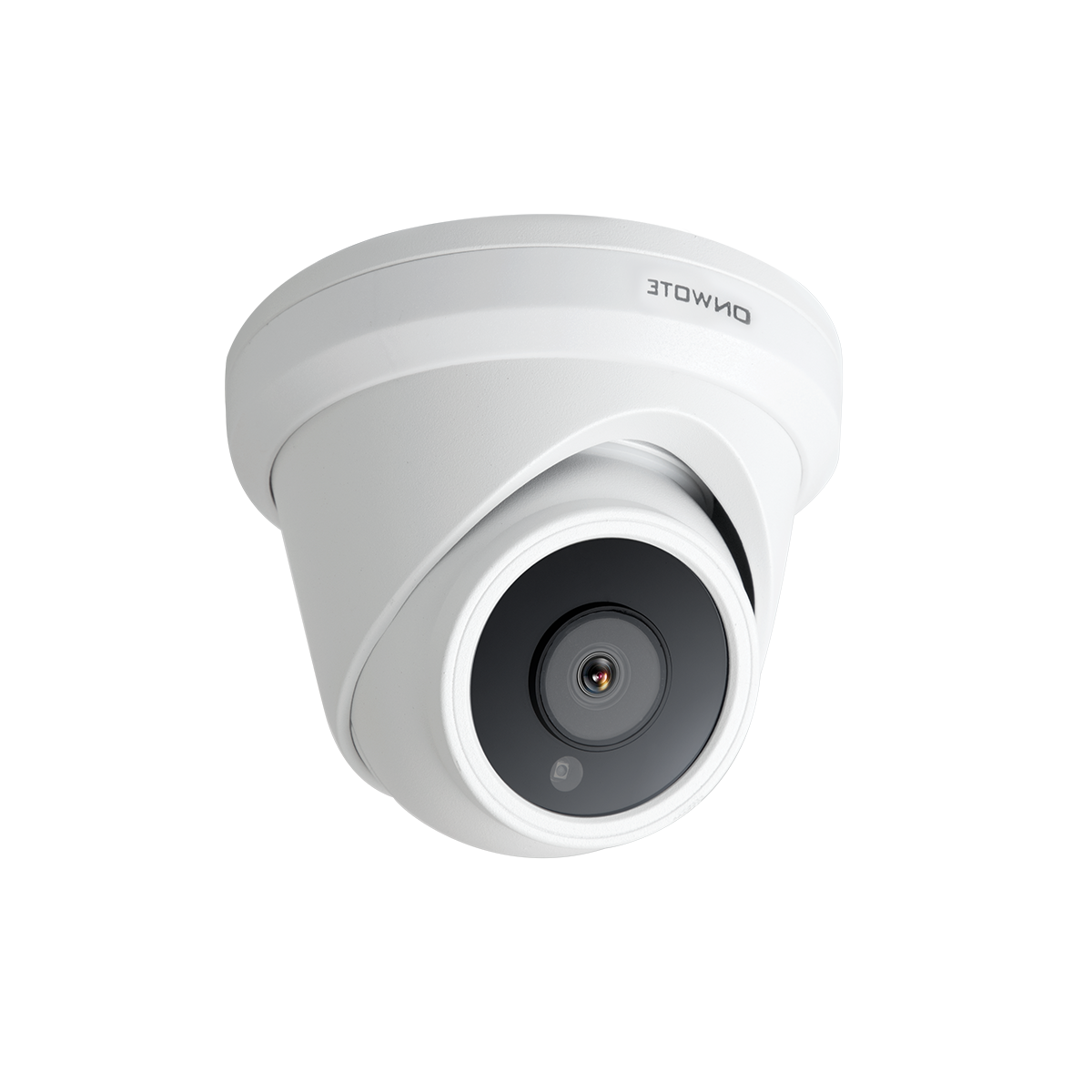

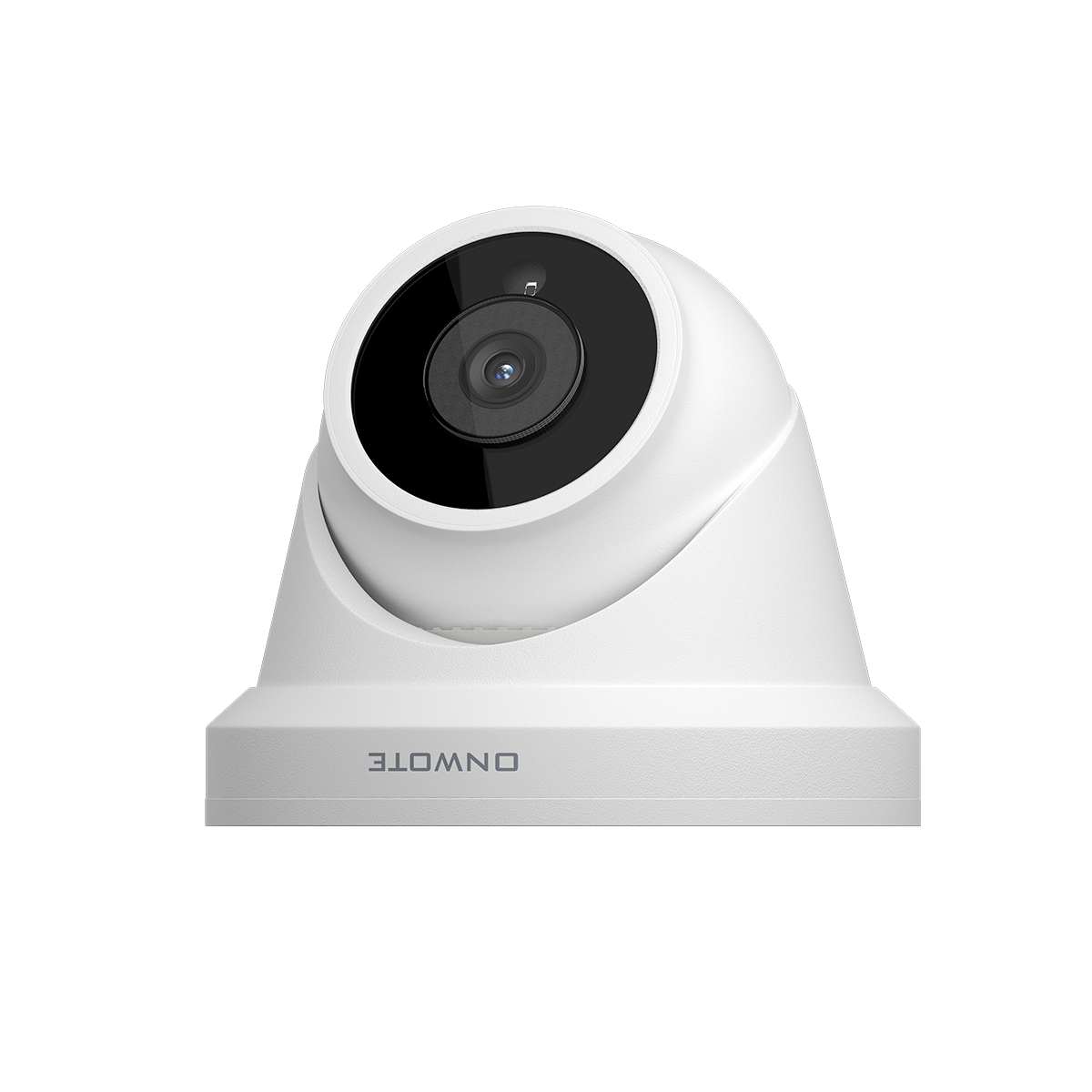

SA80-P36

4K Ultra HD Camera

8 Megapixels-3840(H) x 2160(V) @20FPS

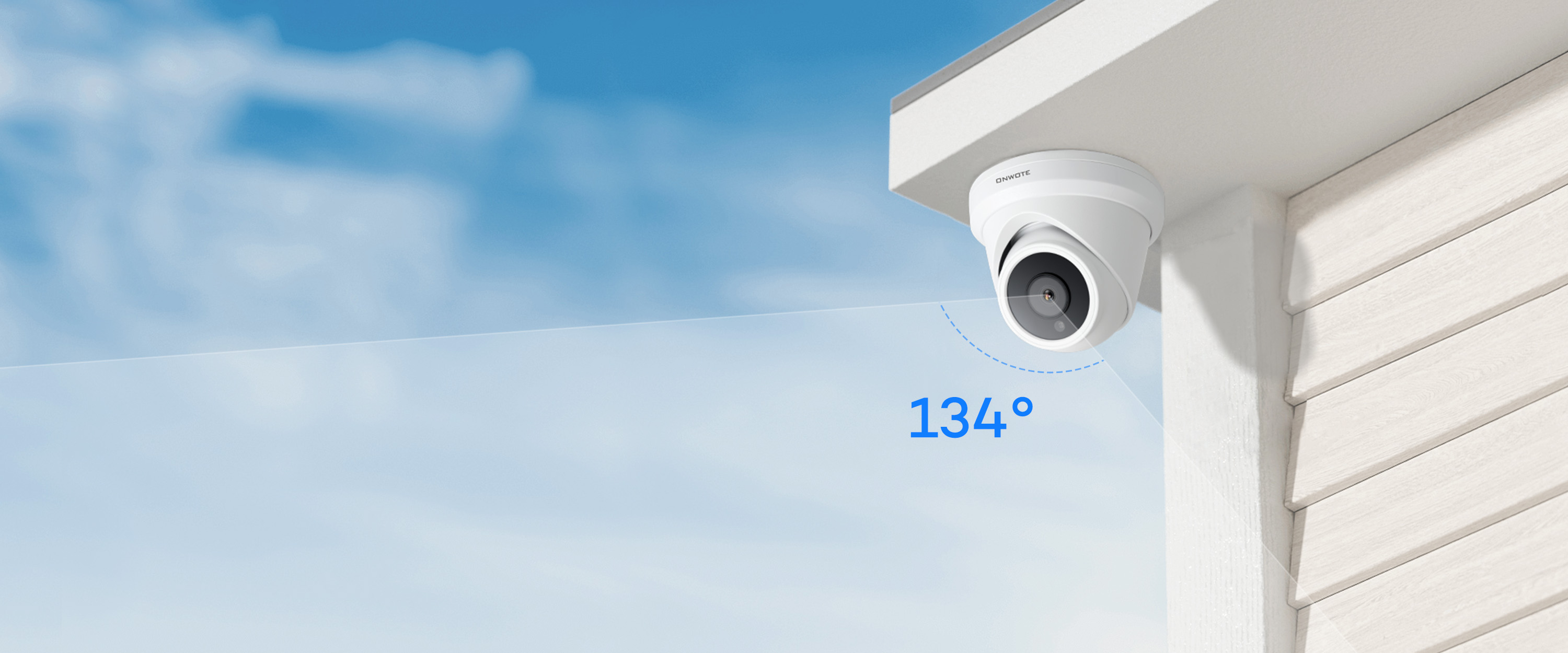

Viewing Angle

134°(Diagonal), 111°(Horizontal), 59°(Vertical)

AI Function

Smart AI Human Vehicle Detection

Audio

Built-in Microphone (10-15ft)

Night Vision

IR distance up to 100ft (depends on environment)

IP66 Metal Housing

Aluminum Alloy, Indoors & Outdoors

Operating Temperature

-22°F~140°F, 10%-90%RH

Power Supply

PoE 802.3af/at 48V; 12V DC ± 10%

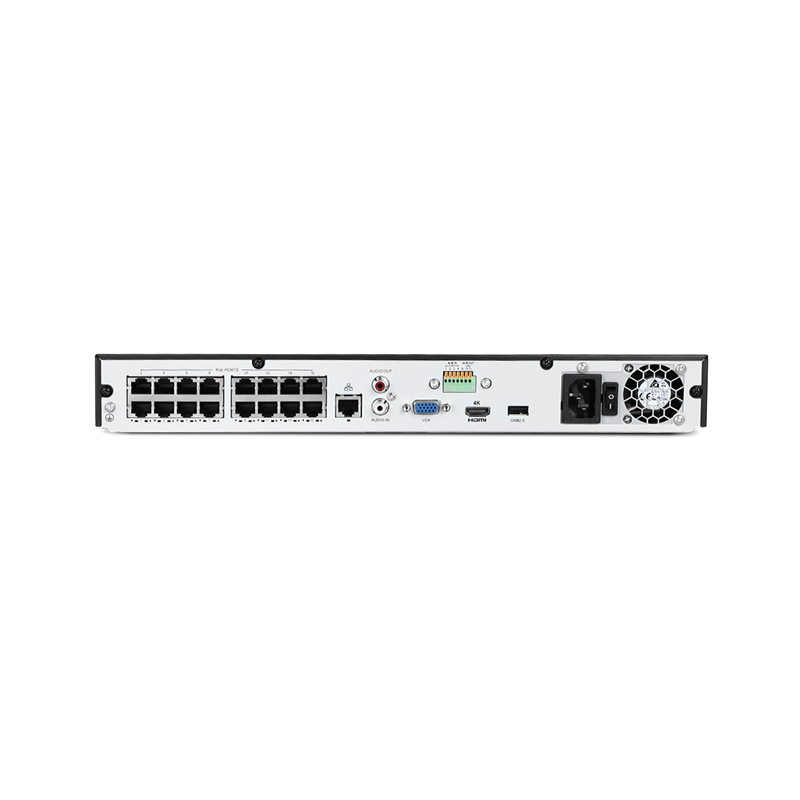

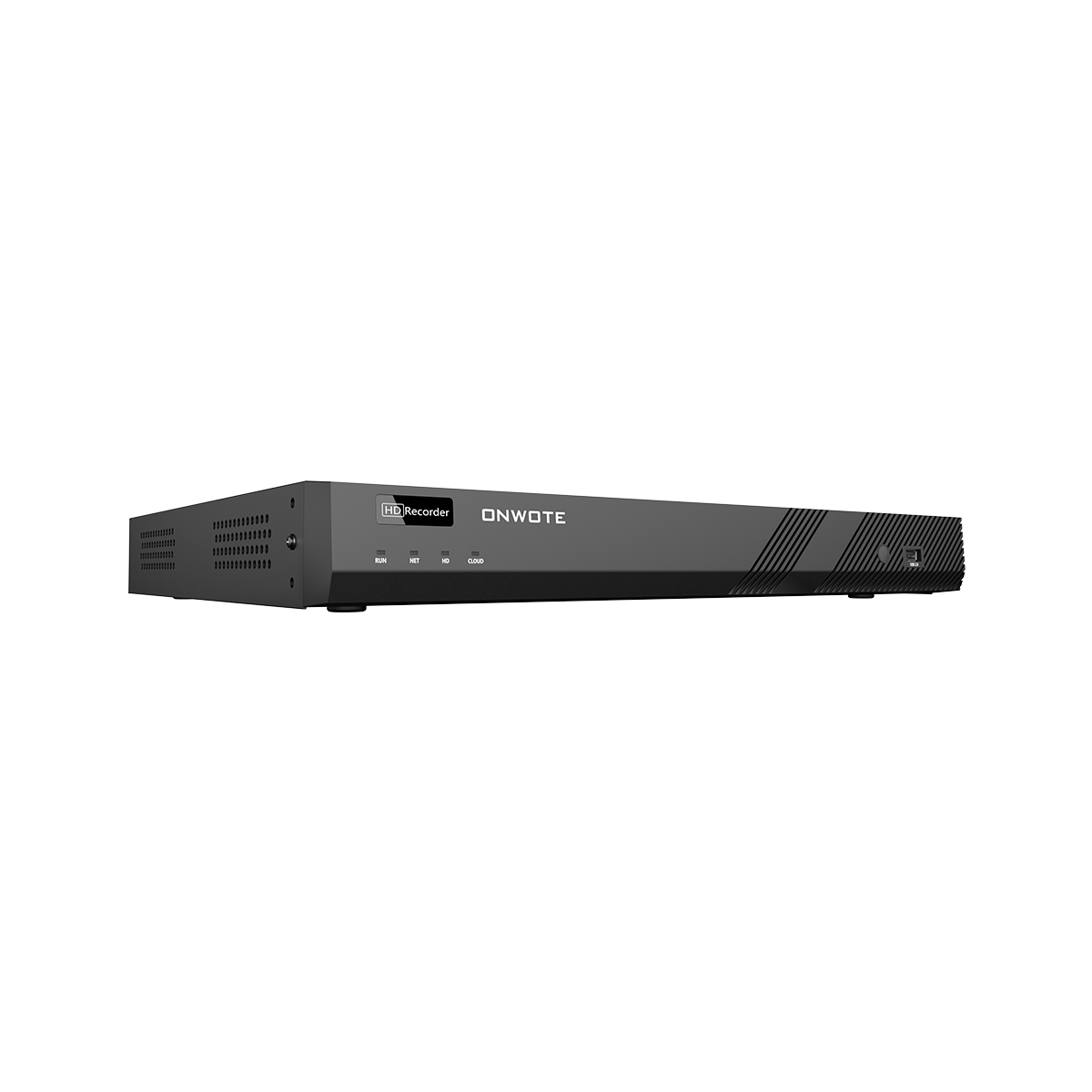

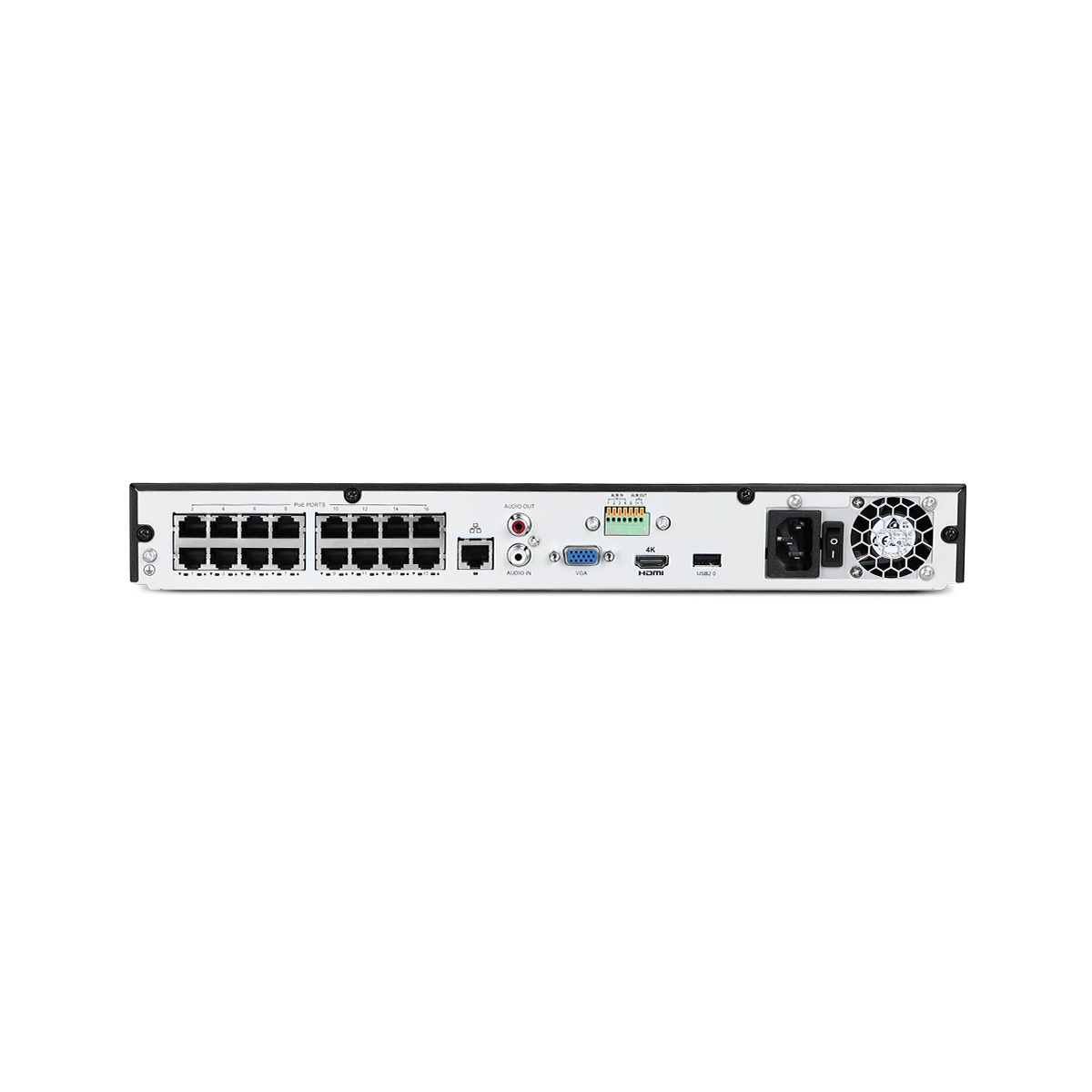

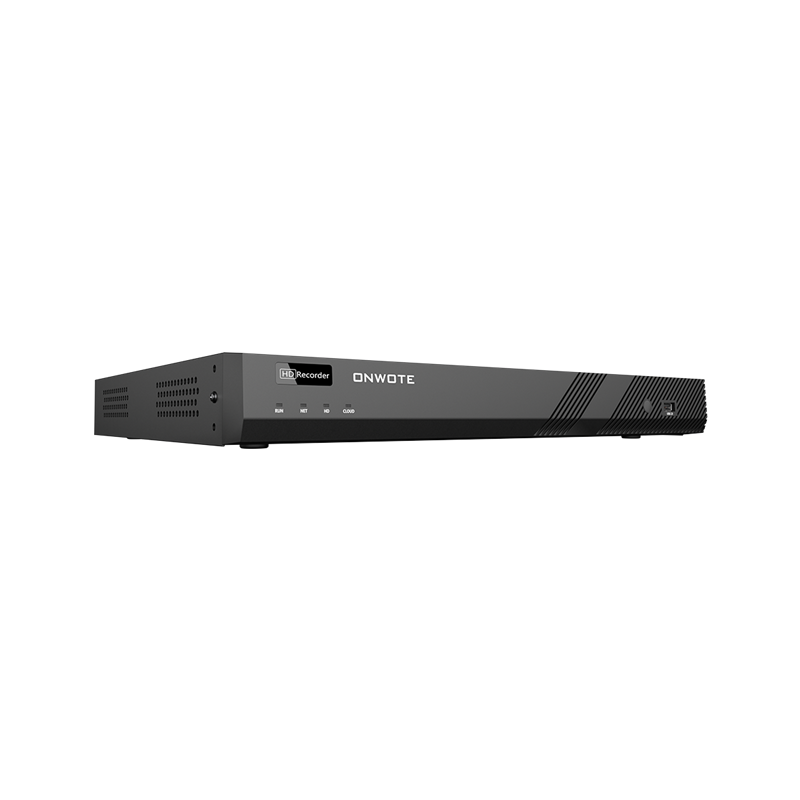

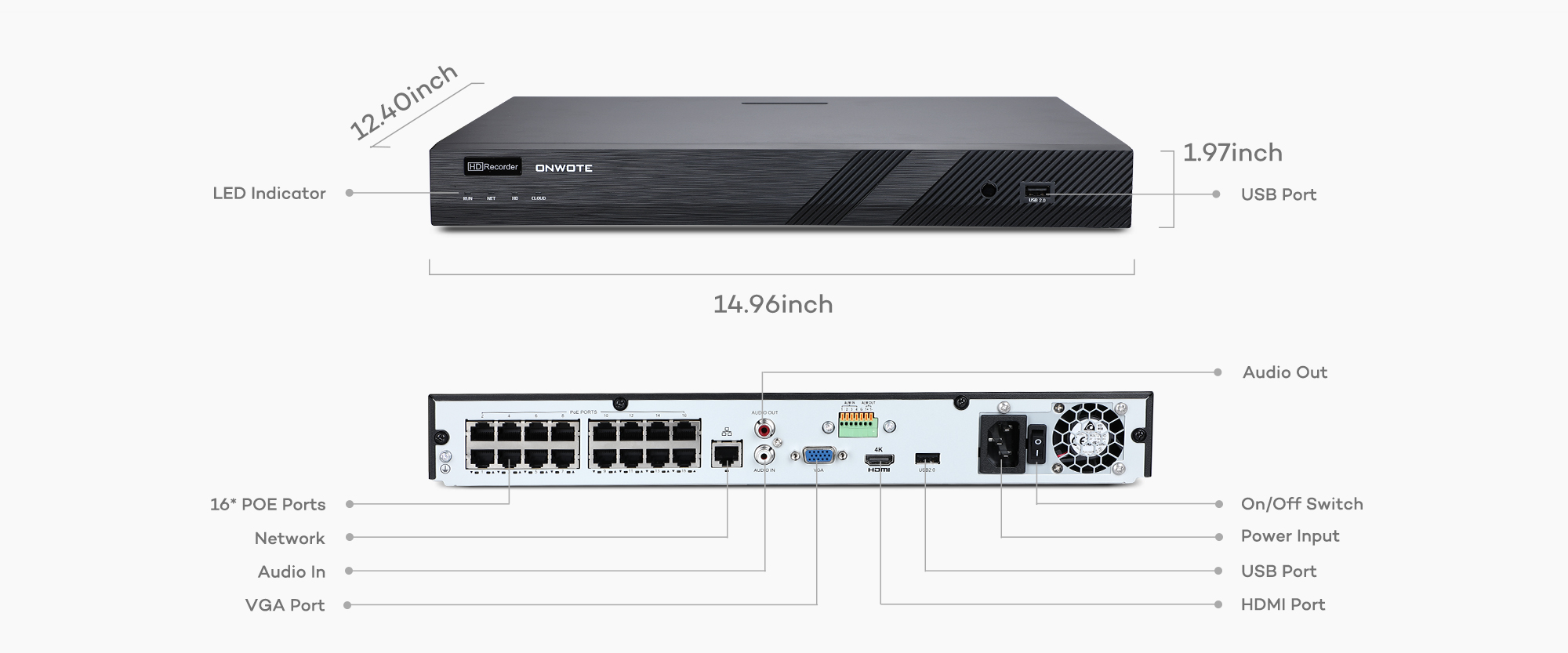

PNS-1216

16CH 6K 12MP NVR

Dual Stream Technology & Advanced HEVC Video Compression

Video Audio Input

16CH IPC, 12MP/ 8MP/ 6MP/ 5MP

Video Audio Output

1-CH HDMI up to 4K, 1-CH VGA up to 1080P

Storage Capacity

Built-in 4TB HDD, 2 SATA interfaces support up to 20TB

4 Optional Recording Modes

24/7 recording; motion detection recording; schedule recording; recycle recording

Synchronous Playback

Playback 16 cameras simultaneously on HD monitor or computer

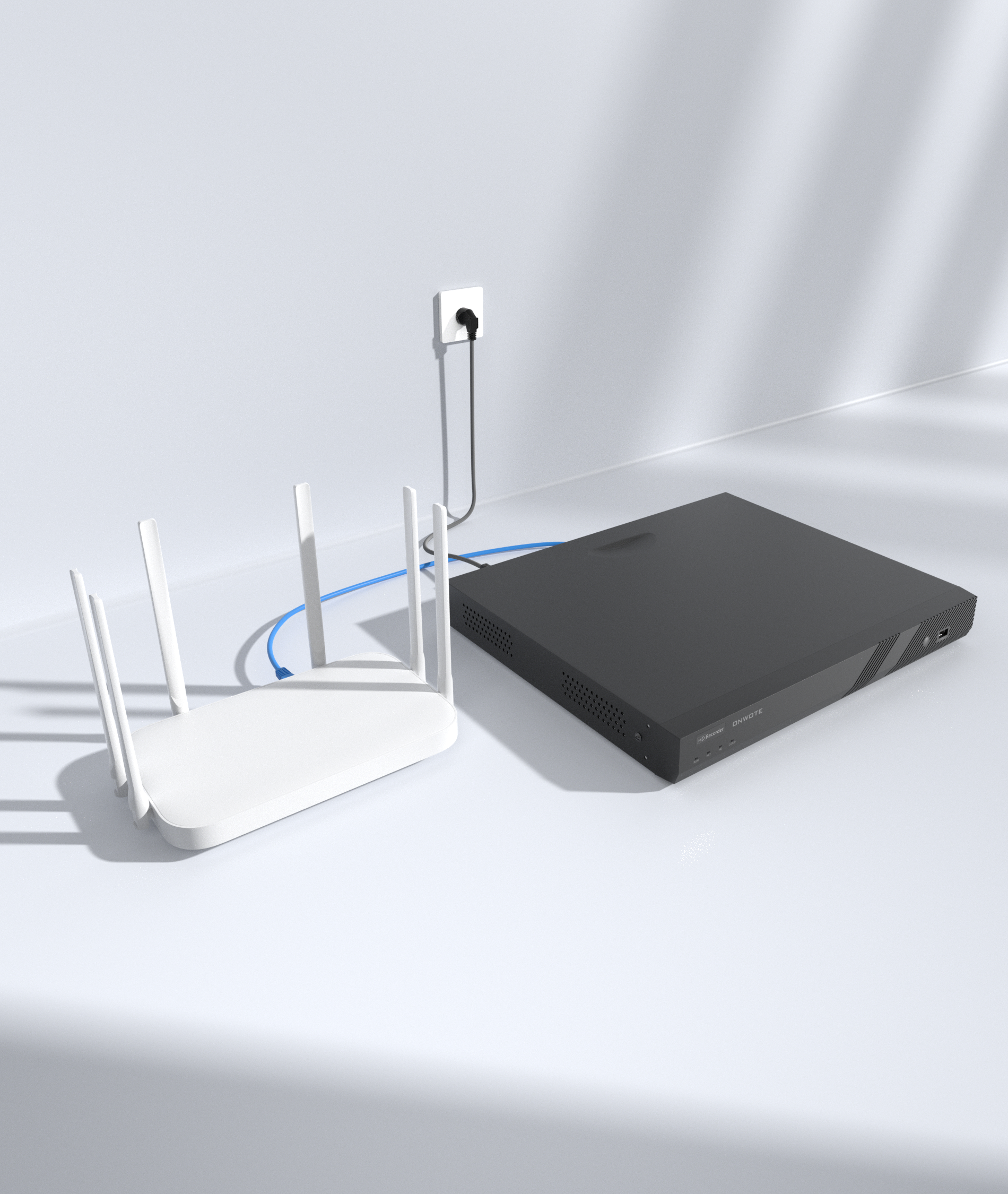

Remote Access

Mobile (iPhone/ Android); PC (Windows/ Mac)

Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

Packing List

Videos

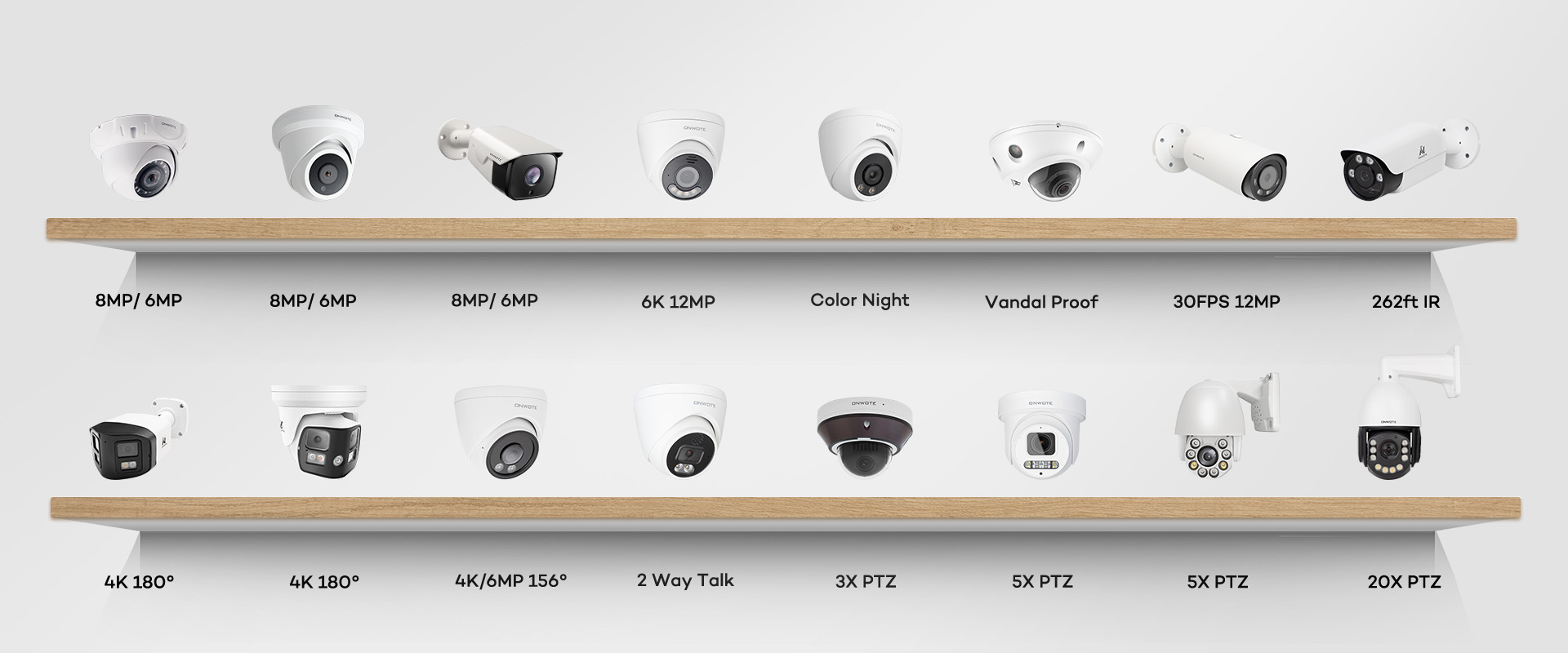

Add-on

PTZ5X 4K/8MP PoE PTZ Camera

$153.59 Save $16.40
PTZ 5X 4K 8MP PoE Camera

$134.39 Save $15.60
PTZ 5X 4K 8MP PoE Camera

$143.99 Save $16.00
$101.75 Save $14.24
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
156° 4K 8MP PoE Camera

$107.79 Save $12.20
6K/12MP PoE Camera

$138.23 Save $21.76
6K/12MP PoE Camera

$138.23 Save $21.76
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60

Comparison

	16CH 4K PoE System $ 1359.99	16CH 4K PoE System $ 1379.99	16CH 4K PoE System $ 1379.99	16CH 4K PoE System $ 819.99
Resolution	8MP	8MP@20FPS	8MP@20FPS	8MP@20FPS
Field of View	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)	134°(D), 111°(H), 59°(V)
Audio	Built-in Microphone	Two Way Audio	Built-in Microphone	Built-in Microphone
AI Function	Face Recognition& AcuSearch	Face Recognition & AcuSearch	AI Human Vehicle Detection	AI Human Vehicle Detection
NVR Channels	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR	16-CH 6K 12MP NVR
HDD Pre-installed	4TB HDD	4TB HDD	4TB HDD	4TB HDD
Storage Capacity	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	/	/	/	/


16CH 4K PoE System $ 1359.99
16CH 4K PoE System $ 1379.99
16CH 4K PoE System $ 1379.99
16CH 4K PoE System $ 819.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
8MP	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Two Way Audio	Face Recognition & AcuSearch	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	AI Human Vehicle Detection	16-CH 6K 12MP NVR	4TB HDD	Support 20TB via 2 SATA Ports	/
