6MP Super HD Resolution & Installation Demo

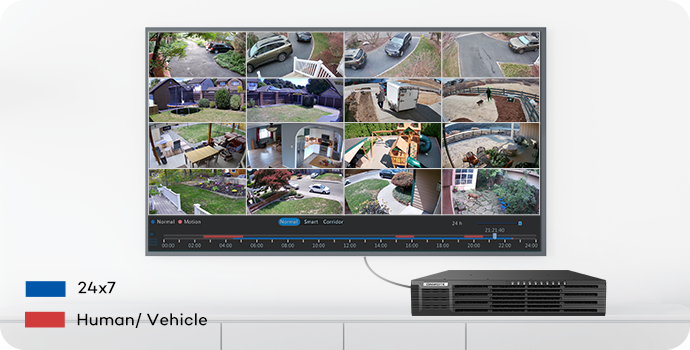

AcuSearch Technology

Smart Detection & Analysis

3 Night Vision Modes

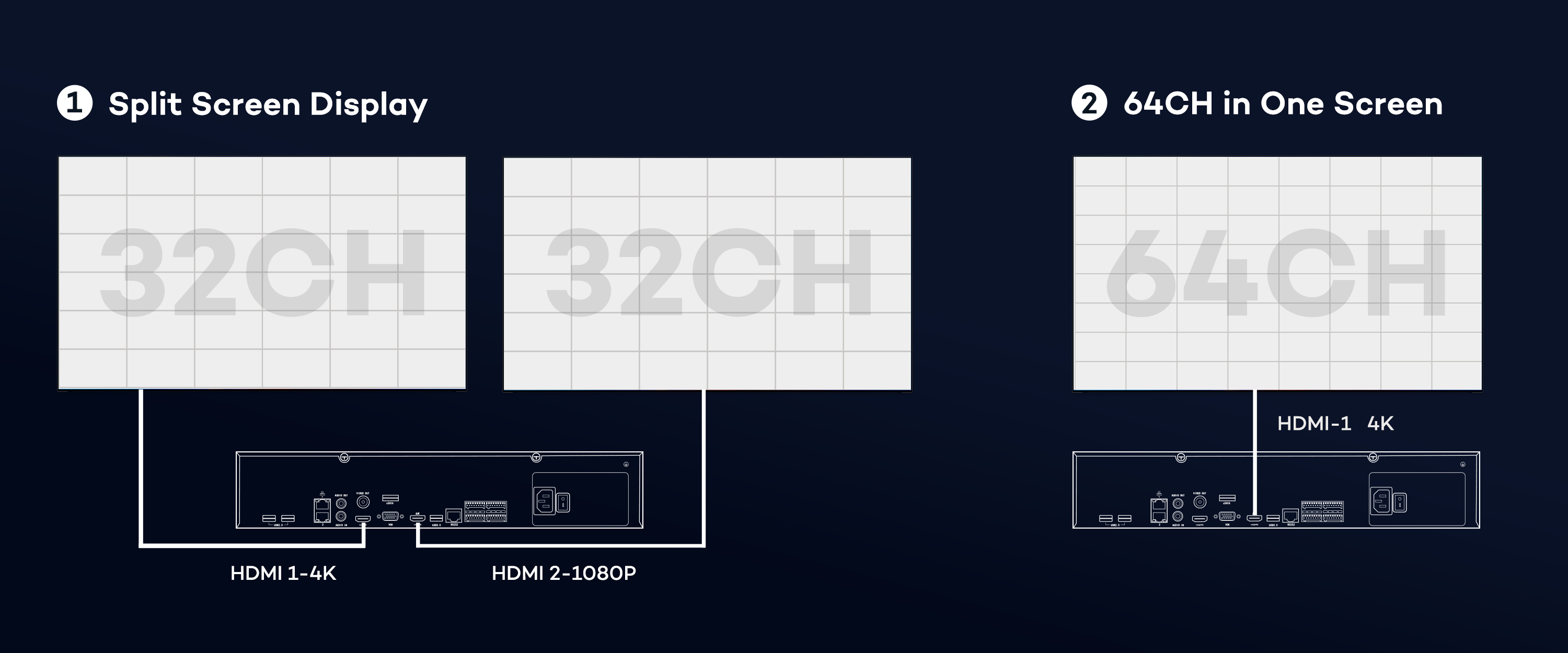

Split Screen Display

The 64-channel NVR has two HDMI ports, allowing for either single-screen or dual-screen display as needed.

Power over Ethernet

All-in-one cable solution:‌ Transmits video, audio, and power over a single Cat5 cable.
True plug & play:‌ Simpler wiring than traditional DVR systems.

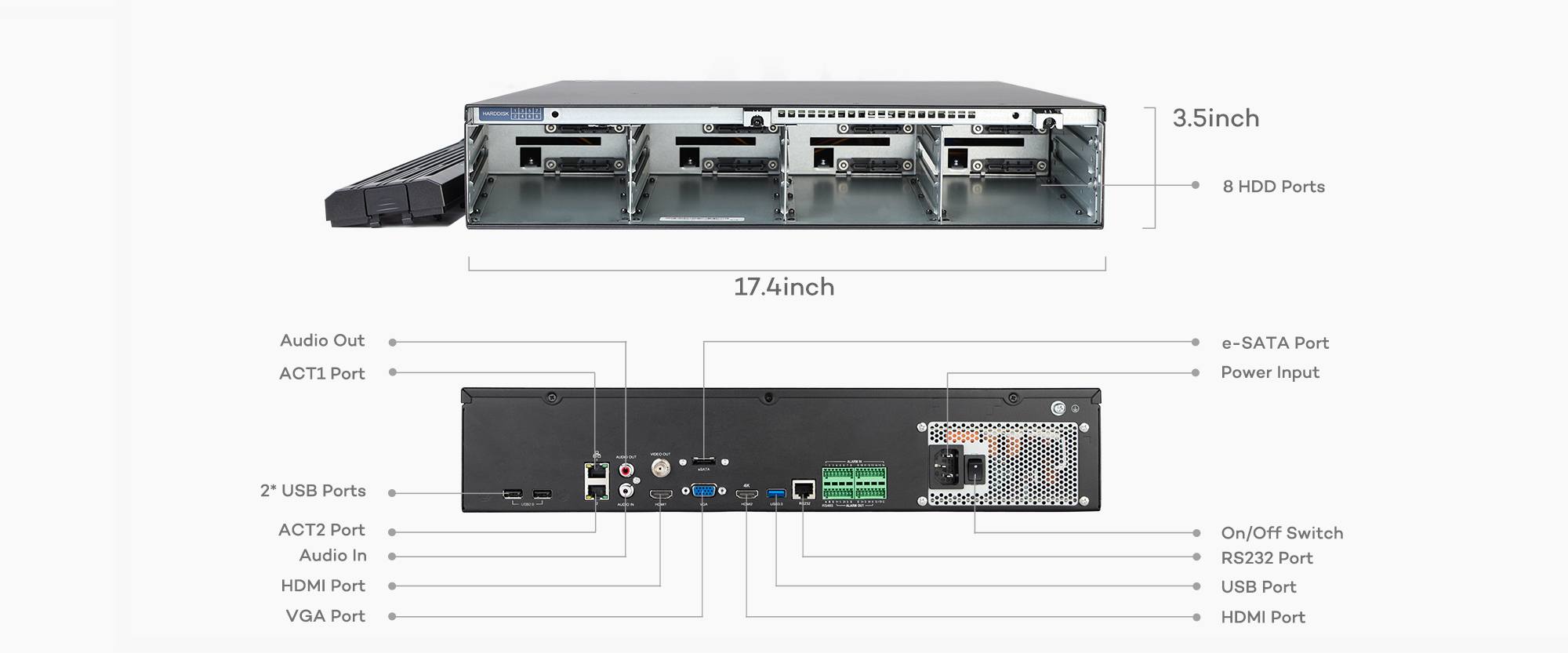

Support 128TB Local Storage

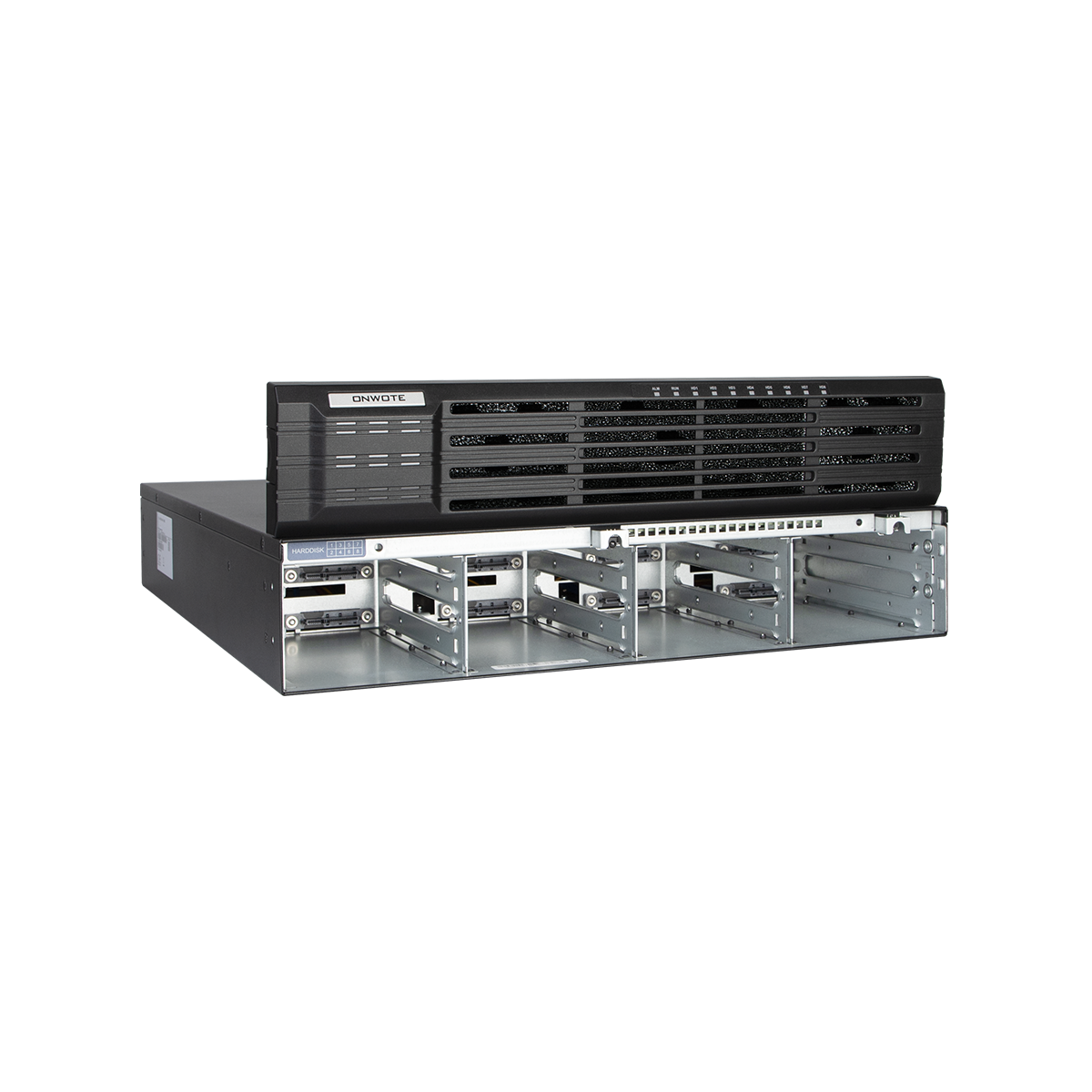

8 SATA interfaces, up to 16TB for each hard disk.
Support up to 128TB for 24/ 7 local storage.(NO Hard Drive Built-in NVR)

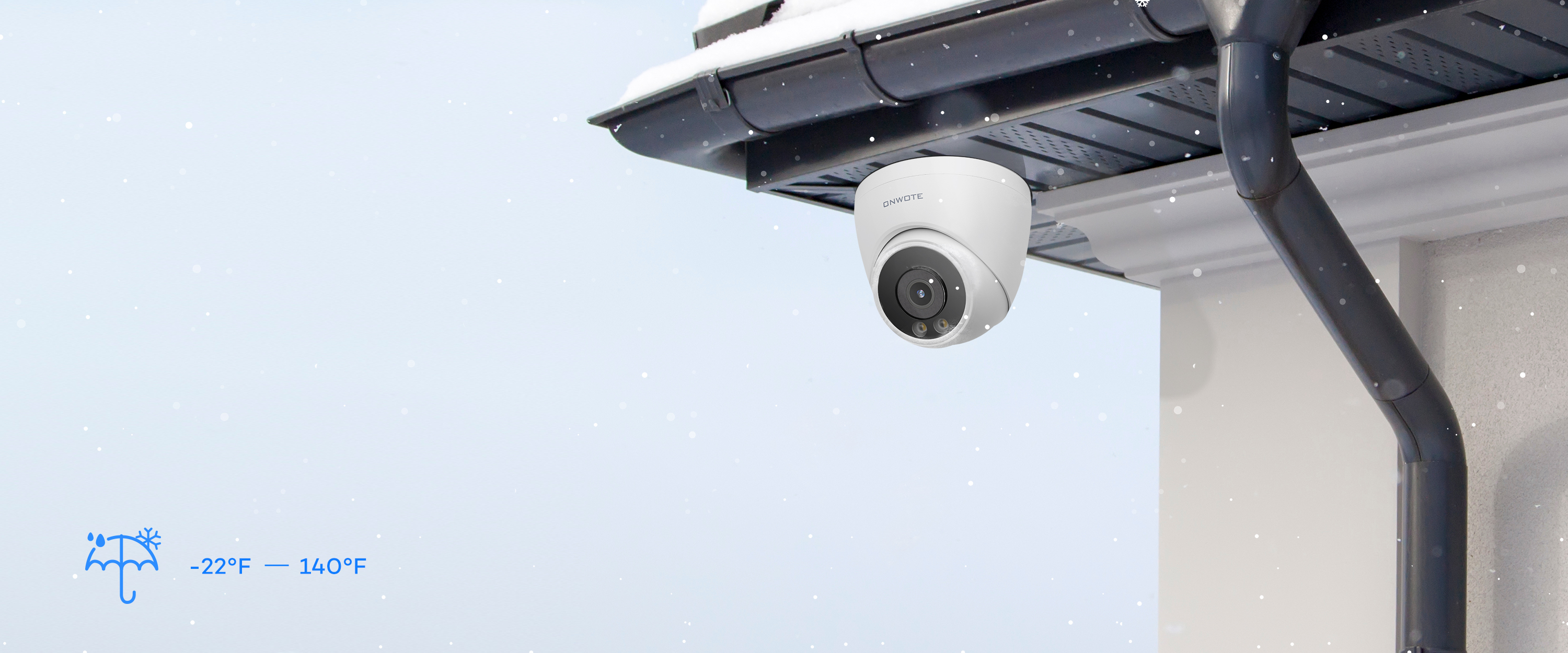

IP66-Rated Weatherproof Reliability

Weatherproof metal housing for indoor and outdoor use.

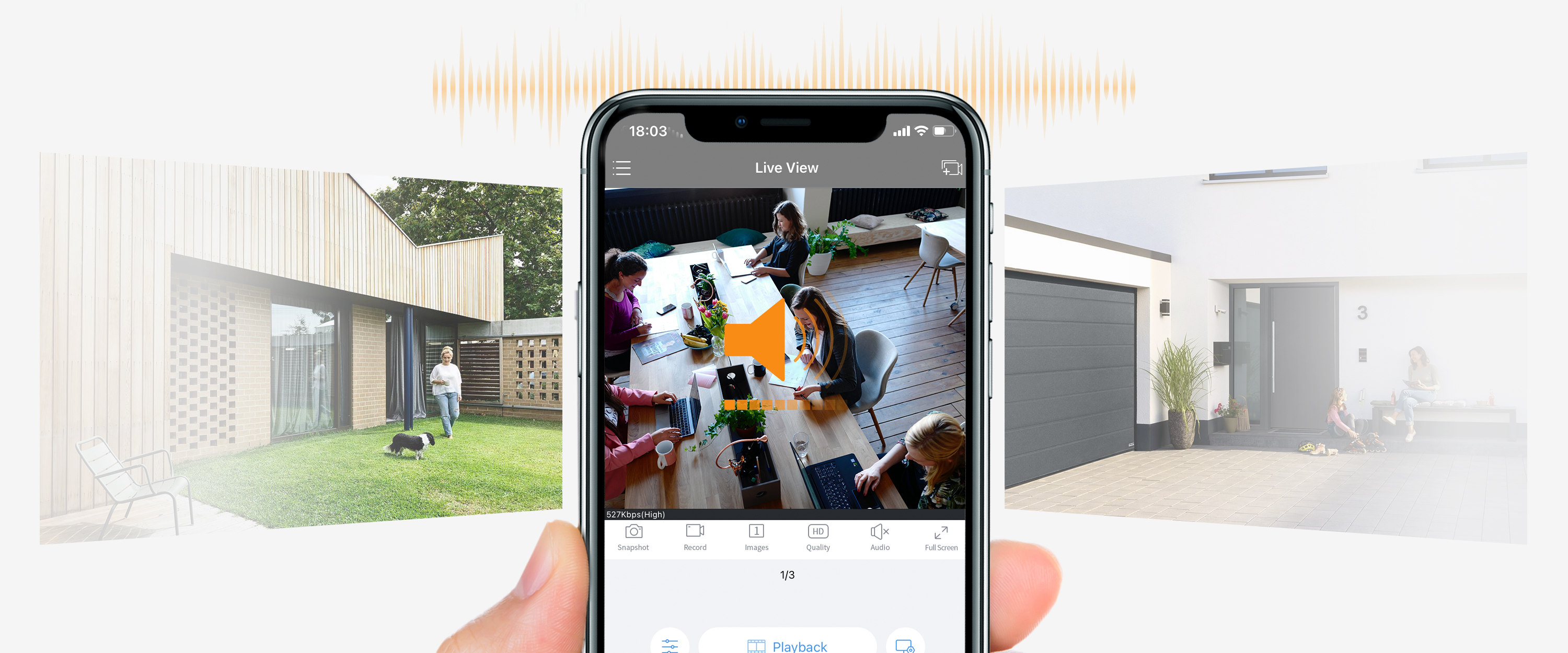

Capture & Record Audio

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app.

Audio Capture Mobile App Playback HD TV Output

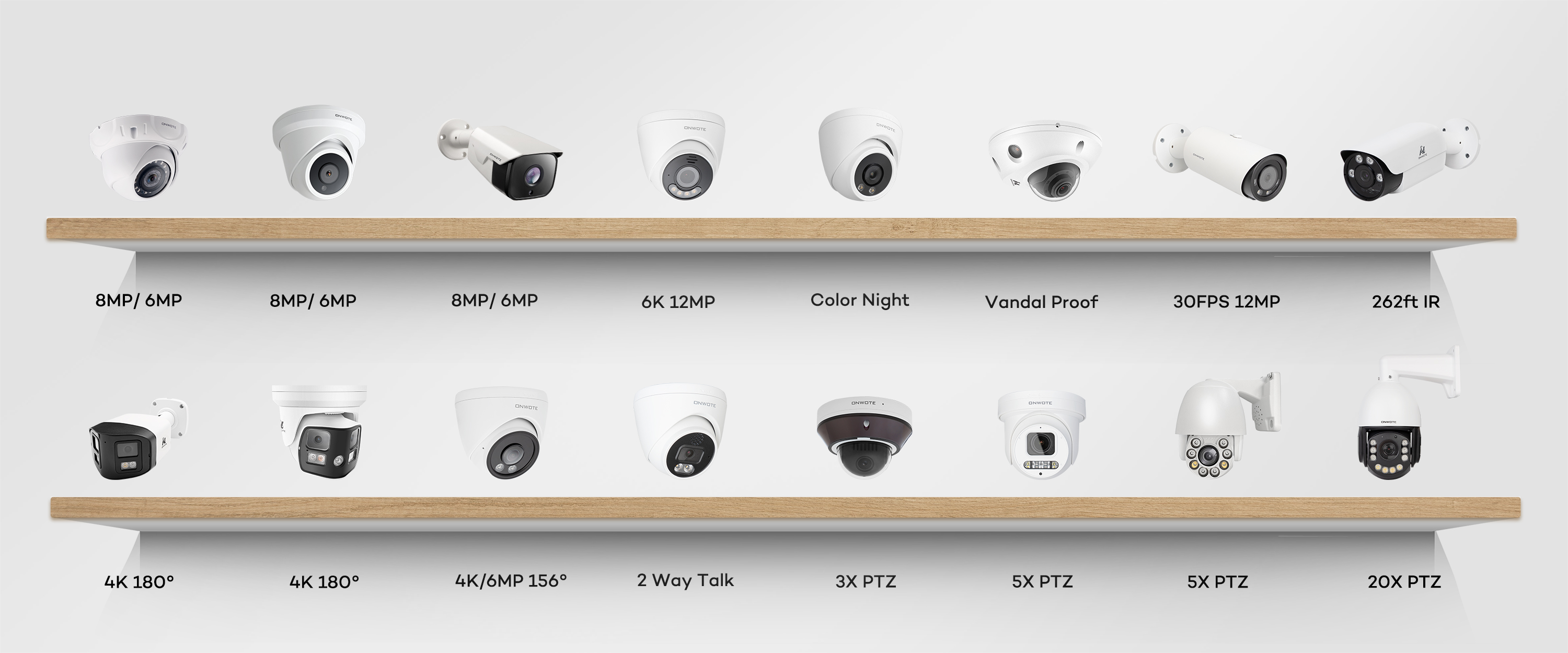

One Stop DIY

Compatible with ONWOTE cameras, Multiple add-ons like PTZ, 2-way audio, and 180° view cameras.

Specification

Camera NVR POE Switch

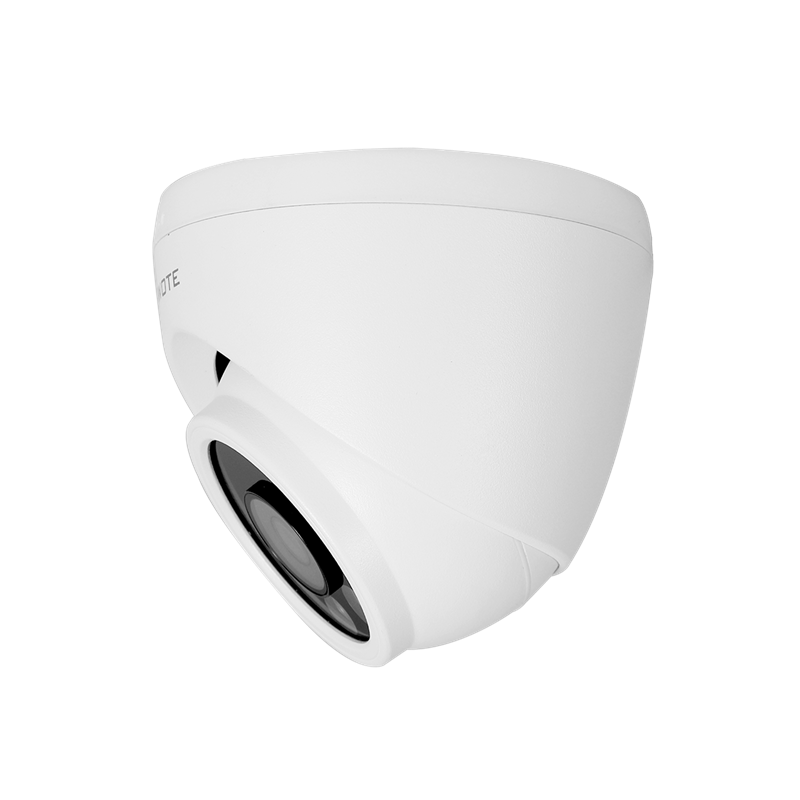

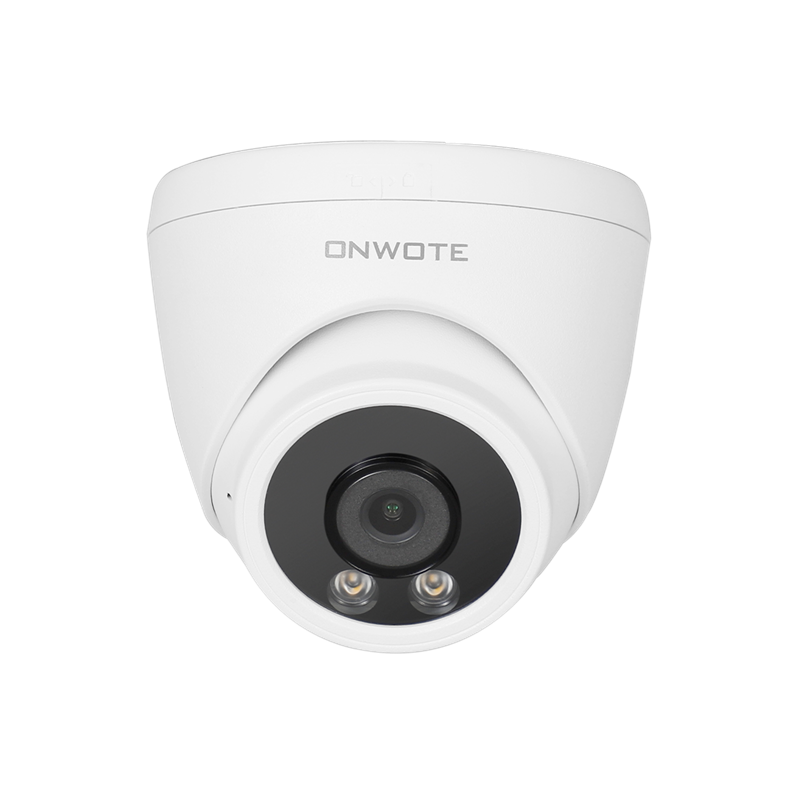

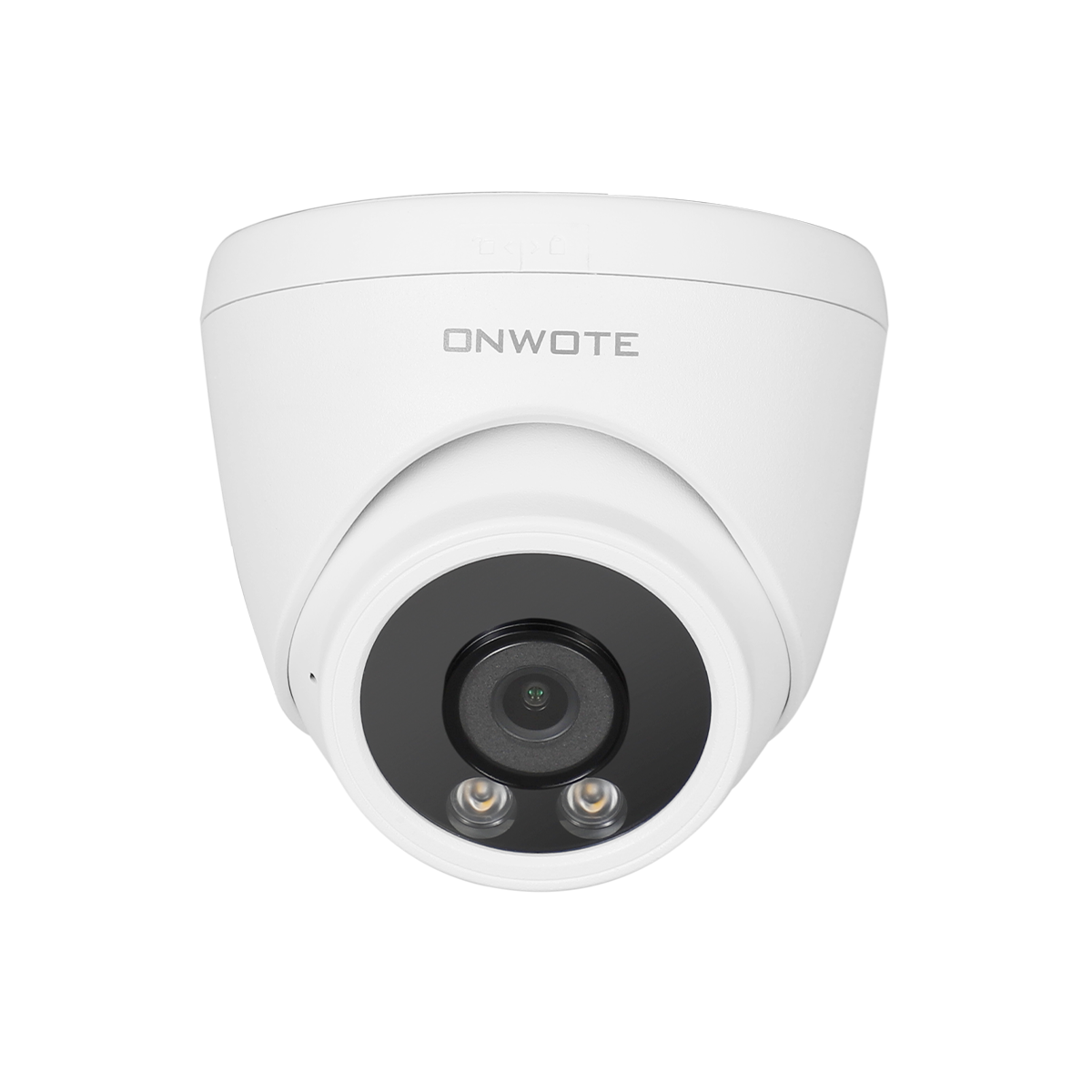

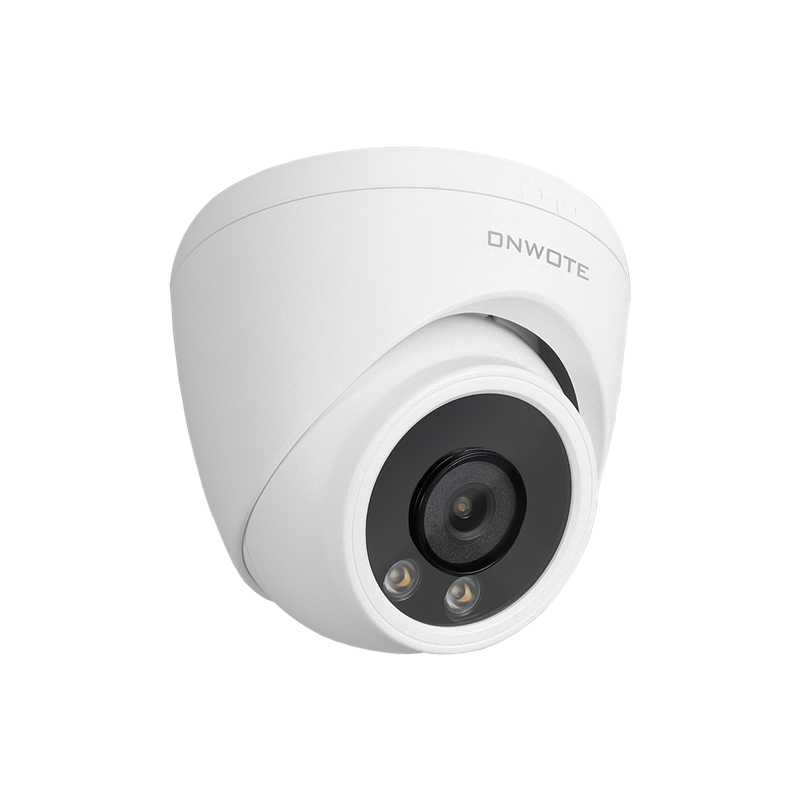

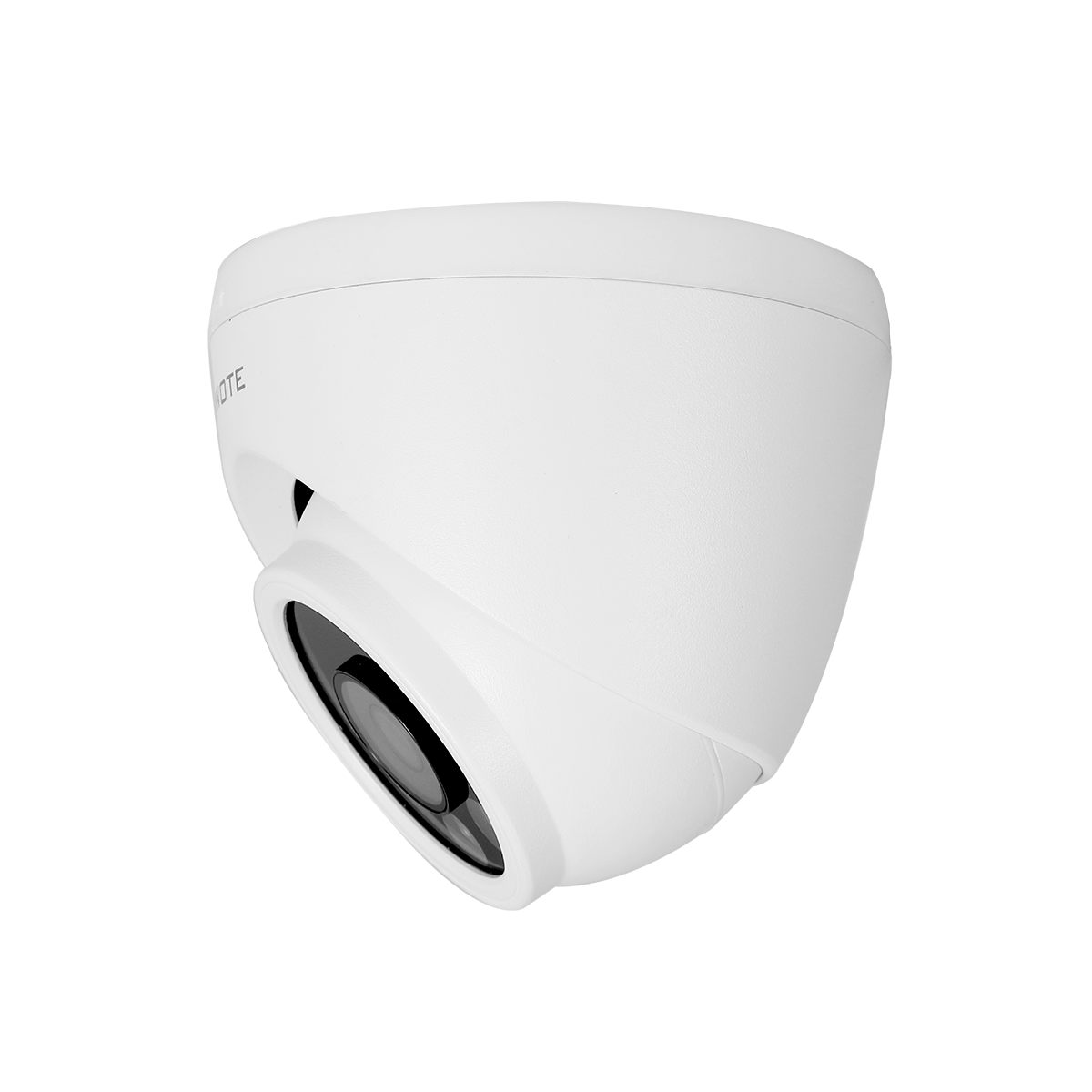

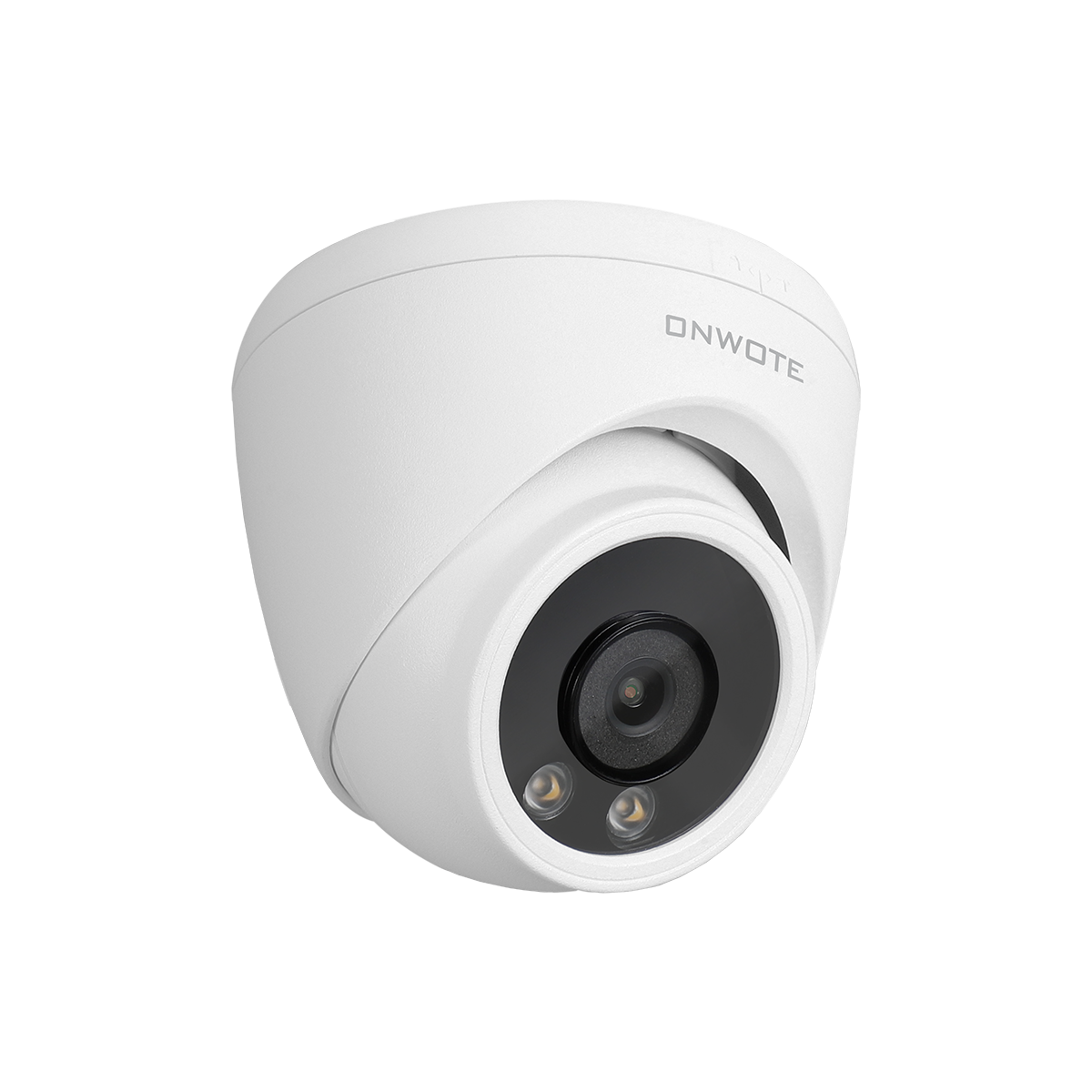

TA60-P28

6MP HD Camera

6 Megapixels-3072(H) x 2048(V) @25FPS

Viewing Angle

122°(Diagonal), 102°(Horizontal), 55°(Vertical)

AI Function

AI Human Vehicle Detection

Audio

Built-in Microphone (10-15ft)

Night Mode

Smart AI Color Mode/ Full Color Mode/ Black& White Mode

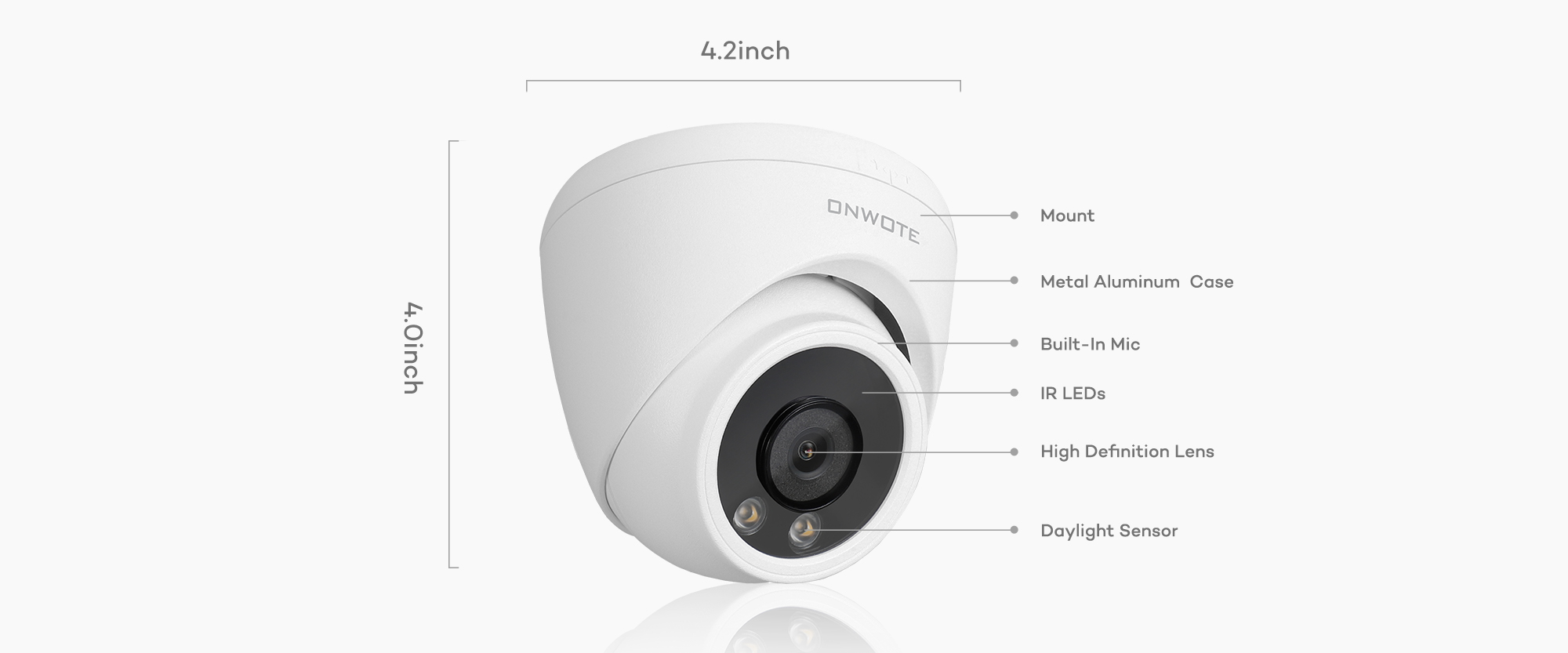

IP66 Metal Housing

Aluminum Alloy, Indoors & Outdoors

Operating Temperature

PoE 802.3af/at 48V; 12V DC ± 10%

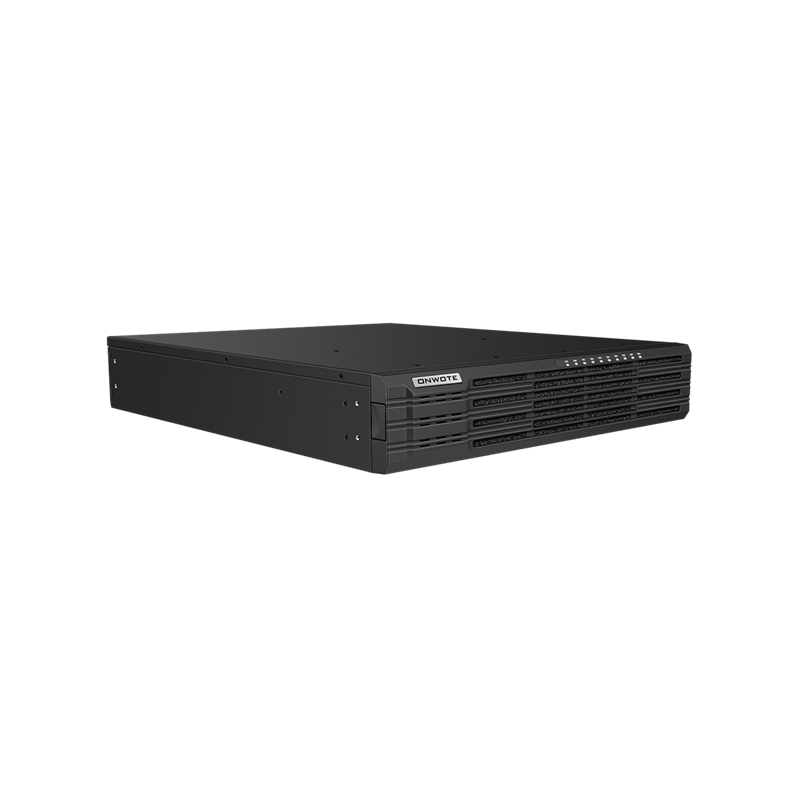

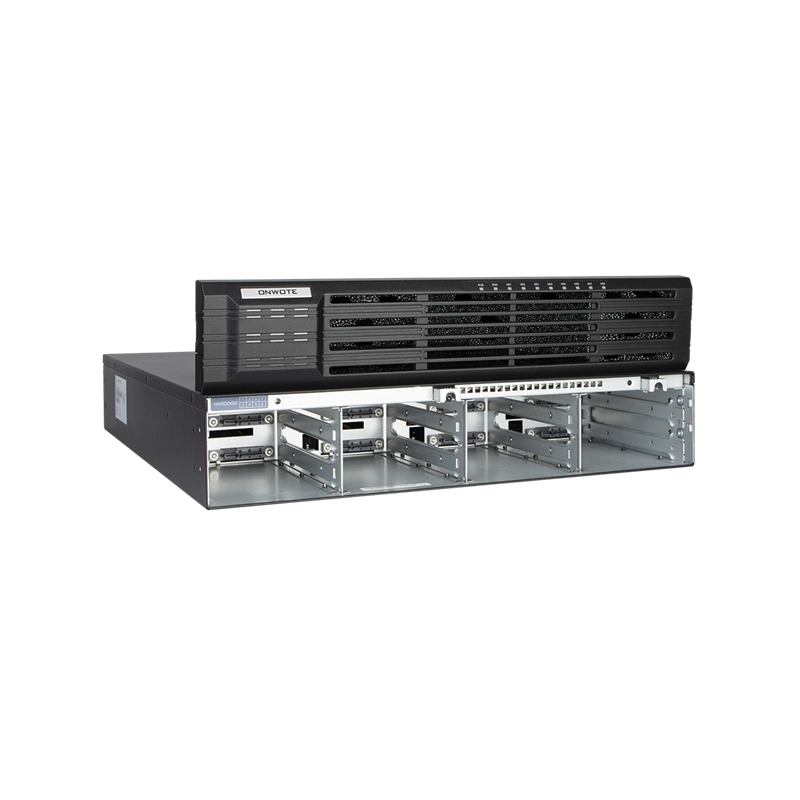

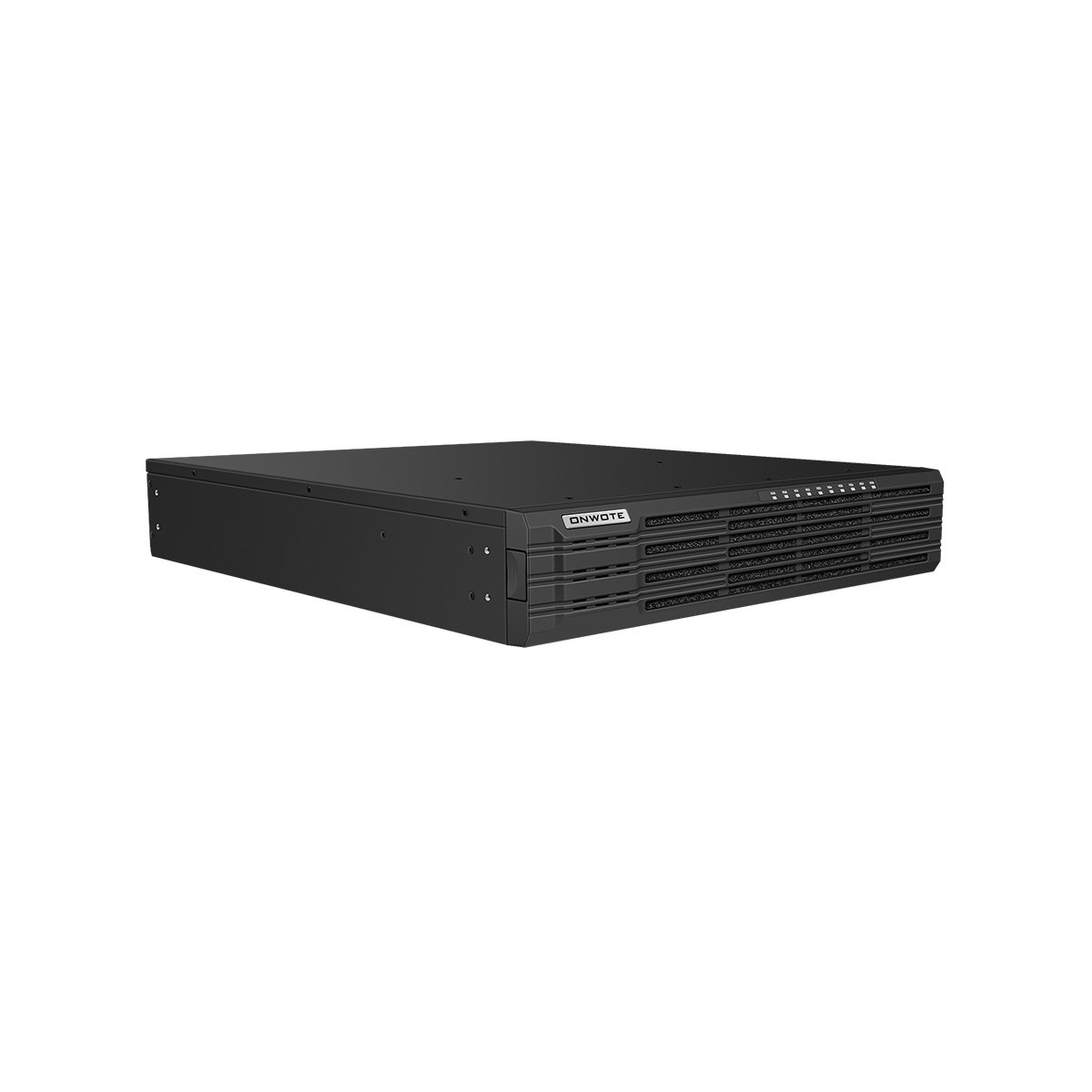

PNA-1264-U

64CH 6K 12MP NVR

Incoming-320Mbps; Outgoing- 320Mbps; Ultra H.265

Remote Access

128 remote users; Mobile (iPhone/ Android); PC (Windows/ Mac)

Video Audio Input

64CH IPC, 53CH 12MP, 64CH 8MP/6MP/5MP/4MP/3MP/1080p

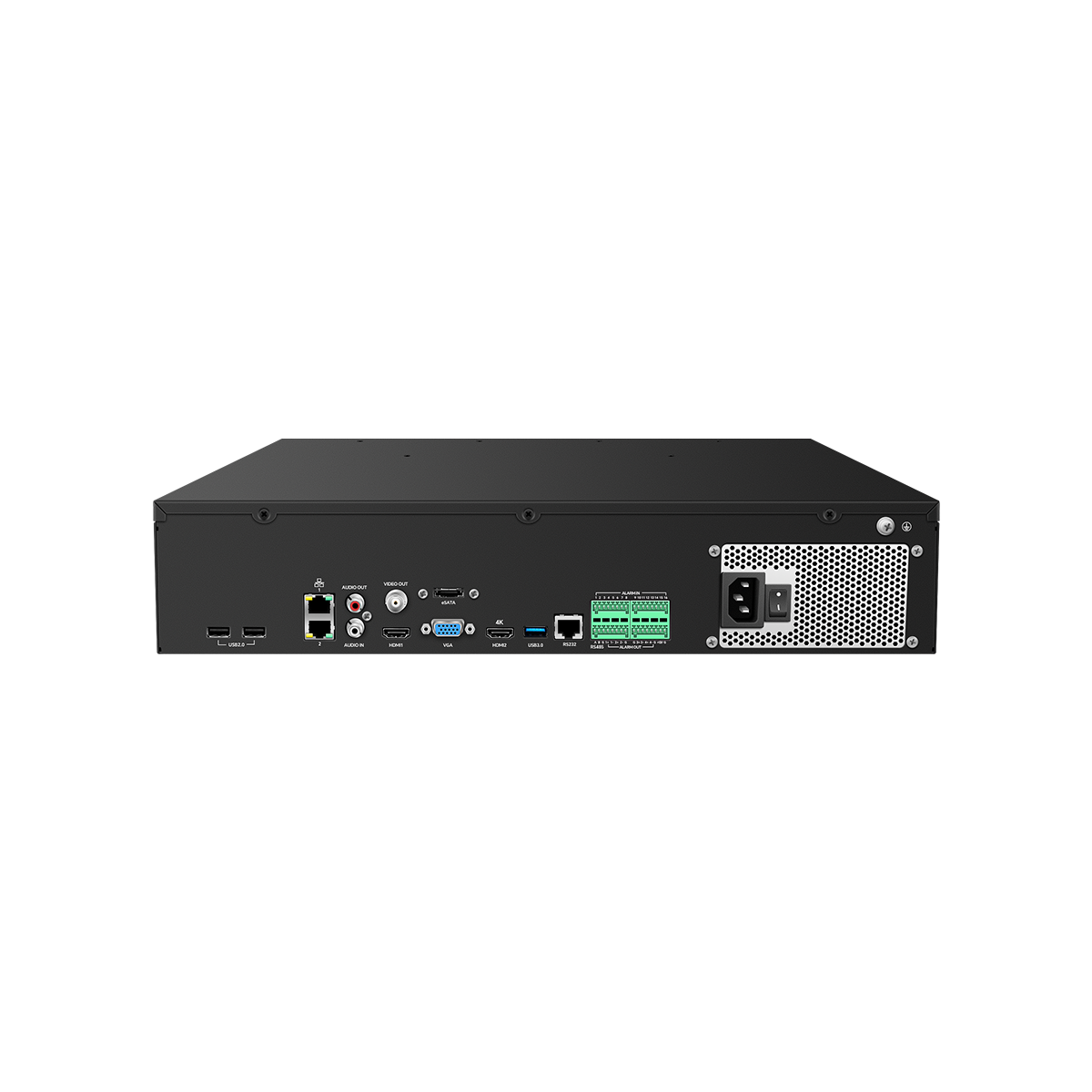

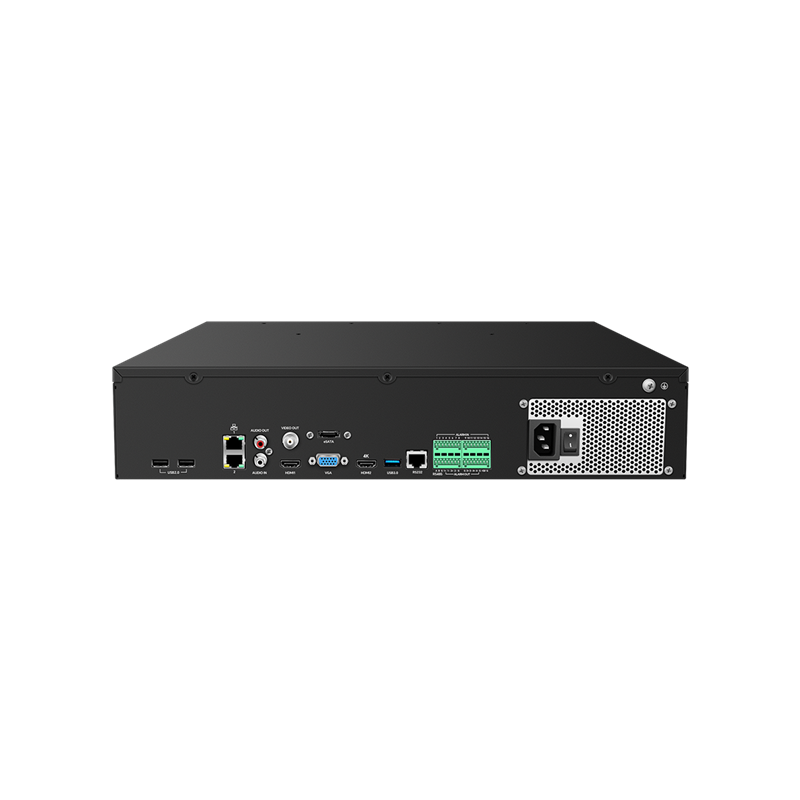

Video/ Audio Output

HDMI2- 4K (3840x2160) 60Hz; HDMI1/ VGA-1920x1080P 60Hz

Split Screen Display

2 HDMI monitors split screen display 64 channels

Corridor Mode Screen

HDMI 2-support 64CH live view, 64/ 32/ 16/ 12/ 10/ 9/ 7/ 5/ 4/ 3

Storage Capacity

Built-in 16TB HDD, 8 SATA interfaces support up to 80TB

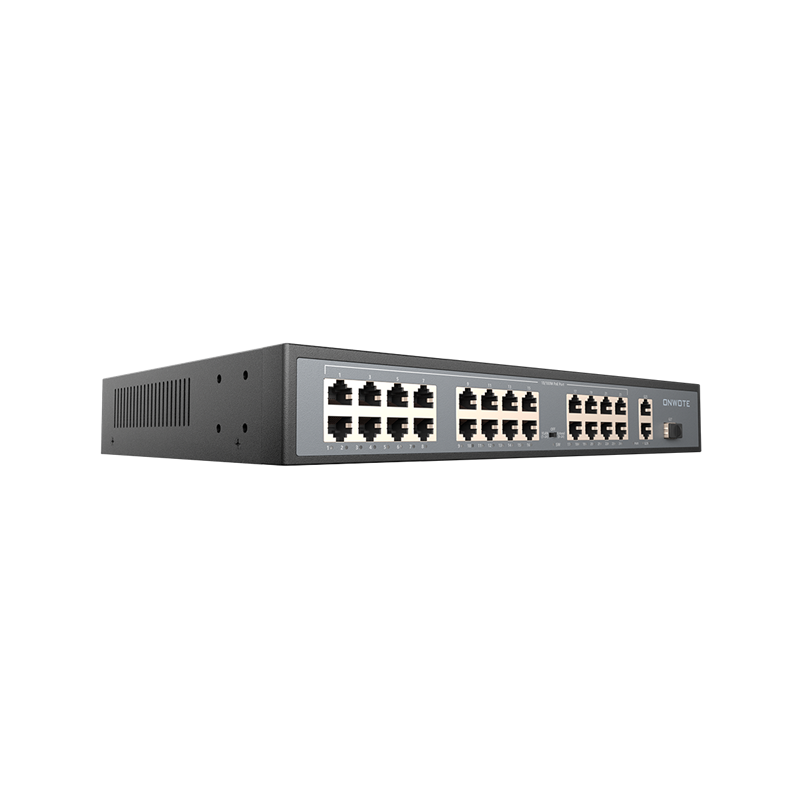

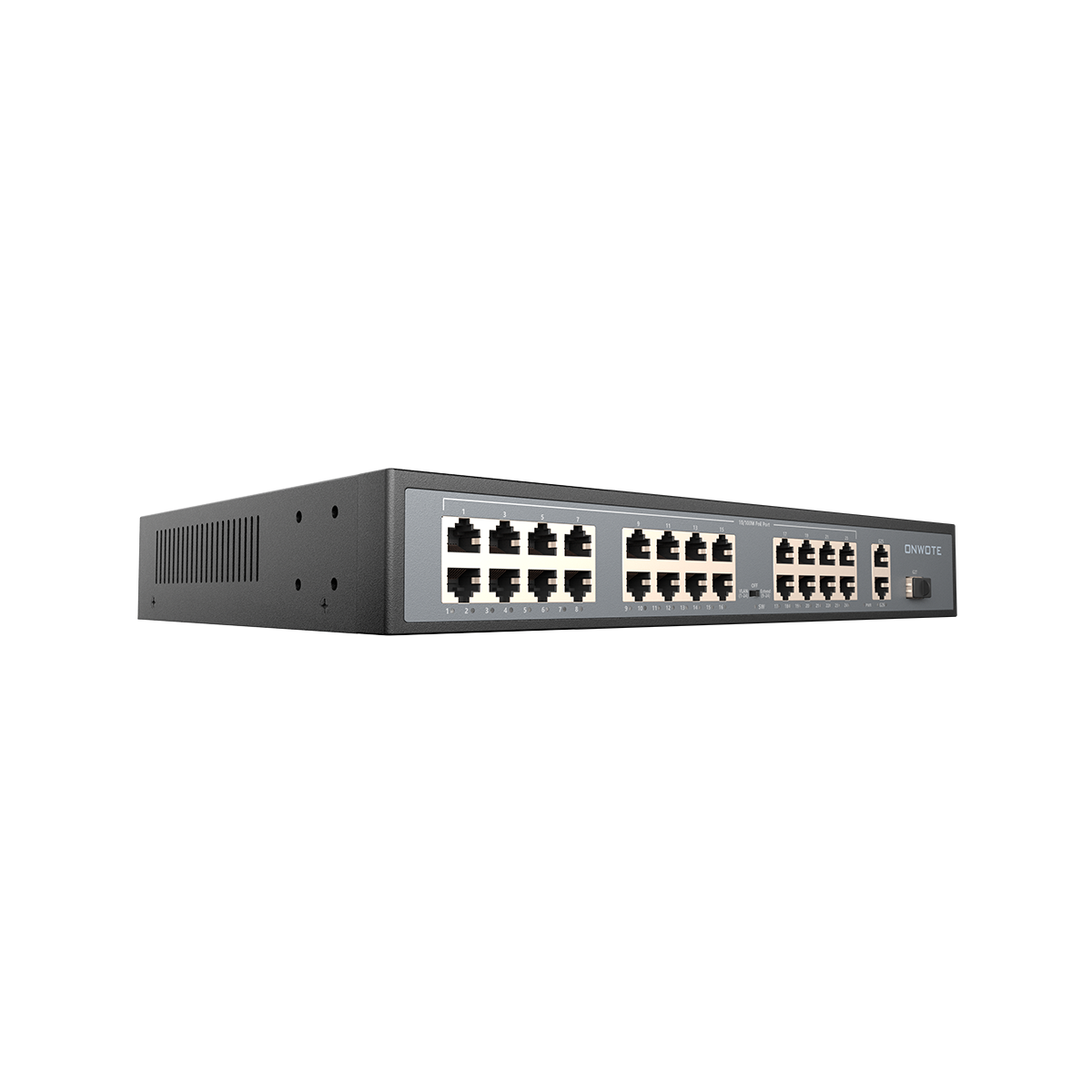

2x 24 Ports PoE Switch@ 300w

24* 100M Ports+ 2* uplink gigabit RJ45 ports+ 1* SFP slot

Operating Temperature

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

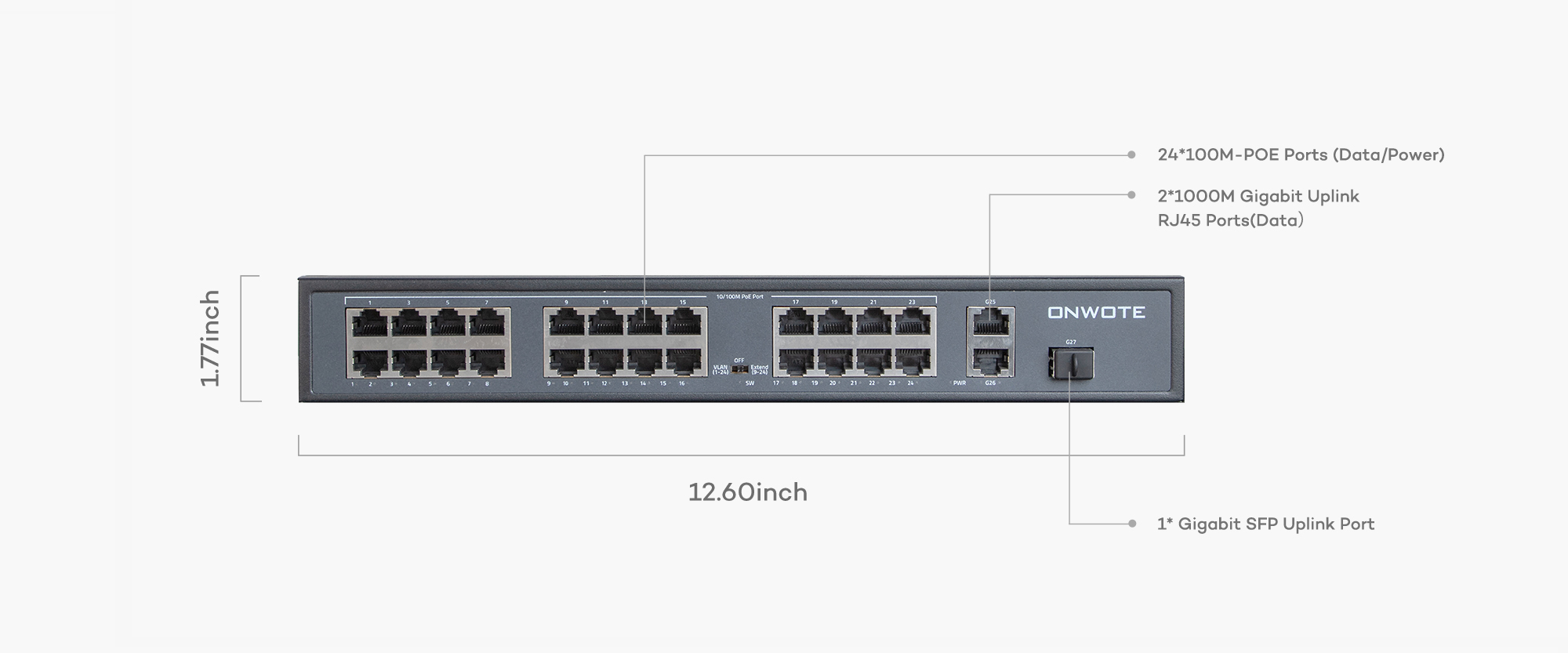

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

Packing List

Videos

Add-on

PTZ 5X 4K 8MP PoE Camera

$134.39 Save $15.60
PTZ 5X 4K 8MP PoE Camera

$143.99 Save $16.00
5X Optical Zoom 4K 8MP PoE Camera

$101.75 Save $14.24
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
156° 4K 8MP PoE Camera

$107.79 Save $12.20
6K/12MP PoE Camera

$138.23 Save $21.76
6K/12MP PoE Camera

$138.23 Save $21.76
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60

Comparison

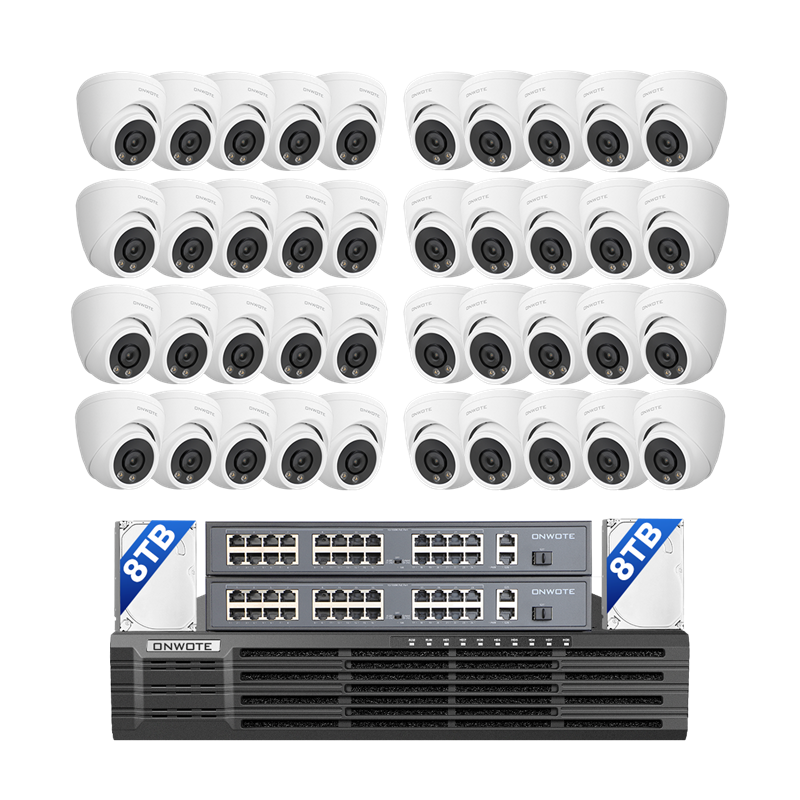

	64CH 6MP PoE System $ 3894.99	64CH 4K PoE System $ 4512.99	64CH 4K PoE System $ 4084.99	32CH 4K PoE System $ 2849.99
Resolution	6MP@25FPS	8MP@20FPS	6MP@25FPS	8MP@20FPS
Field of View	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)
Audio	Built-in Microphone	2 Way Audio	Built-in Microphone	Built-in Microphone
AI Function	AI Human Vehicle Detection	Face Recognition& AcuSearch	AI Human Vehicle Detection	Face Recognition& AcuSearch
NVR Channels	64-CH 6K 12MP NVR	64-CH 16K 32MP NVR	64-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	16TB HDD	16TB HDD	16TB HDD	8TB HDD
Storage Capacity	Support 80TB via 8 SATA Ports	Support 80TB via 8 SATA Ports	Support 80TB via 8 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	2Pcs 24 Ports PoE Switch	2Pcs 24 Ports PoE Switch	2Pcs 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch


64CH 6MP PoE System $ 3894.99
64CH 4K PoE System $ 4512.99
64CH 4K PoE System $ 4084.99
32CH 4K PoE System $ 2849.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
6MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	AI Human Vehicle Detection	64-CH 6K 12MP NVR	16TB HDD	Support 80TB via 8 SATA Ports	2Pcs 24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	2 Way Audio	Face Recognition& AcuSearch	64-CH 16K 32MP NVR	16TB HDD	Support 80TB via 8 SATA Ports	2Pcs 24 Ports PoE Switch
6MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	AI Human Vehicle Detection	64-CH 6K 12MP NVR	16TB HDD	Support 80TB via 8 SATA Ports	2Pcs 24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
