Overview

Split Screen
Display

Record
Audio

3 Night
Vision Modes

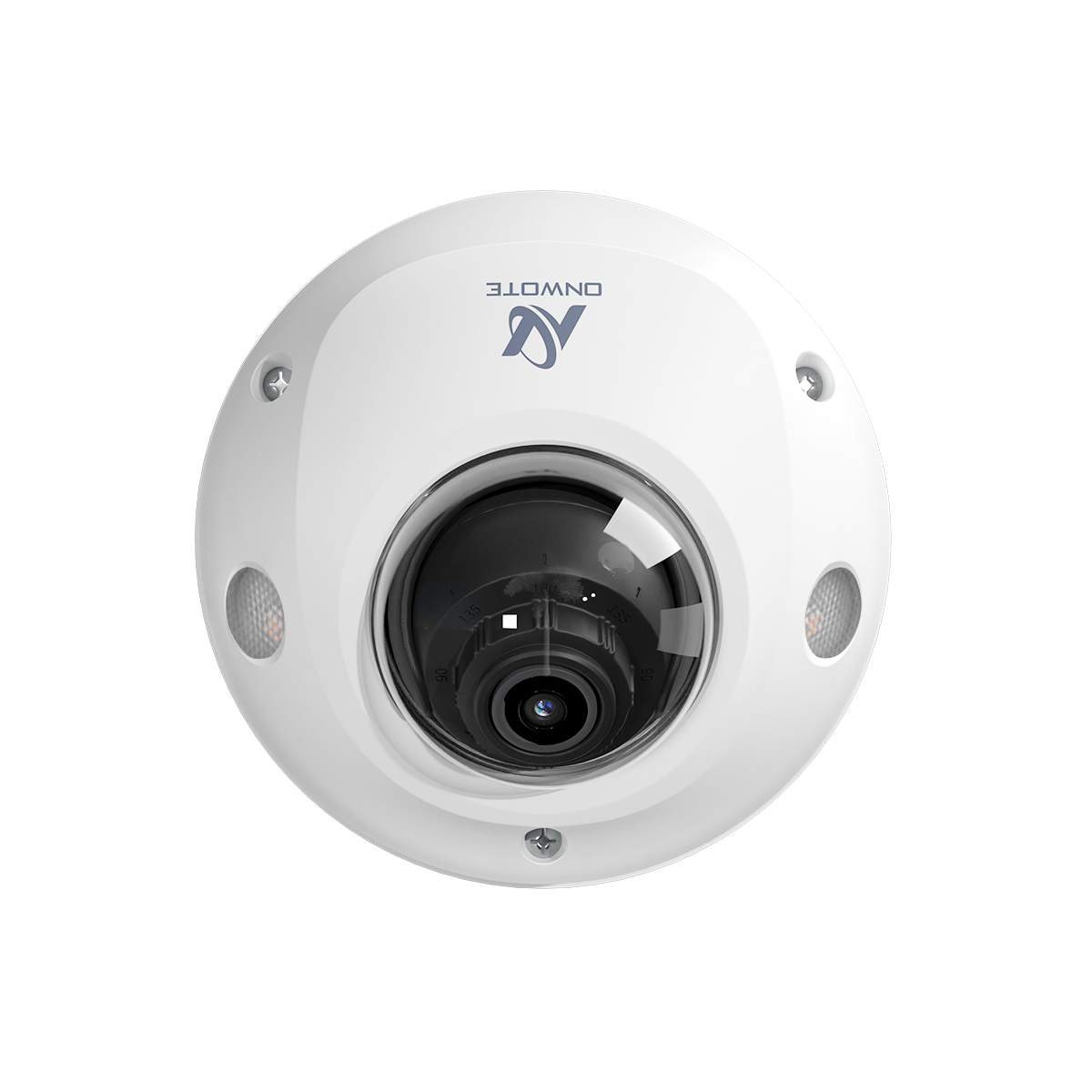

IK10 & IP66

IK10 vandal-proof for solid, durable protection. IP66 weatherproof, suitable for indoor or outdoor use in temperatures from -22℉ to 140℉.

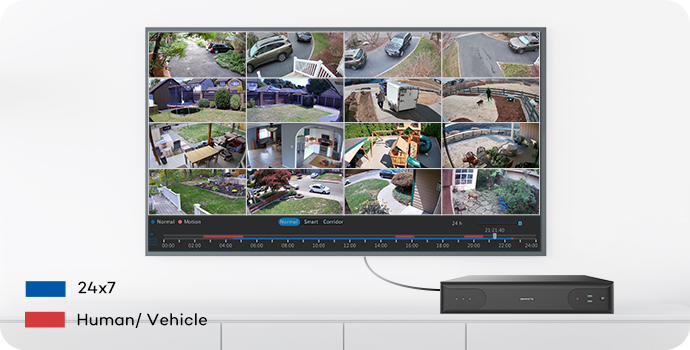

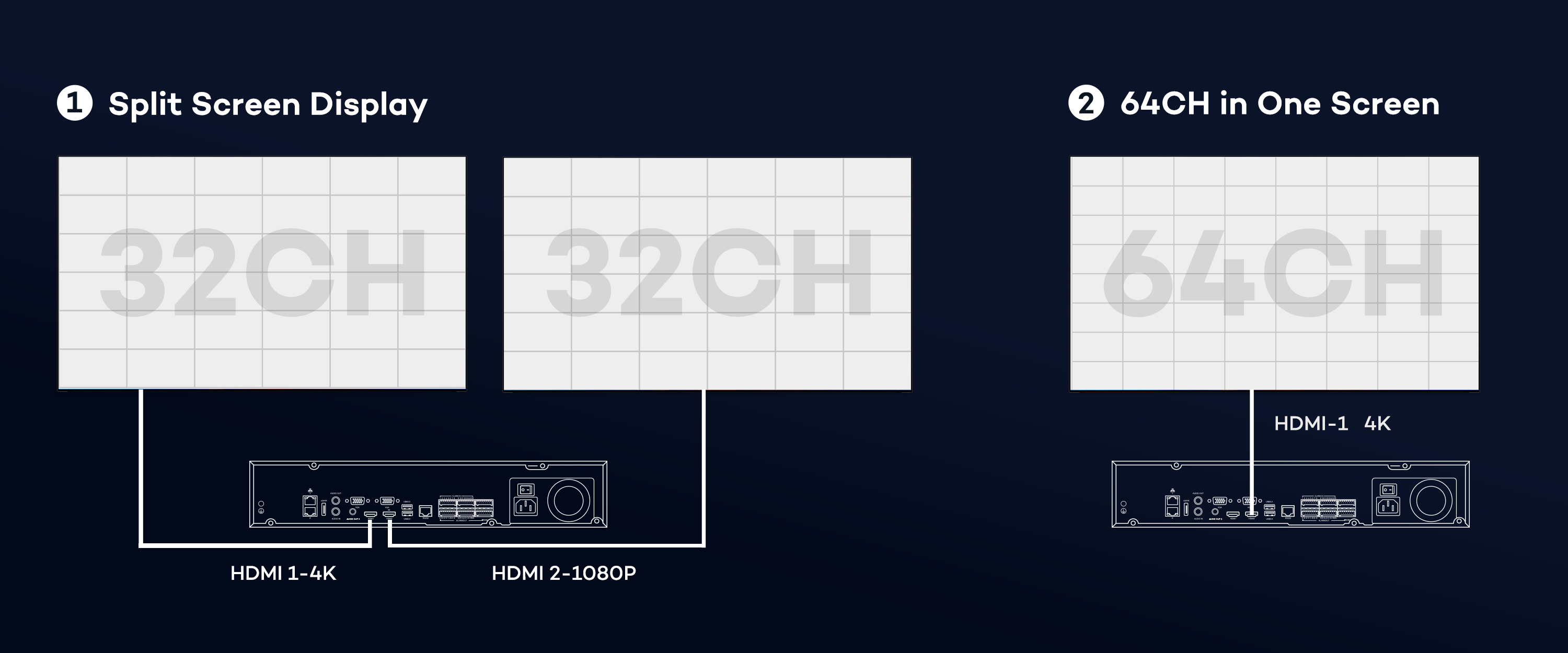

Split Screen Display

The 64-channel NVR has two HDMI ports, allowing for either single-screen or dual-screen display as needed.

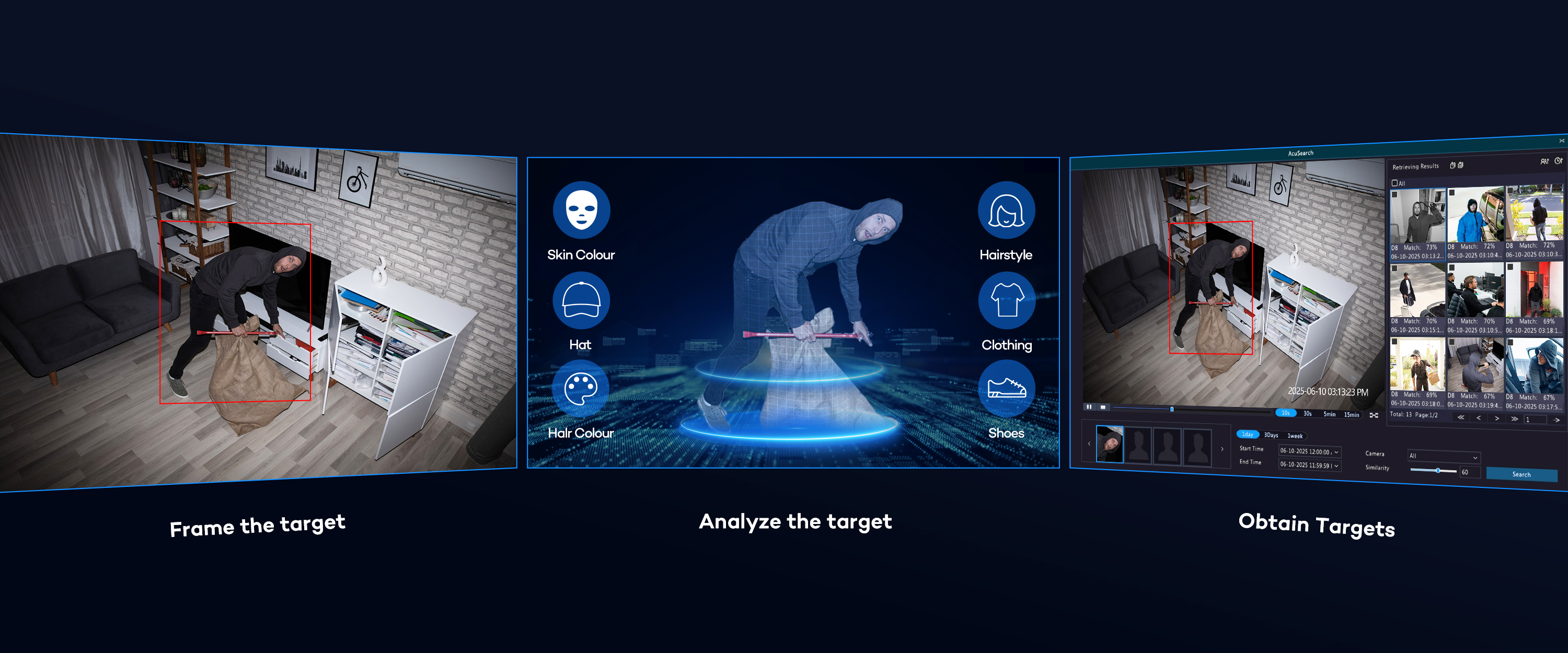

AcuSearch Technology

Record Audio

Cameras capture audio, recorded by the NVR for playback on an HD TV or mobile app

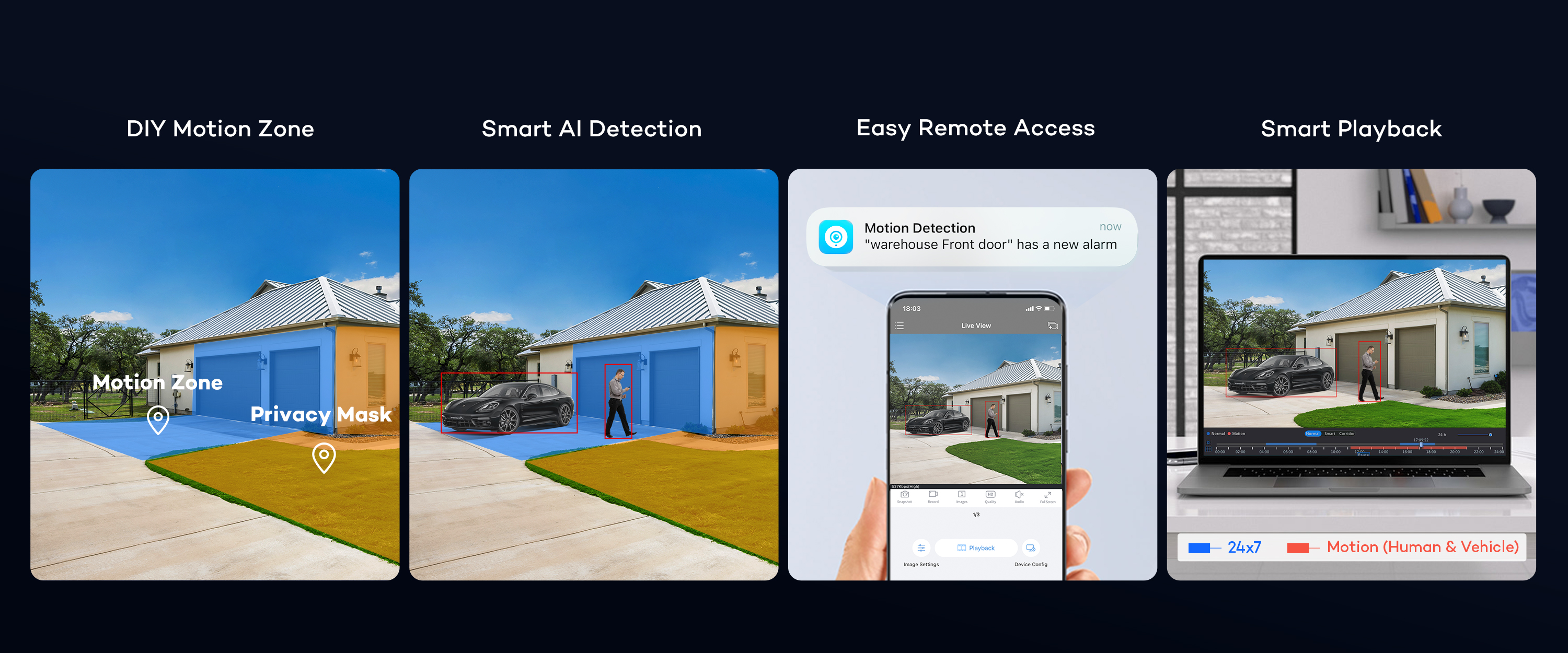

Smart Detection & Analysis

3 Night Vision Modes

Discovery & Playback

Discovery & Playback Access

Power over Ethernet

All-in-one cable solution:‌ Transmits video, audio, and power over a single Cat5 cable.
True plug & play:‌ Simpler wiring than traditional DVR systems.

Support 128TB Local Storage

8 SATA interfaces, up to 16TB for each hard disk.
Support up to 128TB for 24/ 7 local storage. (NO Hard Drive Built-in NVR)

One Stop DIY

Specification

Camera NVR POE Switch

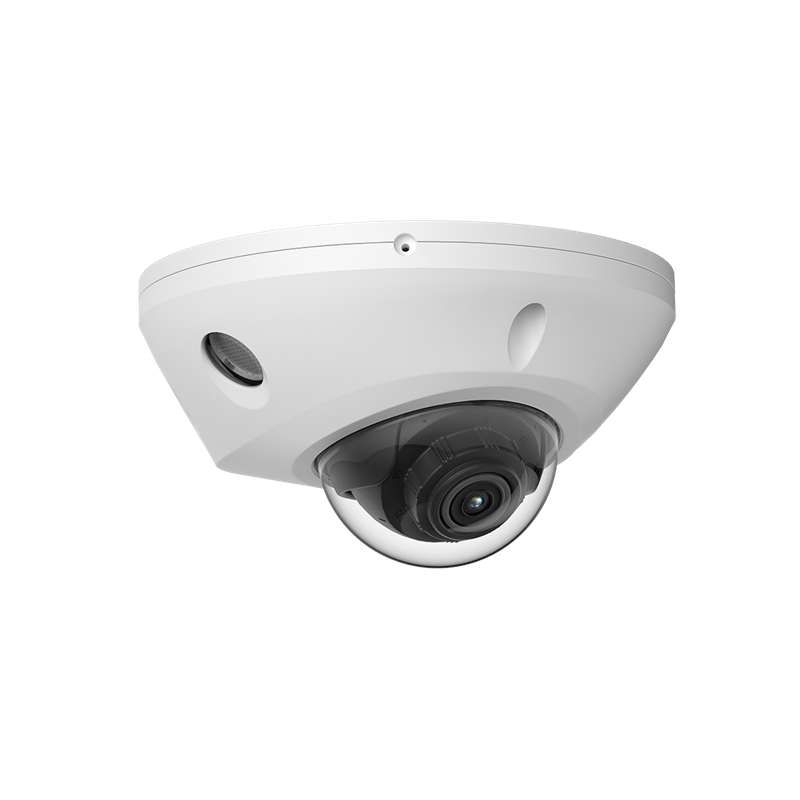

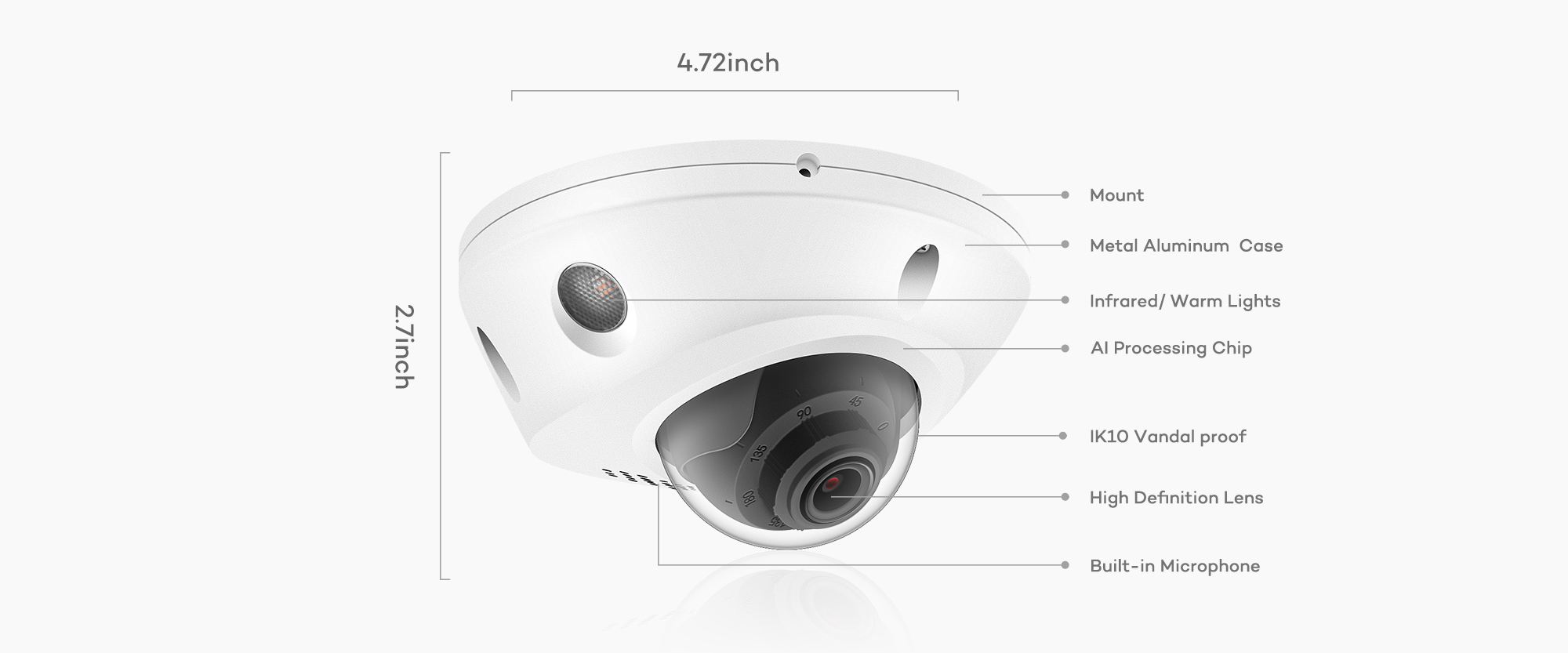

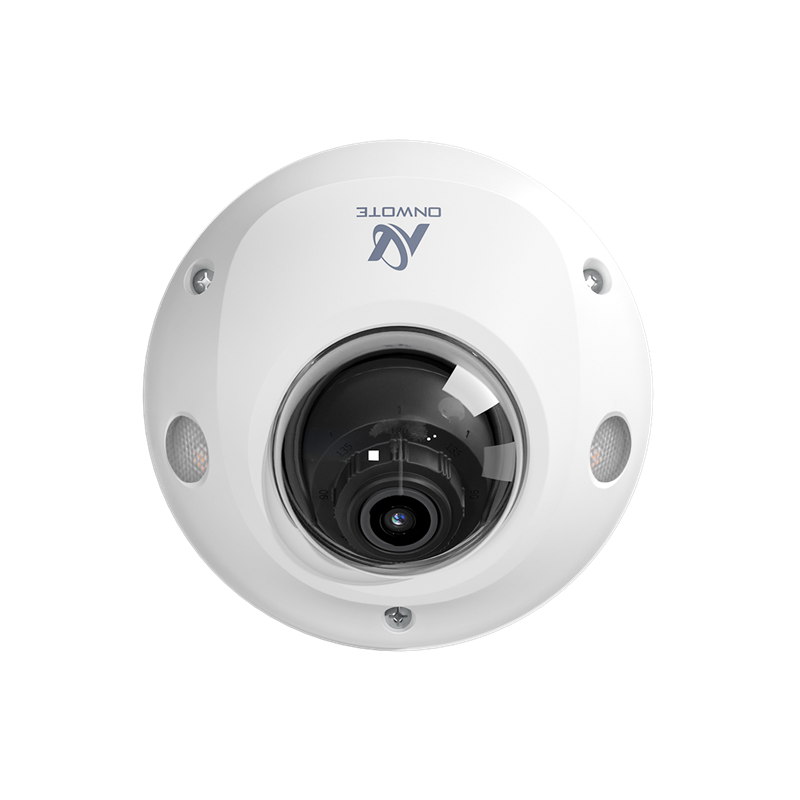

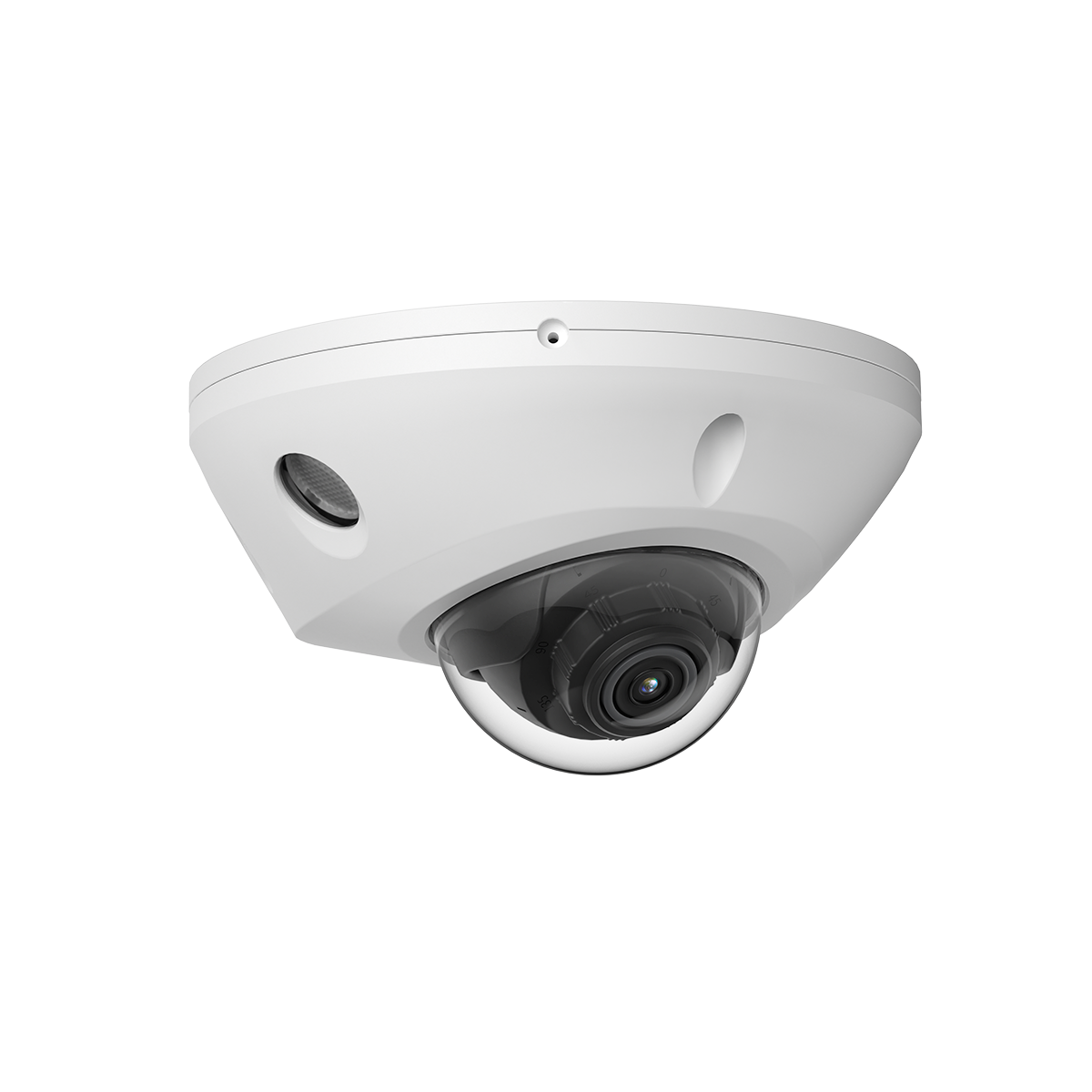

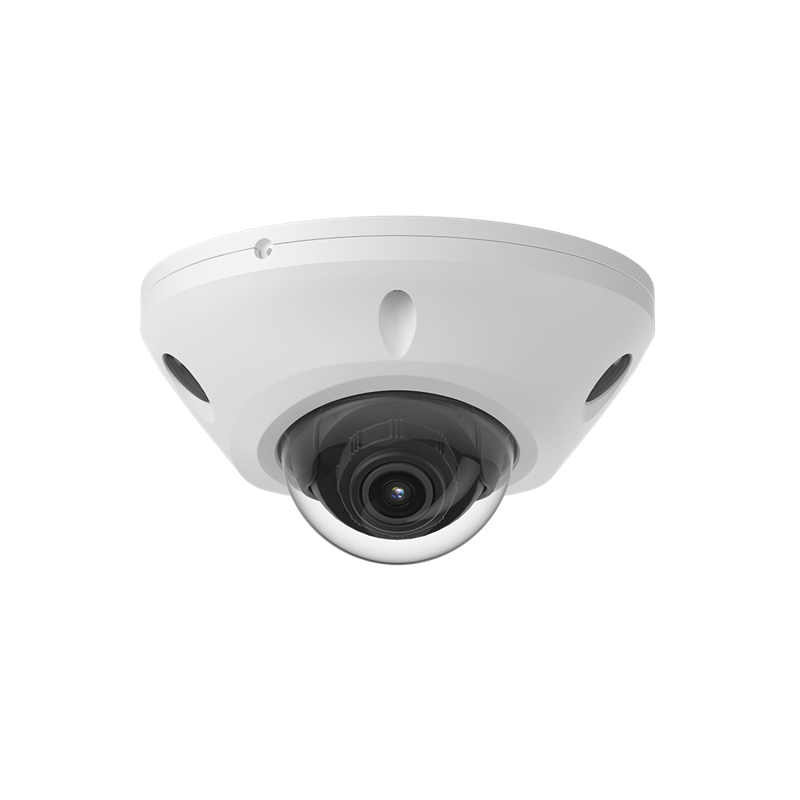

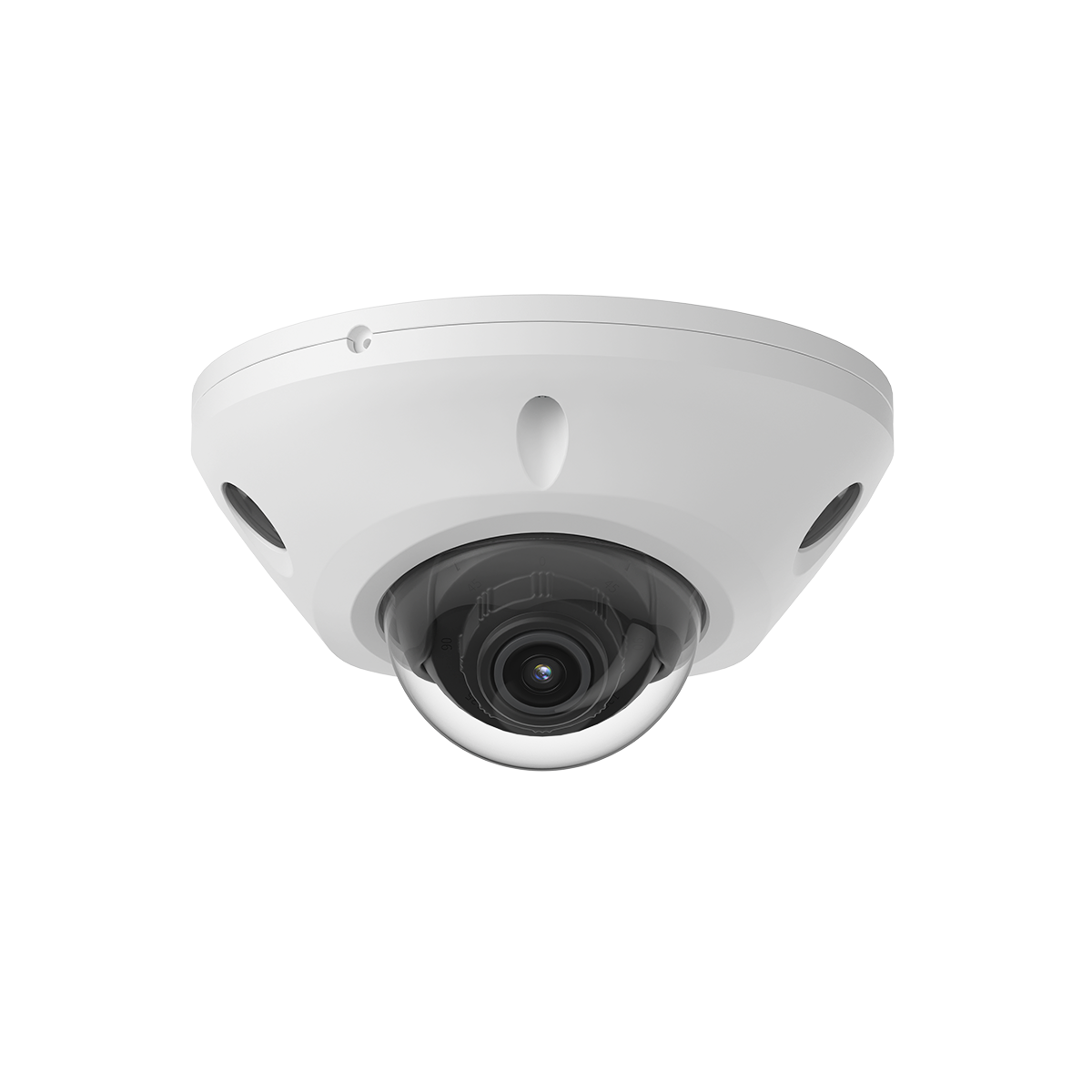

VA80-P28

4K Ultra HD Camera

8 Megapixels-3840(H) x 2160(V) @20FPS

Viewing Angle

134°(Diagonal), 111°(Horizontal), 59°(Vertical)

AI Function

Face Detection, Human Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area）

Night Mode

Smart AI Color Mode/ Full Color Mode/ Black& White Mode

IP66 Metal Housing

Aluminum Alloy, Indoors & Outdoors

Operating Temperature

-22°F~140°F, 10%-90%RH

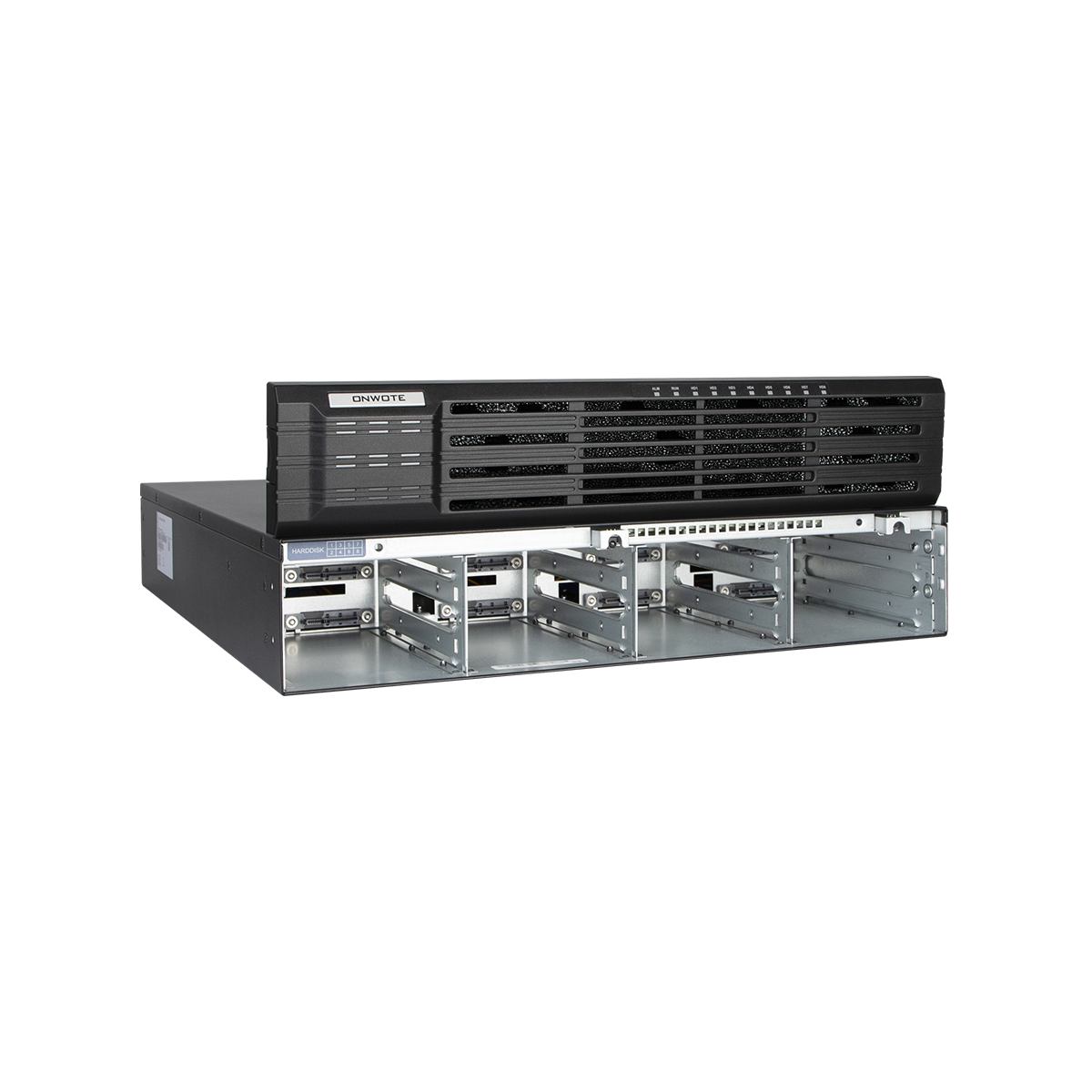

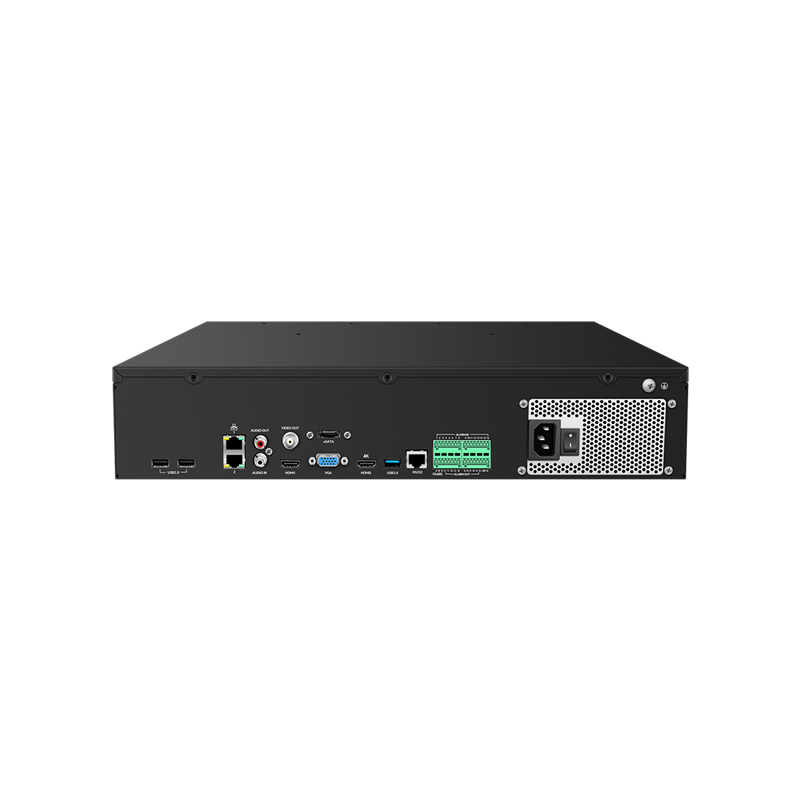

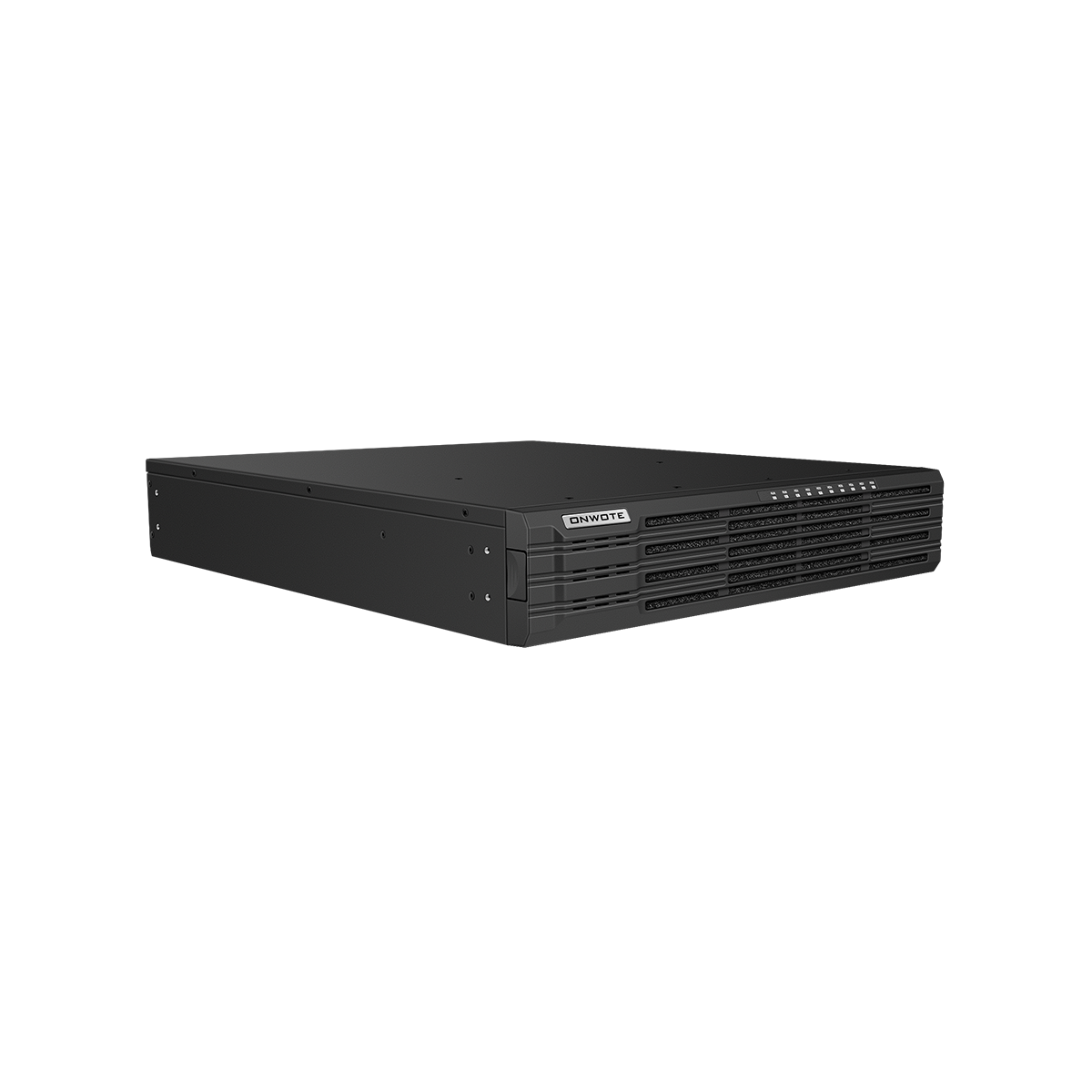

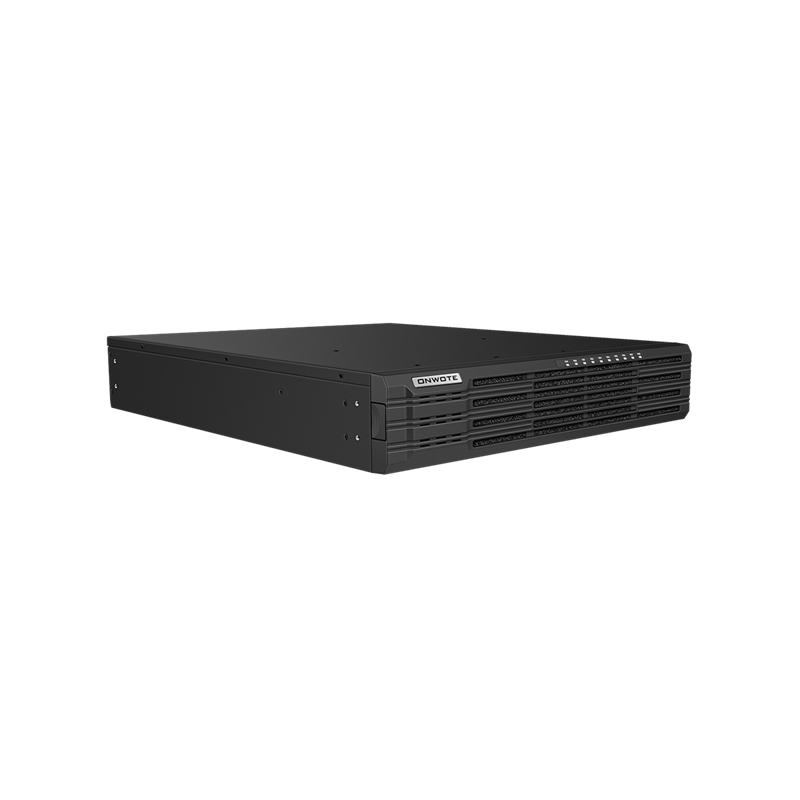

PNU-3264

64CH 16K 32MP NVR

Incoming-smart off: 384Mbps, smart on: 200Mbps; Outcoming-smart off: 384Mbps, smart on: 200Mbps;

Remote Access

128 remote users; Mobile (iPhone/ Android); PC (Windows/ Mac)

Video Audio Input

Smart off: 64CH IPC, 32CH 32MP, 64CH 12MP/ 8MP/ 6MP/ 5MP Smart on: 64CH IPC, 16CH 32MP, 33CH 12MP, 40CH 8MP, 50CH 6MP/ 5MP, 64CH 2MP

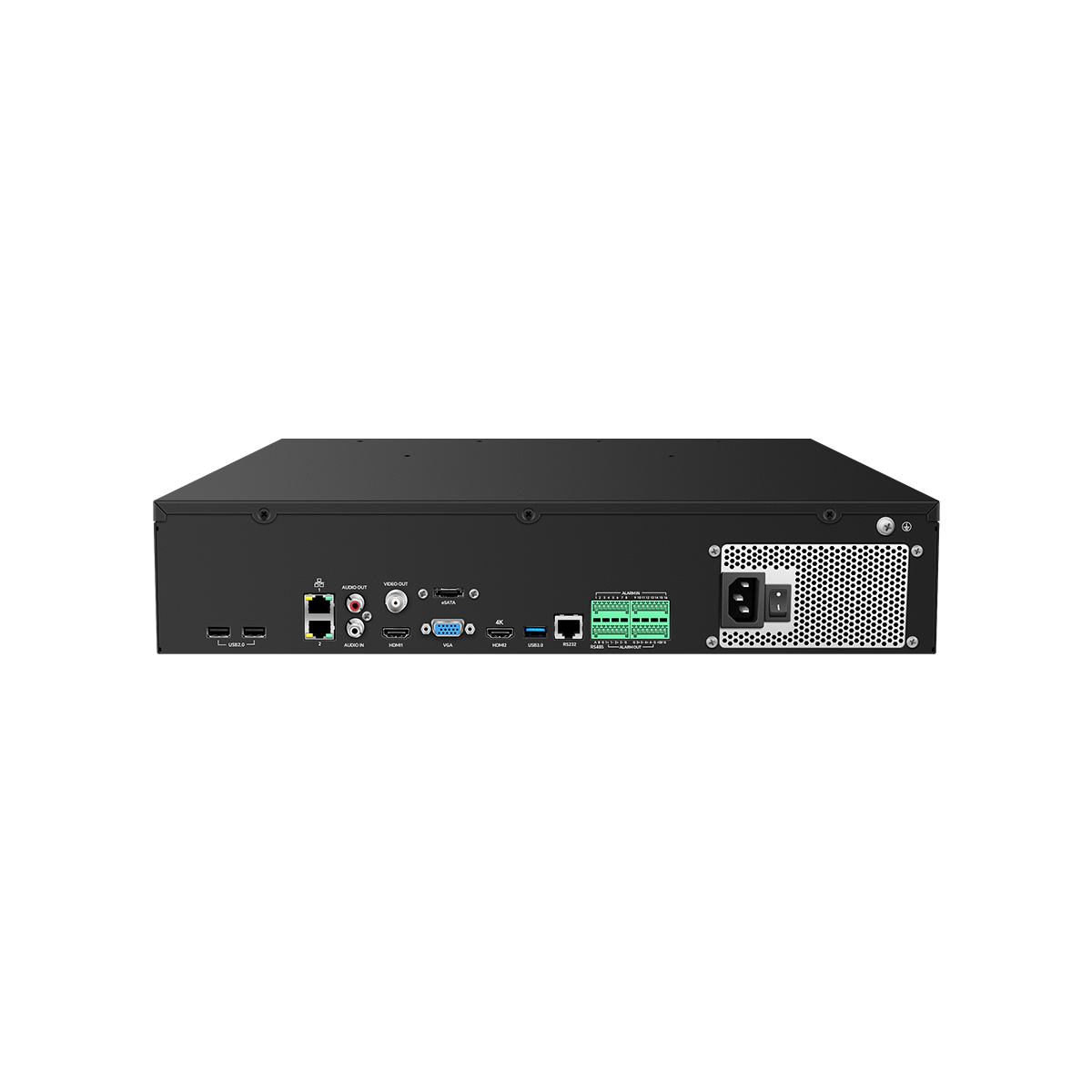

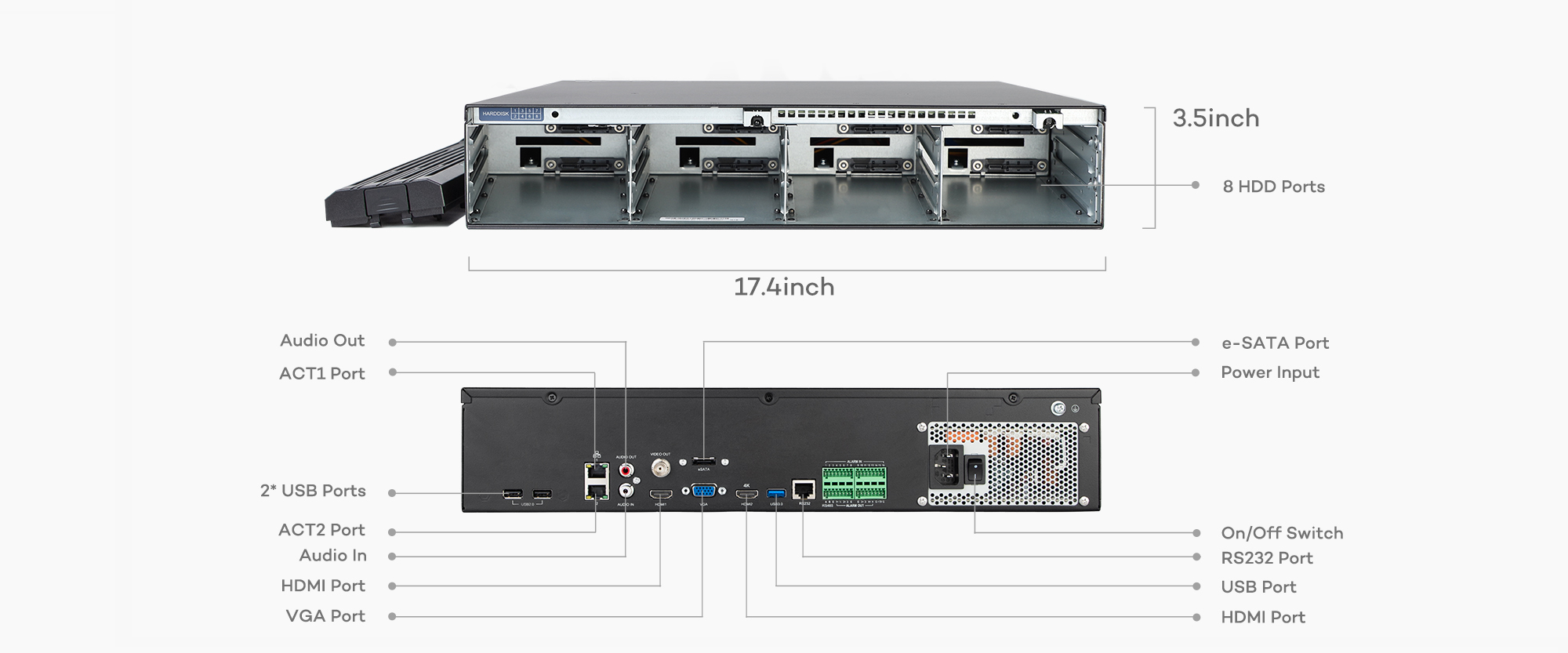

Video/ Audio Output

2*HDMI- 4K (3840x2160) 60Hz; 2*VGA-1920x1080P 60Hz

Split Screen Display

2 HDMI/ VGA monitors split screen display 64 channels

Live view Display

64CH live view, 64/ 32/ 16/ 12/ 10/ 9/ 7/ 5/ 4/ 3

Storage Capacity

Built-in 16TB HDD, 8 SATA interfaces support up to 128TB

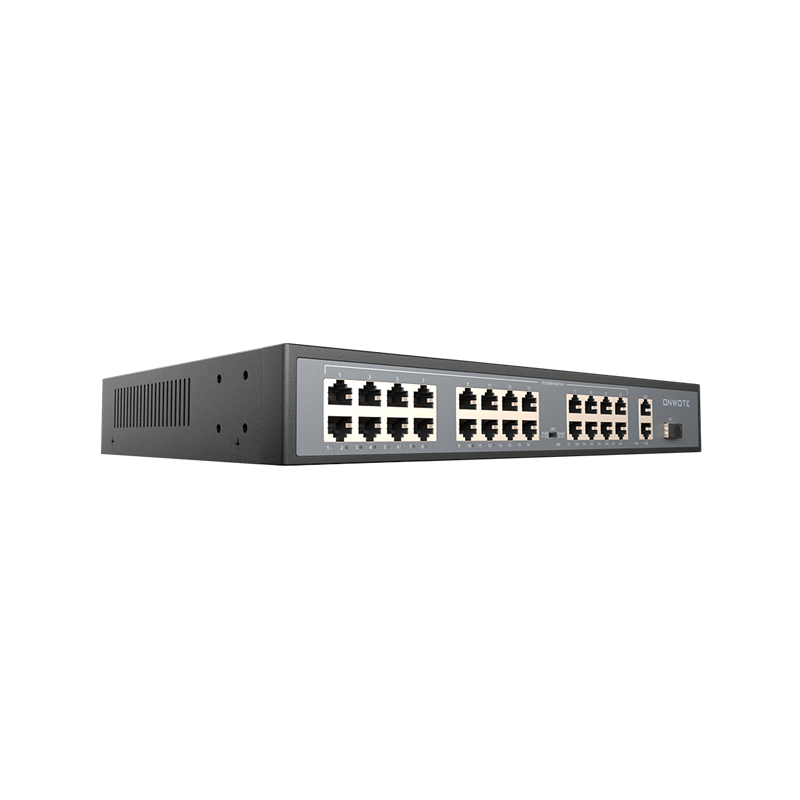

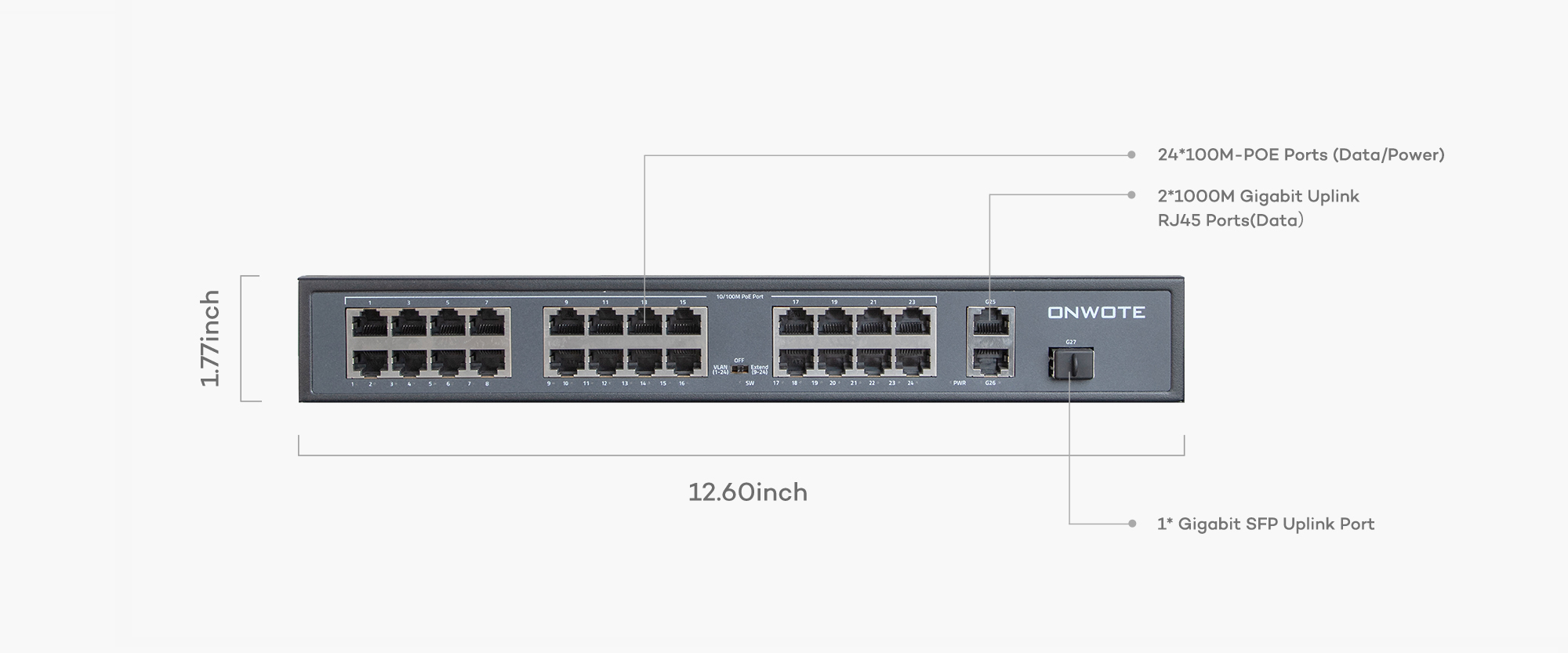

2x 24 Ports PoE Switch@ 300w

24* 100M Ports+ 2* uplink gigabit RJ45 ports+ 1* SFP slot

Operating Temperature

'-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)

PS-24M2G1S

Power Supply

Input: AC 100-240V, 50/60Hz

Total Power Budget

300W

PoE Protocol

IEEE802.3af(15.4W); IEEE802.3at(30W)

PoE Ports

24 *10/100M PoE Port

Uplink Port

2* 10/100/1000M Ethernet Uplink ports; 1* Gigabit SFP Uplink Port

Transfer Mode

Store and forward

Switching Capacity

10.8Gbps

Forwarding Rate

8.03Mpps

Network Medium

10BASE-T: Cat 3、4、5 UTP(≤100 meter); 100BASE-TX: Cat5 or more UTP (≤100 meter); 1000Base-TX : Cat5 or more UTP/STP(≤100 meter)

Indicator- PWR

Lighting:Powered; Un-Light:No Power

Switch Mode

Lighting: VLAN; Un-Light:OFF; Flashing:Extend

Indicator- 1-27 Green

Lighting:Connecting; Flashing:Data Transmit; Un-Light:Disconnect

Working Environment

2-4°F~122°F, 10%~90%，non-condensing

Product Dimensions

12.60*8.15*1.77inch

Net Weight

3.95lbs

Package List

1x 24 Ports PoE Switch; 1x Power Cord; 1x Mounting Ear; 1x User Manual

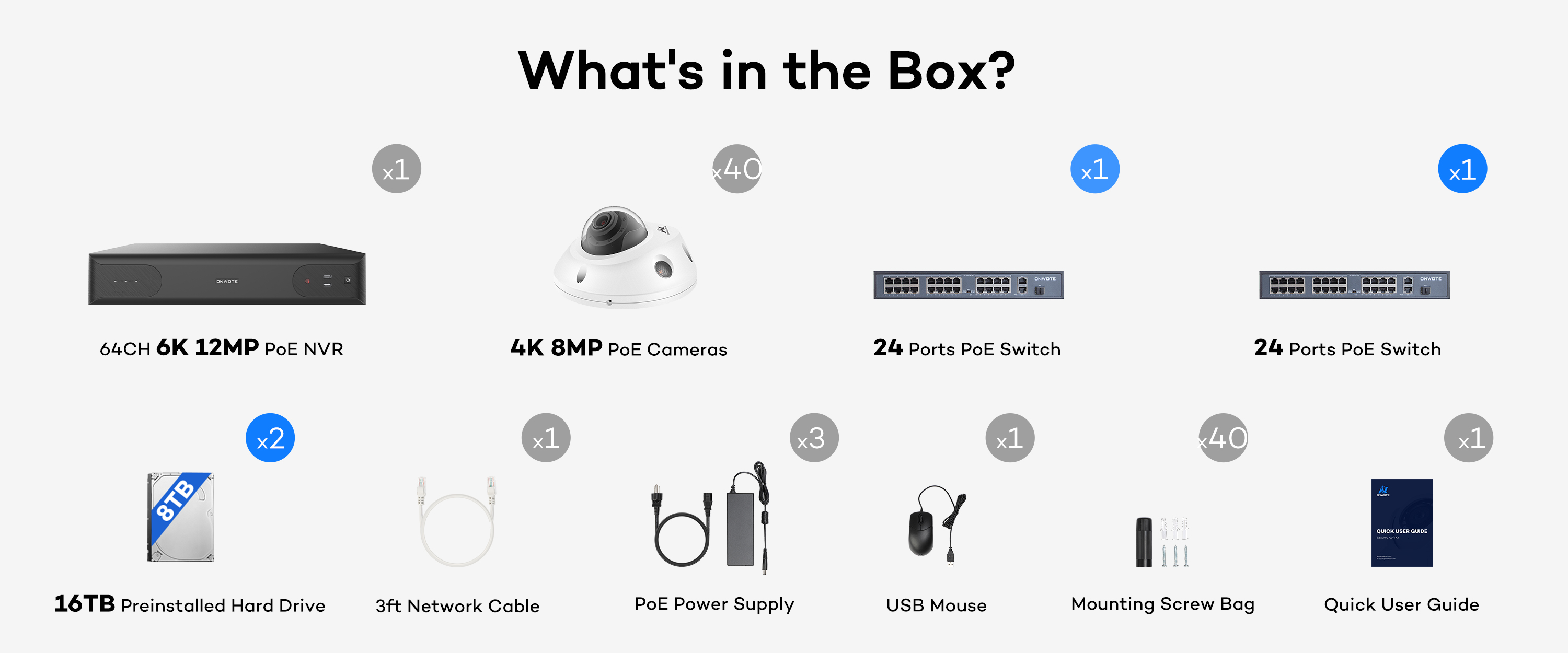

Packing List

Videos

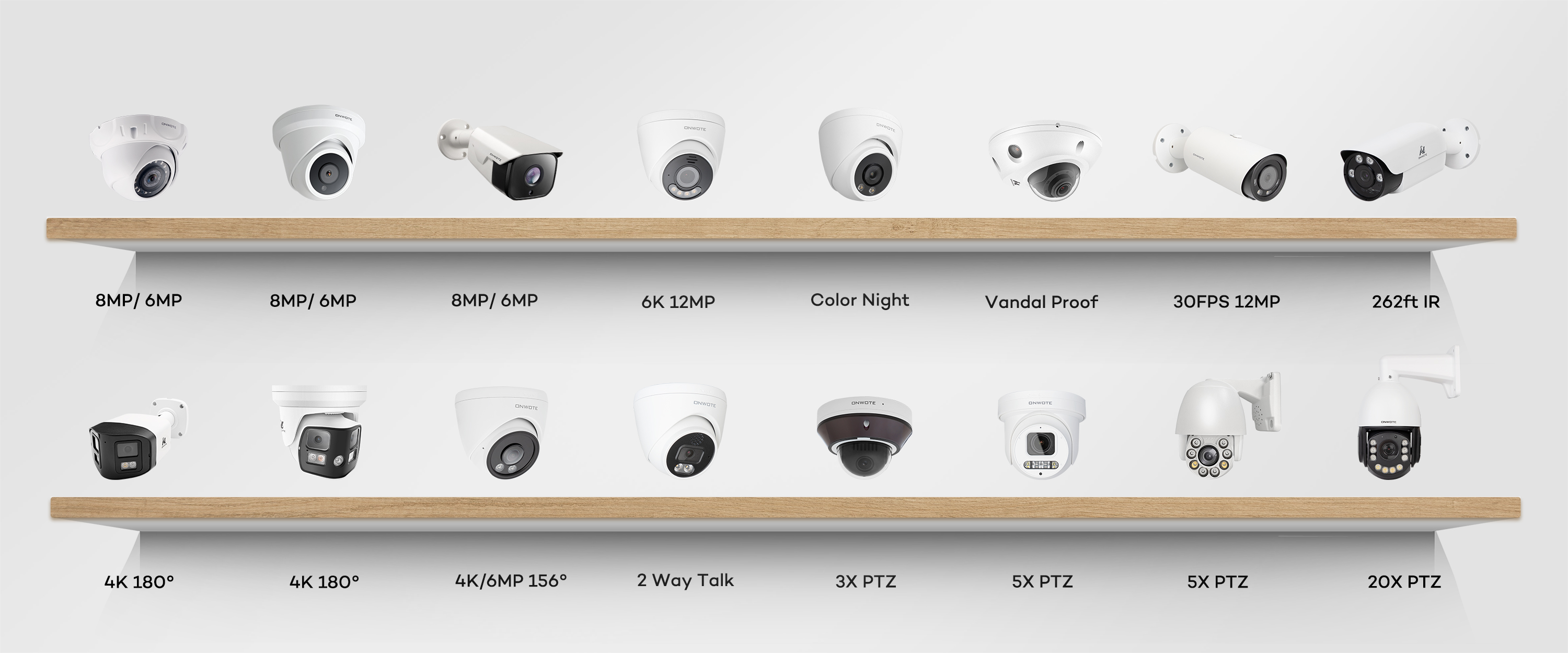

Add-on

$101.75 Save $14.24
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
180° Dual-Lens 4K 8MP PoE Camera

$163.19 Save $26.80
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
156° 4K 8MP PoE Camera

$107.79 Save $12.20
6K/12MP PoE Camera

$138.23 Save $21.76
6K/12MP PoE Camera

$138.23 Save $21.76
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60
4K/8MP PoE Camera

$78.39 Save $11.60

Comparison

	64CH 4K PoE System $ 4512.99	64CH 4K PoE System $ 4084.99	64CH 6MP PoE System $ 3894.99	32CH 4K PoE System $ 2799.99
Resolution	8MP@20FPS	6MP@25FPS	6MP@25FPS	8MP@20FPS
Field of View	134°(D), 111°(H), 59°(V)	122°(D), 102°(Hl), 55°(V)	122°(D), 102°(Hl), 55°(V)	134°(D), 111°(H), 59°(V)
Audio	Record Audio	Built-in Microphone	Built-in Microphone	Built-in Microphone
AI Function	Face Recognition& AcuSearch	AI Human Vehicle Detection	AI Human Vehicle Detection	Face Recognition& AcuSearch
NVR Channels	64-CH 16K 32MP NVR	64-CH 6K 12MP NVR	64-CH 6K 12MP NVR	32-CH 6K 12MP NVR
HDD Pre-installed	16TB HDD	16TB HDD	16TB HDD	8TB HDD
Storage Capacity	Support 80TB via 8 SATA Ports	Support 80TB via 8 SATA Ports	Support 80TB via 8 SATA Ports	Support 20TB via 2 SATA Ports
PoE Switch	2Pcs 24 Ports PoE Switch	2Pcs 24 Ports PoE Switch	2Pcs 24 Ports PoE Switch	8 Ports + 24 Ports PoE Switch

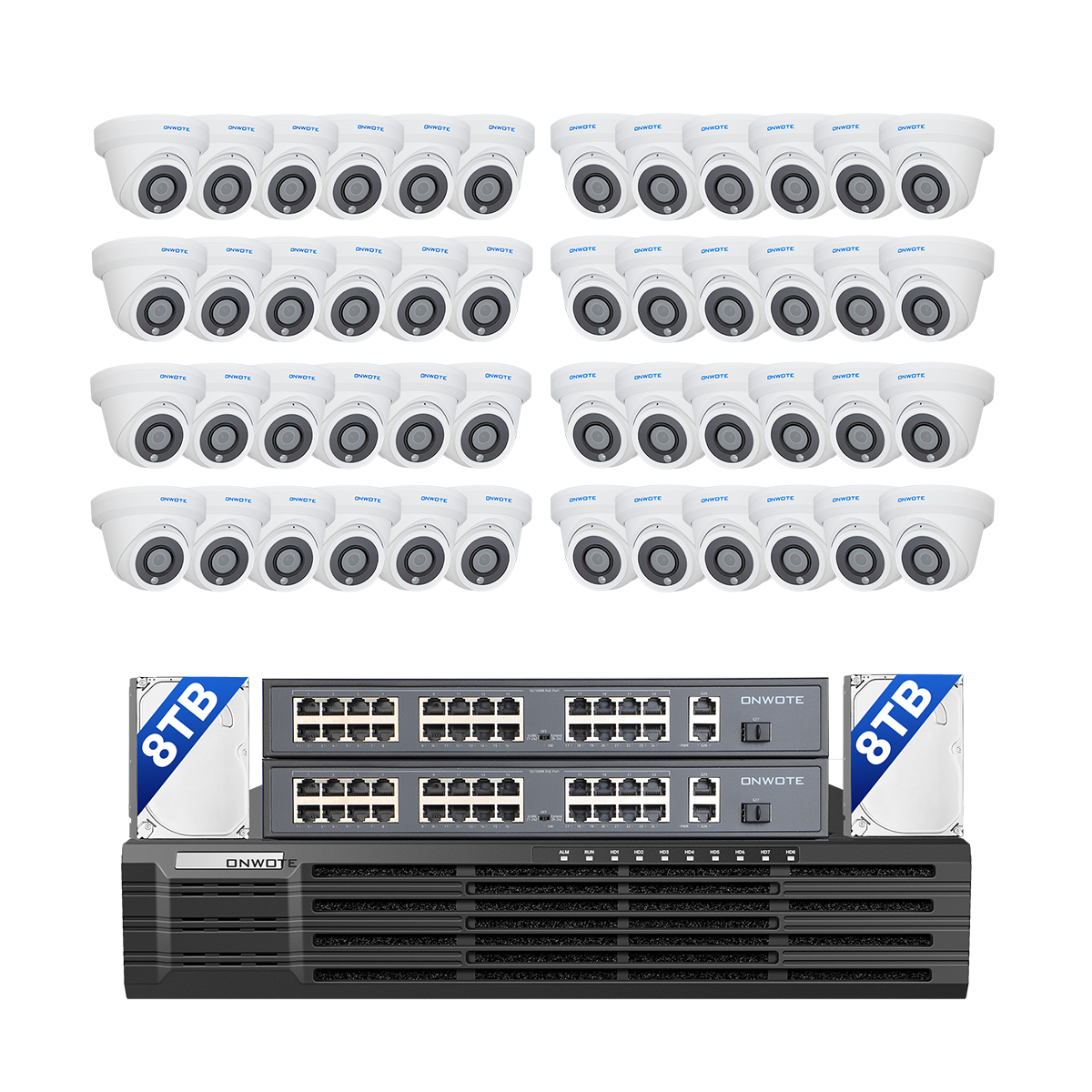

64CH 4K PoE System $ 4512.99
64CH 4K PoE System $ 4084.99

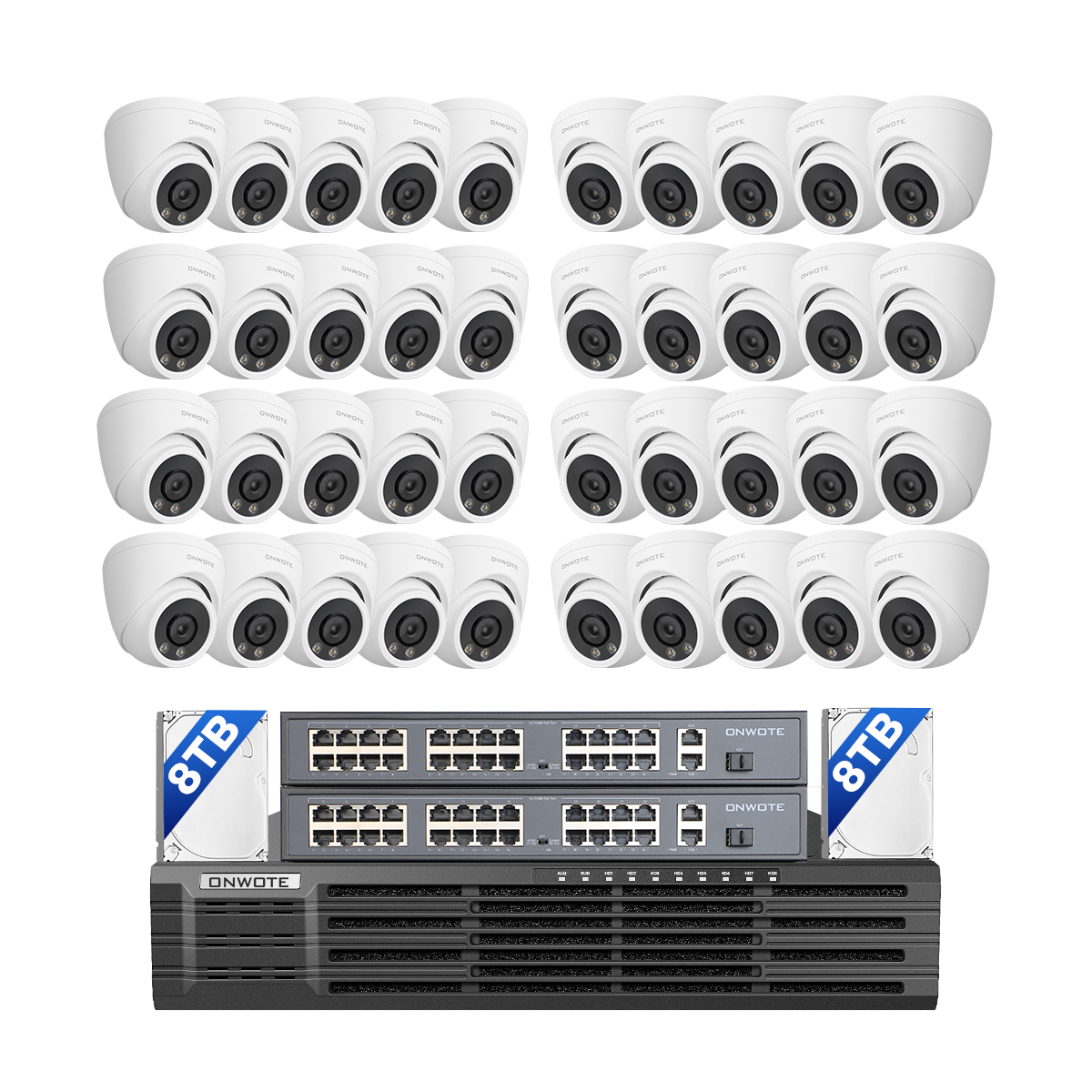

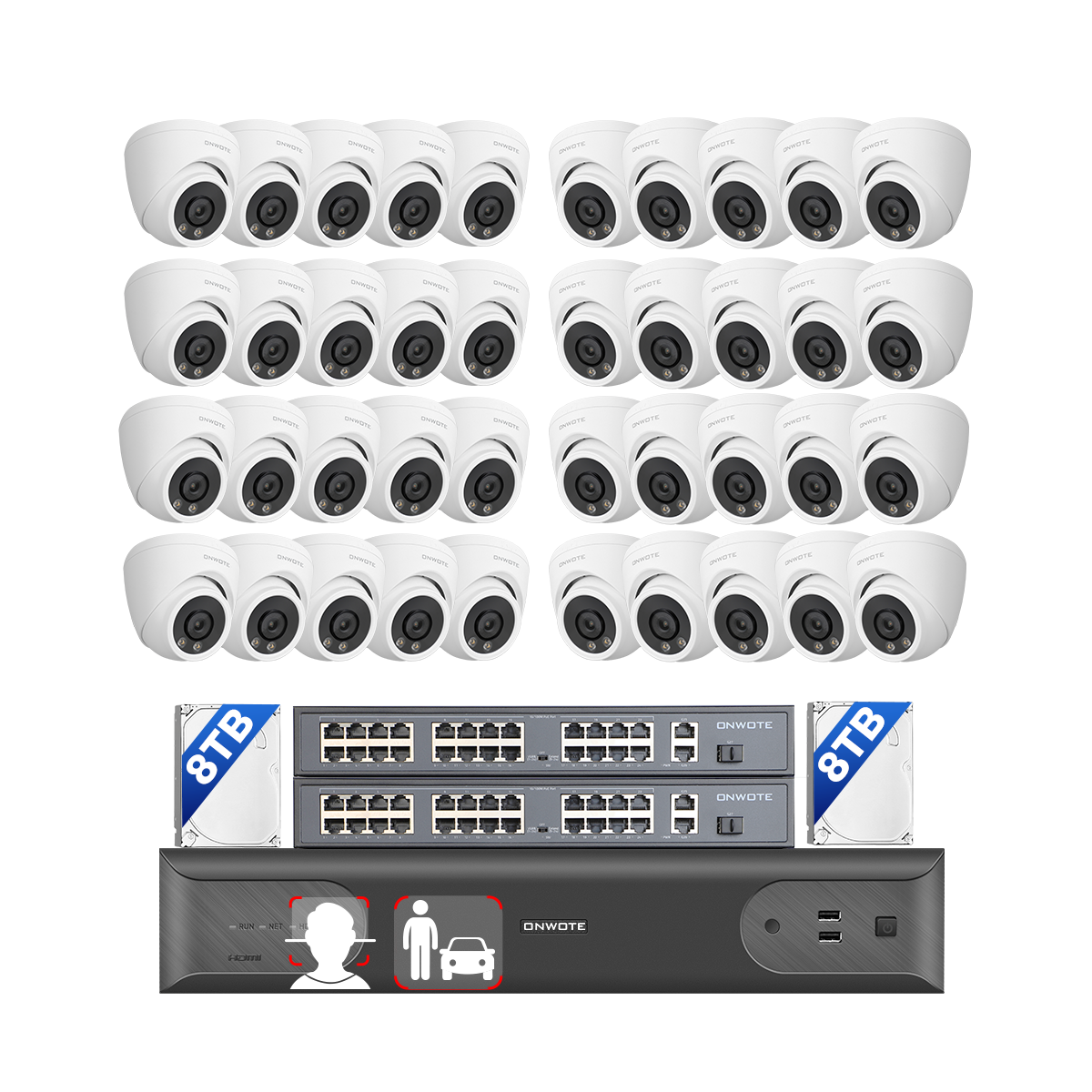

64CH 6MP PoE System $ 3894.99
32CH 4K PoE System $ 2799.99

Resolution	Field of View	Audio	AI Function	NVR Channels	HDD Pre-installed	Storage Capacity	PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Record Audio	Face Recognition& AcuSearch	64-CH 16K 32MP NVR	16TB HDD	Support 80TB via 8 SATA Ports	2Pcs 24 Ports PoE Switch
6MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	AI Human Vehicle Detection	64-CH 6K 12MP NVR	16TB HDD	Support 80TB via 8 SATA Ports	2Pcs 24 Ports PoE Switch
6MP@25FPS	122°(D), 102°(Hl), 55°(V)	Built-in Microphone	AI Human Vehicle Detection	64-CH 6K 12MP NVR	16TB HDD	Support 80TB via 8 SATA Ports	2Pcs 24 Ports PoE Switch
8MP@20FPS	134°(D), 111°(H), 59°(V)	Built-in Microphone	Face Recognition& AcuSearch	32-CH 6K 12MP NVR	8TB HDD	Support 20TB via 2 SATA Ports	8 Ports + 24 Ports PoE Switch
